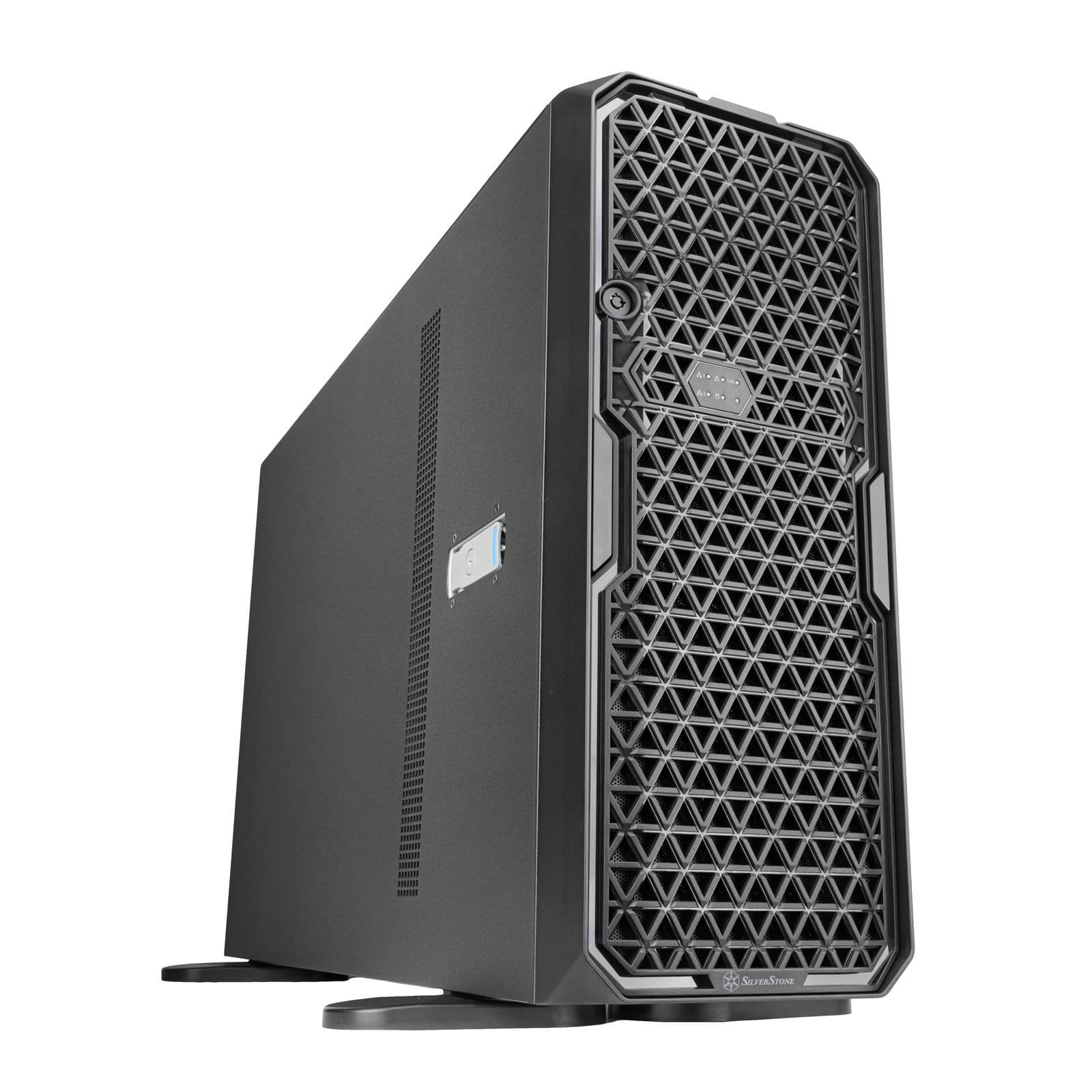

The SilverStone SST-WS380-E is a professional workstation chassis designed for data-intensive applications, high-performance computing, storage servers, and NAS environments. Its combination of extensive drive capacity, workstation-class component compatibility, robust cooling support, and secure construction makes it an ideal foundation for powerful, reliable systems.

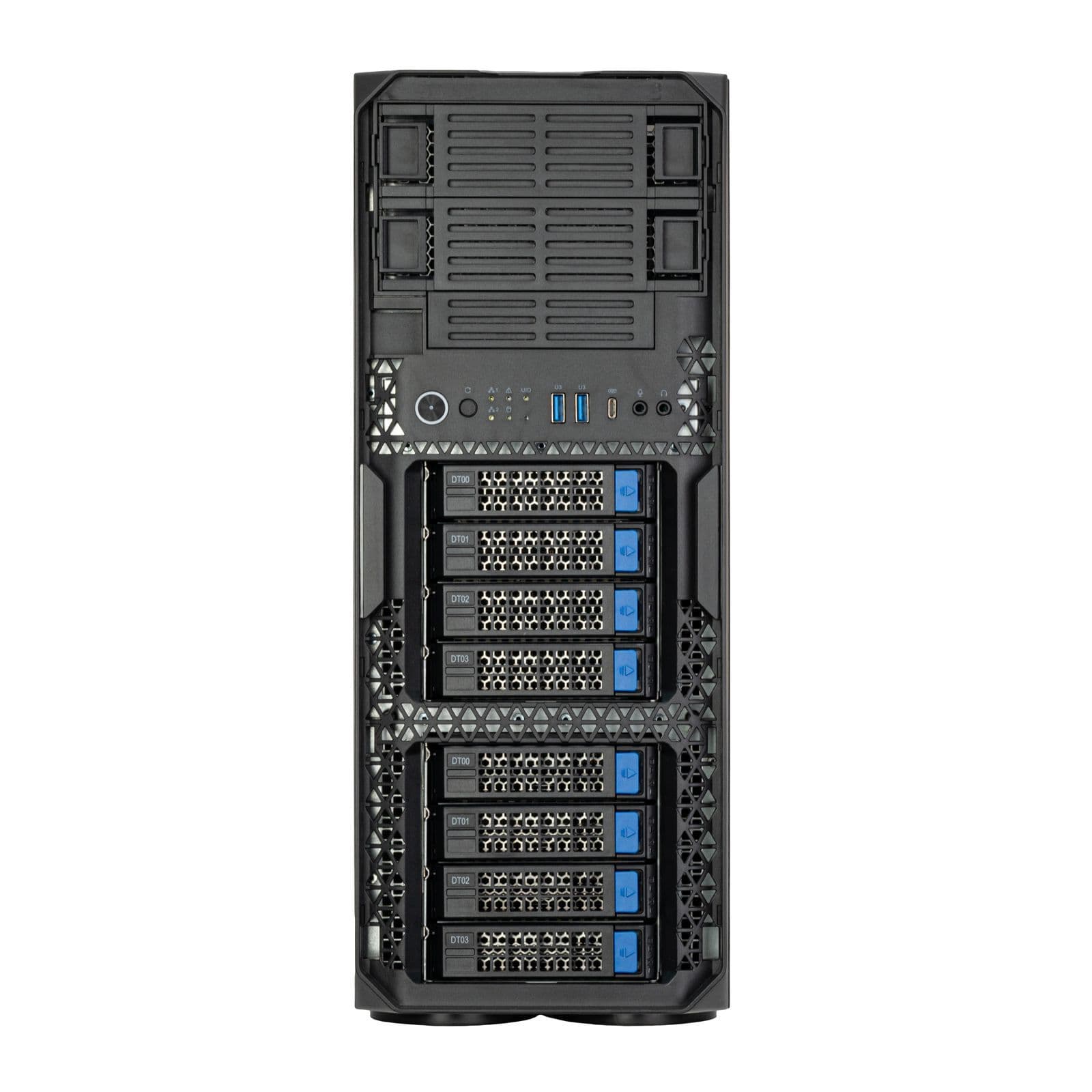

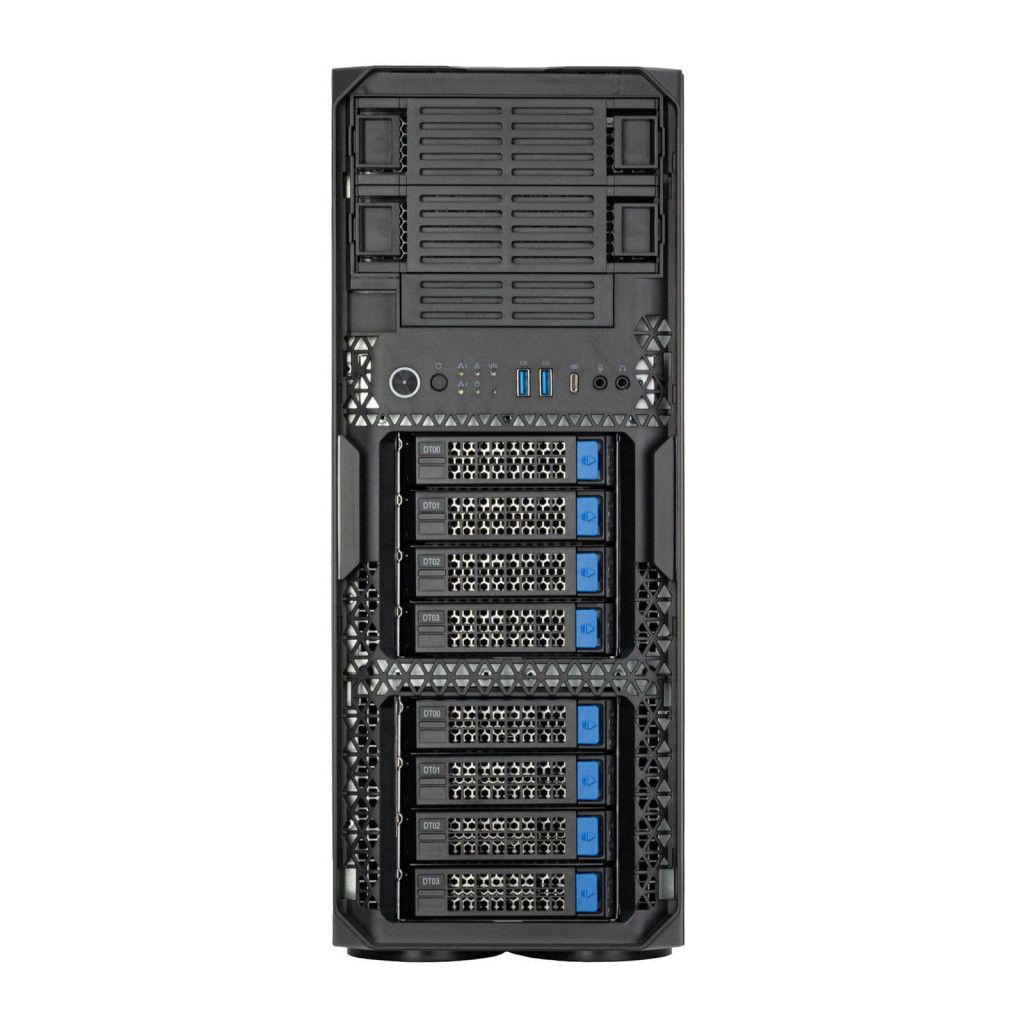

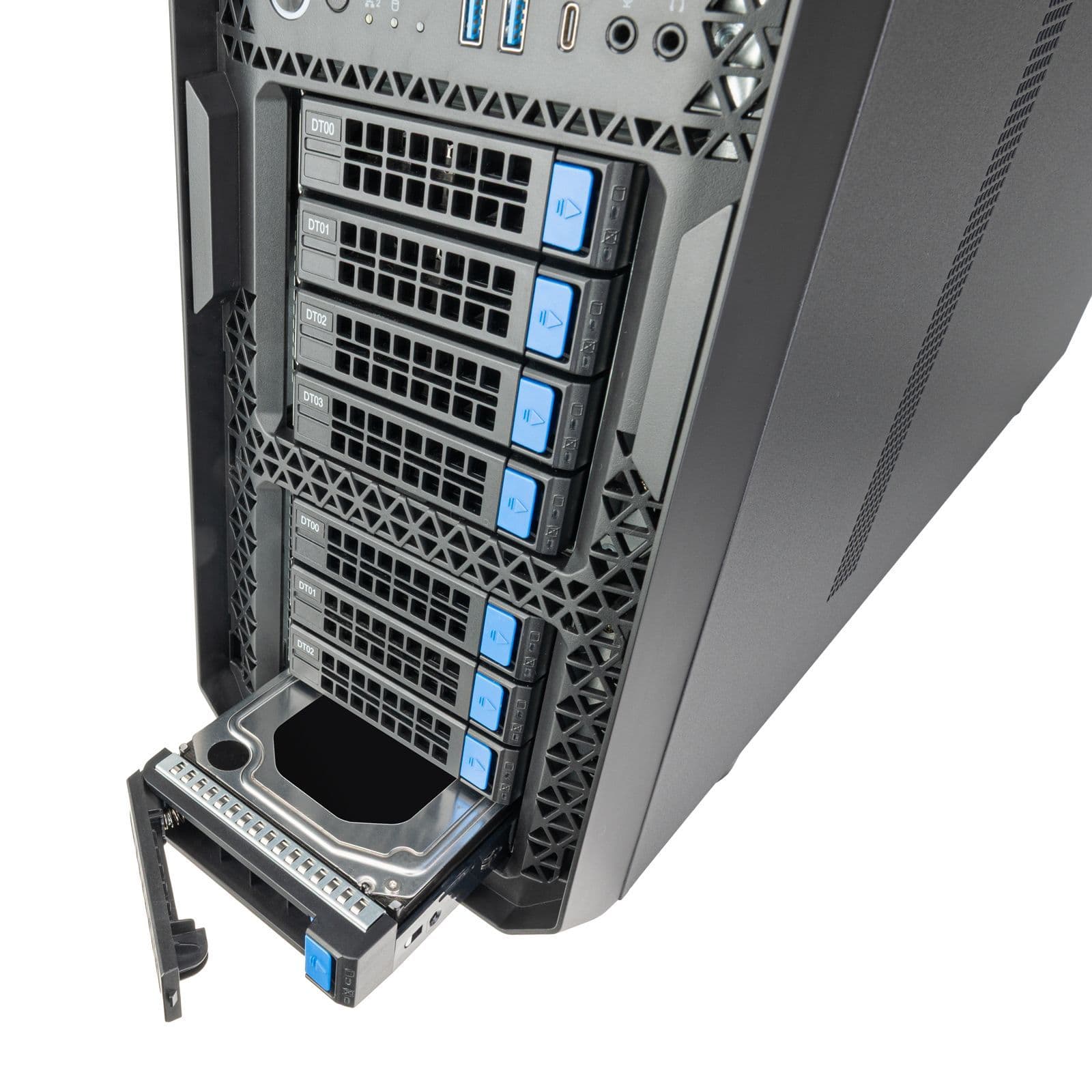

Eight front-accessible hot-swappable drive trays support both 2.5-inch and 3.5-inch SAS or SATA SSDs and hard drives. The integrated backplane uses two 12Gb/s Mini-SAS HD SFF-8643 connections and supports SGPIO monitoring, providing fast, stable, and easily manageable storage connectivity.
The SilverStone SST-WS380-E is a professional workstation chassis designed for data-intensive applications, high-performance computing, storage servers, and NAS environments. Its combination of extensive drive capacity, workstation-class component compatibility, robust cooling support, and secure construction makes it an ideal foundation for powerful, reliable systems.
Eight front-accessible hot-...
The SilverStone SST-WS380-E is a professional workstation chassis designed for data-intensive applications, high-performance computing, storage servers, and NAS environments. Its combination of extensive drive capacity, workstation-class component compatibility, robust cooling support, and secure construction makes it an ideal foundation for powerful, reliable systems.
Eight front-accessible hot-...

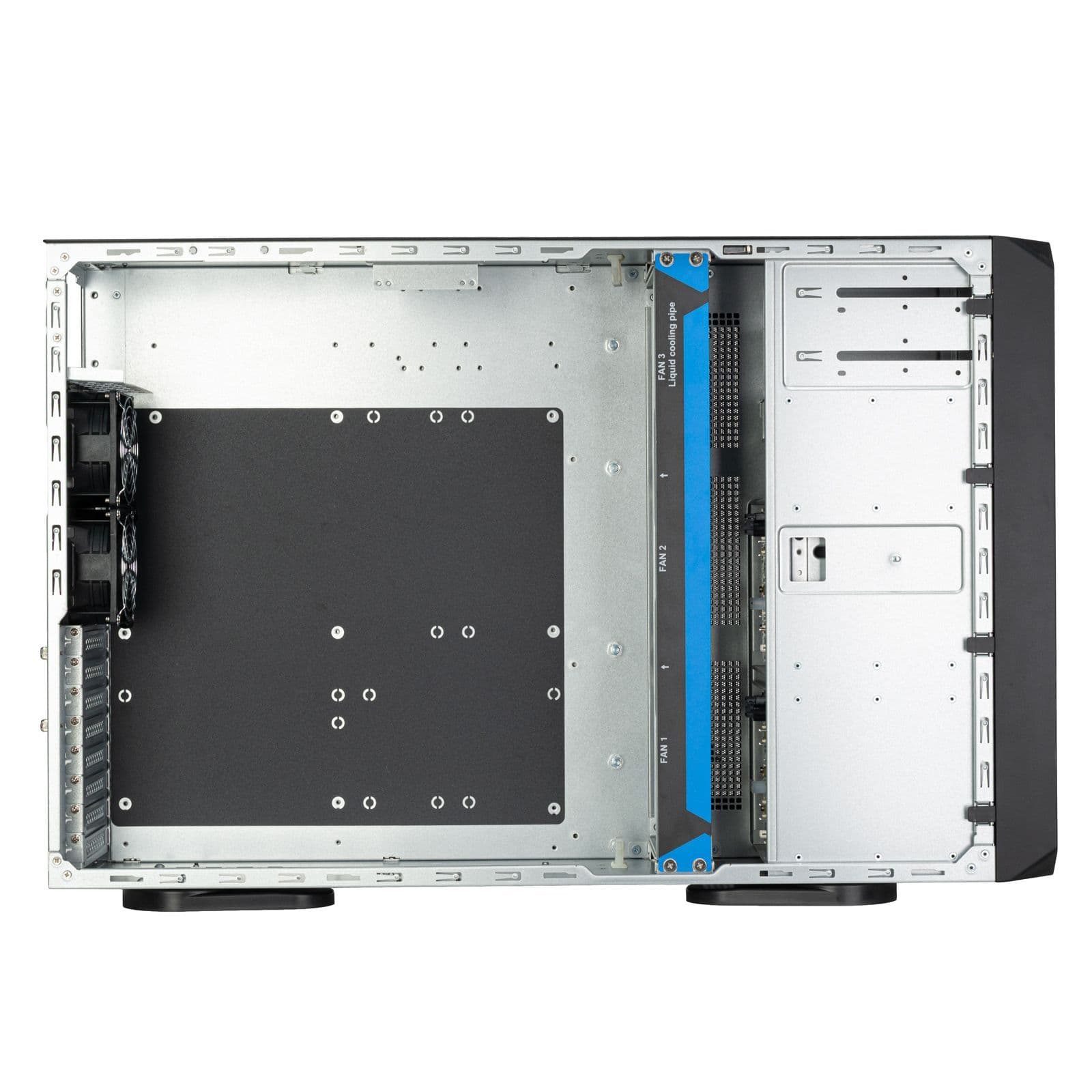

With support for motherboards up to SSI-EEB and Extended ATX, the WS380-E can accommodate demanding workstation and server configurations. Eight PCI expansion slots and support for graphics or interface cards up to 370mm in length make it suitable for multi-GPU systems, RAID controllers, high-speed networking cards, and other professional hardware.

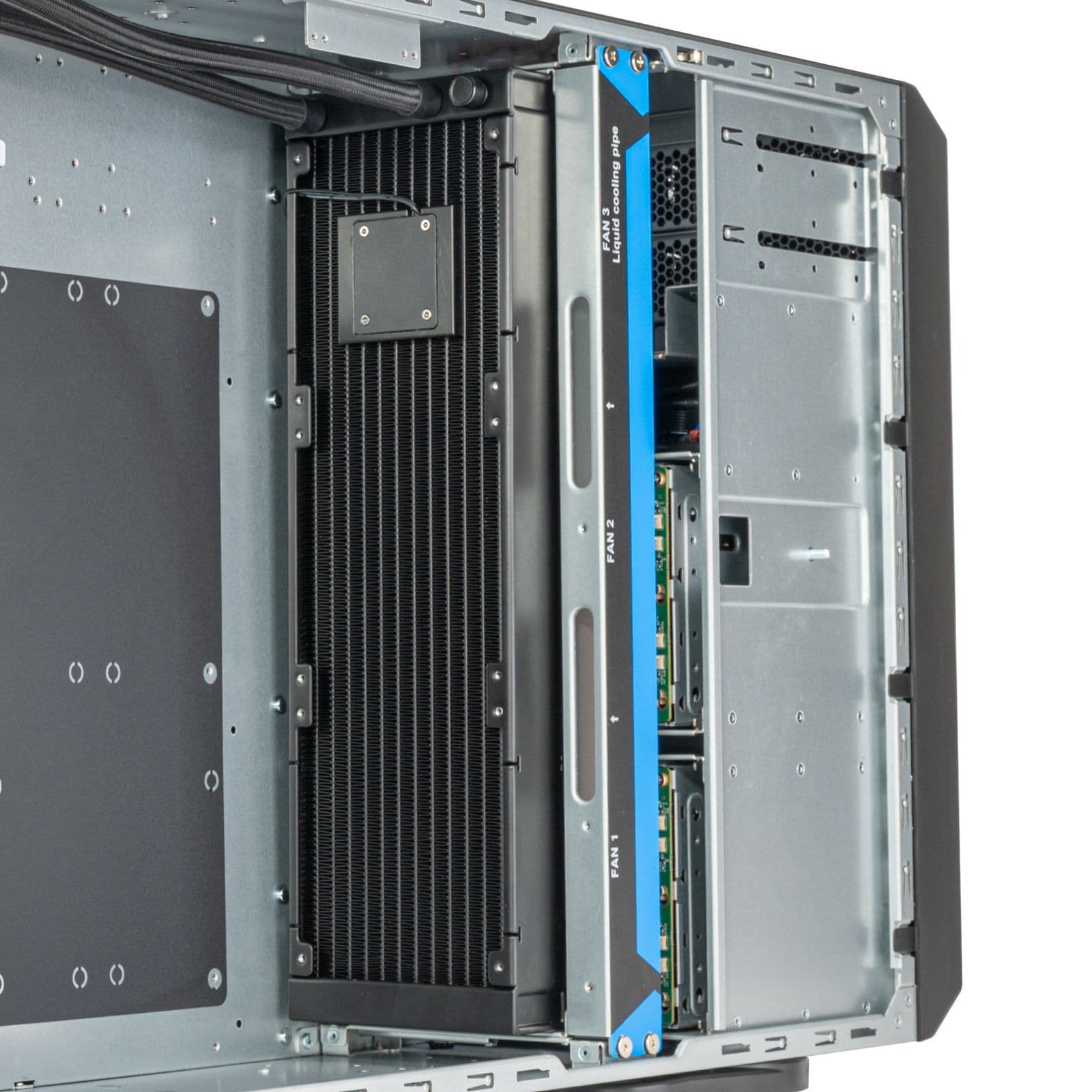

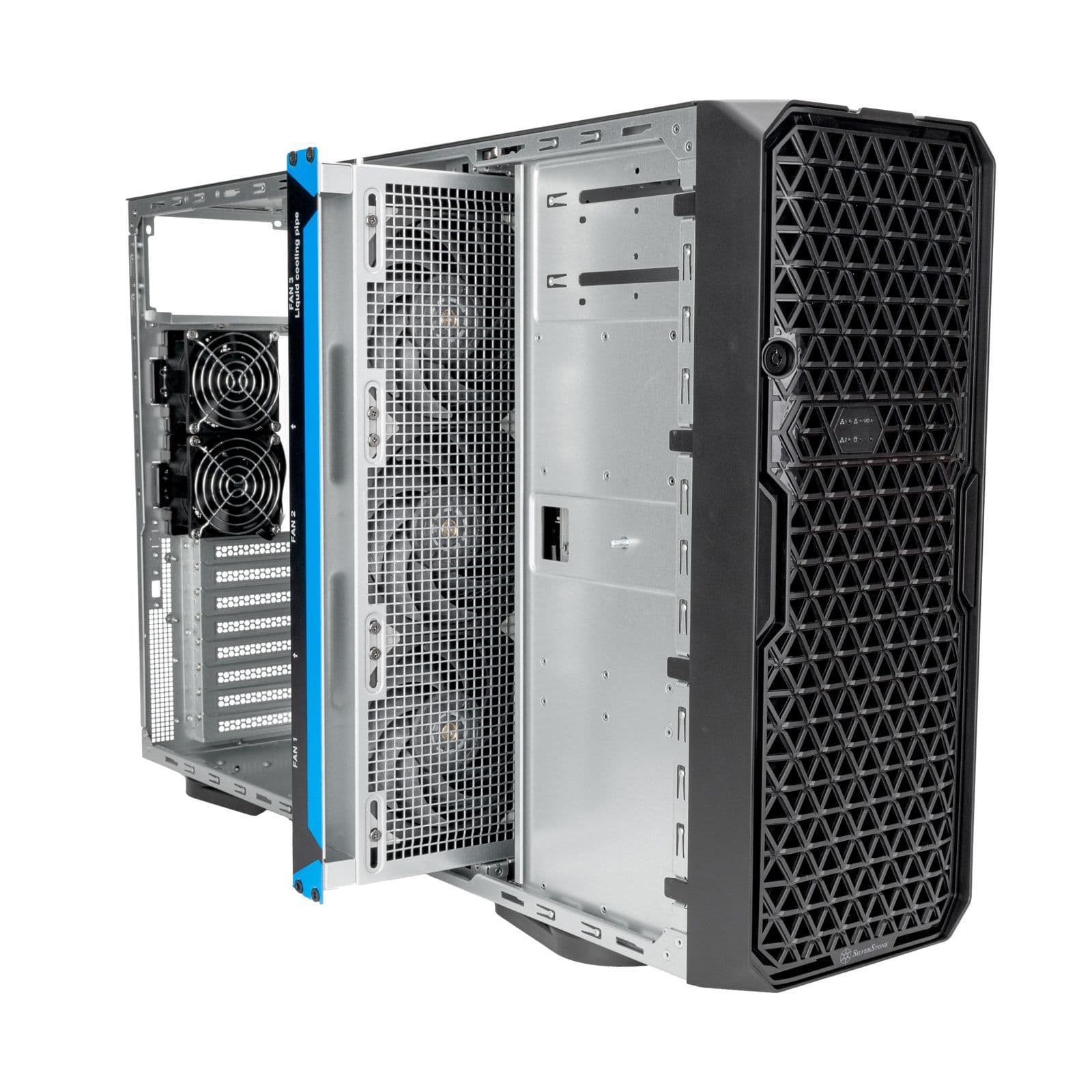

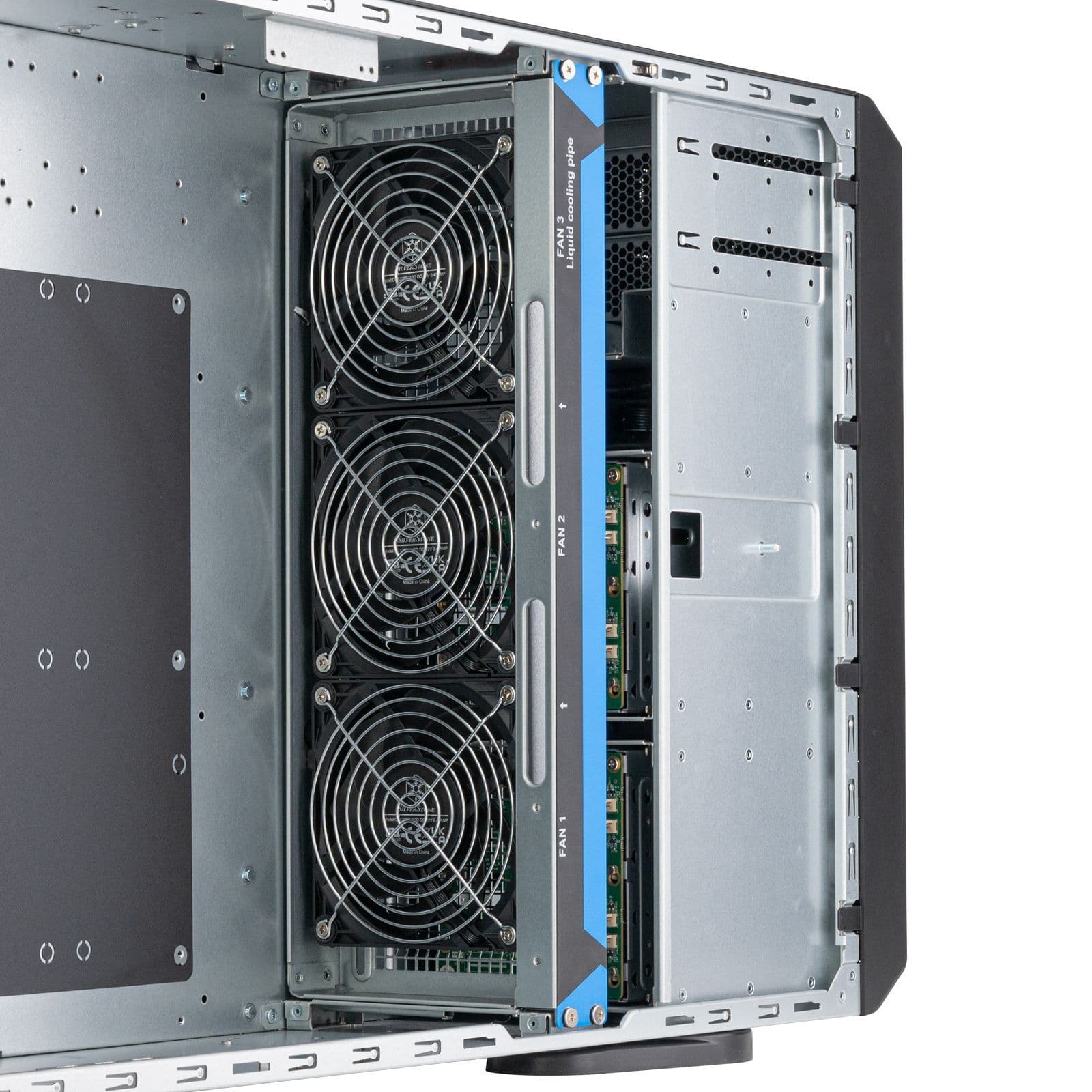

Cooling performance is supported by three included 120mm internal fans and two included 80mm rear fans. The chassis also accommodates 120mm, 240mm, or 360mm liquid-cooling radiators, helping maintain reliable operating temperatures during sustained workloads.
For flexible power configurations, the WS380-E supports both standard PS2 ATX power supplies and 2U redundant power supplies. Two external 5.25-inch bays and one external 3.5-inch bay provide additional installation options for optical drives, control panels, storage devices, or other accessories.

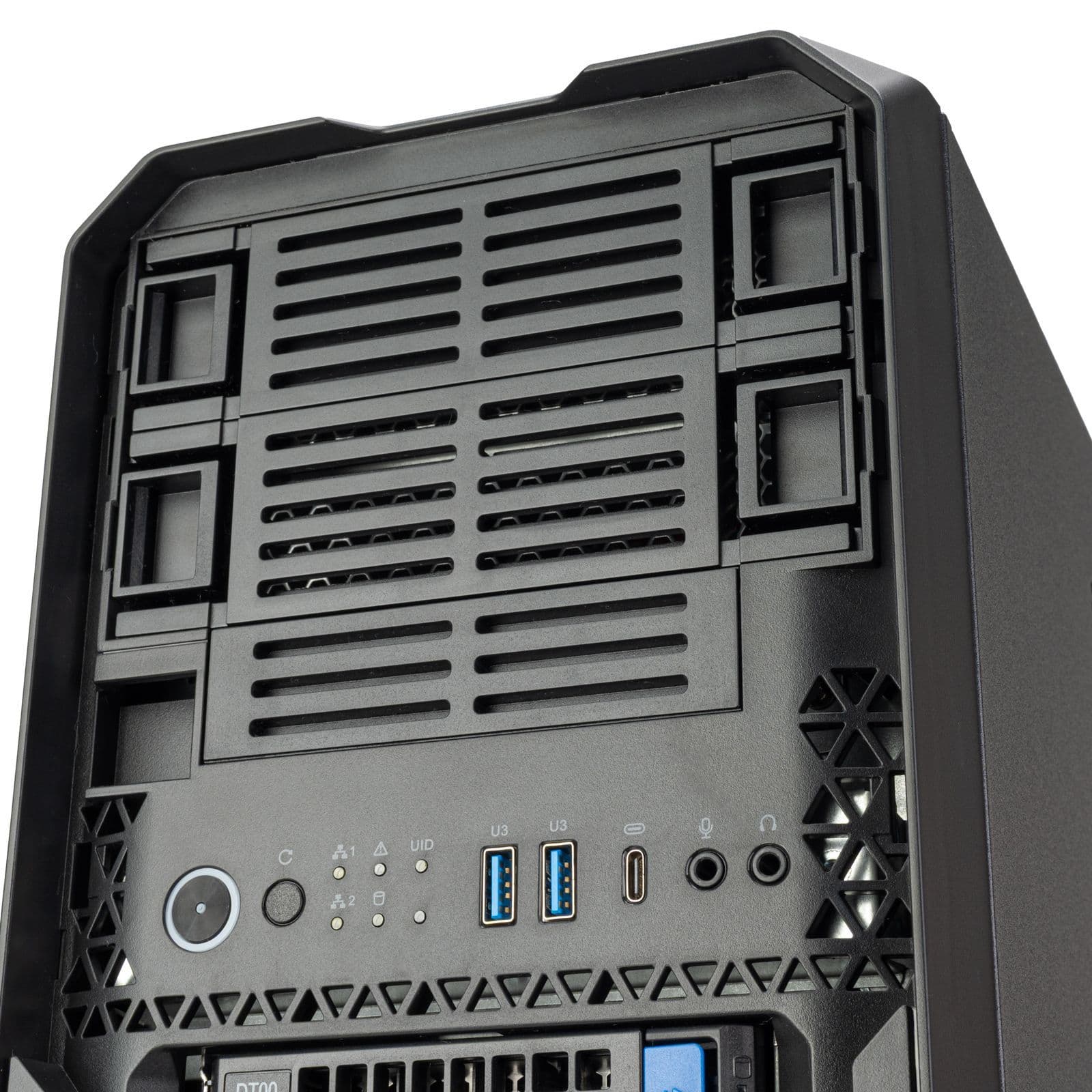

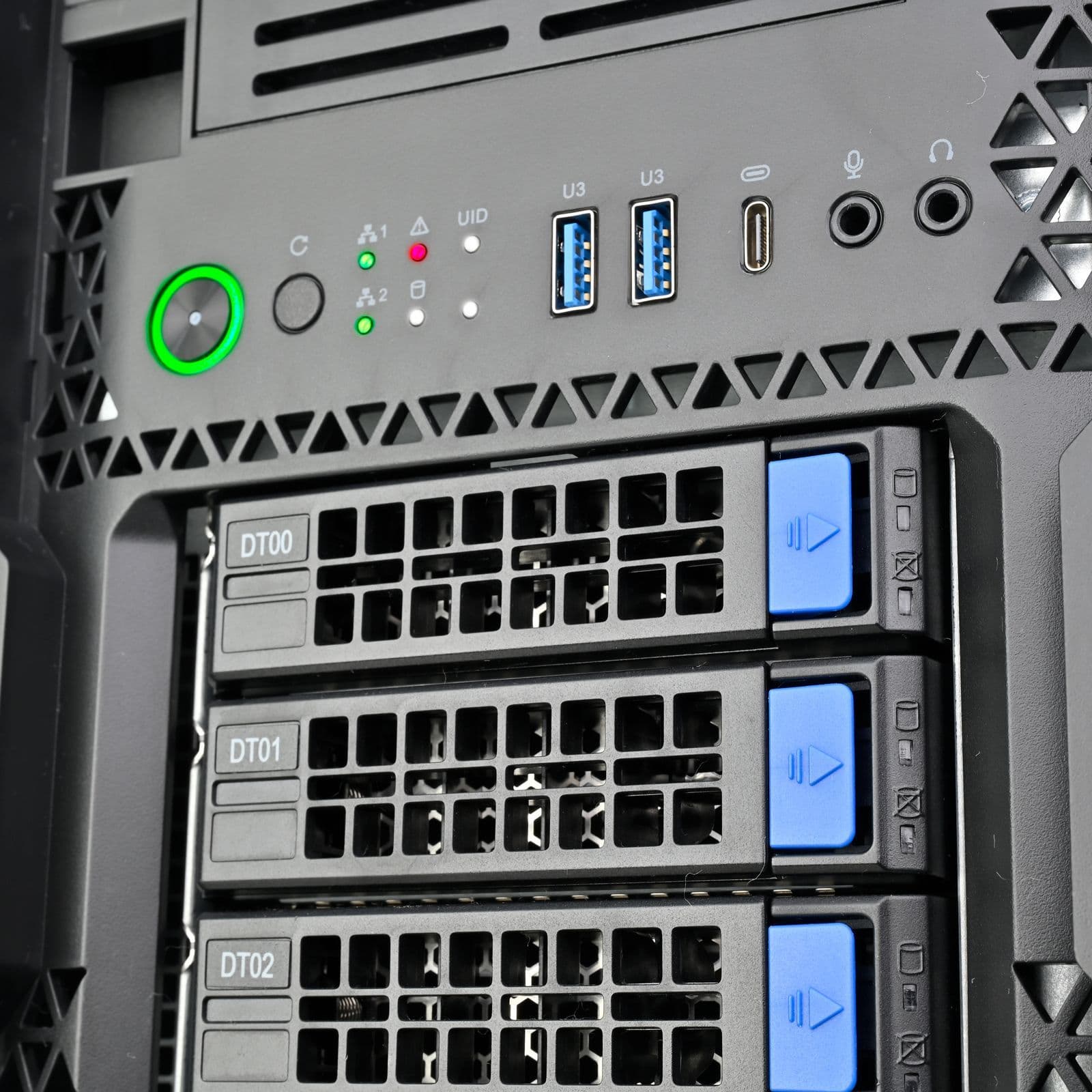

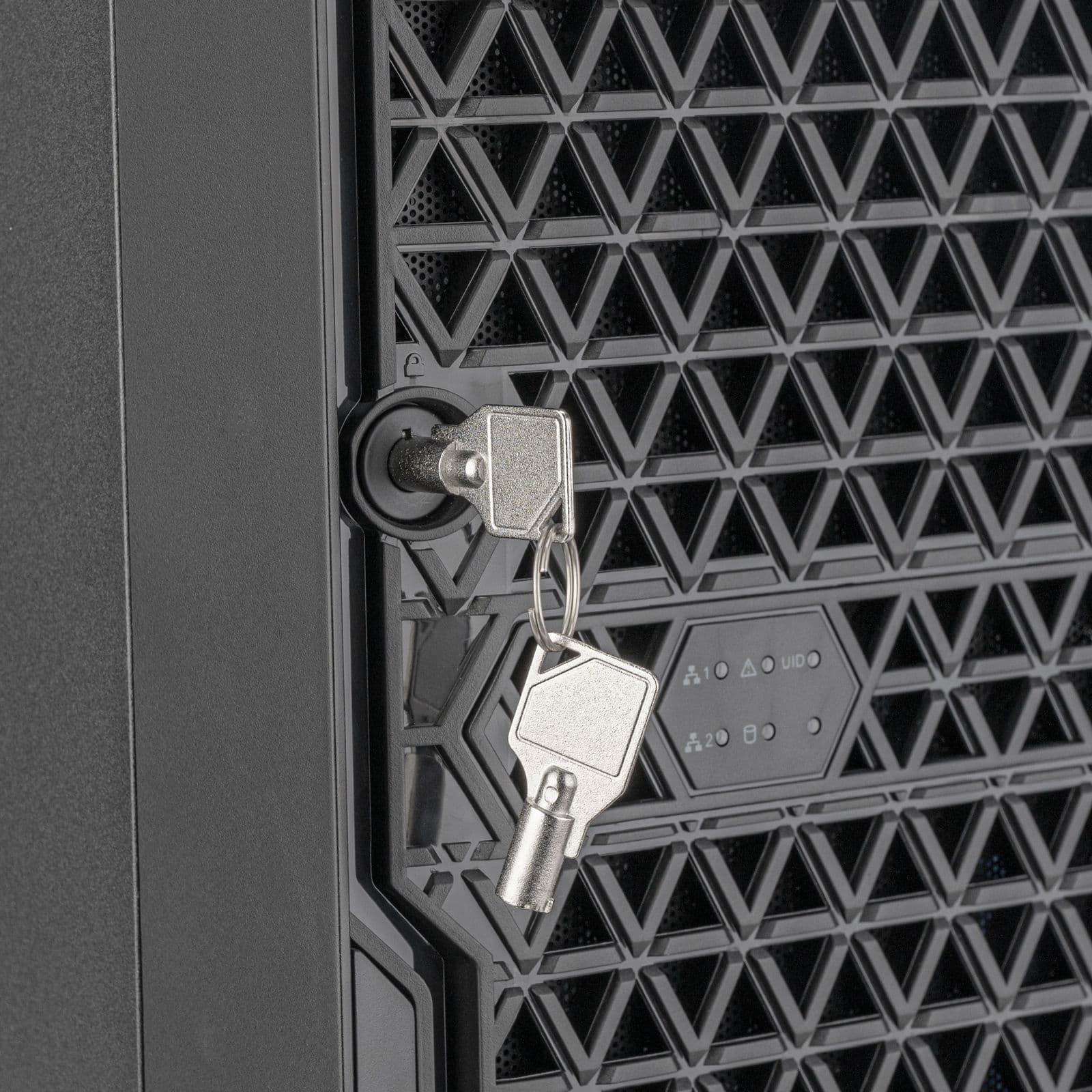

A lockable front door helps protect the hot-swappable storage bays from unauthorized access. Convenient front connectivity includes one USB Type-C port, two USB 3.0 ports, dedicated audio connections, system controls, and comprehensive status indicators.
Key Features
| Specification | |
|---|---|
| General | |
| Model | SST-WS380-E |
| Product Type | Professional Workstation & Storage Chassis |
| Construction | |
| Front Panel Material | Plastic |
| Chassis Material | Galvanised Steel |
| Steel Thickness | 1.0–1.2 mm |
| Motherboard Support | |
| Compatible Formats | SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX, Mini-ITX |
| Drive Bays & Storage | |
| Hot-Swap Bays | 8 × 2.5″/3.5″ SAS/SATA SSD/HDD |
| Backplane Ports | 8 × SAS/SATA |
| Host Connections | 2 × Mini-SAS HD (SFF-8643) |
| Transfer Rate | Up to 12 Gb/s |
| Management Support | SGPIO |
| Supported Interfaces | SAS-1/2/3, SATA I/II/III |
| Backplane Power | 2 × 4-pin Peripheral Connectors |
| External 5.25″ Bays | 2 |
| External 3.5″ Bays | 1 |
| Expansion | |
| Expansion Slots | 8 |
| Max Expansion Card Length | 370 mm |
| Max Expansion Card Width | 150 mm |
| Multi-GPU Support | Yes |
| Cooling Support | |
| Pre-installed Fans | 3 × 120 mm (internal), 2 × 80 mm (rear) |
| Radiator Support | 120 mm, 240 mm or 360 mm |
| Max CPU Cooler Height (with GPU Holder) | 134 mm |
| Max CPU Cooler Height (without GPU Holder) | 145 mm |
| Power Supply | |
| Supported PSU | PS2 ATX or 2U Redundant PSU |
| Front I/O | |
| Power / Reset | Power Button & Reset Button |
| USB Type-C | 1 |
| USB 3.0 Type-A | 2 |
| Audio | 1 × Headphone/Speaker, 1 × Microphone |
| Status LEDs | |
| Power | Green |
| HDD Activity | White |
| LAN | 2 × Green |
| UID | White |
| System Error | Red |
| Drive Tray LEDs | Green (Power), Blue Blinking (Activity) |
| Security | |
| Front Door | Lockable |
| Dimensions & Weight | |
| Dimensions (H × W × D) | 453 × 175 × 683 mm |
| Dimensions (Imperial) | 17.83 × 6.89 × 26.89 in |
| Net Weight | 16.62 kg |
| Additional Information | |
| Internal USB Type-C Cable | 800 mm |
| Installation Note | For maximum USB Type-C performance, avoid using excessively long external cables when connecting storage devices. |
