Well-equipped drive bays

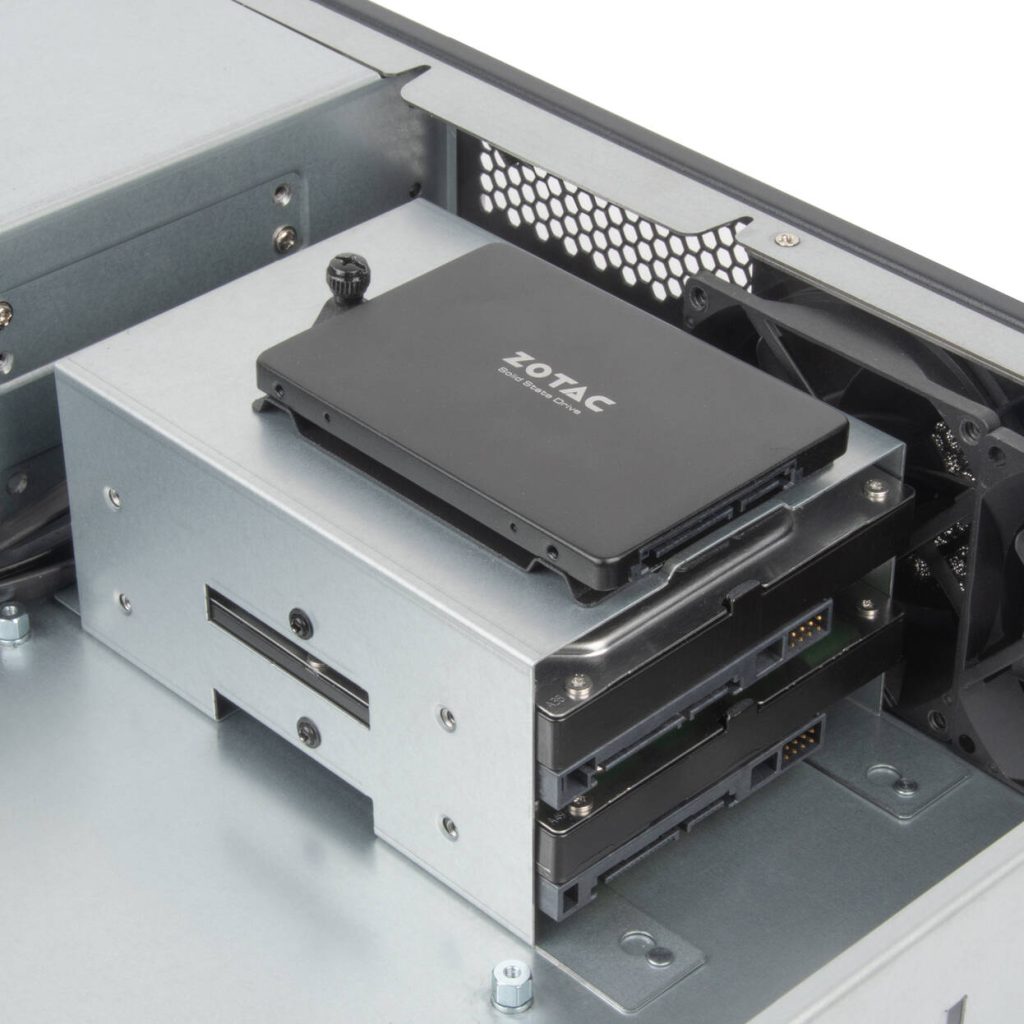

Supports up to 2 x 5.25" drives externally, and up to 2 x 3.5" HHDs & 1 x 2.5" SSD internally
Outstanding cooling capabilities
A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system
Well-equipped drive bays
Supports up to 2 x 5.25" drives externally, and up to 2 x 3.5" HHDs & 1 x 2.5" SSD internally
Outstanding cooling capabilities
A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system
Well-equipped drive bays
Supports up to 2 x 5.25" drives externally, and up to 2 x 3.5" HHDs & 1 x 2.5" SSD internally
Outstanding cooling capabilities
A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system
Features:
– Supports ATX (PS2) / 2U single / 2U redundant power supplies
– Supports 1 x 2.5″ SSD and up to 2 x 3.5″ HDD
– 5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
– Dual 5.25″ expansion bay brings flexibility in installing 5.25″ devices
– Built-in fan bracket supports up to two 80mm x 25mm fans
– Supports Micro-ATX motherboard (9.6″ x 9.6″)

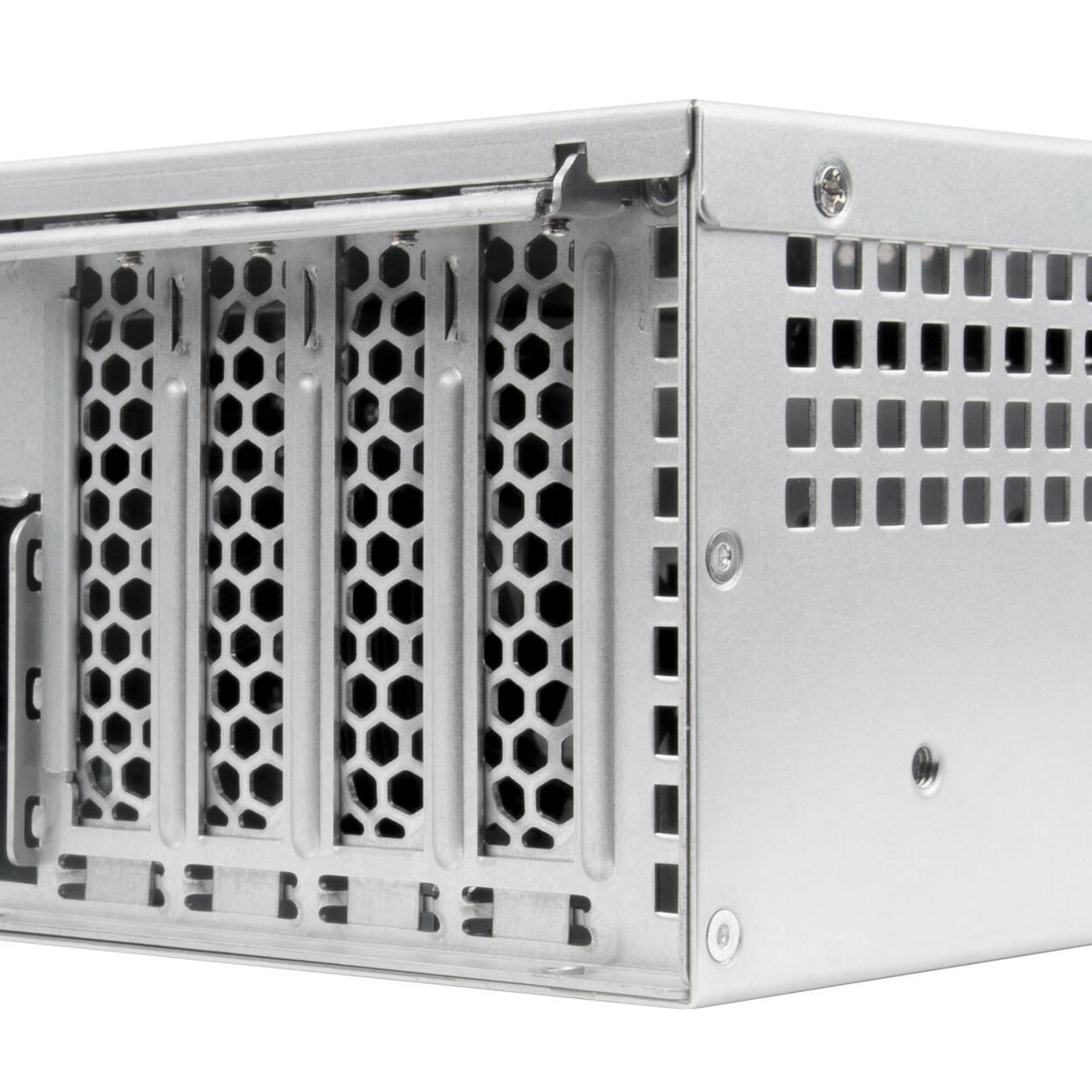

– Supports 4 low-profile PCI / PCIe slots

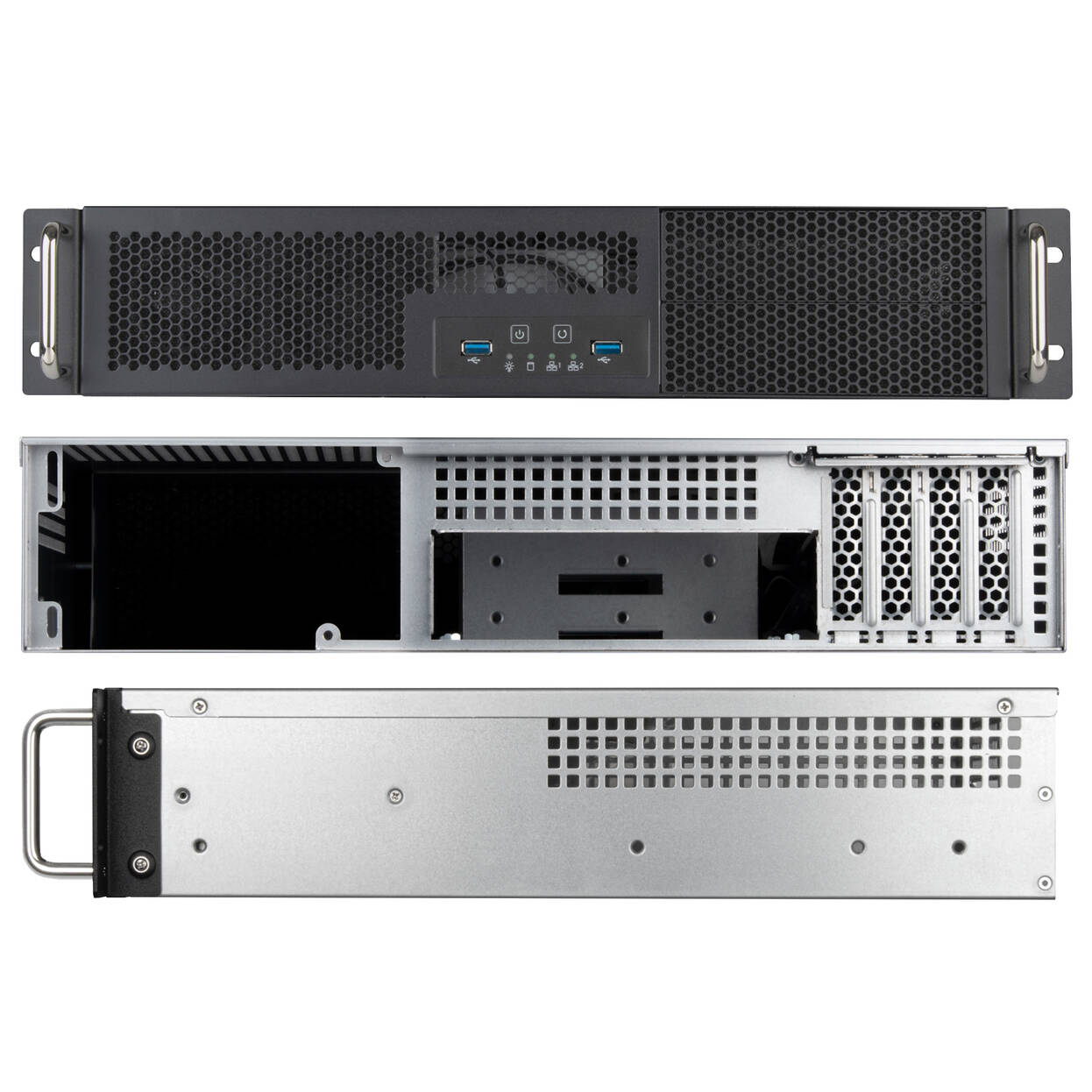

– 2U dual 5.25″ drive bay Micro-ATX rackmount industrial server chassis with USB 3.1 Gen1 interface
Well-equipped drive bays
Supports up to 2 x 5.25″ drives externally, and up to 2 x 3.5″ HHDs & 1 x 2.5″ SSD internally
Outstanding cooling capabilities
A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system
Numerous PSU form factor compatibility
As a miniature sizing of the RM23-502, compatible PSU selection has greater flexibility than the original with support for ATX (PS2), 2U Single or 2U Redundant*
| Colour | |
|---|---|
| Primary Colour | Black |
| Secondary Colour | Silver |
| Dimensions & Weight | |
| Length / Depth | 400 mm |
| Width | 430 mm |
| Height | 88.5 mm |
| Weight | 4.8 kg |
| Case | |
| Case Type | Server Case |
| Motherboard Support | |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Internal Clearance | |
| Max. CPU Cooler Height | 65 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Rear Side |
| Cooling Support | |
| 80 mm Fan Support | 2 |
| Radiator Support | No |
| Drive Bays | |
| 2.5″ Internal Drive Bays | 1 |
| 3.5″ Internal Drive Bays | 2 |
| 5.25″ External Drive Bays | 2 |
| Hot Swap Drive Bays | No |
| External Ports | |
| USB 3.0 Type-A | 2 |
| Case Features | |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | No |
| Dust Filters Included | No |
| Noise Dampening | No |
| Materials | |
| Materials | Steel |
| Lighting & Control | |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Additional Contents | |
| Included Fans | None |
£131.88£109.90 Inc VatEx Vat
