SilverStone RM22-308 Rackmount Server Case, 2U, E-ATX - black
Distinctive front panel features 8 x hot-swappable 3.5” bays, 1 x slim ODD bay along with handle bars allowing for easy accessibility to the internal components
Distinctive front panel features 8 x hot-swappable 3.5” bays, 1 x slim ODD bay along with handle bars allowing for easy accessibility to the internal components
Earn 289 Points
We price match UK retailers. Try It Now!
- SKU: GESV-511
- MPN: SST-RM22-308
- EAN: 4710679813875
- Warranty: 12 Months
Details
Features:
– Backplane support for 8 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
– Supports eight 2.5″/3.5″ SAS/SATA HDD/SSD hot-swap trays
– Includes three 80mm x 38mm hot-swappable PWM fans
– Independent drive status LED
– Supports E-ATX or SSI-EEB motherboards
– Supports seven low profile PCI / PCIe slots

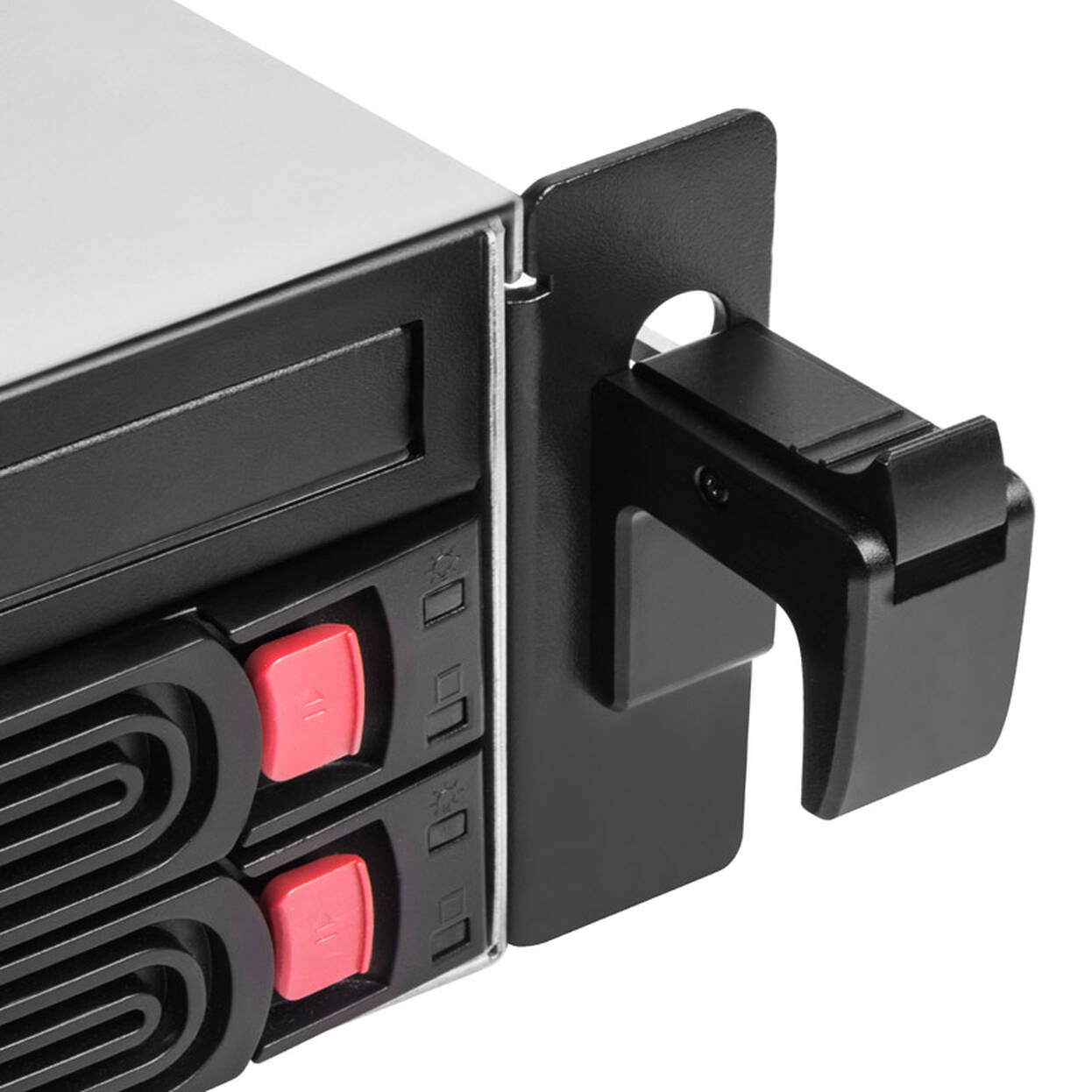

– Auto lock handle designed to easily fit and secure into server racks

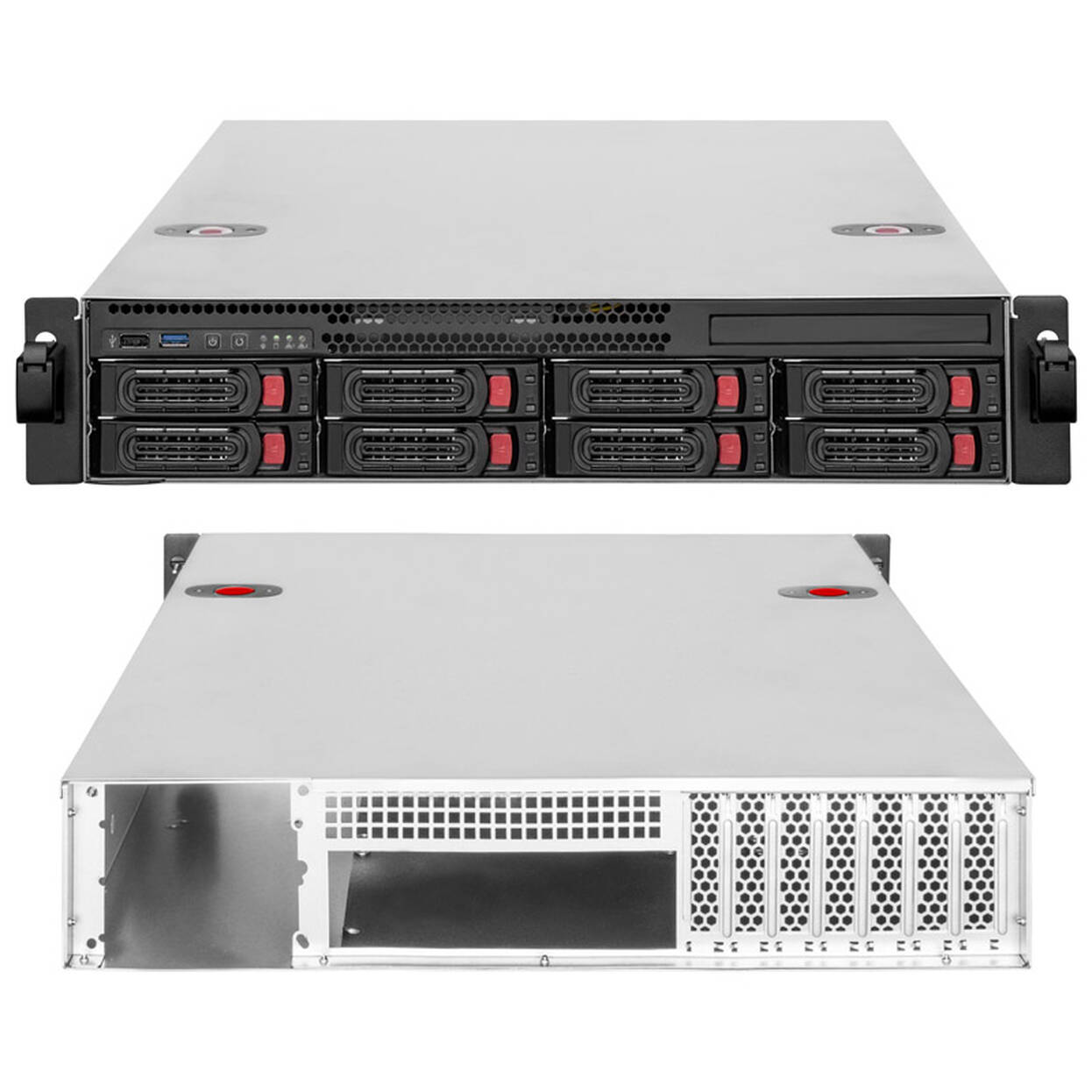

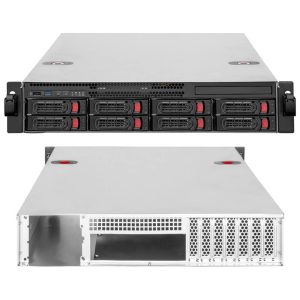

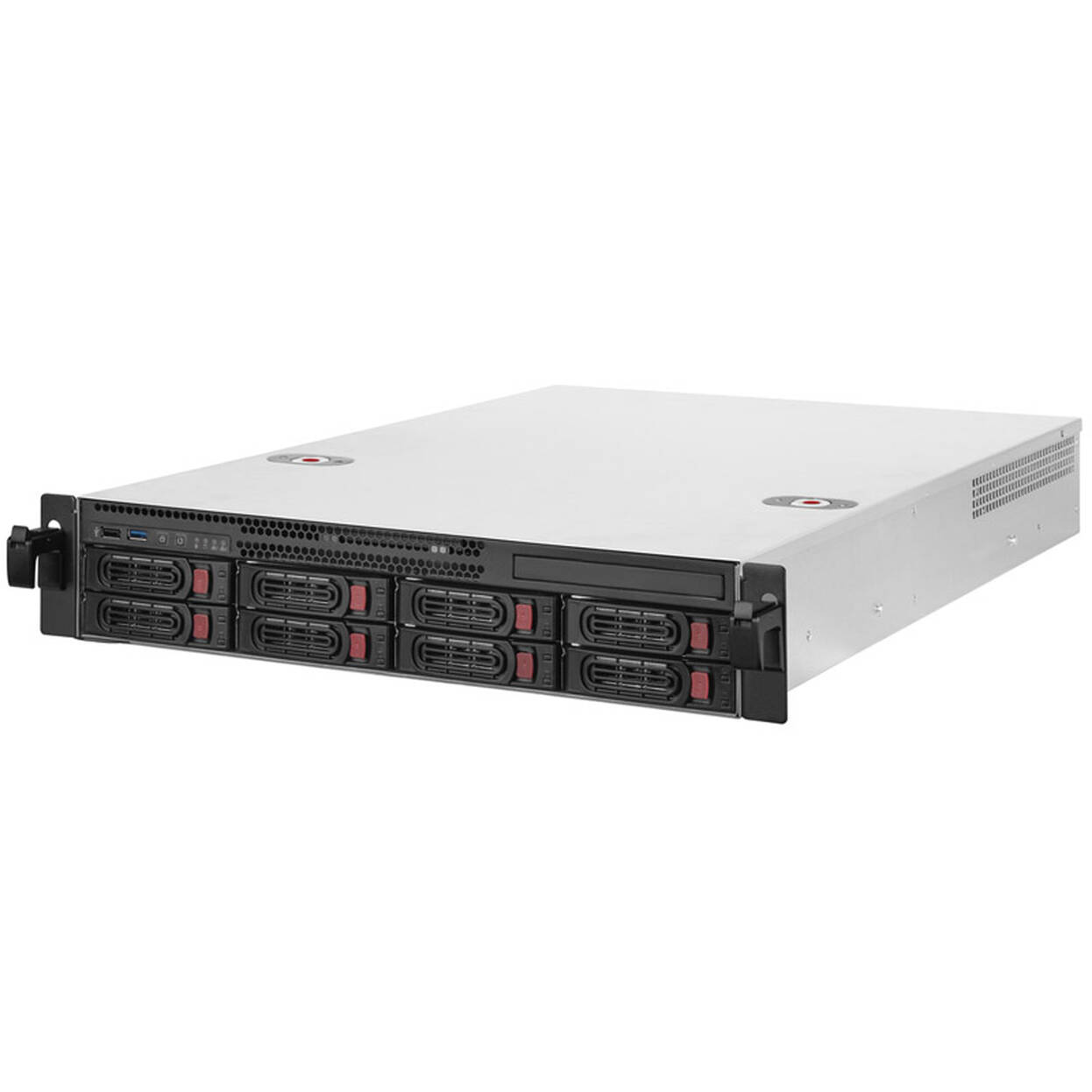

Distinctive exterior
Distinctive front panel features 8 x hot-swappable 3.5” bays, 1 x slim ODD bay along with handle bars allowing for easy accessibility to the internal components

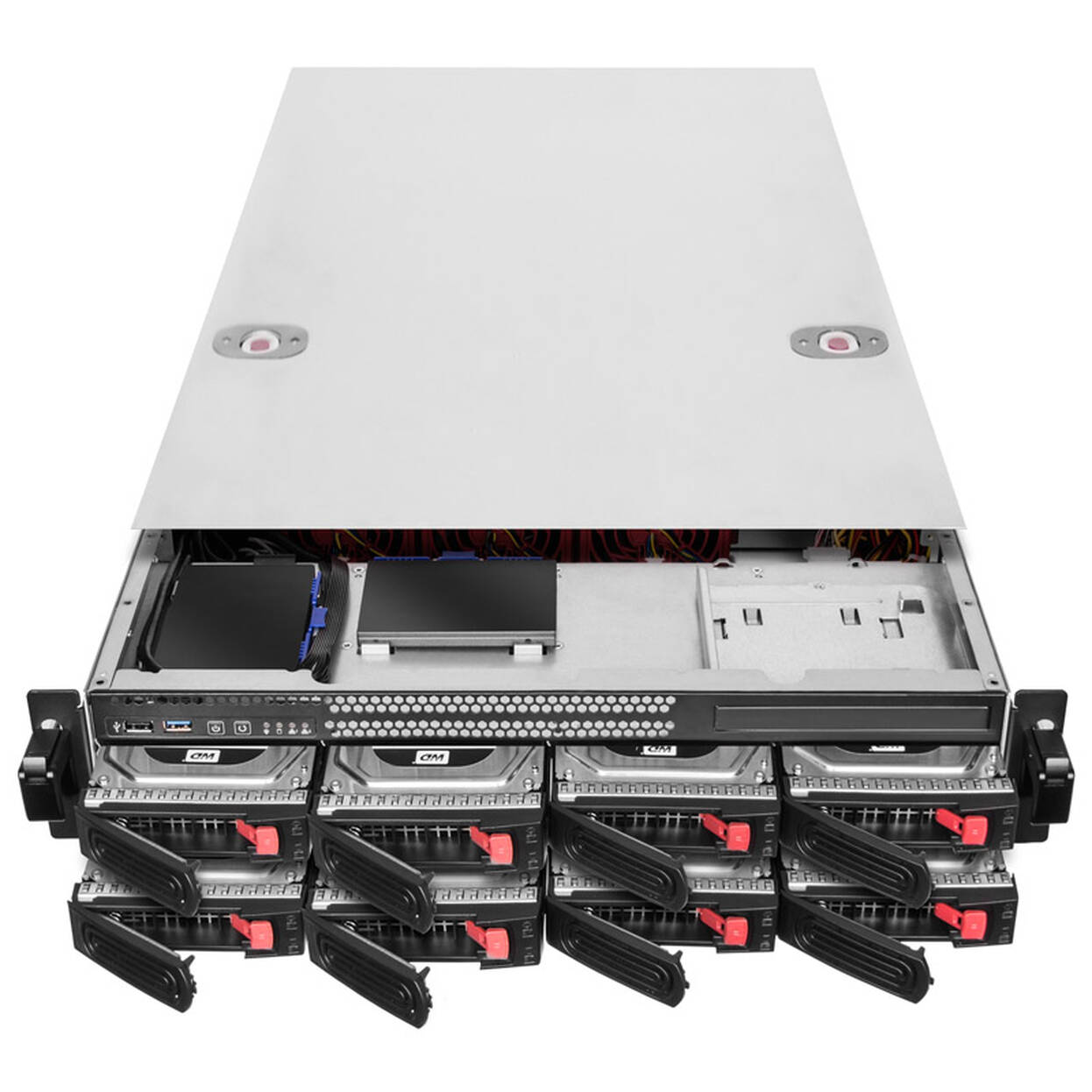

Storage device performance

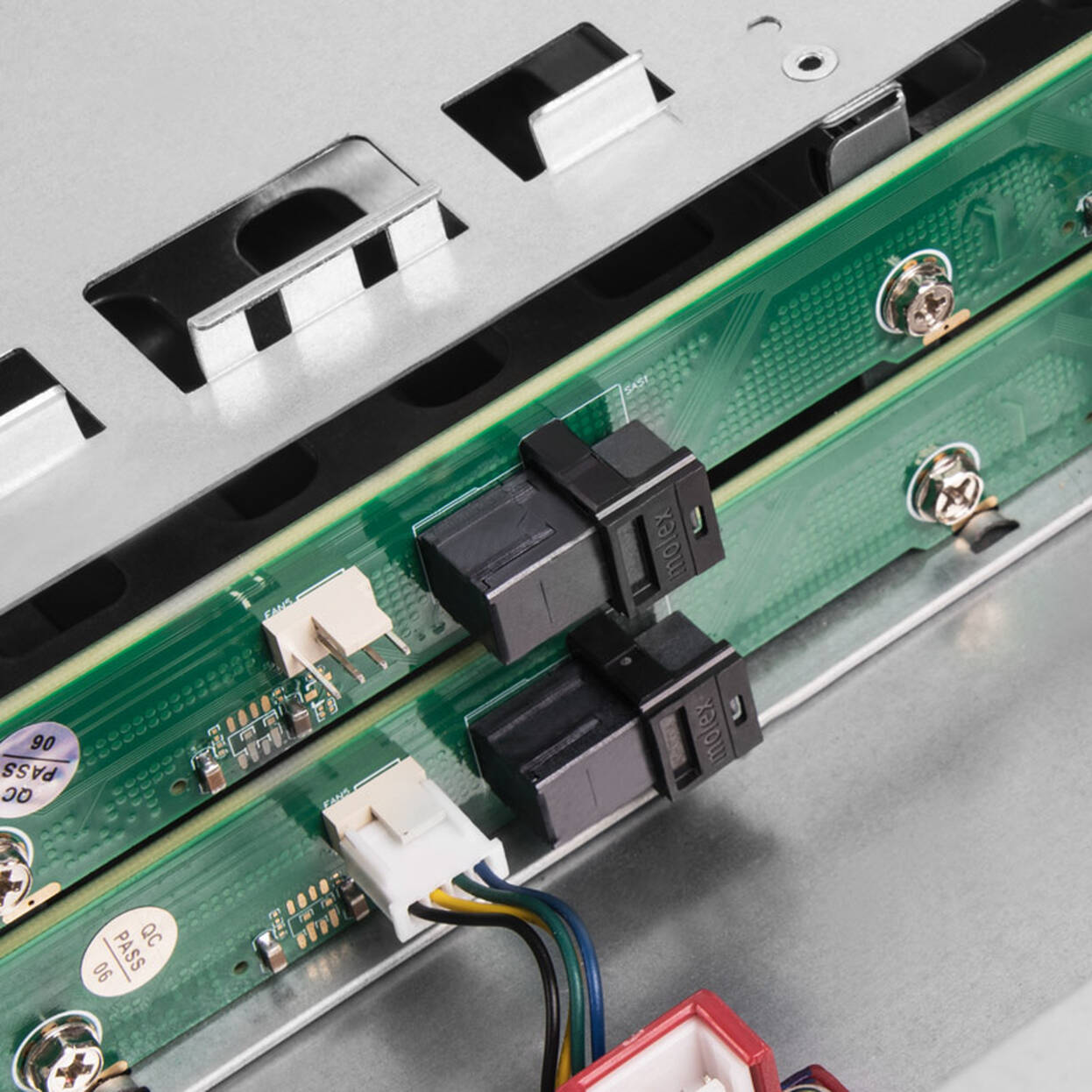

HDD backplane supports 8 ports SAS / SATA drives and 12Gb/s Mini-SAS HD SFF-8643 x 2 with SGPIO

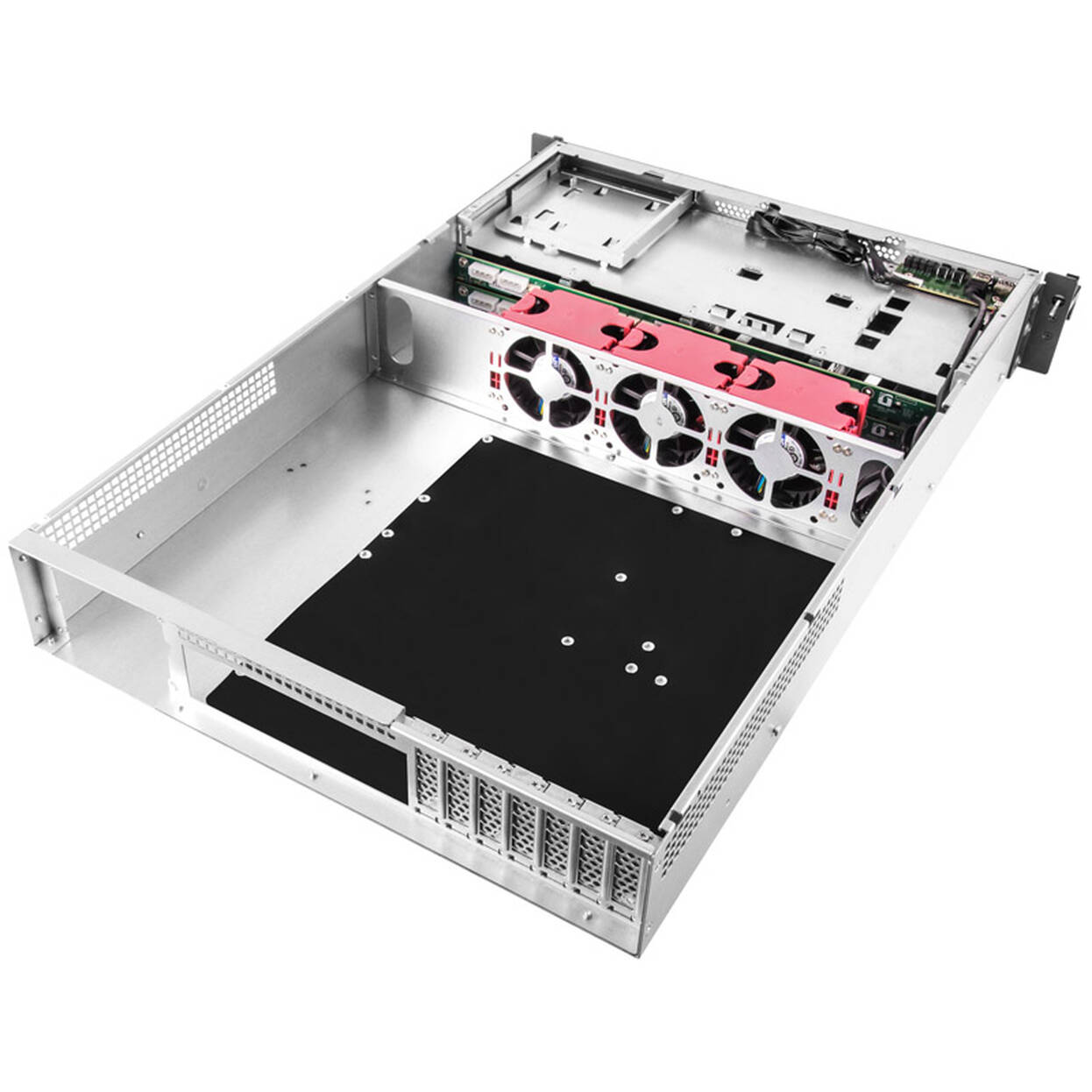

Cooling capabilities

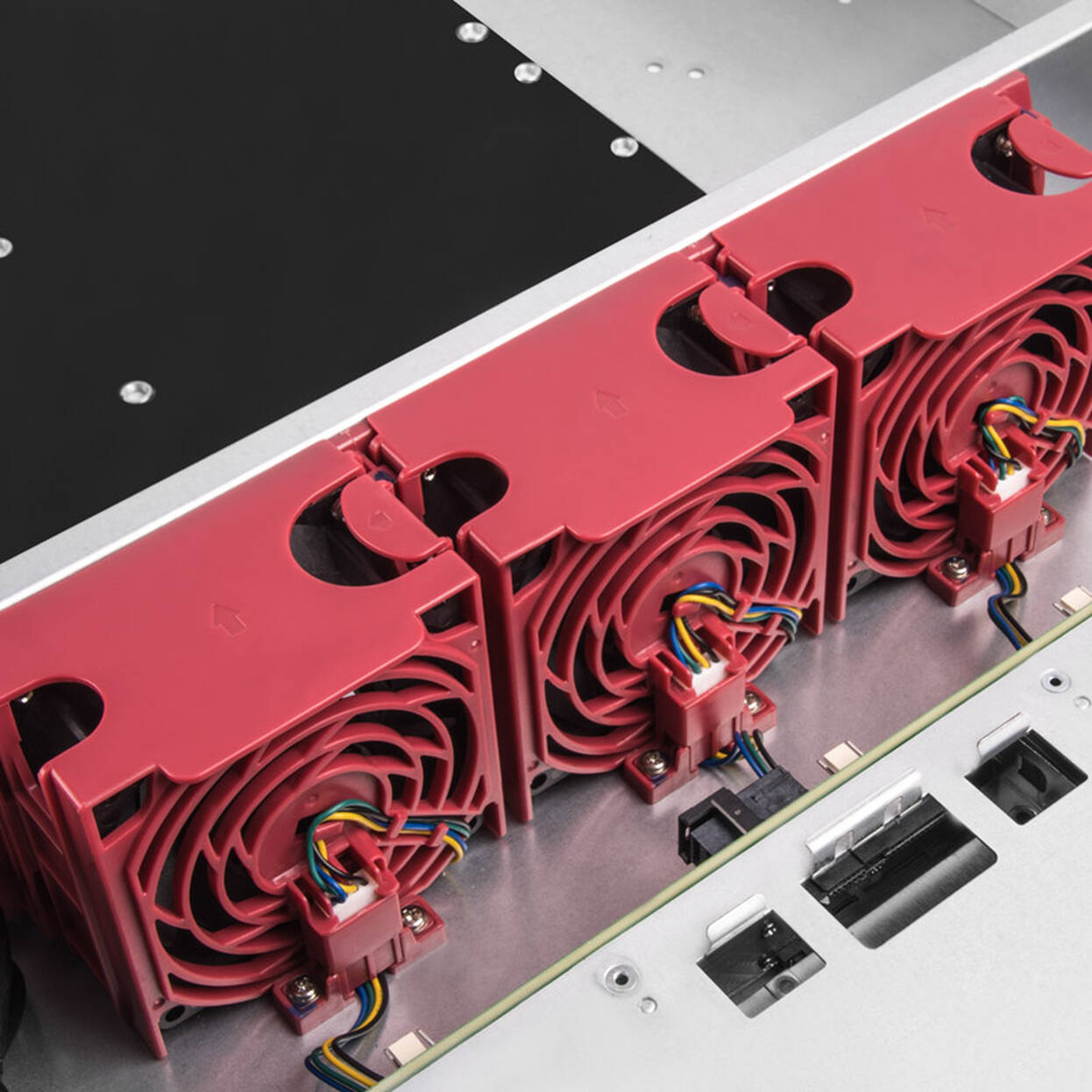

Utilizing the typical front-to-back directional airflow, RM22-308 comes pre-installed with three 80mm x 38mm hot-swappable PWM fans, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail
| Colour | |
|---|---|
| Primary Colour | Black |
| Secondary Colour | Silver |
| Fan Frame Colour | Red |
| Dimensions & Weight | |
| Length / Depth | 660 mm |
| Width | 430 mm |
| Height | 88.5 mm |
| Weight | 10.1 kg |
| Case Overview | |
| Case Type | Server Case |
| Motherboard Support | |
| Compatible Motherboard Formats | E-ATX, Micro-ATX, Mini-ITX, SSI-CEB, SSI-EEB |
| Max. Motherboard Format | E-ATX |
| Internal Clearances | |
| Max. CPU Cooler Height | 68 mm |
| Power Supply | |
| PSU Format | Redundant PSU |
| Power Supply Position | Rear Bottom |
| Cooling Support | |
| 80 mm Fan Support | 3 |
| Radiator Support | No |
| Drive Bays | |
| 2.5″ Internal Bays | 1 |
| 3.5″ Internal Bays | 1 |
| 5.25″ External Bays | 1 |
| Hot Swap Bays | Yes |

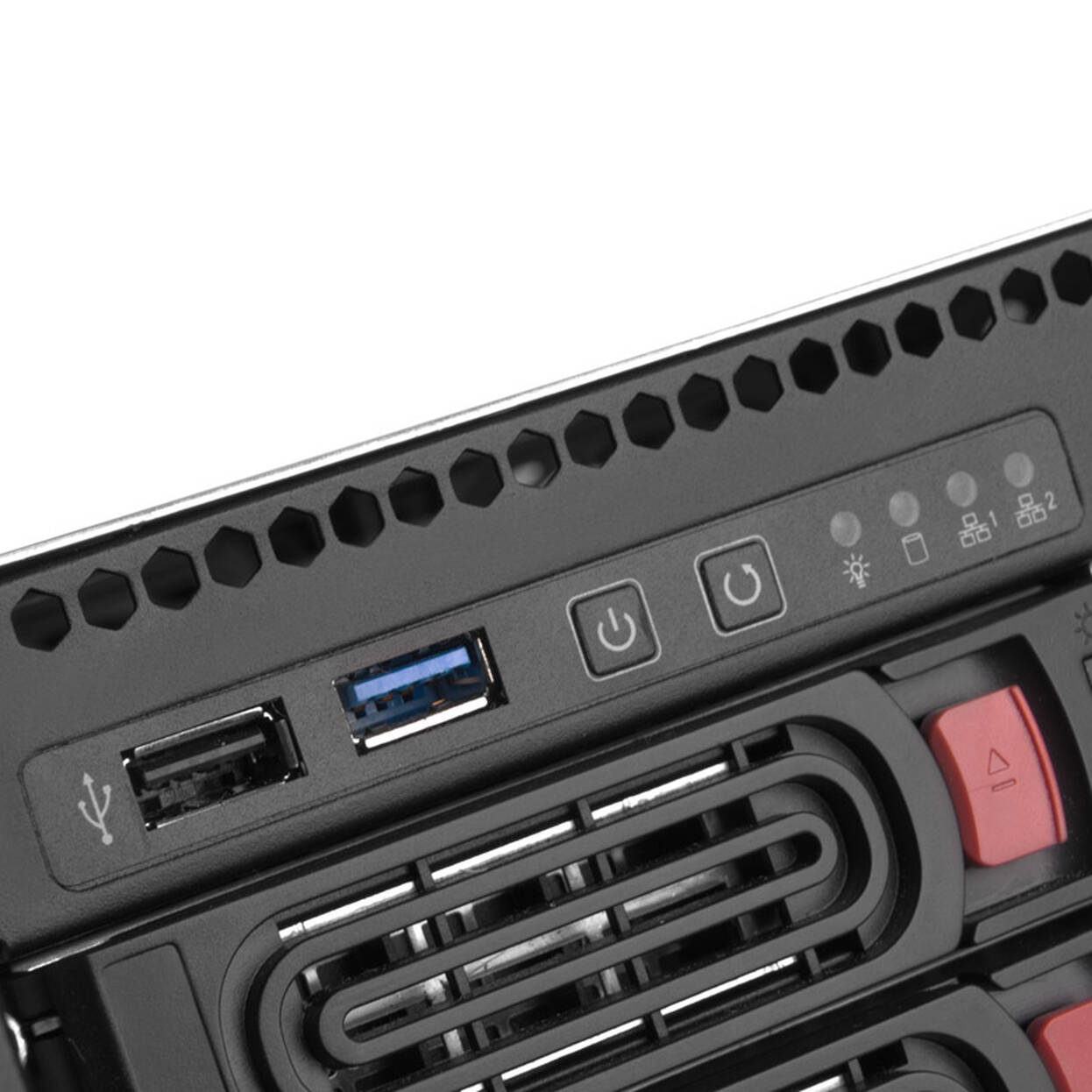

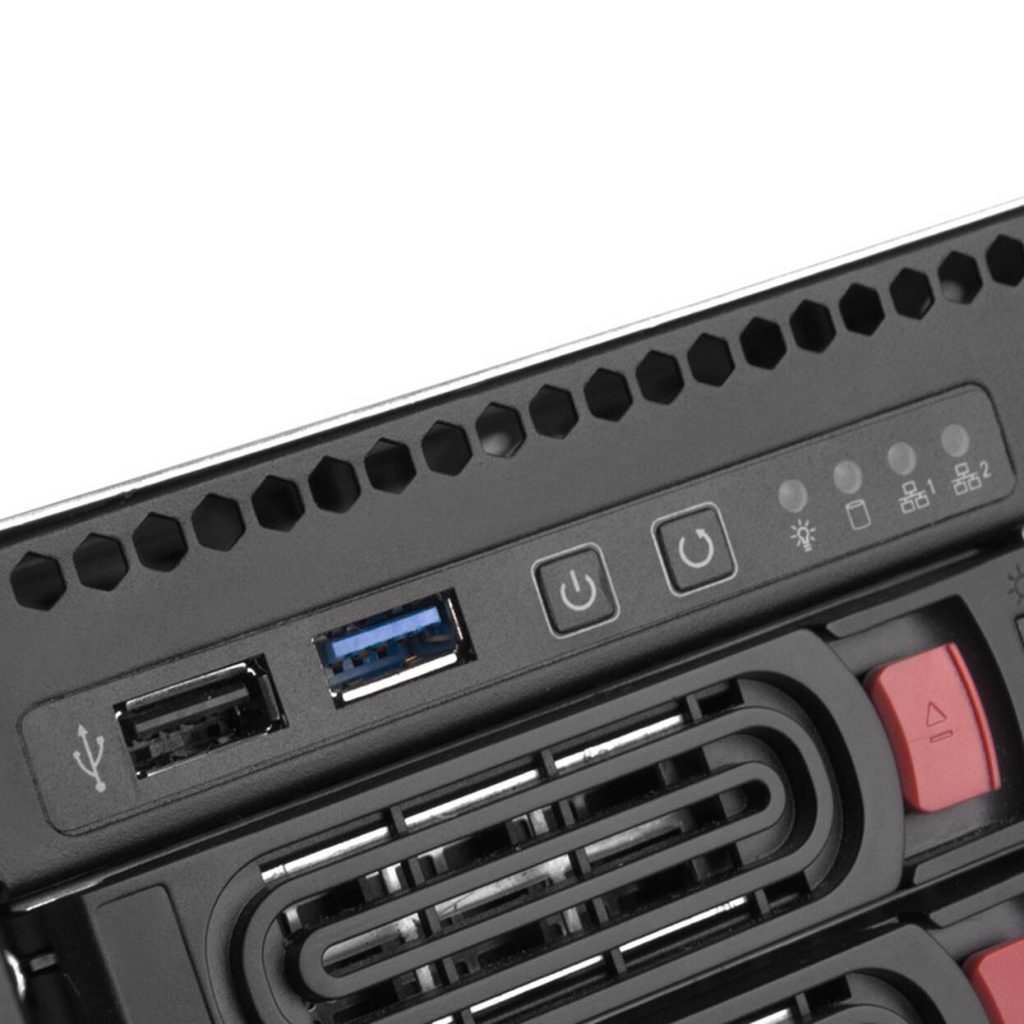

| Front I/O | |
| USB 3.0 Type-A | 1 |
| USB 2.0 Type-A | 1 |
| Expansion | |
| Expansion Slots / PCI Slots | 7 |
| Case Features | |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | No |
| Filters Included | No |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Transport System | No |
| Materials | |
| Material | Steel |
| Lighting & Extras | |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Included Fans | 3 × 80 mm |
