The Laing D5 with a different approach:
Besides the standard elements of the Laing D5 (Item 49029) which are have been known for years this Solar version has additional features: Besides the extremely long lifespan and the low noise emissions thanks to a unique bearing design this version also has an extremely low starting voltage as it was designed for operation with solar panels. The low starting voltage allows the user to run the pump at very low speeds whilst still maintaining plenty of flow. The pump has a current draw of 0.25A-1.45A (Important: Check compatibility of the sockets!), allowing both absolutely silent operation and powerful use of the same pump when controlling the pumps speed via a fan controller.
The Laing D5 with a different approach:
Besides the standard elements of the Laing D5 (Item 49029) which are have been known for years this Solar version has additional features: Besides the extremely long lifespan and the low noise emissions thanks to a unique bearing design this version also has an extremely low starting voltage as it was designed for operation with solar panels. The low startin...
The Laing D5 with a different approach:
Besides the standard elements of the Laing D5 (Item 49029) which are have been known for years this Solar version has additional features: Besides the extremely long lifespan and the low noise emissions thanks to a unique bearing design this version also has an extremely low starting voltage as it was designed for operation with solar panels. The low startin...
This pump is perfect to give you the choice from two extremes and anything in between!
Technical specifications:
Dimensions: 90x90x90mm (without fittings)
Motor design: Electronically commuted ball motor
Nominal voltage: 12V DC
Max. Power consumption: 22W
Current draw: 0.25-1.45A
Voltage range: 8-14V
Pressure head at 12V: 3.7m
Maximum flow: 1500l/h
Supportet media: Water-/ glycol mixtures
Maximum system temperature: 95 degreesC
Materrials in contact with medium: Stainless steel 1.4571, PPS-GF40, EPDM O-rings,
Aluminium oxide, hard coal
Connection threads: 2x 1/2 inner threads
Extent of delivery:

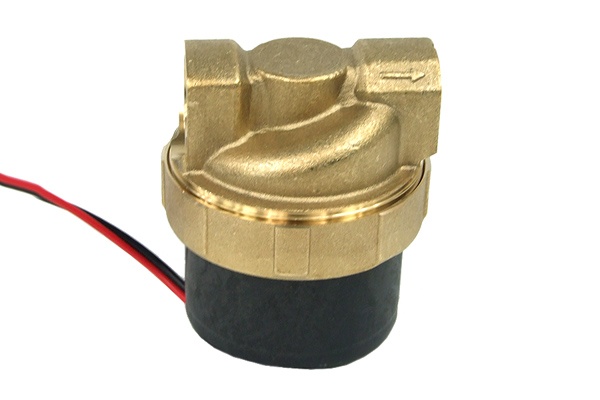

1x Laing D5 pump12V D5solar-38/700
