- SKU: GABU-617
- MPN: GABU-617
- EAN: n/a
Features:
- Elegant micro-ATX case in white from Jonsbo
- Stylish side panel made of tempered glass
- Space for mini-ITX and micro-ATX boards
- Space for graphics cards from 330 to 429 mm
- With space for long ATX power supplies up to 200 mm
- Four slots for graphics and expansion cards
- For a 2.5-inch and a 3.5-inch data storage device
Jonsbo U4 Mini Micro-ATX Case, Tempered Glass - white
Features:
- Elegant micro-ATX case in white from Jonsbo
- Stylish side panel made of tempered glass
- Space for mini-ITX and micro-ATX boards
- Space for graphics cards from 330 to 429 mm
- With space for long ATX power supplies up to 200 mm
- Four slots for graphics and expansion cards
- For a 2.5-inch and a 3.5-inch data storage device
Features:
- Elegant micro-ATX case in white from Jonsbo
- Stylish side panel made of tempered glass
- Space for mini-ITX and micro-ATX boards
- Space for graphics cards from 330 to 429 mm
- With space for long ATX power supplies up to 200 mm
- Four slots for graphics and expansion cards
- For a 2.5-inch and a 3.5-inch data storage device
Features:
– Elegant micro-ATX case in white from Jonsbo
– Stylish side panel made of tempered glass
– Space for mini-ITX and micro-ATX boards
– Space for graphics cards from 330 to 429 mm
– With space for long ATX power supplies up to 200 mm
– Four slots for graphics and expansion cards
– For a 2.5-inch and a 3.5-inch data storage device
The features of the Jonsbo U4 Mini micro-ATX case in detail

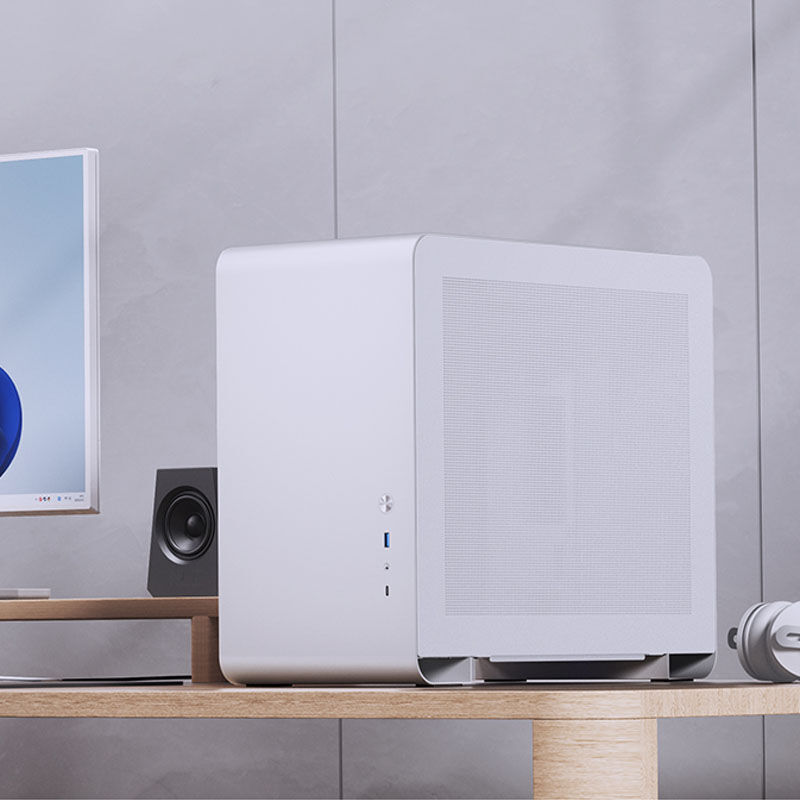

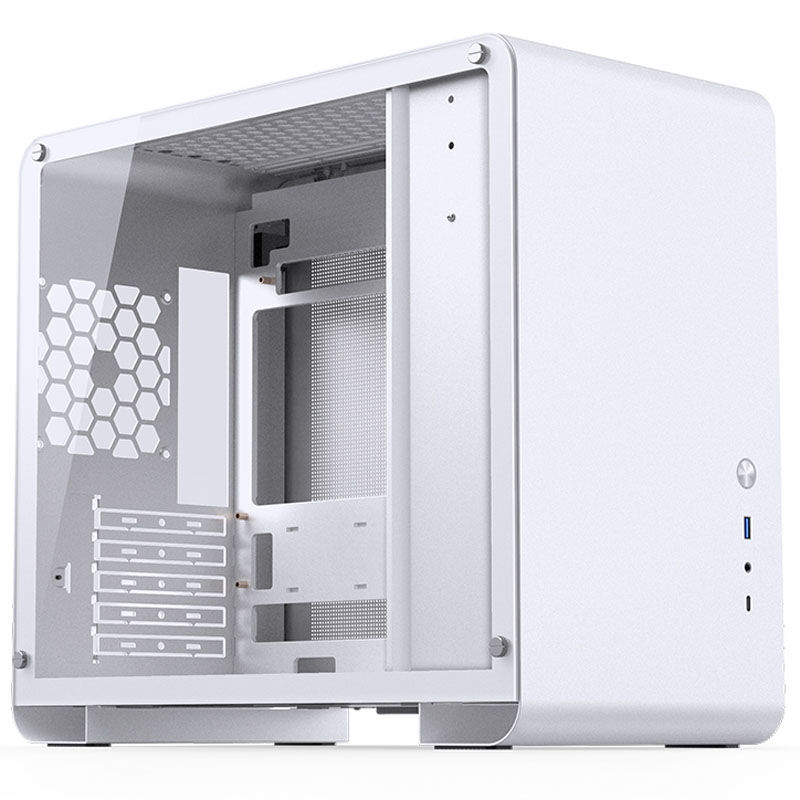

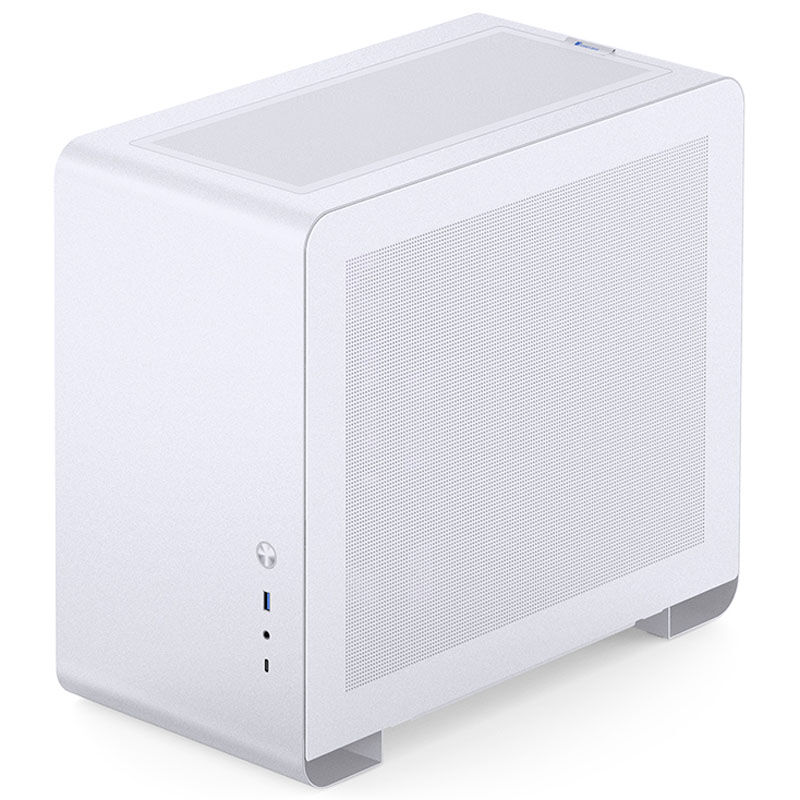

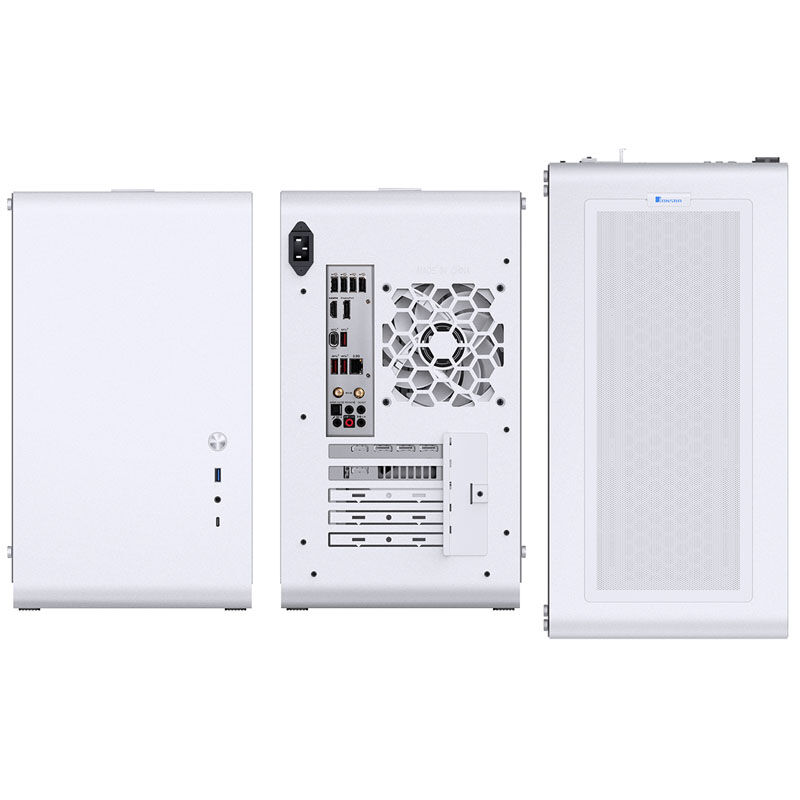

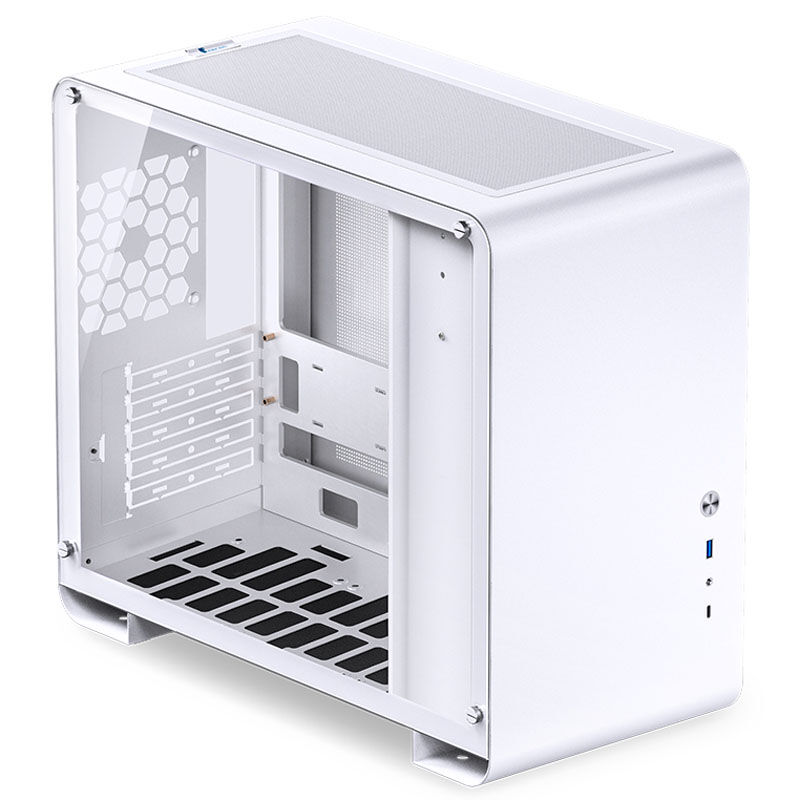

On the outside, the U4 Mini from Jonsbo impresses with its subtle and clear design, the stylish side panel made of tempered glass and the flawless workmanship. The micro-ATX case offers a power switch, a USB-C 3.1 and a USB 3.0 port as well as a combined audio jack on the right side. The Micro-ATX case offers plenty of space for powerful hardware and skilfully showcases it.

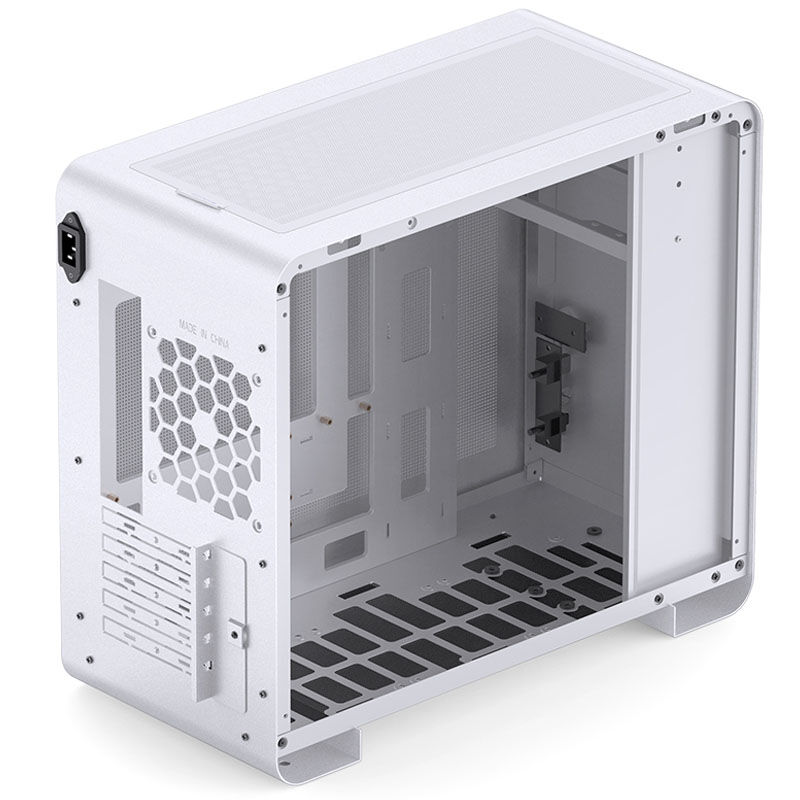

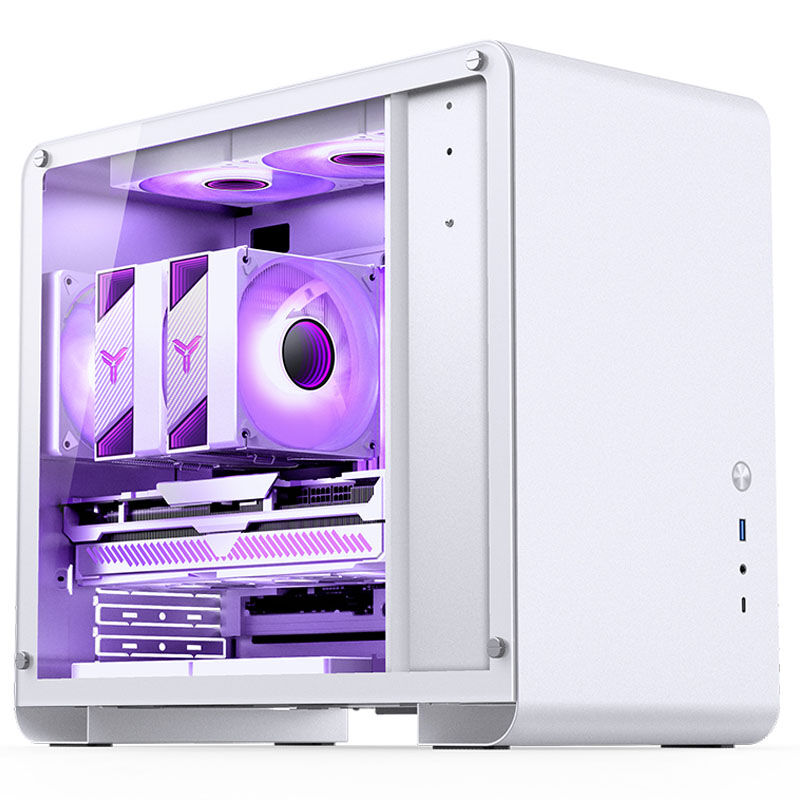

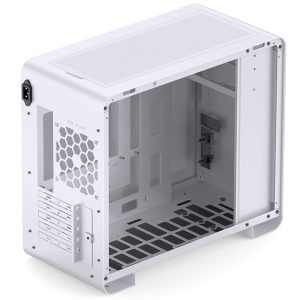

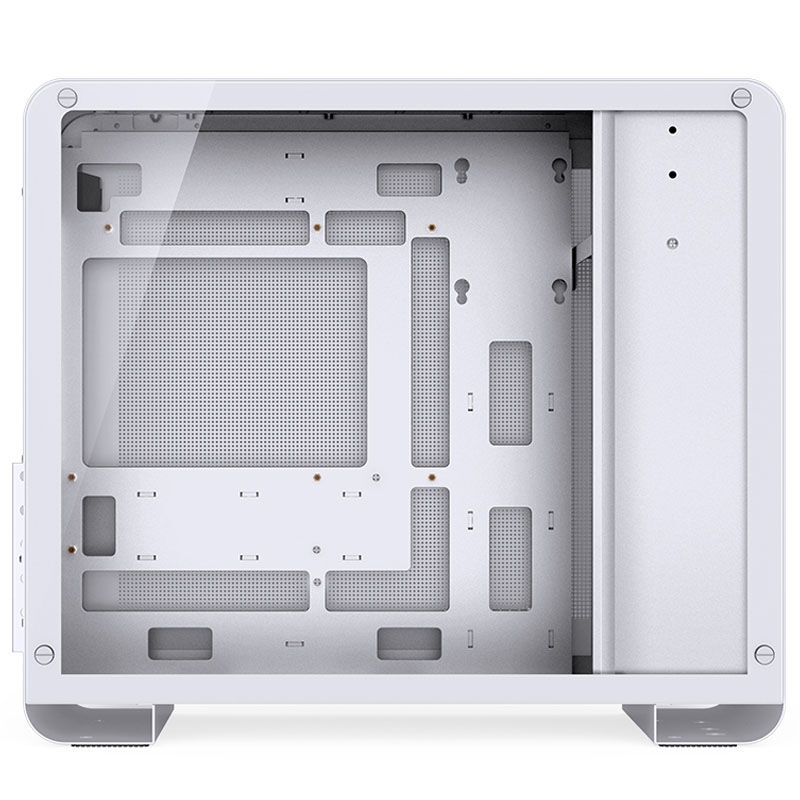

With its dimensions of 222 x 385 x 440 millimeters, the U4 Mini from Jonsbo is still quite compact, but full-fledged gaming hardware can be accommodated inside. In addition to a Mini-ITX and Micro-ATX mainboard, there is also space for graphics cards up to 420 millimeters in length. With four slots, there is enough space for expansion cards such as capture cards or sound cards.
The U4 Mini can accommodate up to one 2.5-inch and one 3.5-inch data storage device. For cooling, two 140 mm or three 120 mm fans can be mounted on the floor and one 120 mm fan in the rear panel. Three additional 120 mm fans can be installed in the lid of the elegant case and reinforce the natural chimney effect, which benefits the cooling of all components. The power supply is housed in the front of the case and can be up to 220 mm long. 165 mm is enough space for common CPU cooler models.
| Specification | |
|---|---|
| Primary Colour | White |
| Secondary Colour | Transparent |
| Length / Depth | 440 mm |
| Width | 222 mm |
| Height | 385 mm |
| Weight | 6 kg |
| Case Type | Mini Case |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Max. CPU Cooler Height | 165 mm |
| Max. GPU Length | 420 mm |
| Max. PSU Length / Depth | 200 mm |
| Display Included | No |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Internal |
| 120 mm Fans | 7 |
| 140 mm Fans | 2 |
| Max. Radiator Compatibility | No |
| 2.5 Inch Internal Drive Bay | 1 |
| 3.5 Inch Internal Drive Bay | 1 |
| Hot Swap Drive Bays | No |
| USB 3.1 Type-C (external) | 1 |
| USB 3.0 Type-A (external) | 1 |
| Audio Outputs & Inputs | 1× output/input combo (3.5 mm jack, 4-pin, TRRS) |
| Card Reader | No |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | No |
| Filters Included | No |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Remote Included | No |
| Transport System | No |
| Housing Feedthrough | No |
| Materials | Steel, Tempered Glass |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Included Fans | None |
£59.29£49.41 Inc VatEx Vat
