Extremely compact and stylish case for Micro-ATX mainboards
Features:
- Front, lid and side panels with mesh for optimal airflow
- Designed for vertical airflow with up to three possible fans
- GPUs can be at least 200 mm long and no longer than 255 mm long
- For ATX power supplies up to 185 mm deep
Extremely compact and stylish case for Micro-ATX mainboards
Features:
- Front, lid and side panels with mesh for optimal airflow
- Designed for vertical airflow with up to three possible fans
- GPUs can be at least 200 mm long and no longer than 255 mm long
- For ATX power supplies up to 185 mm deep
Extremely compact and stylish case for Micro-ATX mainboards
Features:
- Front, lid and side panels with mesh for optimal airflow
- Designed for vertical airflow with up to three possible fans
- GPUs can be at least 200 mm long and no longer than 255 mm long
- For ATX power supplies up to 185 mm deep
Features:
– Front, lid and side panels with mesh for optimal airflow
– Designed for vertical airflow with up to three possible fans
– GPUs can be at least 200 mm long and no longer than 255 mm long
– For ATX power supplies up to 185 mm deep

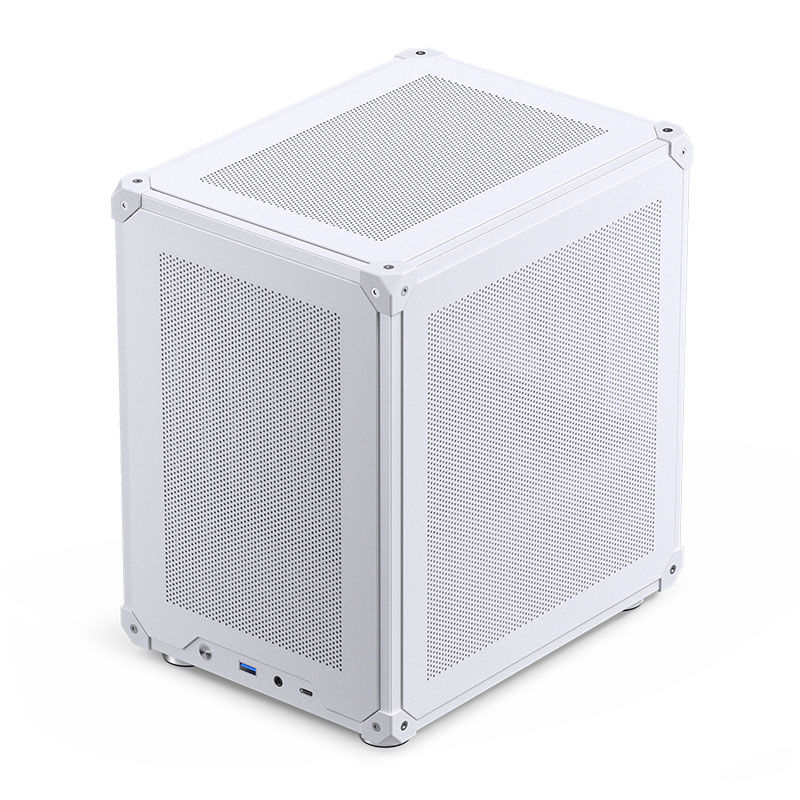

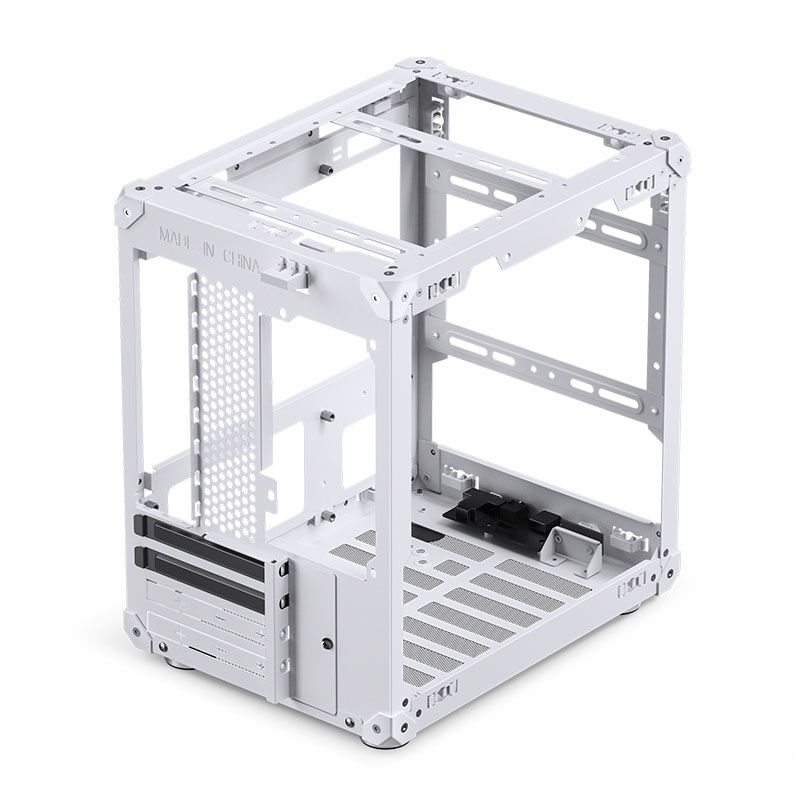

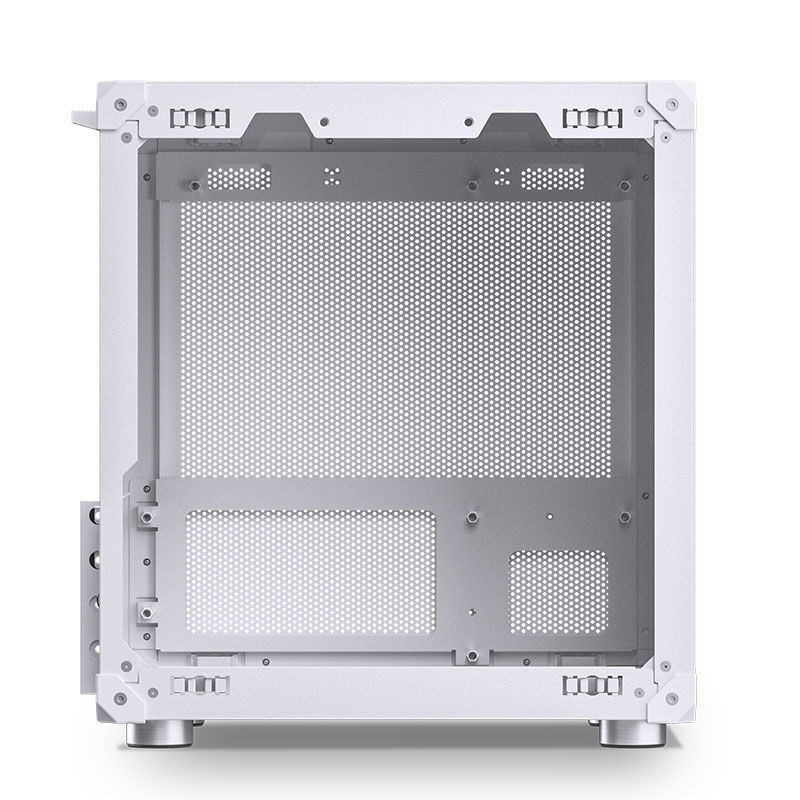

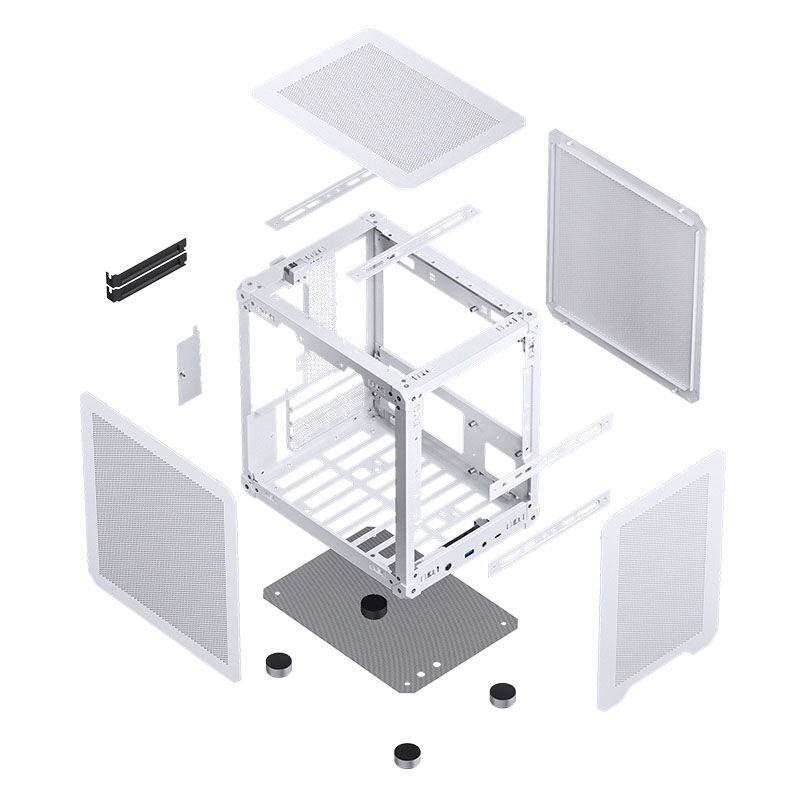

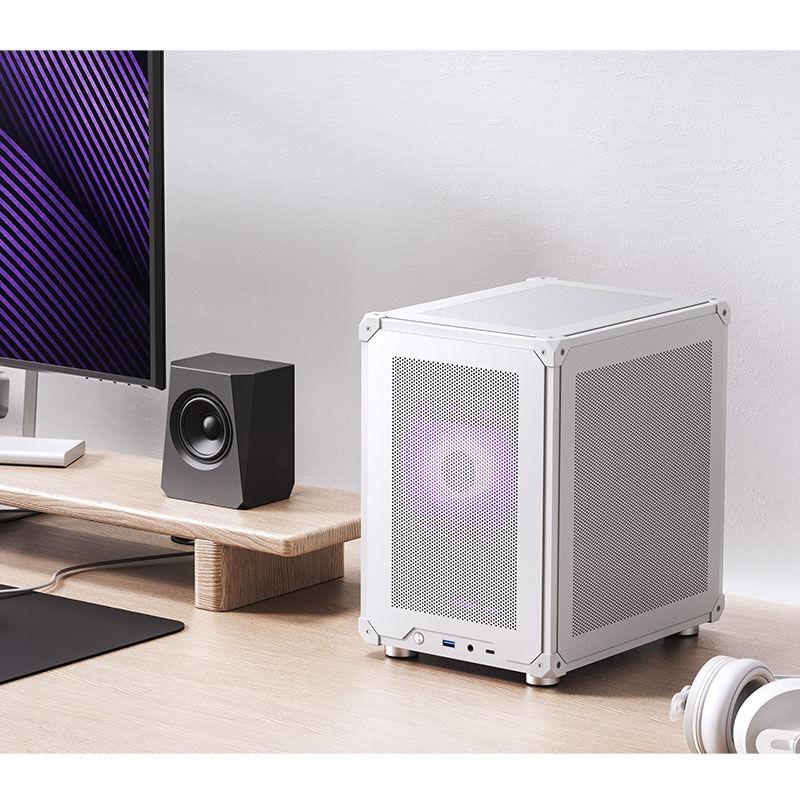

Jonsbo C6: The versatile Micro-ATX case

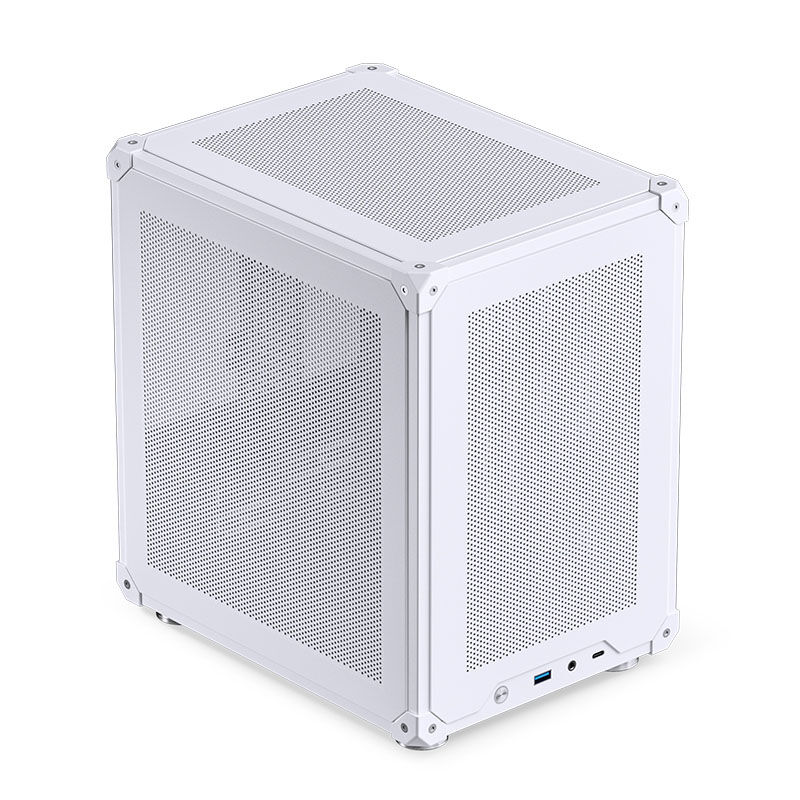

With the C6, Jonsbo presents a Micro-ATX case that is as compact and elegant as it is versatile. The latest gaming hardware can be easily accommodated in it. There is space for up to three 120 mm fans for perfect air cooling. You can also install two of them in 140 mm format. Both the front and both side parts and the lid are perforated with fine holes and thus ensure good air exchange.
Gaming hardware: well placed

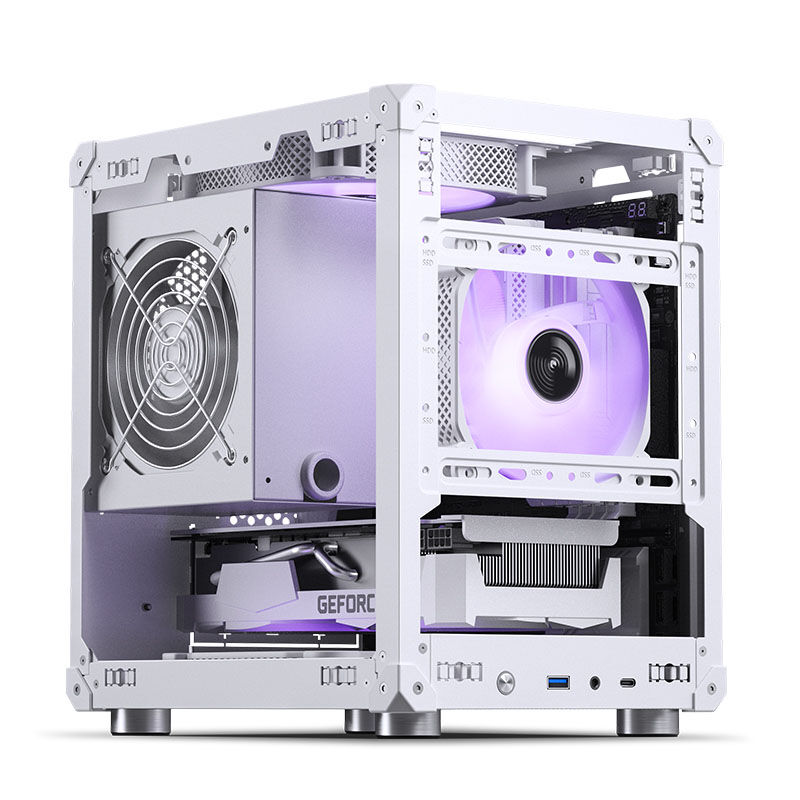

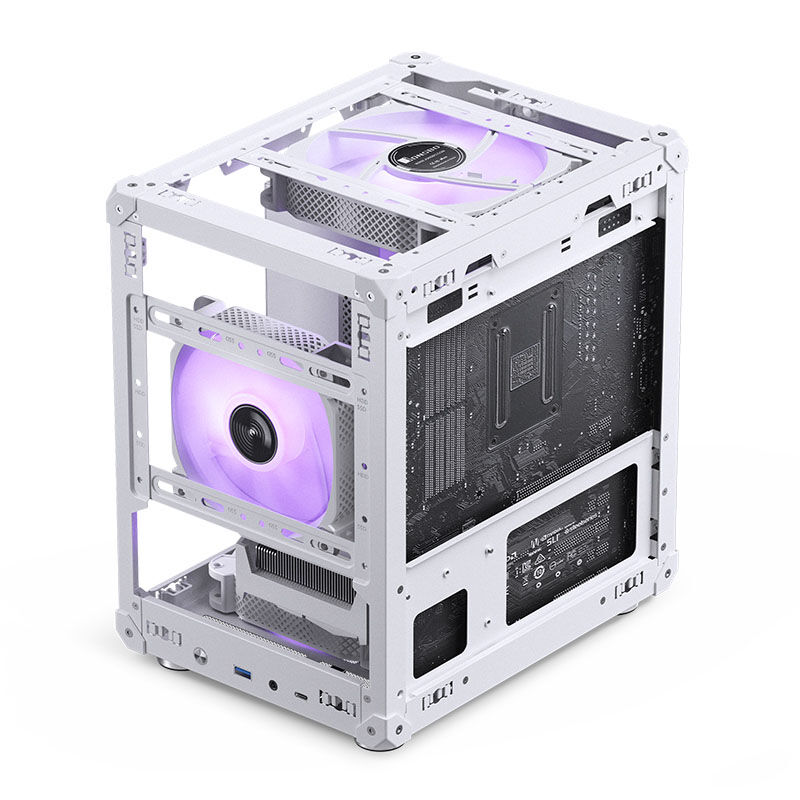

In addition to the Micro-ATX mainboard, the Jonsbo C6 also fits a graphics card with a length of at least 200 mm and a maximum of 255 mm. An HDD or two SSDs can be placed in front without a 120 mm fan. If you want to use a CPU cooler, it can be up to 75 mm high.

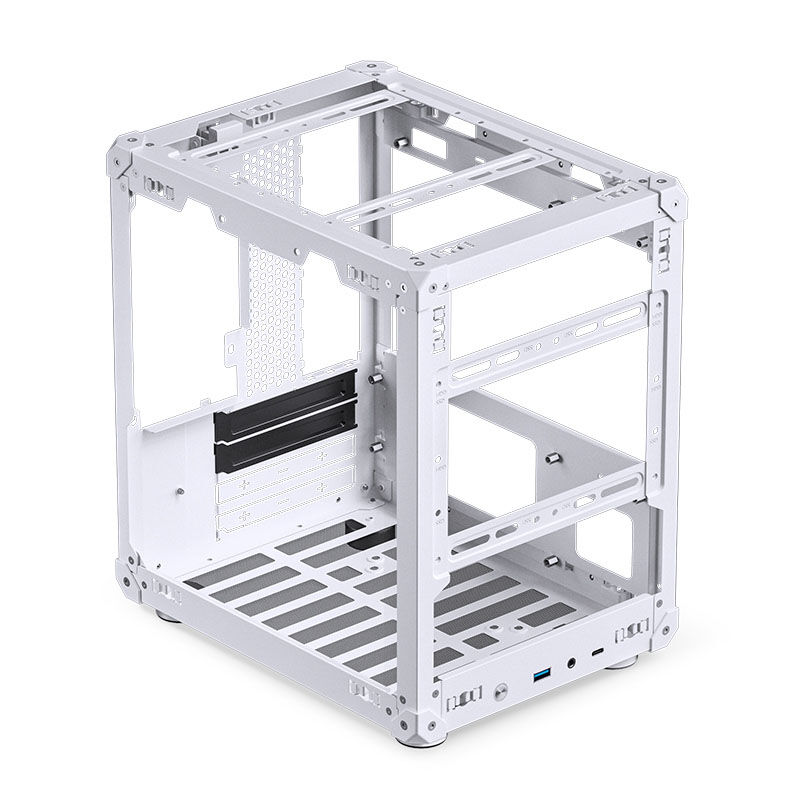

Well thought out and well prepared

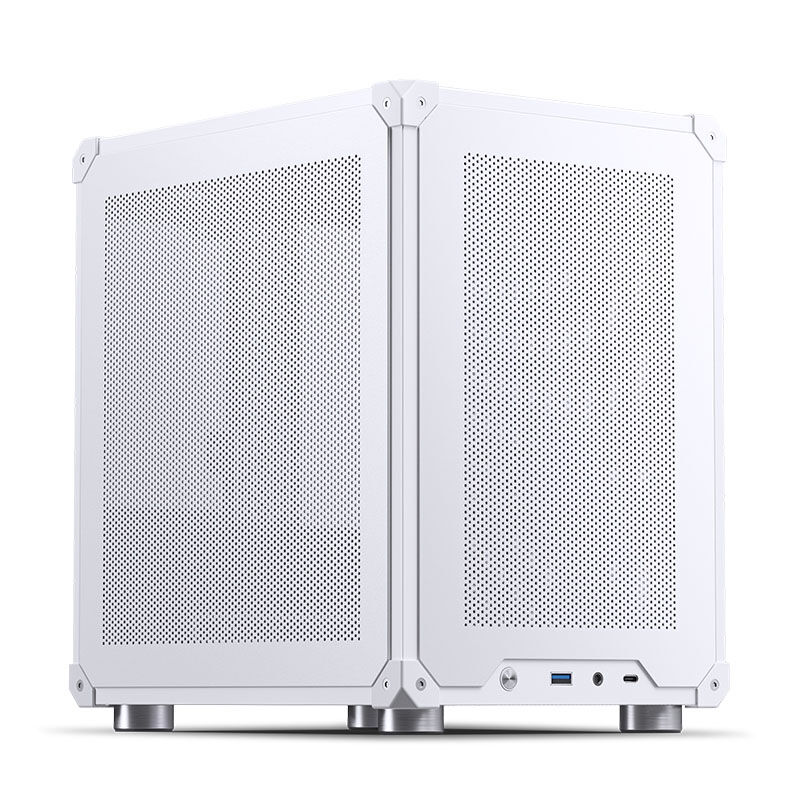

A power supply in the common ATX format is installed on the top rear and may be 185 mm deep. The I/O panel on the lower right on the front offers a USB 3.0 type C port, a USB 3.0 type A connection and a combined 3.5 mm audio jack and the usual power or reset -Switch.
| Technical Details | |
|---|---|
| Measurements | 202 × 266 × 295.2 mm (W × H × D) |
| Material | Steel, Plastic |
| Weight | 2.3 kg |
| Colour | White |
| Form Factor | Micro-ATX, Mini-ITX |
| Cooling Support | |
| Total Fan Mounts | Front: 1 × 120 mm Top: 1 × 120 mm / 2 × 140 mm Bottom: 1 × 120 mm / 2 × 140 mm |
| Pre-installed Fans | None |
| Radiator Support | |
| Radiator Mounts | None |
| Drive Bays | |
| Drives | 1 × 3.5″ or 2 × 2.5″ (front, fan removed) |
| Expansion | |
| PCI Slots | 2 |
| I/O Panel | |
| Ports | 1 × USB-C (USB 3.2 Gen 2, 10 Gbit/s) 1 × USB-A (USB 3.2 Gen 1, 5 Gbit/s) 1 × 3.5 mm TRRS Power / Reset Buttons |
| Component Clearance | |
| Max GPU Length | 200–255 mm (depending on front drive/fan) |
| Max CPU Cooler Height | 75 mm |
| PSU Support | ATX, up to 185 mm length |
| Specification | |
|---|---|
| Primary Colour | White |
| Fan Colour (Frame) | White |
| Fan Colour (Rotor) | White |
| Dimensions | |
| Length / Depth | 295.2 mm |
| Width | 202 mm |
| Height | 266 mm |
| Weight | 2.3 kg |
| Case | |
| Case Type | Mini Case |
| Motherboard Support | |
| Compatible Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Size | Micro-ATX |
| Internal Clearance | |
| Max CPU Cooler Height | 75 mm |
| Max GPU Length | 255 mm |
| Max PSU Length | 185 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| PSU Position | Rear Side |
| Fan Support | |
| 120 mm Fans | 2 |
| 140 mm Fans | 1 |
| Radiator Support | |
| Max Compatibility | None |
| Drive Bays | |
| 2.5″ Bays | 2 |
| 3.5″ Bays | 1 |
| Hot-Swap Bays | No |
| External Ports | |
| USB-C (USB 3.2) | 1 |
| USB-C (USB 3.1) | 1 |
| USB-A (USB 3.0) | 1 |
| Audio I/O | 1× combo 3.5 mm TRRS |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | Mesh |
| Front Door | No |
| Cable Management | No |
| Filters | Yes |
| Noise Dampening | No |
| Motherboard Tray | No |
| Remote Included | No |
| Transport System | No |
| Housing Feedthrough | No |
| Materials | |
| Construction | Mesh, Steel |
| Lighting | |
| RGB Lighting | No |
| Fan/RGB Controller | No |
| Included Contents | |
| Included Fans | None |
