Jonsbo TK-3 Case, Midi-Tower, ATX, Tempered Glass - white
- Stylish midi tower with two-chamber design
- 270 degrees panoramic view thanks to curved tempered glass
- Compatible with back-connect motherboards, ASUS BTF / MSI Project Zero
- Space for up to 10 case fans
- Suitable for GPUs up to 420 mm long
- Supports CPU coolers up to 165 mm high
- Up to two 360 mm radiators possible
- 1x USB-C and 2x USB-A on the front panel
- Stylish midi tower with two-chamber design
- 270 degrees panoramic view thanks to curved tempered glass
- Compatible with back-connect motherboards, ASUS BTF / MSI Project Zero
- Space for up to 10 case fans
- Suitable for GPUs up to 420 mm long
- Supports CPU coolers up to 165 mm high
- Up to two 360 mm radiators possible
- 1x USB-C and 2x USB-A on the front panel
Earn 69 Points
We price match UK retailers. Try It Now!
- SKU: GEJB-127
- MPN: TK-3 WHITE
- EAN: 6970620553825
- Warranty: 12 Months
Details
– Stylish midi tower with two-chamber design
– 270 degrees panoramic view thanks to curved tempered glass
– Compatible with back-connect motherboards, ASUS BTF / MSI Project Zero
– Space for up to 10 case fans
– Suitable for GPUs up to 420 mm long
– Supports CPU coolers up to 165 mm high
– Up to two 360 mm radiators possible
– 1x USB-C and 2x USB-A on the front panel

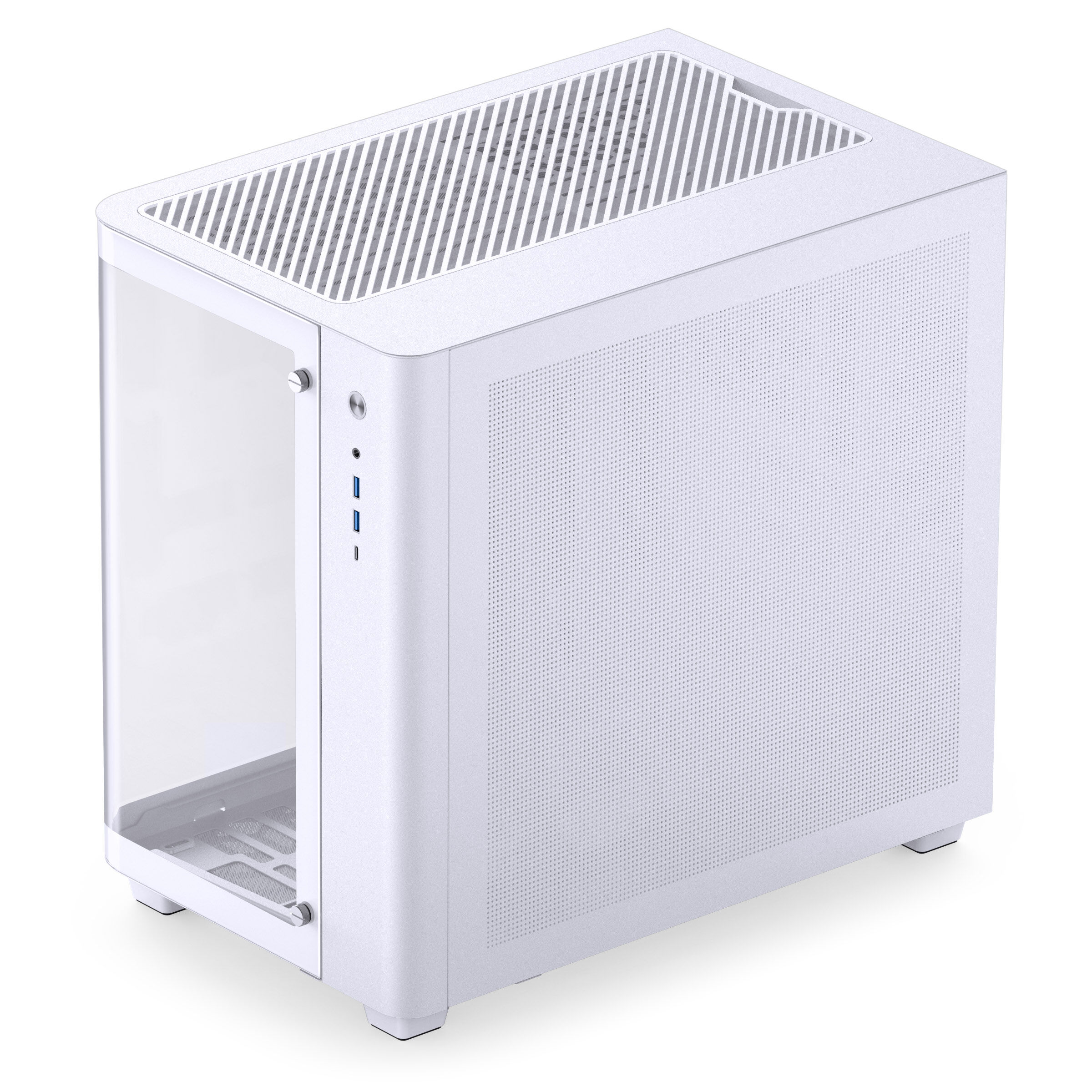

Jonsbo TK-3: White midi tower with panoramic view

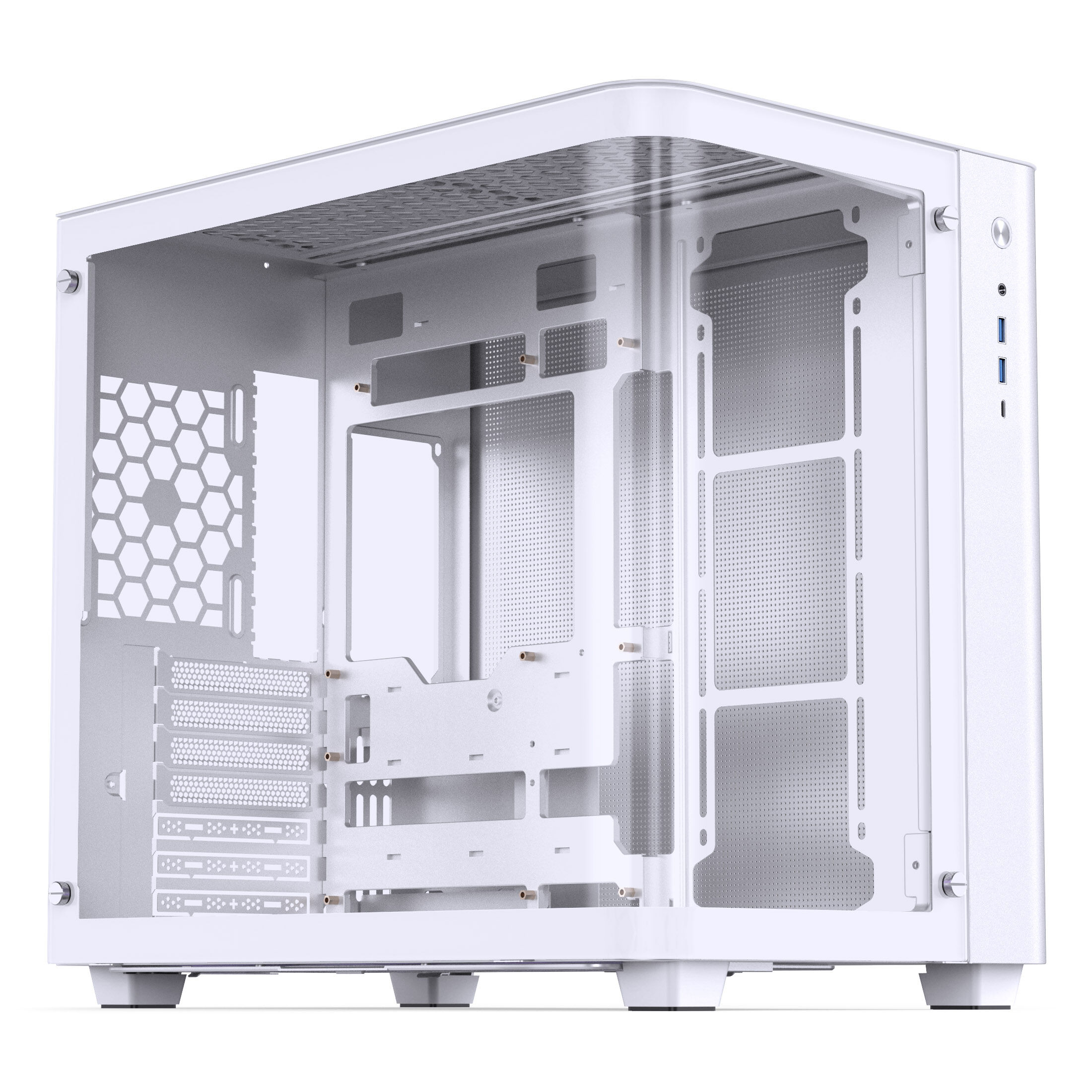

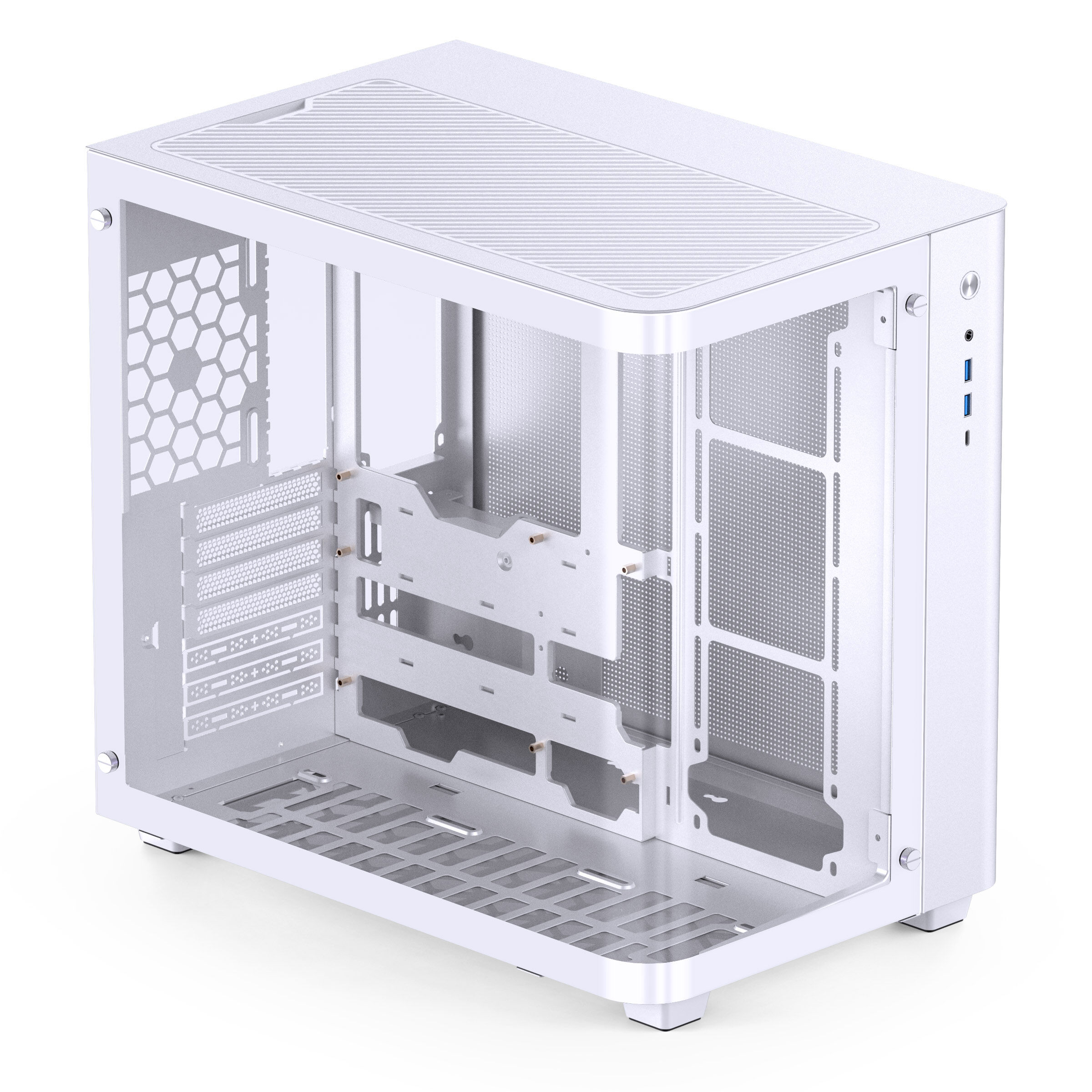

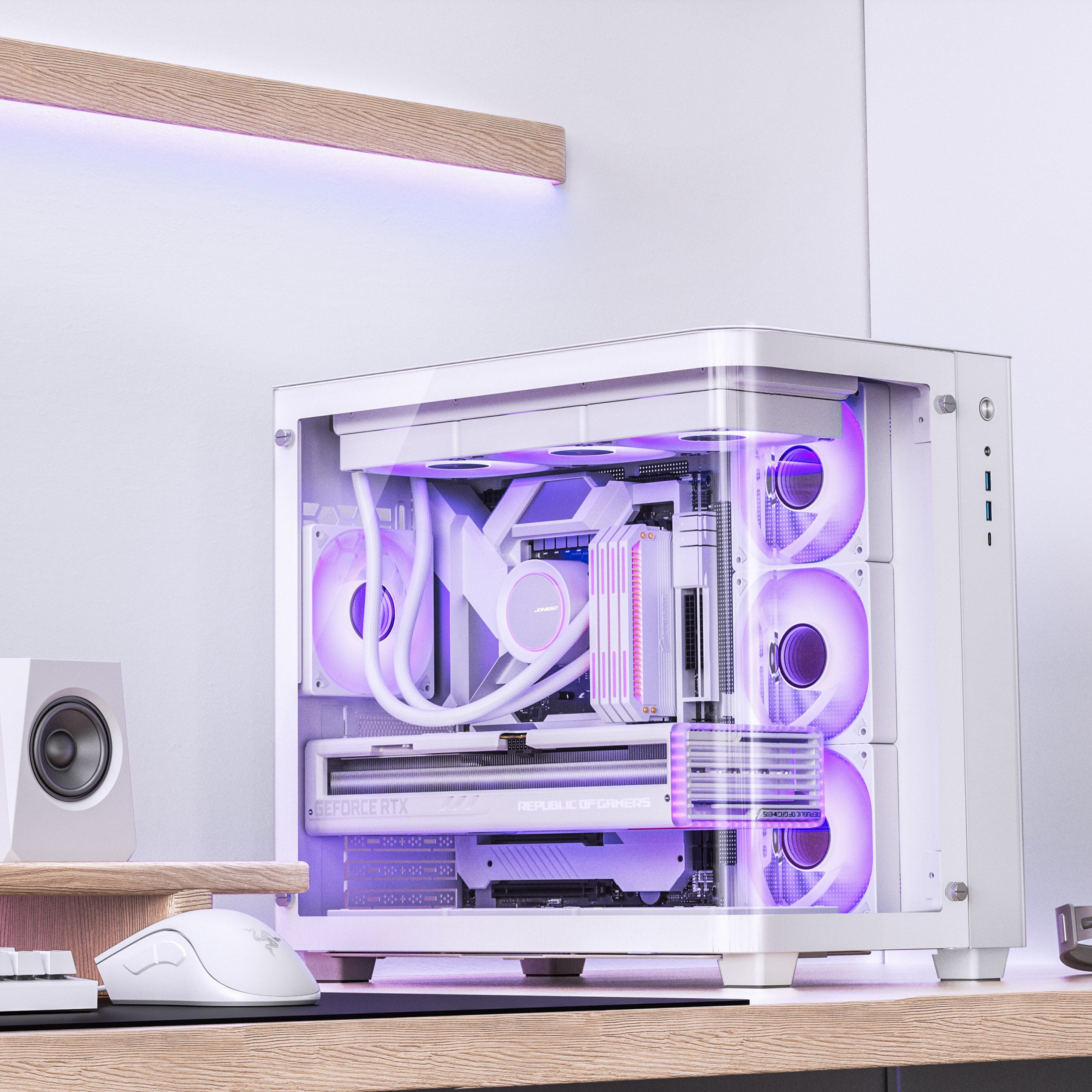

The Jonsbo TK-3 puts your gaming hardware in the spotlight. At first glance you can see that not only the side of the tower is made of glass, but also a large part of the front. The curved tempered glass allows a 270 degrees panoramic view of the inside of your PC, allowing you to show off your hardware perfectly.
Plenty of space for powerful PC components

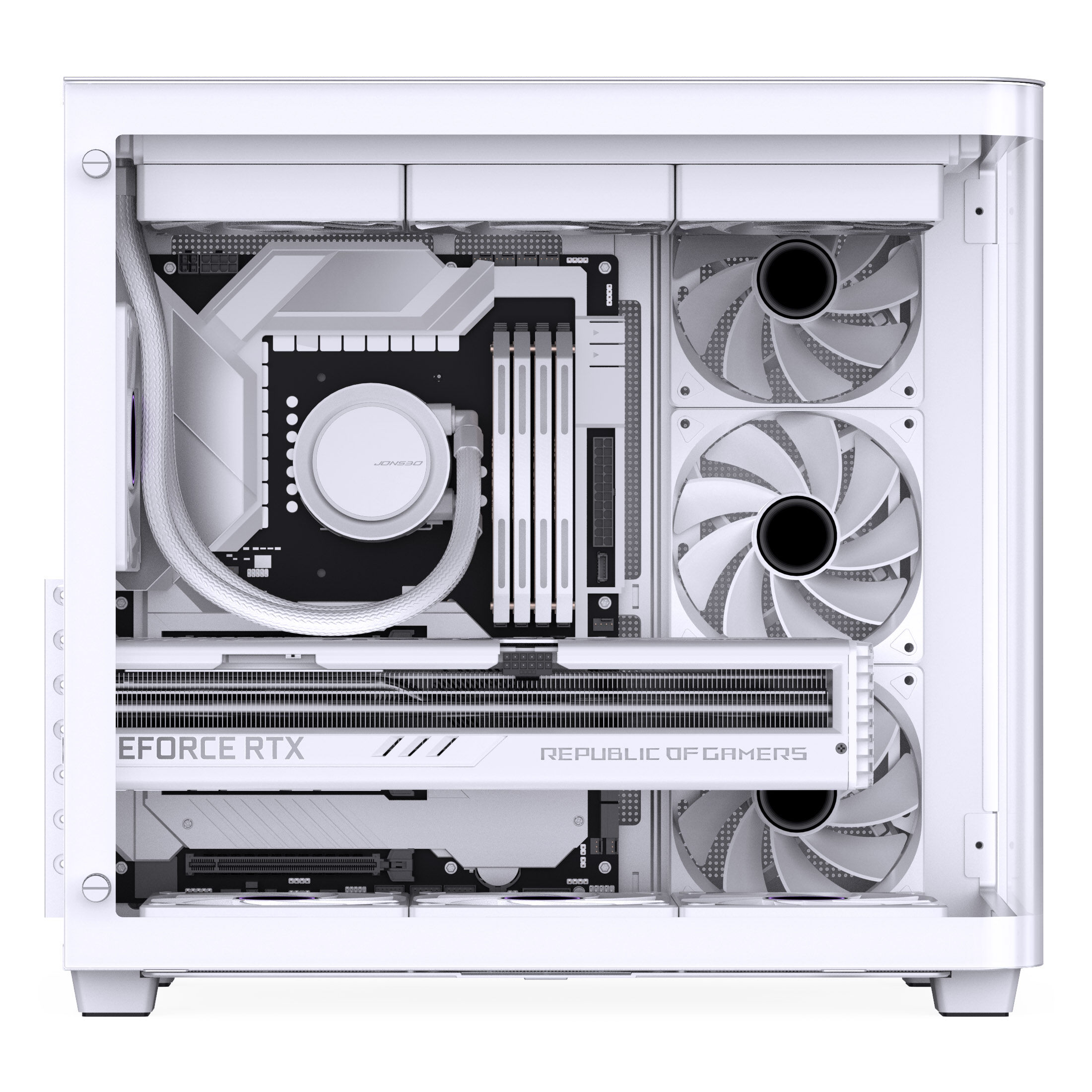

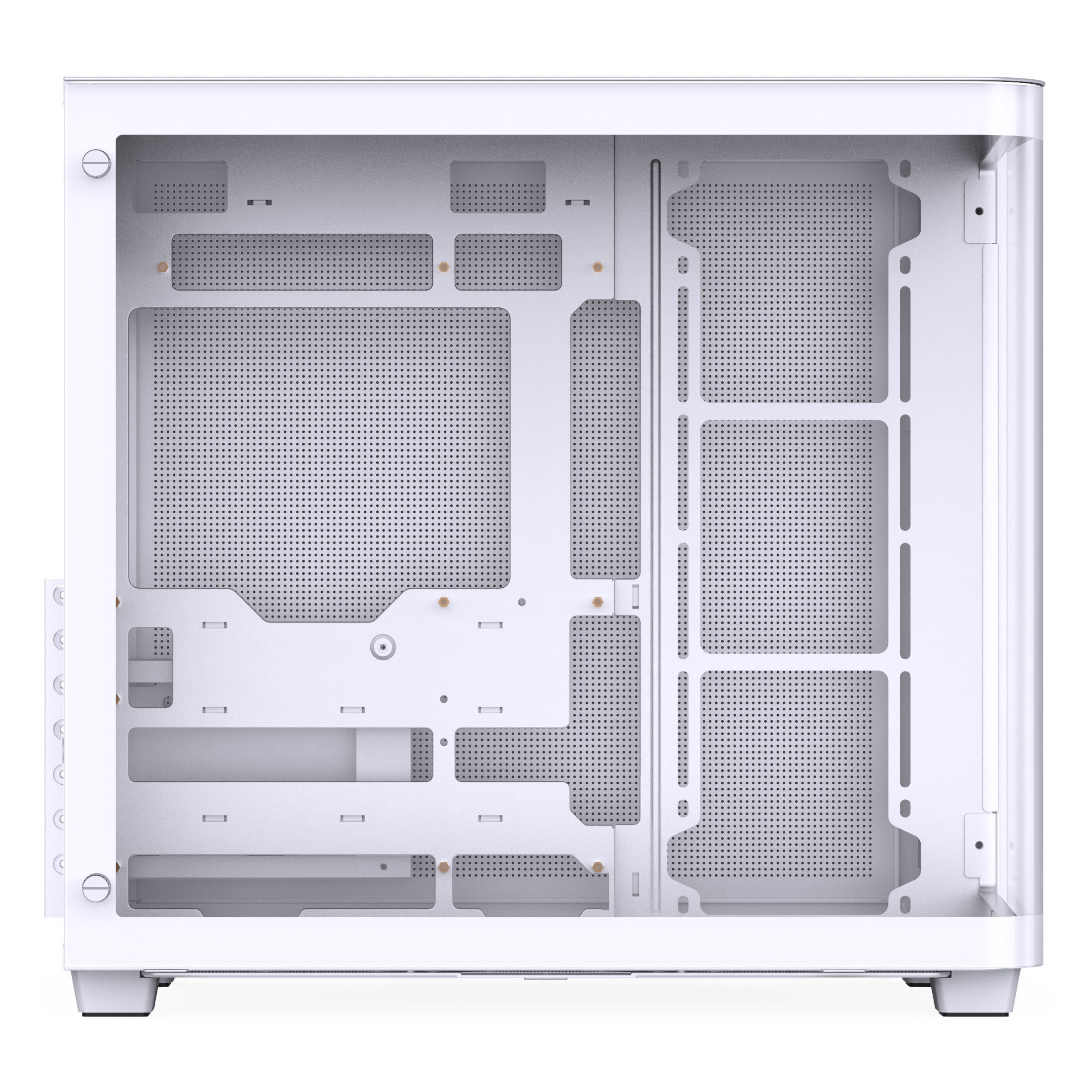

So that there is something to see, this PC case supports the installation of graphics cards up to 420 mm long. This gives you the freedom of choice, because every imaginable model fits into the case. The Jonsbo TK-3 offers space for an ATX power supply up to 220 mm long, so that the Jonsbo TK-3 offers the necessary space for powerful power supplies. The mainboard tray has space for mainboards from Mini-ITX to ATX. The Jonsbo TK-3 offers a total of 7 PCI slots for expansion cards.
This case supports Back Connect in the ASUS BTF and MSI Project Zero variants.

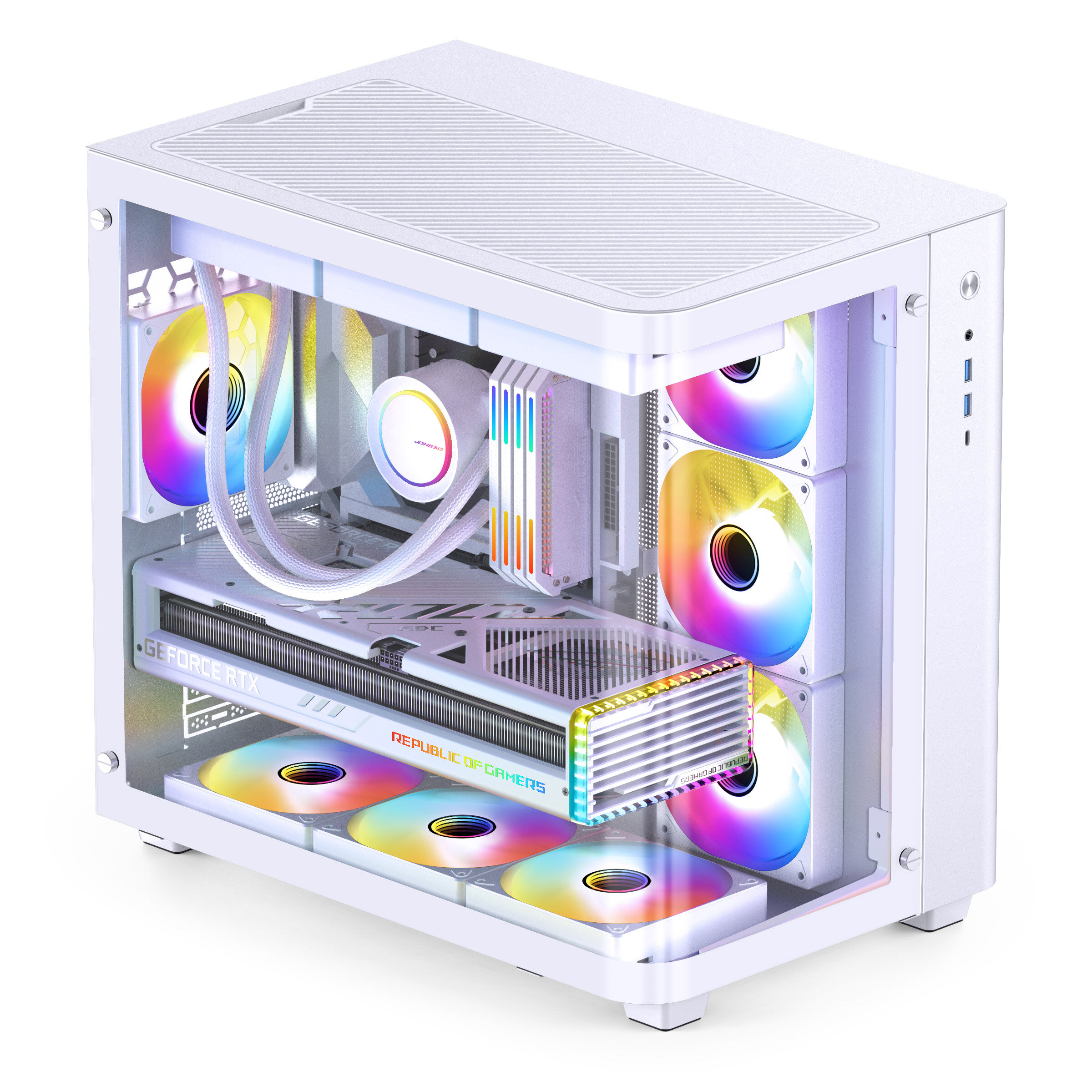

PC cooling: space for fans, CPU coolers and radiators
High-performance PC parts require excellent cooling and the Jonsbo TR-3 offers appropriate options for installing them. A total of ten 120 mm fans can be accommodated in this midi tower and ensure excellent air circulation. There is also space for large CPU coolers up to 165 mm high. A radiator up to 360 mm in size can be attached to the top and bottom.

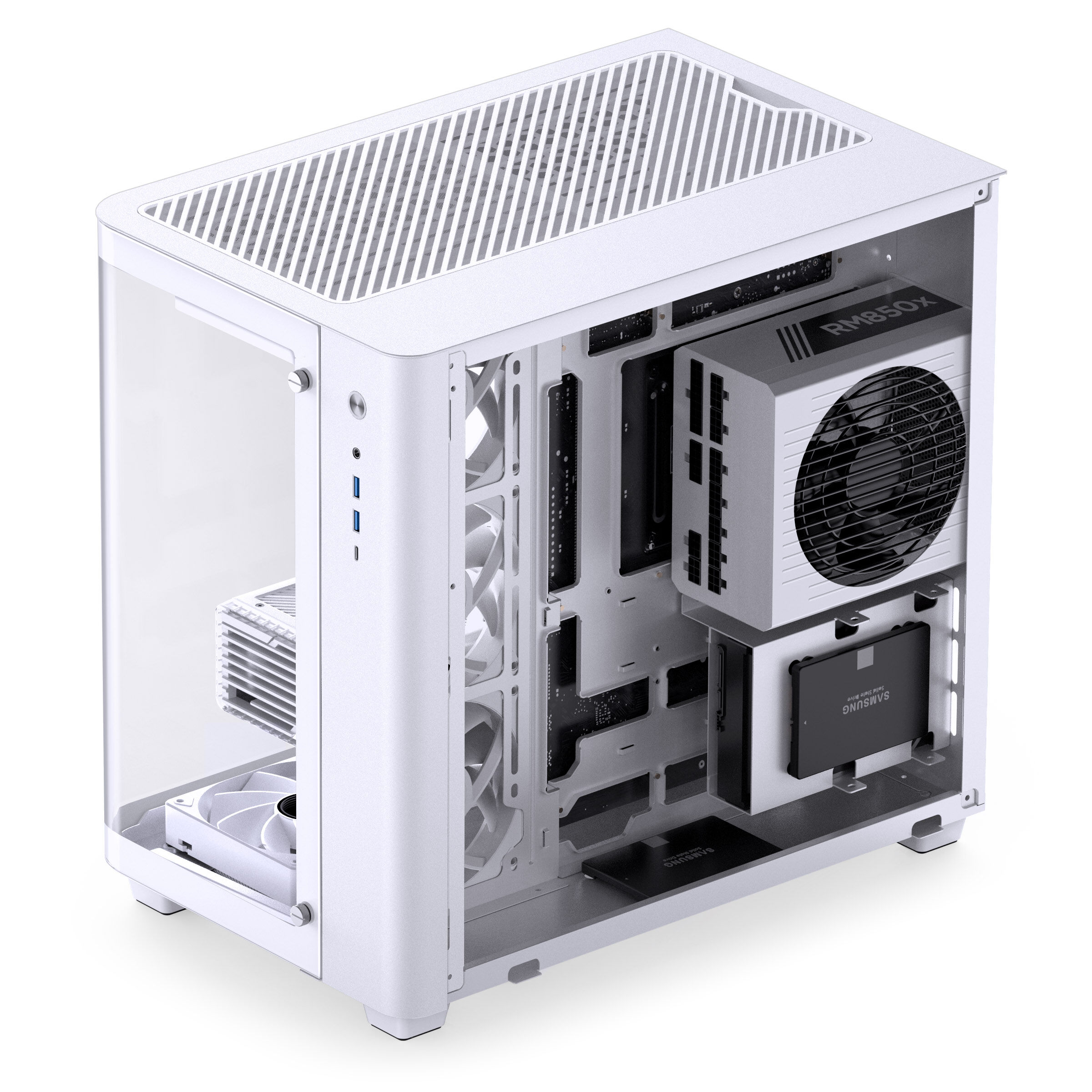

Drives: Options for hard drives and SSDs
A total of three SATA hard drives and SSDs can be installed in the second chamber. A 3.5 inch HDD and a 3.5 or 2.5 inch drive in the hard drive cage and a 2.5 inch SSD on the bottom of the case.
On the front of the case there is a fast USB-C port, two USB-A ports and a combined 3.5 mm jack socket for your gaming headset.
| Technical Details | |
|---|---|
| Colour | White |
| Materials | Steel, plastic, tempered glass |
| Dimensions | |
| Measurements (W x H x D) | 288 x 415 x 438 mm |
| Weight | 7.3 kg |
| Form Factor | |
| Supported Motherboards | ATX, Micro-ATX, ITX |
| Back Connect Support | Yes (ASUS BTF, MSI Project Zero) |
| Fan Support | |
| Top | 3x 120 mm / 2x 140 mm |
| Bottom | 3x 120 mm |
| Side | 3x 120 mm |
| Rear | 1x 120 mm |
| Radiator Support | |
| Top | 1x 360 mm / 1x 280 mm |
| Bottom | 1x 360 mm |
| Drive Bays | |
| 3.5 inch | 1 |
| 3.5 / 2.5 inch (combined) | 1 |
| 2.5 inch | 1 |
| Power Supply | |
| PSU Support | 1x ATX (optional) |
| Expansion | |
| Expansion Slots | 7 |
| I/O Panel | |
| USB-C 3.1 (3.2 Gen 2) | 1 (10 Gbit/s) |
| USB-A 3.0 (3.2 Gen 1) | 2 (5 Gbit/s) |
| Audio | 1x 3.5 mm jack (4-pole, TRRS) |
| Clearances | |
| Max. GPU Length | 420 mm |
| Max. CPU Cooler Height | 165 mm |
| Max. PSU Length | 220 mm |
| Specification | |
|---|---|
| Colour | |
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 438 mm |
| Width | 288 mm |
| Height | 415 mm |
| Weight | 7.3 kg |
| Case | |
| Case Type | Mid Tower |
| Motherboard Support | |
| Compatible Motherboard Formats | ATX, ITX, Micro-ATX |
| Max. Motherboard Format | ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 165 mm |
| Max. GPU Length | 420 mm |
| Max. PSU Length / Depth | 220 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU included | No |
| PSU Format | ATX |
| Fan Support | |
| 120 mm fans | 10 |
| 140 mm fans | 2 |
| Radiator Support | |
| Max. Radiator Compatibility | 360 mm |
| Drive Bays | |
| 2.5 inch internal drive bay | 1 |
| 3.5 inch internal drive bay | 1 |
| 1x 3.5 / 1x 2.5 inch (combined) | 1 |
| Hot swap drive bays | No |
| External Ports | |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 2 |
| Audio In/Out | 1x (3.5 mm jack, 4-pin, TRRS) |
| Card reader | No |
| Case Features | |
| I/O position | Front |
| Side panel | With window |
| Front door | No |
| Cable Management | Yes |
| Filters Included | Yes |
| Noise dampening | No |
| Mainboard slide / tray | No |
| Remote included | No |
| Transport System | No |
| Back Connect | |
| Back Connect | Yes |
| Back-Connect Compatibility | ASUS BTF, MSI Project Zero |
| Expansion Slots | |
| Expansion slots / PCI slots | 7 |
| Materials | |
| Materials | Steel |
| Lighting | |
| Lighting / RGB | No |
| Fan / RGB control | No |
| Additional Contents | |
| Included fans | None |
