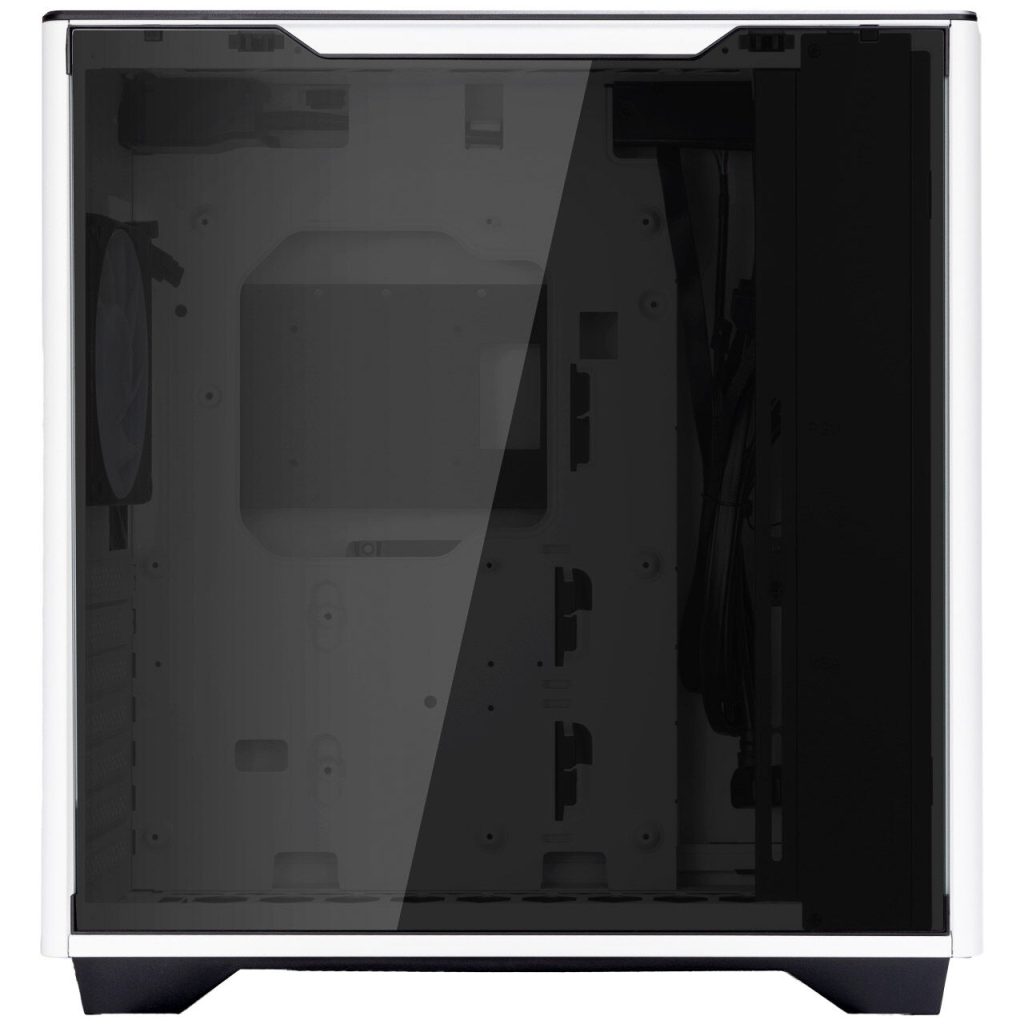

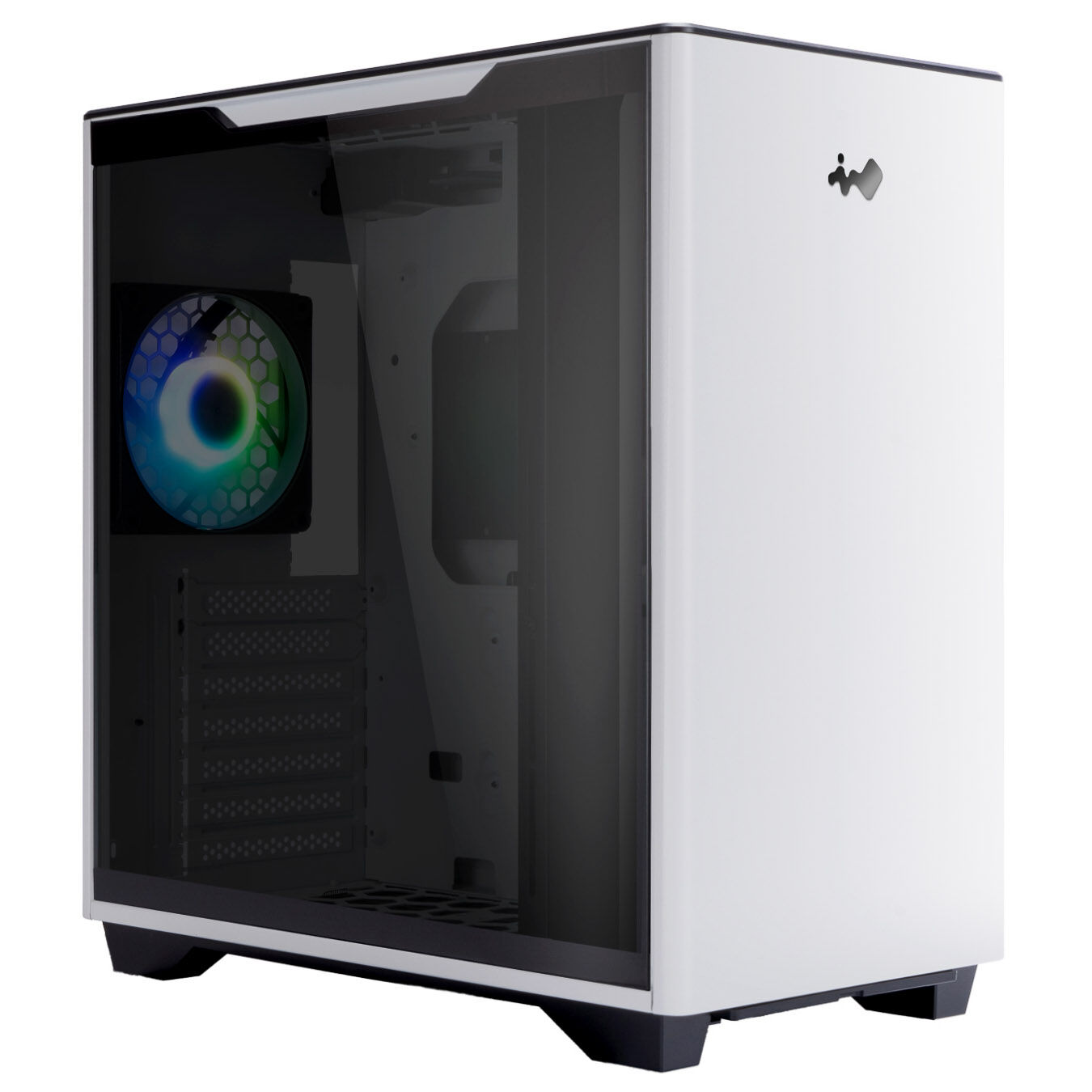

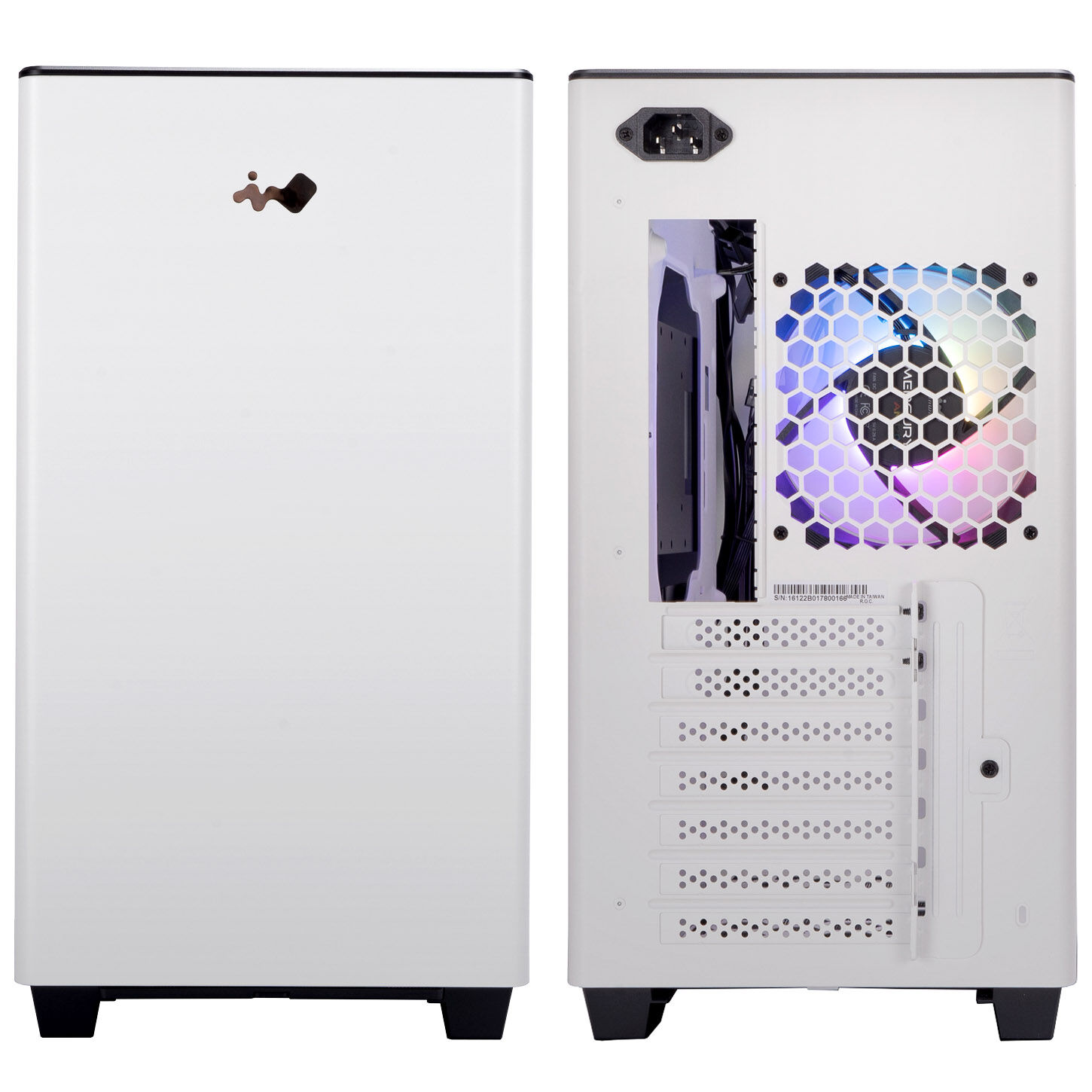

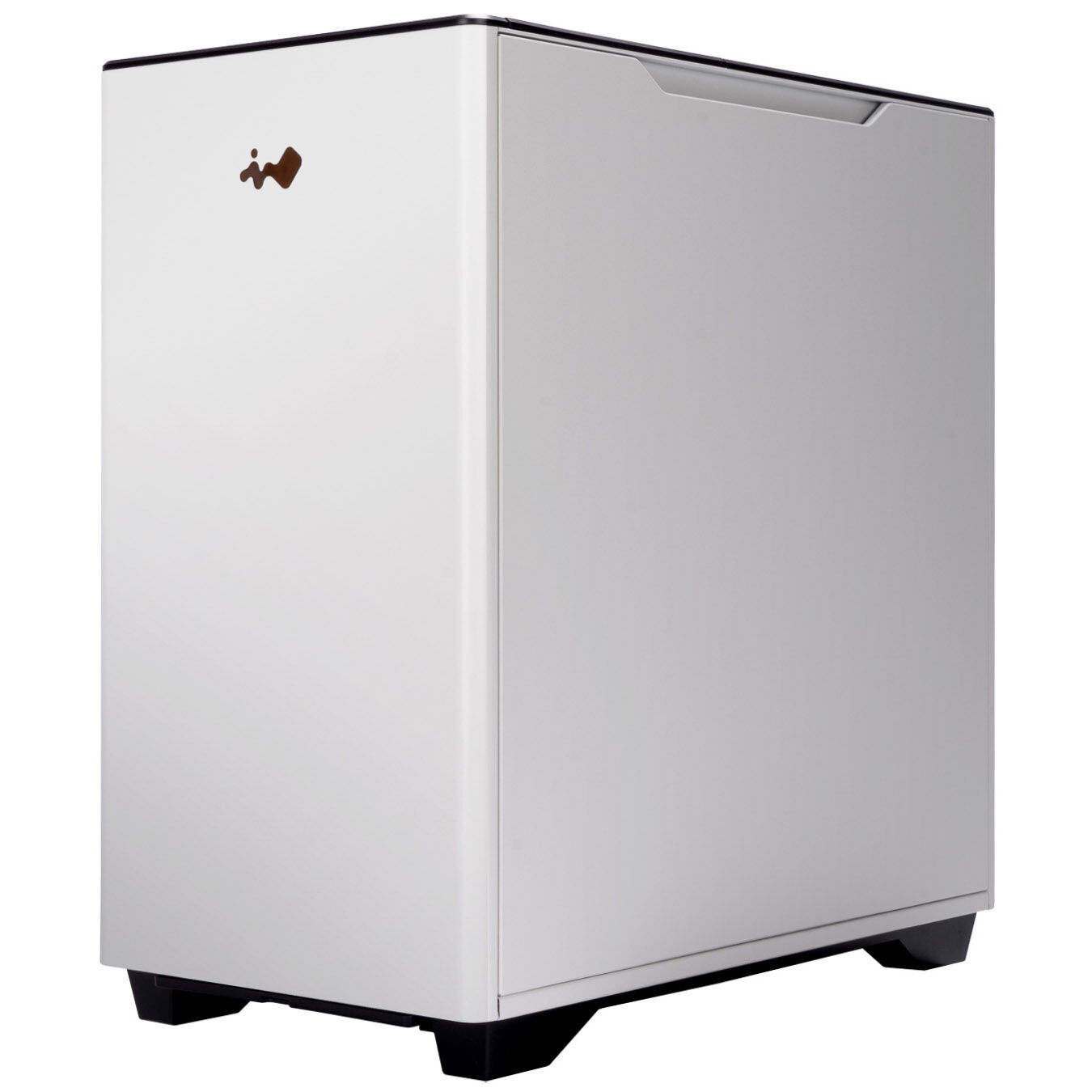

The InWin A5: Simple design
The A5 tower from InWin is a midi tower that, with its compact size, can fit anywhere and offers you enough options for installing high-end components. Its simple yet modern appearance also suits any workplace.
Hardware options

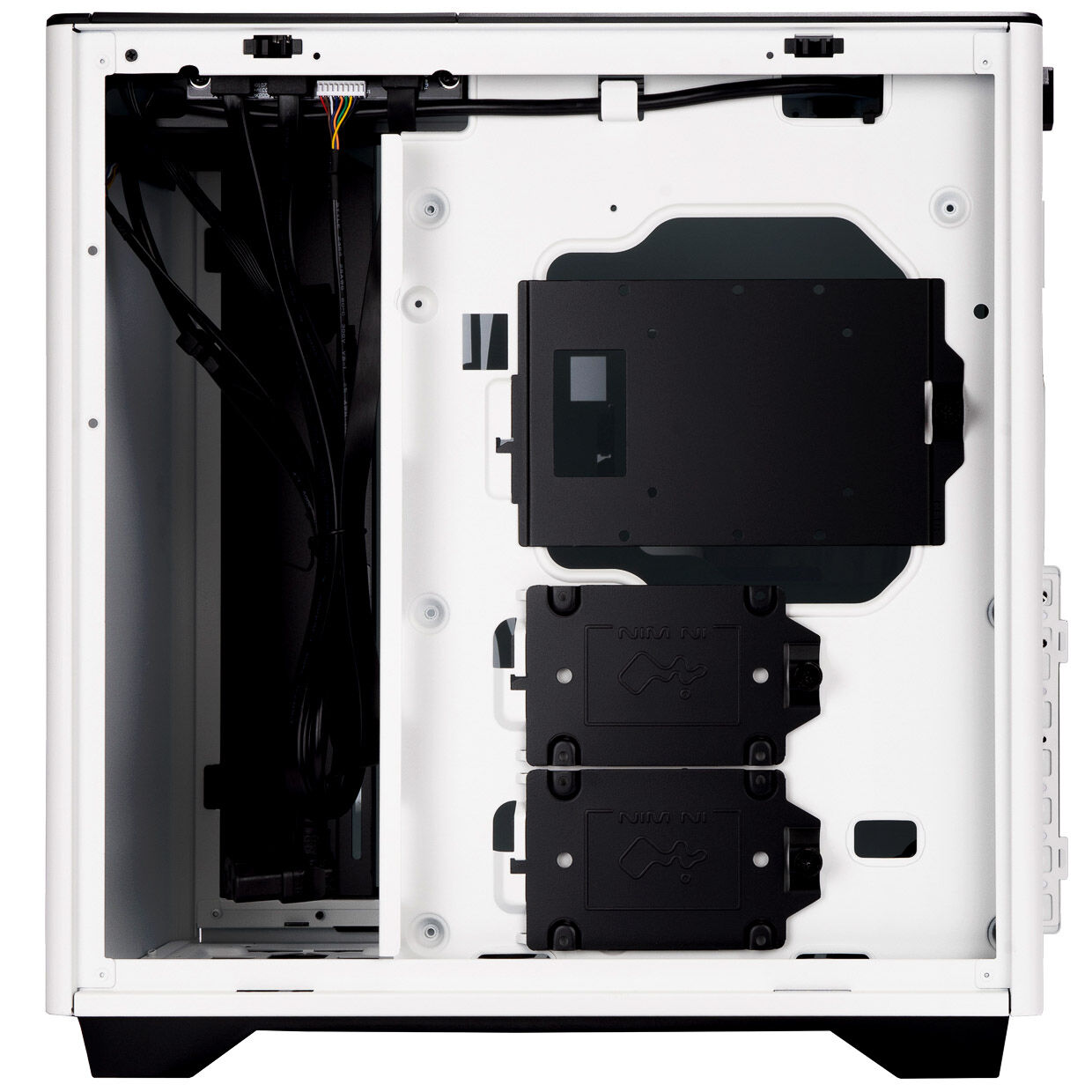

The case supports the installation of graphics cards up to 340 mm long and CPU coolers up to 162 mm high. Up to four 2.5 / 3.5 inch drives are also possible. There are hardly any limits when it comes to choosing the mainboard, as the tower supports the installation of ATX mainboards and even E-ATX (11 x 12 inches). The power supply can have a length of 140 to 200 mm. Please note that it can only be a maximum of 170 mm long if you want to install a graphics card larger than 280 mm.
Effective cooling and connectivity

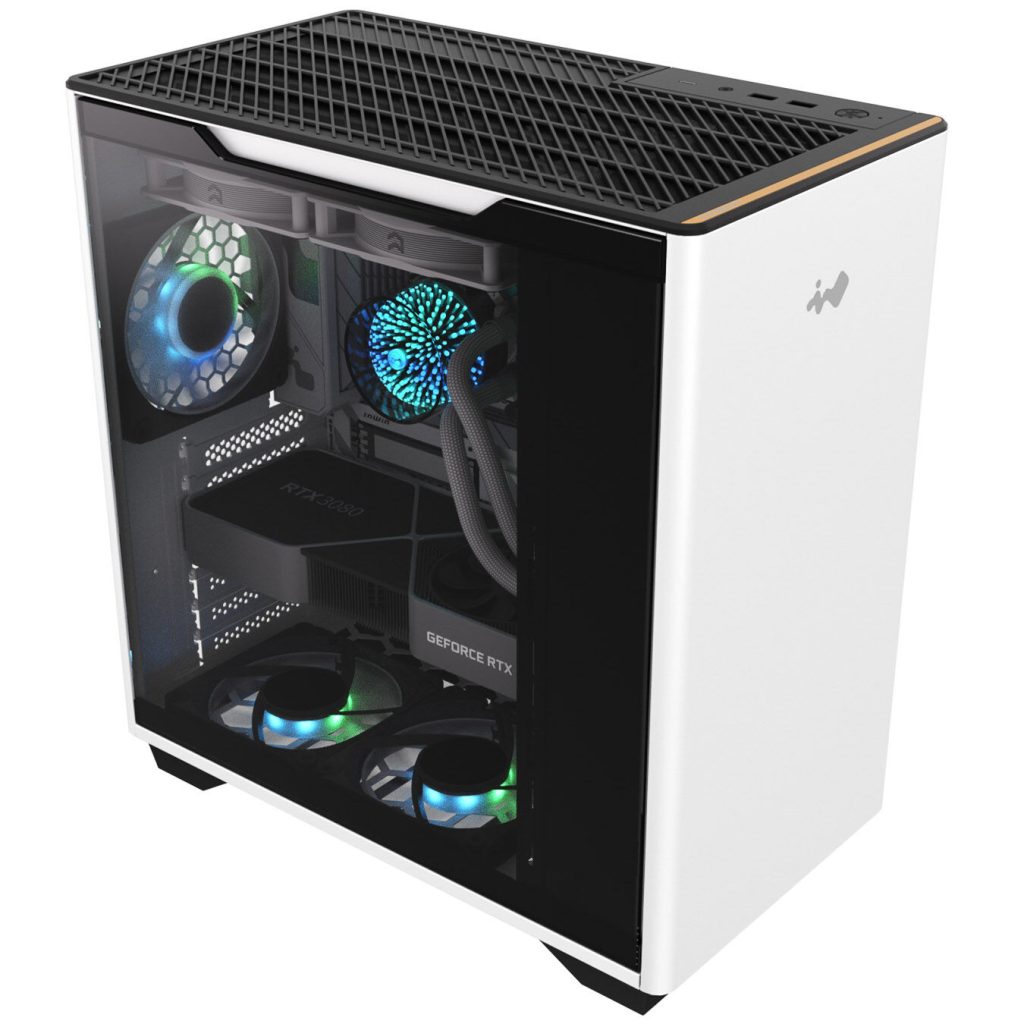

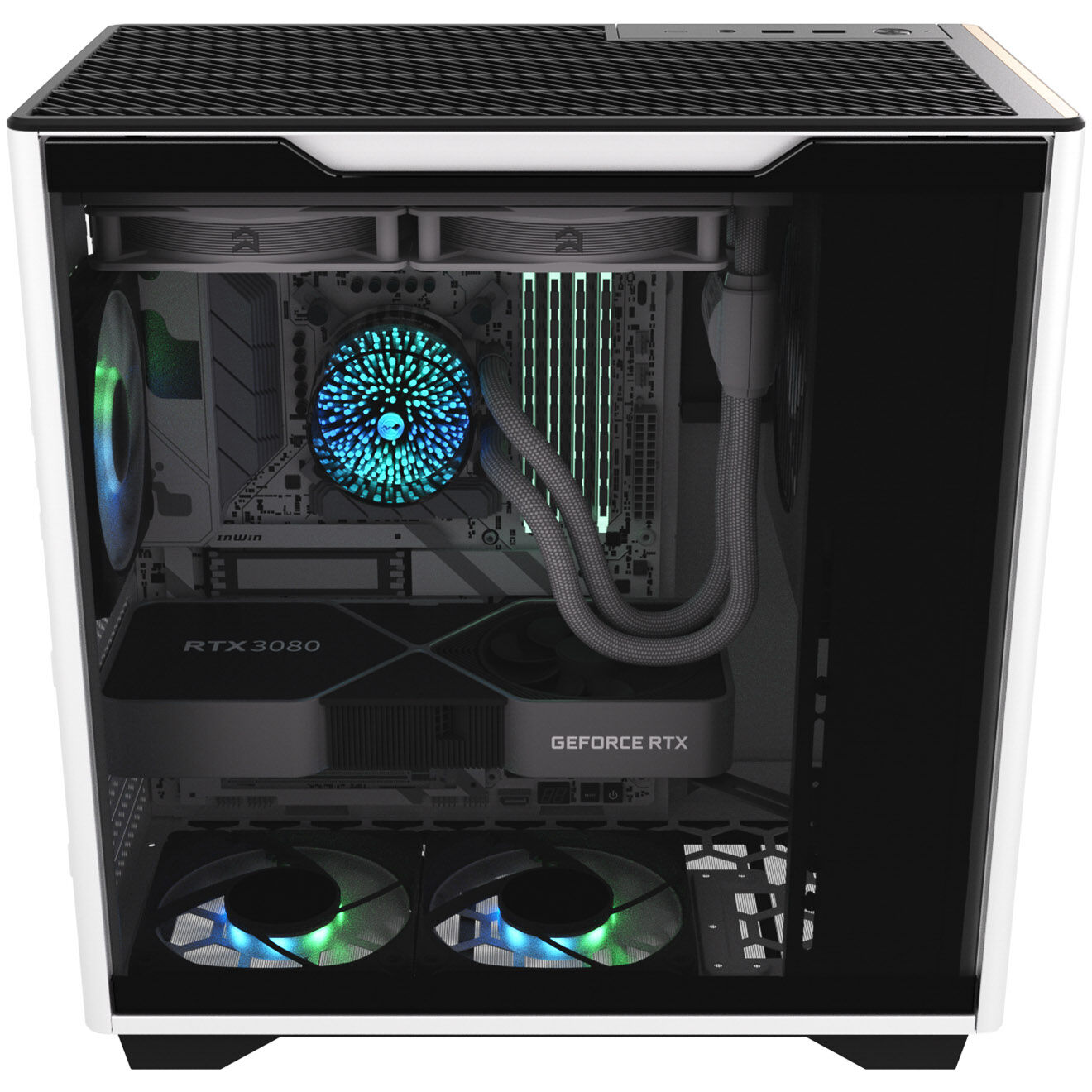

To ensure optimal cooling of your hardware, you have the option of installing up to five fans. An InWin Mercury AM120S fan is already included in the delivery. If you prefer water cooling, you can also install a radiator up to 240 mm in size. In addition, the ventilated filter plates on the top and bottom ensure that dust and heat do not accumulate inside the tower.

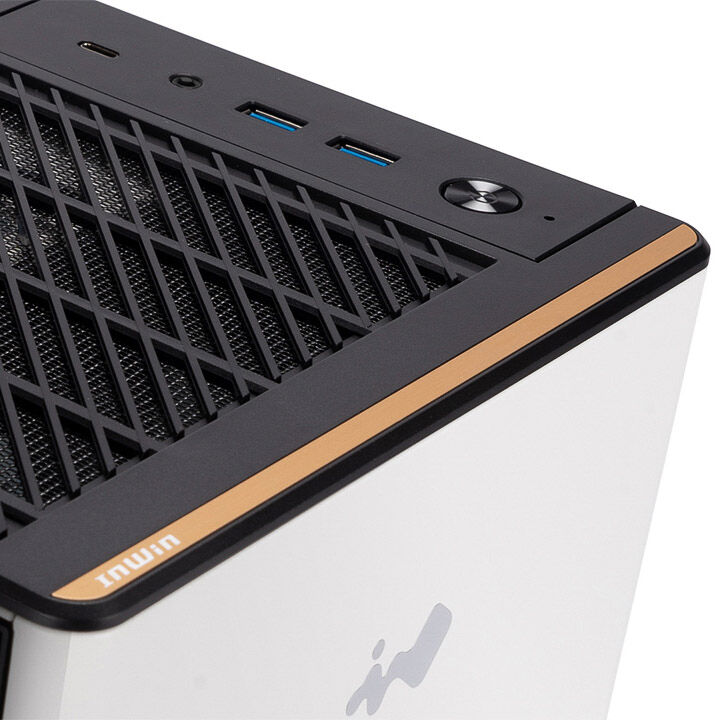

On the top of the case there is a fast USB-C port that achieves a transfer speed of up to 20 Gbit/s, two USB-A ports and an audio / mic port.
Technical details
– Color: White
– Case type: Midi-Tower
– Material: SECC, Tempered Glass, PC-ABS
– Dimensions: 215 x 407 x 399 mm (W x H x D)
– Weight: 5.86 kg
– Form factor: E-ATX (12 x 11 inches), ATX, Micro-ATX, Mini-ITX
– Total fans possible:
– 2x 120 mm (top)
– 2x 120 mm (bottom)
– 1x 120 mm (rear)
– Radiators possible:
– 1x 240 mm (top)
– Drive bays:
– 2x 3.5 inches / 2.5 inches
– 2x 2.5 inches
– Expansion slots: 7x
– I/O panel:
– 1x USB-C (3.2, Gen2x2, 20 Gbit/s)
– 2x USB-A (3.2, Gen1, 5 Gbit/s)
– 1x audio / mic
– Maximum graphics card length: 340 mm
– Maximum CPU cooler height: 162 mm
– PSU: ATX (max. 200 mm, for GPU up to 280 mm length only max. 170 mm)
