Hyte Y70 Midi Tower Standard - black

– Midi tower for motherboards up to E-ATX
– Suitable for radiators up to 360 mm
– Space for graphics cards with a length of up to 422 mm
– Up to ten fans possible for optimal cooling
– Up to four 2.5 / 3.5 inch drives can be installed
– Exceptional design

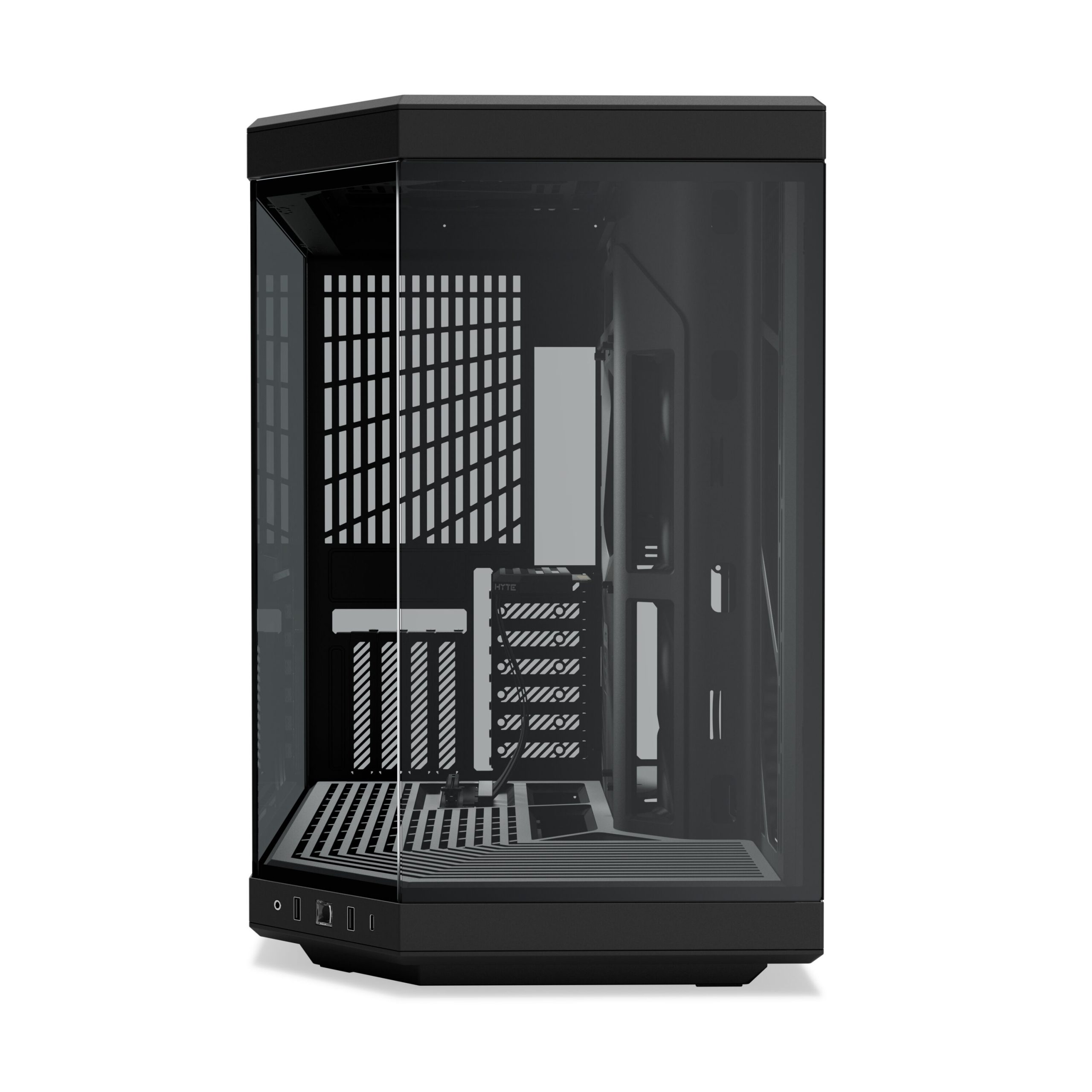

At first glance, the Y70 from Hyte impresses with its three-part panoramic window made of tempered glass, which gives you an all-round view of your hardware. This allows you to perfectly show off your PC build. At the same time, built-in fan slots on the bottom and side of the midi tower ensure optimal air flow.

Efficient cooling
In addition to the design, which ensures uninterrupted airflow, you can optimally cool your hardware with fans or radiators. A radiator up to 360 mm is possible on the top, although it should be noted that this must not be higher than 68 mm. There is also space on the side for a 280 mm or 360 mm radiator, which can be up to 125 mm high. You can also place a 120 mm or 140 mm radiator on the back, for example for a small all-in-one water cooling system.

Up to ten fans are also possible. Of these, either three 120 mm or two 140 mm fans can be installed on the top. A 120 mm or 140 mm fan can be installed on the back. You can also install up to three 120 mm or two 140 mm fans on the bottom, as long as they are not higher than 32 mm. There is the option of three 120 mm or two 140 mm fans on the side. Your hardware is therefore guaranteed not to overheat.

Enough space for components
The large construction means you can install motherboards up to E-ATX. The case supports the installation of graphics cards with a length of up to 422 mm. Accordingly, you can also easily install high-end graphics cards from NVIDIA or AMD. In addition, this is not only possible horizontally, but also vertically, as long as the graphics card does not require more than four slots. The riser cable you need for this is included in the scope of delivery. The height of the CPU can be a maximum of 180 mm, the length of the ATX power supply a maximum of 235 mm.

To ensure sufficient storage for your games and programs, you can install up to four 2.5-inch drives or two 3.5-inch drives. On the I/O panel there is a fast USB-C 3.2 port, as well as two USB-A ports and an audio/mic port.

Technical details
– Color: Black
– Dimensions: 320 x 470 x 470 mm (W x H x D)
– Form factor: E-ATX, ATX, Micro-ATX, ITX
– Drive:
– 4x 2.5 / 2x 3.5 inch
– Radiator mountings:
– 1x max. 280 / 360 mm (top, up to 68 mm high)
– 1x max. 120 / 140 mm (back)
– 1x max. 280 / 360 mm (side, up to 125 mm high)
– Total number of fans possible:
– 3x 120 / 2x 140 mm (top)
– 1x 120 / 140 mm (back)
– 3x 120 / 2x 140 mm (bottom, up to 32 mm high)
– 3x 120 / 2x 140 mm (Side)
– Power supply: ATX 12 V (up to 235 mm power supply length)
– Expansion slot: 7 horizontal, 4 vertical
– I/O panel:
– 1x USB-C 3.2 (3.2, Gen2)
– 2x USB 3.2
– 1x audio / mic
– Maximum CPU cooler height: max. 180 mm
– Maximum graphics card length: max. 422 mm
