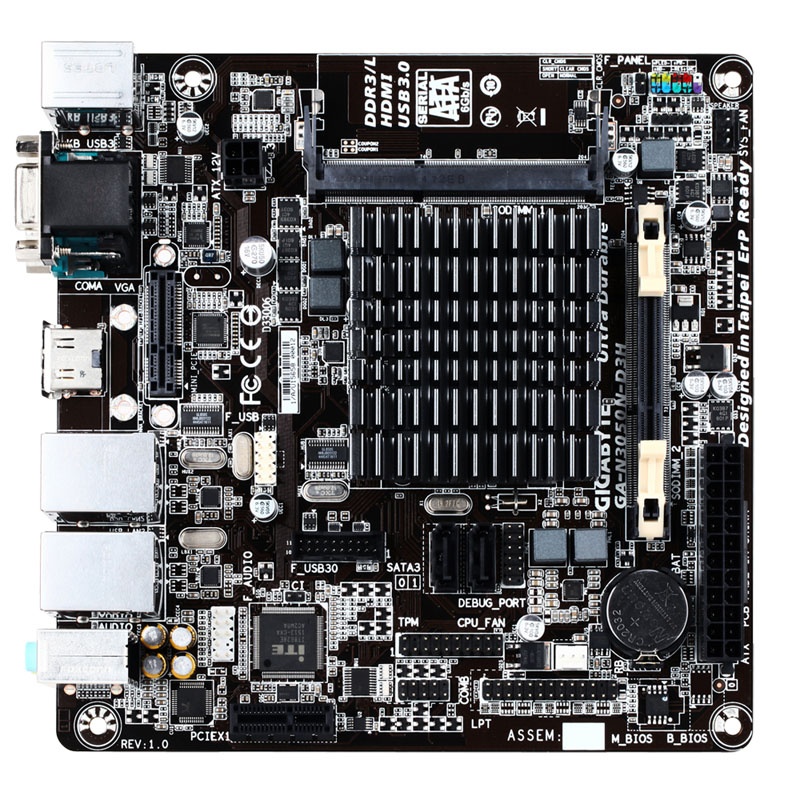

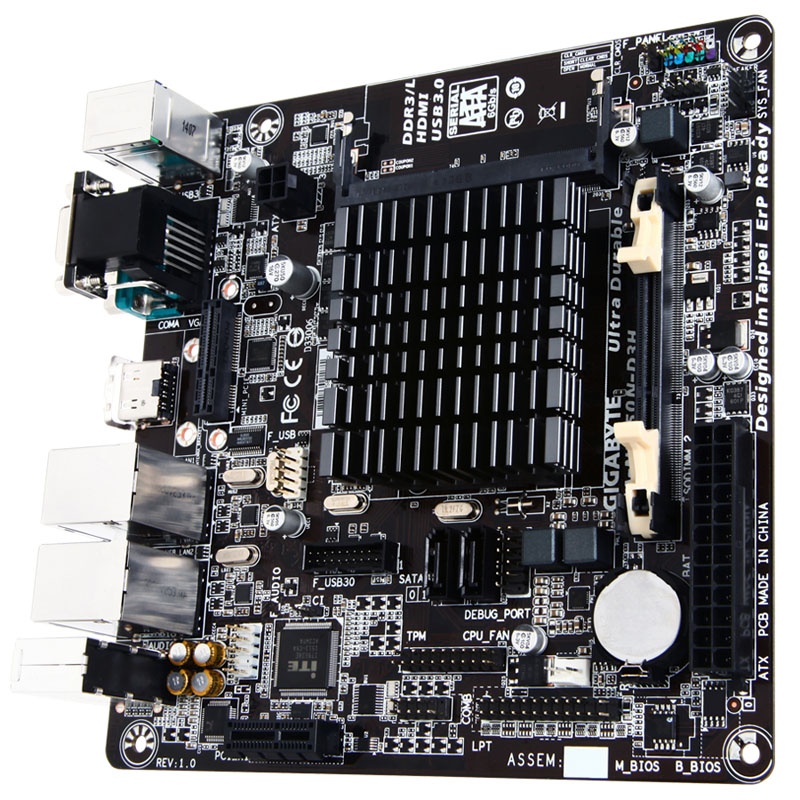

Gigabyte N3050N-D3H, Intel SoC Motherboard - Intel Celeron N3050

The used Airmont -Prozesorkerne are the successors of the Silver Mont series and feature, thanks to the modern production process with 14 nm feature sizes on a better utilization of the clock travel, which in turn sets a moderate increase in performance compared to its predecessor, however, was before especially the energy efficiency further increased.

Everyday applications mastered the SoC motherboard (system on a chip), thanks to its dual-core processor with a clock speed of 1.6 GHz, which through a Turbo function (burst mode) to max. 2.16 GHz can be increased rapidly. Must not be dispensed with an appealing amenities at Gigabyte N3050N-D3H in Mini-ITX format. Two memory slots (dual-channel) in a version for notebook memory (SO-DIMM format) support DDR3 modules or energy-saving DDR3L RAM at a native clock speed of 1,600 MHz and can with a total capacity of up to 8GB for use come.

The HD Graphics (Braswell) supports DirectX 11.1 and allowed through advanced video unit video playback INM 4K / Ultra-HD resolutions and in H.265 format. The clock speed of up to 320 MHz while not appropriate to play the latest gaming titles, for many browser games and older games but this is more than adequate. When Video output with HDMI (max. 3840 x 2160 @ 30 Hz) undVGA (max. 1920 x 1200 @ 60 Hz) two ports available.

The Gigabyte N3050N-D3H provides for plug-in cards also each have a PCIe 2.0 x1 and Mini-PCIe slot (Half-size) available. For HDDs and SSDs are available two SATA 6G ports. In addition to the 5.1 sound thanks to Realteks ALC887 audio chipset convinced the SoC motherboard from Gigabyte mitvier USB 3.0 and six 2.0 ports, a chassis intrusion each, TPM and COM port header and many other features.

Technical details:
    Format: Mini-ITX
    Color: Black
    Chipset: Intel  Braswell
    Processor: Intel Celeron N3050 Dual Core (1.6 GHz basic clock frequency
    SoC Graphics: Intel HD Graphics (320 MHz clock rate)
    RAM: 2 x DDR3 / DDR3L SO-DIMM (regularly DDR3-1.600, max 8GB.)
    Slots (physically):
    1 x PCIe 2.0 x1
    1 x Mini-PCIe (Half-size)
    Internal connections:
    2 x SATA 6G
    2 x USB 3.0 (a header)
    2 x USB 2.0 (a header, by GL580S chip)
    1 x TPM header
    1 x Serial Port (COM header)
    1 x Speaker header
    1 x chassis intrusion header
    1 x Clear CMOS jumper
    2 x fan (3-Pin)
    Power / reset / LED / front-Audio
    External connections:
    1 x PS / 2 keyboard / mouse
    2 x USB 3.0
    4 x USB 2.0 (by GL580S chip)
    2 x Gigabit LAN (Realtek Gigabit LAN chipset)
    1 x HDMI
    1 x VGA
    1 x Serial port (COM)
    1 x S / PDIF (optical)
    3x audio (Realtek ALC887 5.1)
    Power supply:
    1 x 24-pin ATX 12V
    1 x 4-pin ATX 12V
