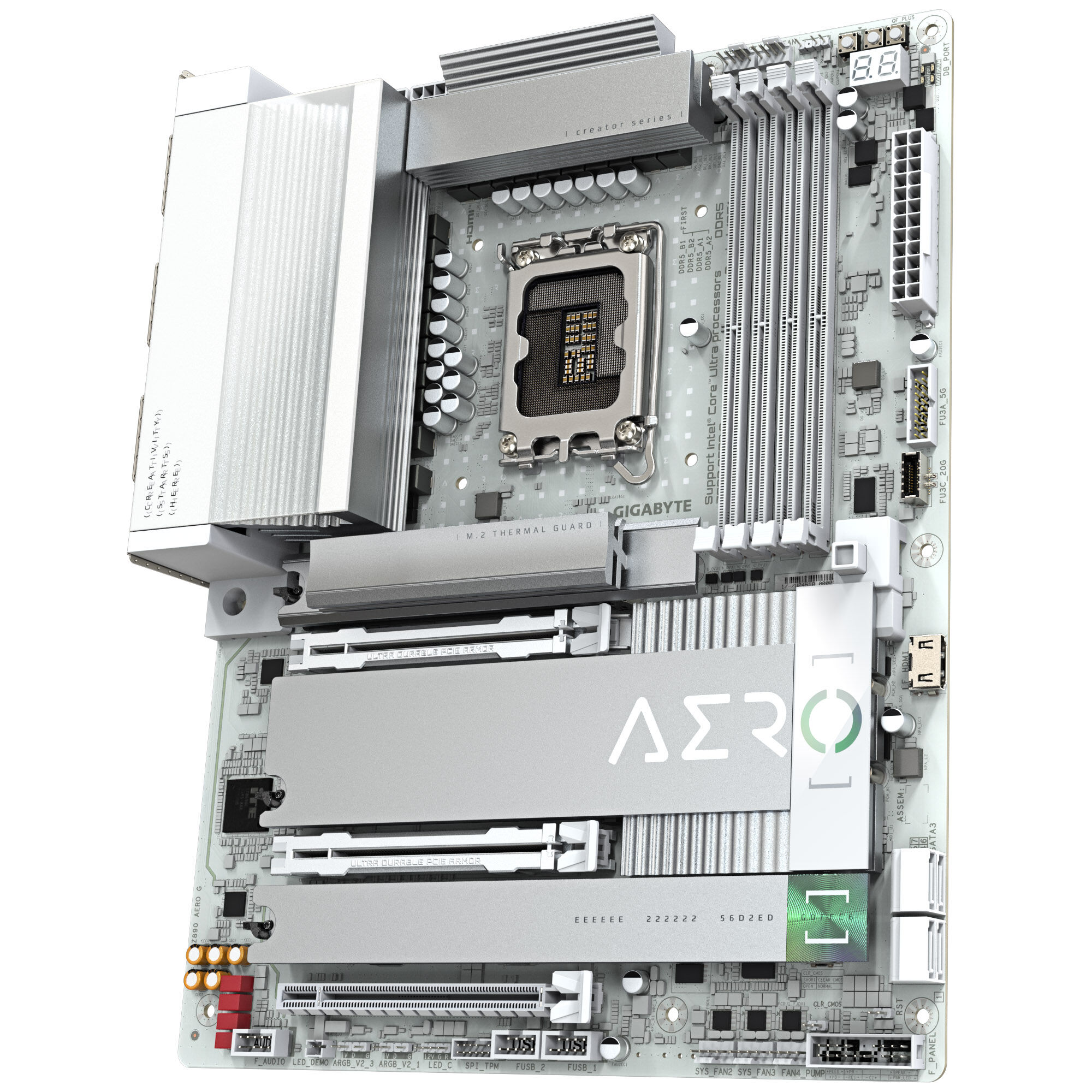

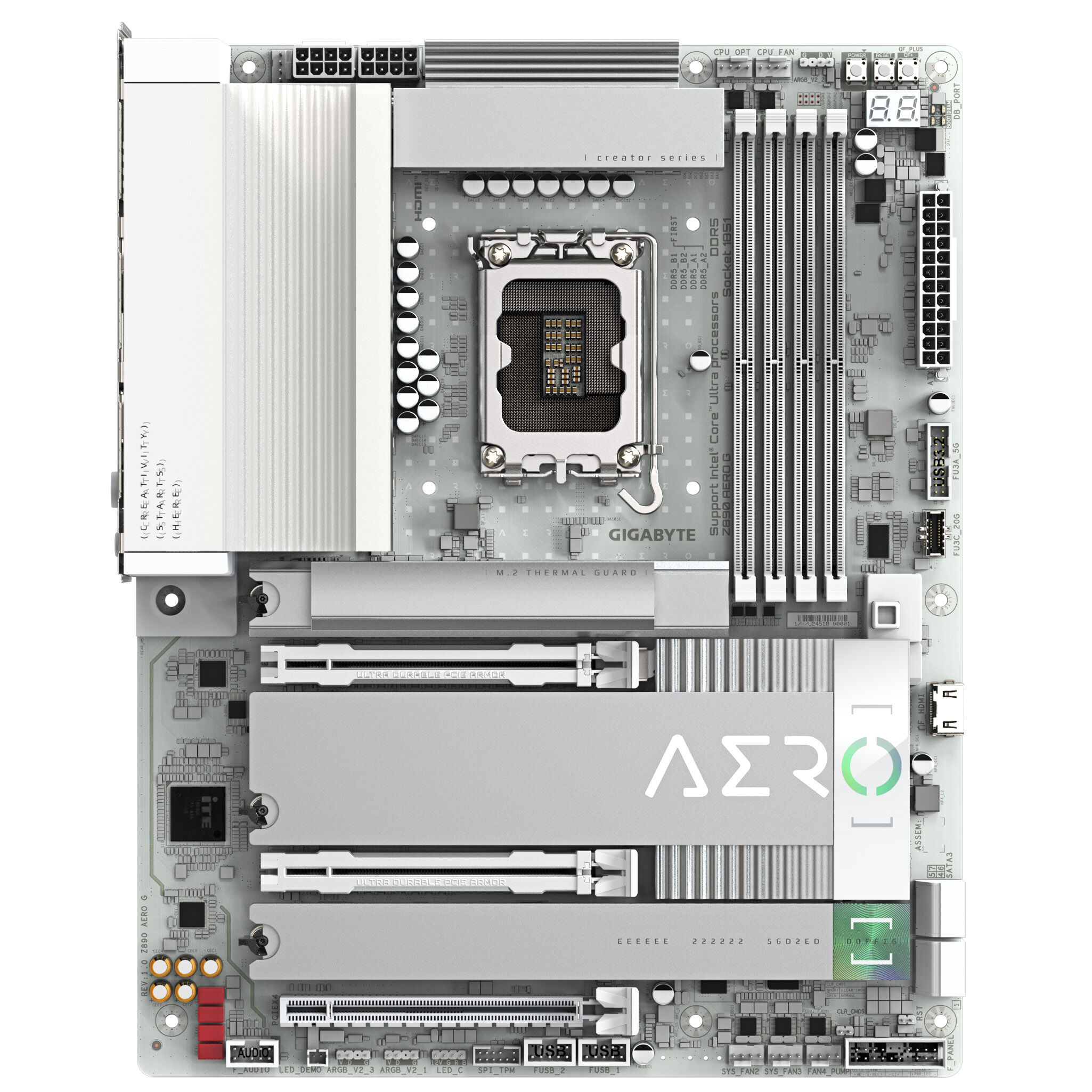

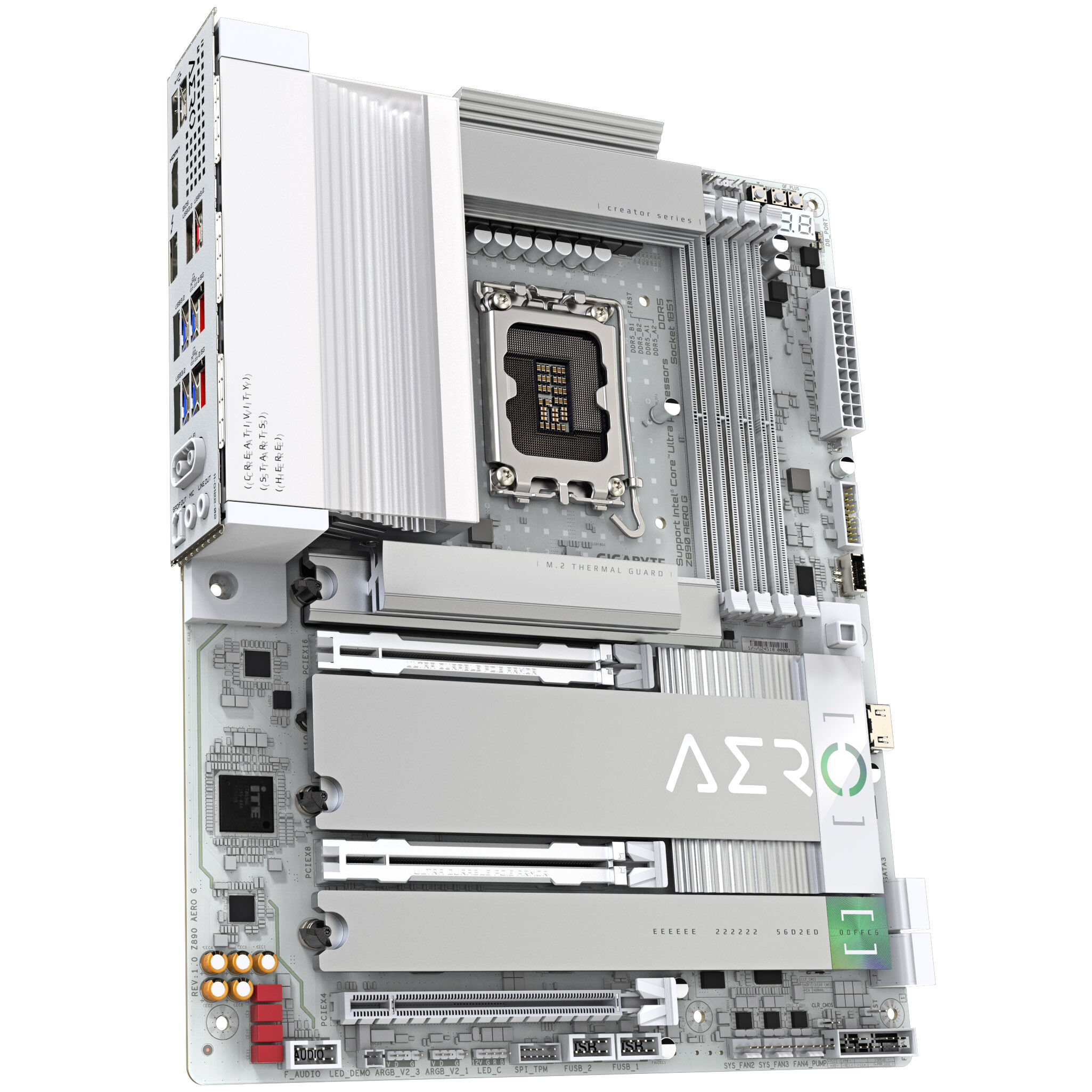

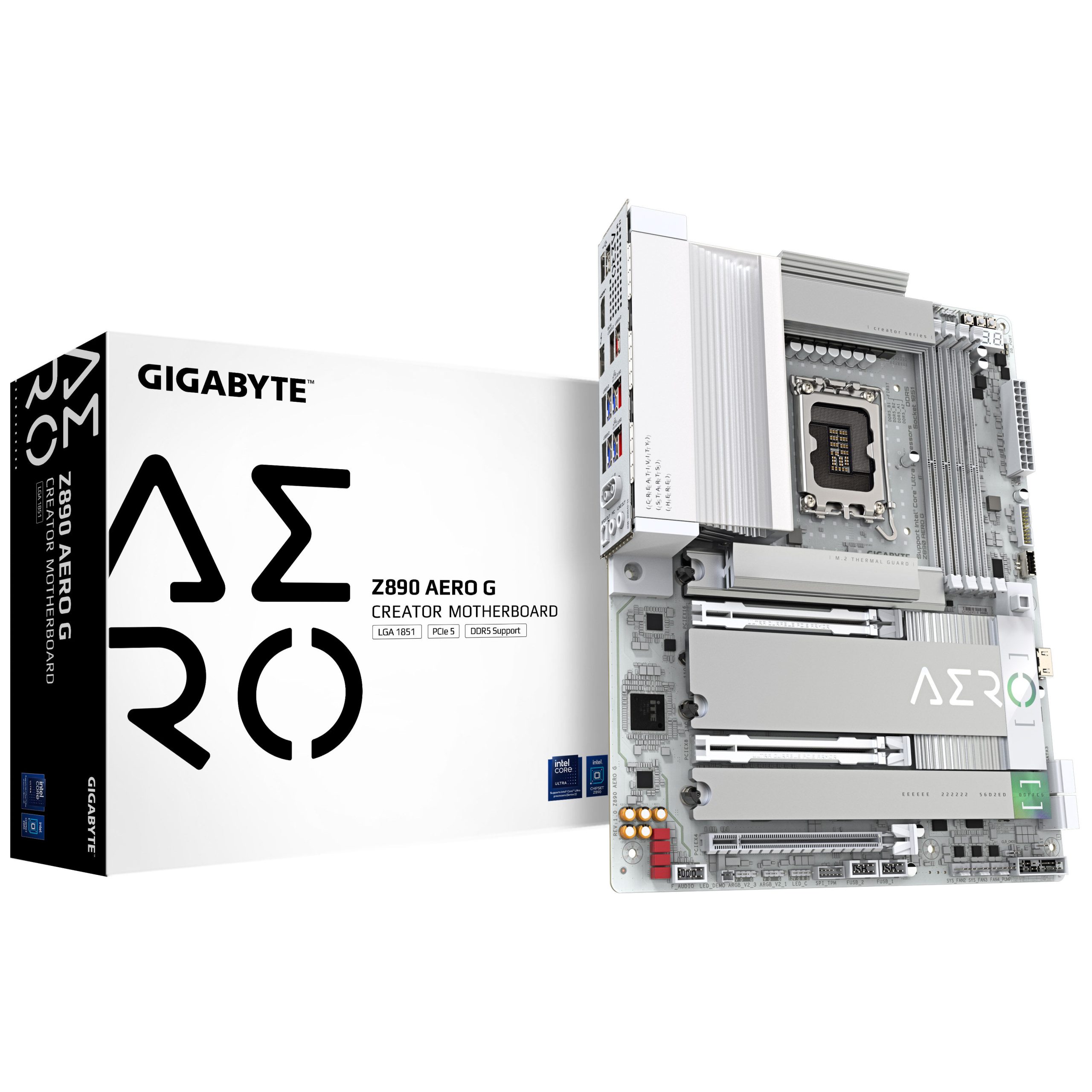

Gigabyte Z890 AERO G motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for high-end gaming builds.

– 2x PCIe 5.0 x16 (x16, x8) and 1x PCIe 4.0 x4
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8800 MHz (XMP 3.0 & CUDIMM support)
– 4x M.2 (including 2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 1x USB 4, 1x USB 3.2 Type-C, 2x USB 3.1, 4x USB 3.0, and 2x USB 2.0
– OC features: 16+1+2 phase VRMs, CMOS reset, Q-Flash Plus button
– Total of 6x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

GIGABYTE Z890 AERO G: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890 AERO G is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890 AERO G boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Ideal for white PC builds, the GIGABYTE Z890 AERO G offers numerous DIY-friendly features, such as a pre-installed I/O shield and Q-Flash Plus for easy BIOS updates. Overclocking enthusiasts benefit from the 16+1+2 phase power supply and Q-LED indicators for quick diagnostics. Efficient cooling of the M.2 SSDs and well-placed connectors enable clean cable management – perfect for users who value performance and stylish design.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMM (5600 MHz, up to 8800 MHz via XMP / OC / CUDIMM)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8)
– 1x PCIe 5.0 x16 (electrical x8 or x4/x4)
– 1x PCIe 4.0 x4
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4/x2; 2242 / 2260 / 2280 / 22110 / 25110, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 2242 / 2260 / 2280 / 22110 / 25110, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 2242 / 2260 / 2280 / 22110, chipset)
– 2x M.2 (PCIe 4.0 x4/x2; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– – 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1xHDMI
– 1x Front panel audio headers
– 1x 10-1-Pin System Panel Header
– 1x FlexKey button
– 1x reset button
– 1x start button
– 1x Q-Flash Plus button
– 1x reset jumper
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU OPT fan (4-pin)
– 1x W_PUMP+ header
– 3x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x 4-pin RGB (12V)

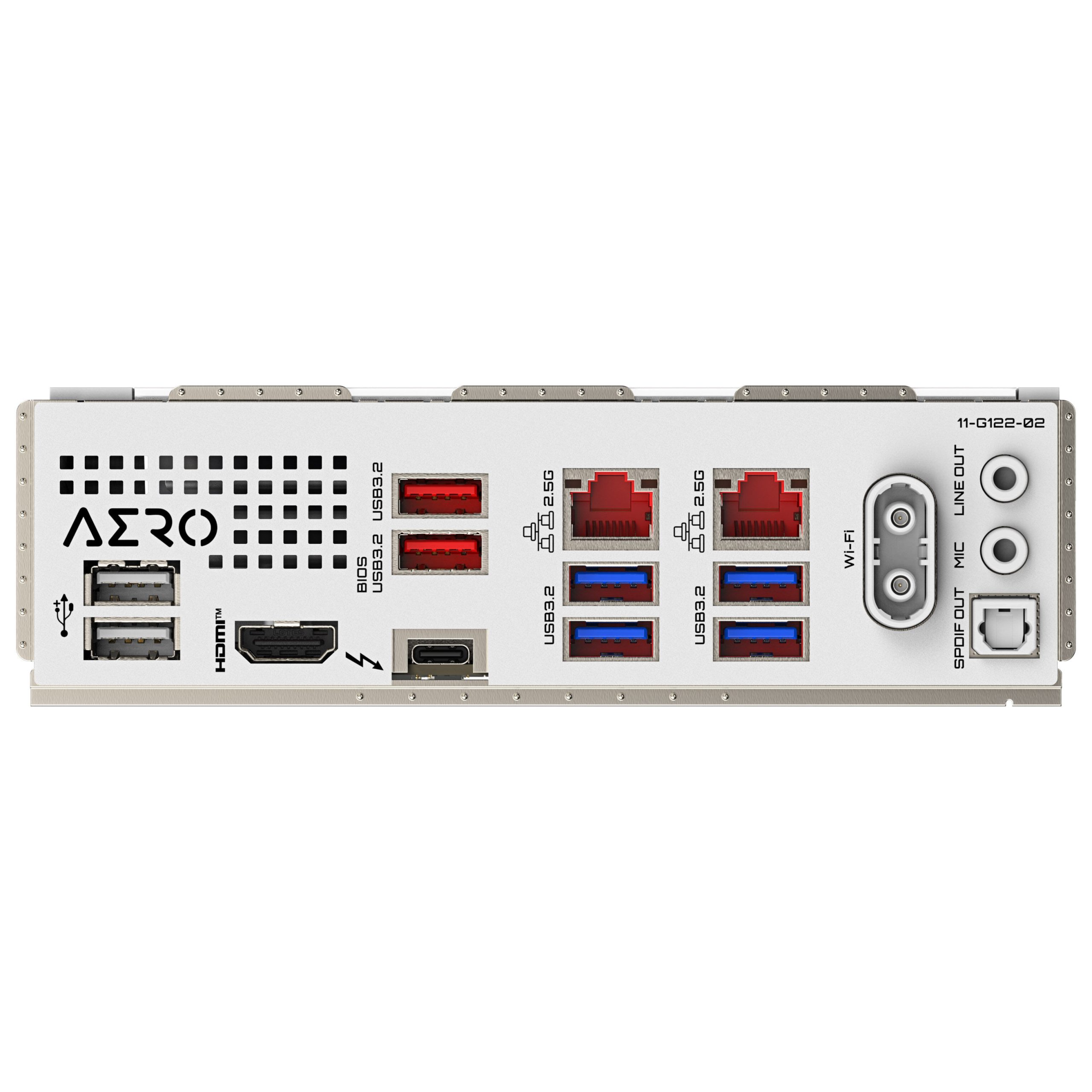

– External connections:
– 1x Thunderbolt 4 (USB-C)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1xHDMI
– 2x 2.5 Gigabit LAN
– 1x WiFi/Bluetooth module
– 2x 3.5 mm jacks
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX12V
– Accessories:
– 4x SATA cables
– 1x G-Connector
– 1x Wi-Fi antenna
– 1x RGB extension cable
– 2x thermistor cables
– 1x screw and bracket set for M.2 SSDs
