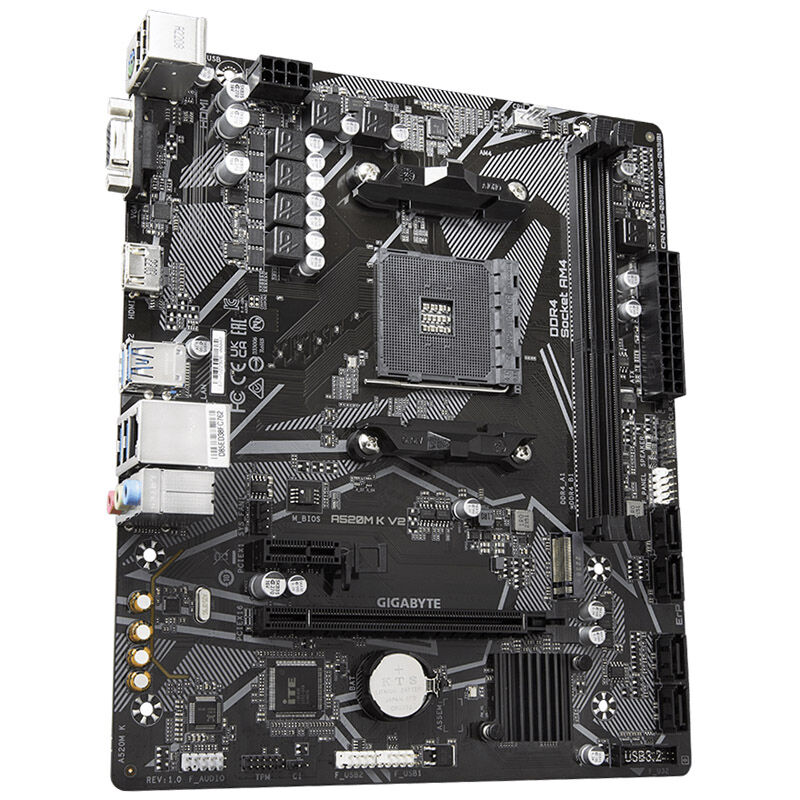

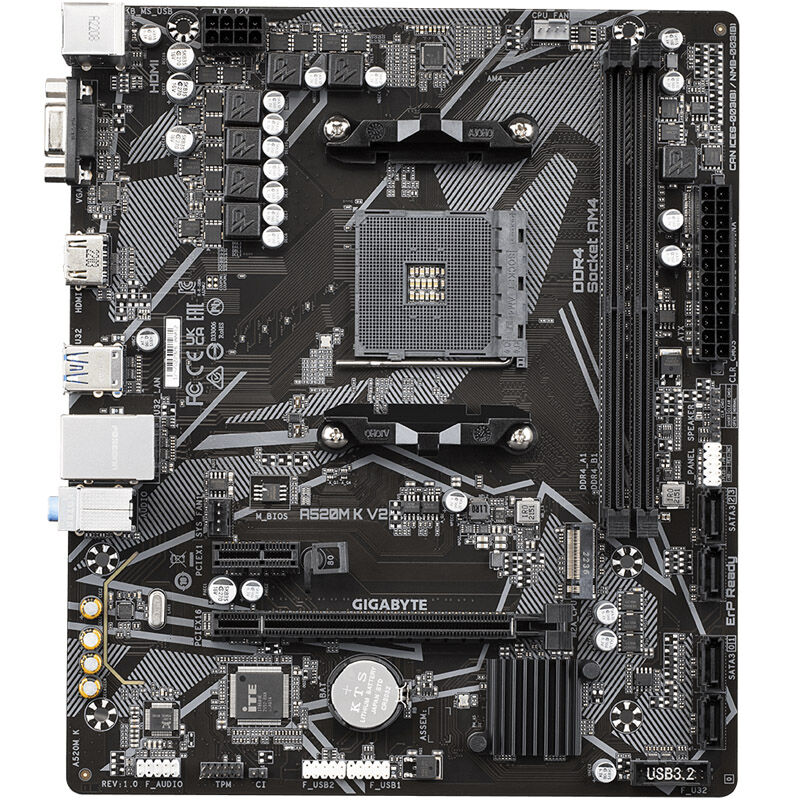

Gigabyte A520M K V2 motherboard, socket AM4, AMD A520, Micro-ATX, DDR4

– 1x PCIe 3.0 x16 slot for the graphics card, 1x PCIe 3.0 x1
– DDR4 memory up to 3200 MHz, with RAM overclocking up to 5100 MHz
– 1x M.2 slot with PCIe 3.0 and SATA

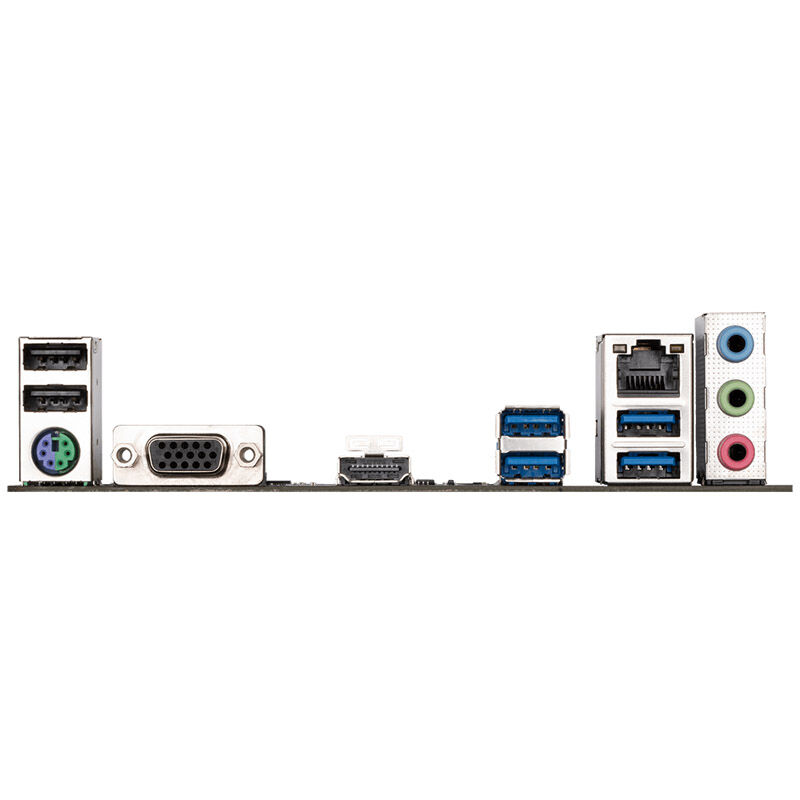

– USB on the I/O panel: 2x USB-A 2.0 / 4x USB-A 3.0
– A total of 2x 4-pin PWM headers for fans

The GIGABYTE A520M K V2 Micro-ATX motherboard in detail:
The AMD A520 is an entry-level chipset and supports Ryzen 3000 to Ryzen 5000 processors based on the Zen 2 and Zen 3 architectures. Unlike the AMD B550 and X570 chipsets, the A520 does not support PCIe 4.0 or overclocking. Motherboards with the A520 chipset, however, support PCIe 3.0 and offer office and home users a reliable foundation for their PC.

The GIGABYTE A520M H is an A520 motherboard in Micro-ATX format. A PCIe 3.0 x16 slot is available for graphics cards, which is directly connected to the Ryzen 3000 processor via a total of 16 PCIe 3.0 lanes. Two additional PCIe x1 slots are provided for expansion cards.

BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates may also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Gray, Silver
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– – AM4
– Motherboard
– Motherboard Chipset
– AMD A520
– RAM
– Max. RAM
– 64 GB
– Memory Type
– DDR4
– Memory Format
– DIMM
– Memory Slots
– 2x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– Wi-Fi / Bluetooth
– No
– Internal Ports
– CPU Power Supply
– 1x 8-pin
– USB 3.0 (internal) Possible Ports
– 2
– External Ports
– USB 3.0 (external) Type A
– 4
– Display Ports
– HDMI (1x), VGA (D-Sub) (1x)
– Storage Ports
– M.2 PCIe 3.0 x4
– 1
– M.2 PCIe 3.0 x4 & SATA 6G
– 1
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 1
– PCIe 3.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 1
– Fan Header
– 4-pin Fan Connectors
– 2
– Lighting
– Lighting / RGB
– No
