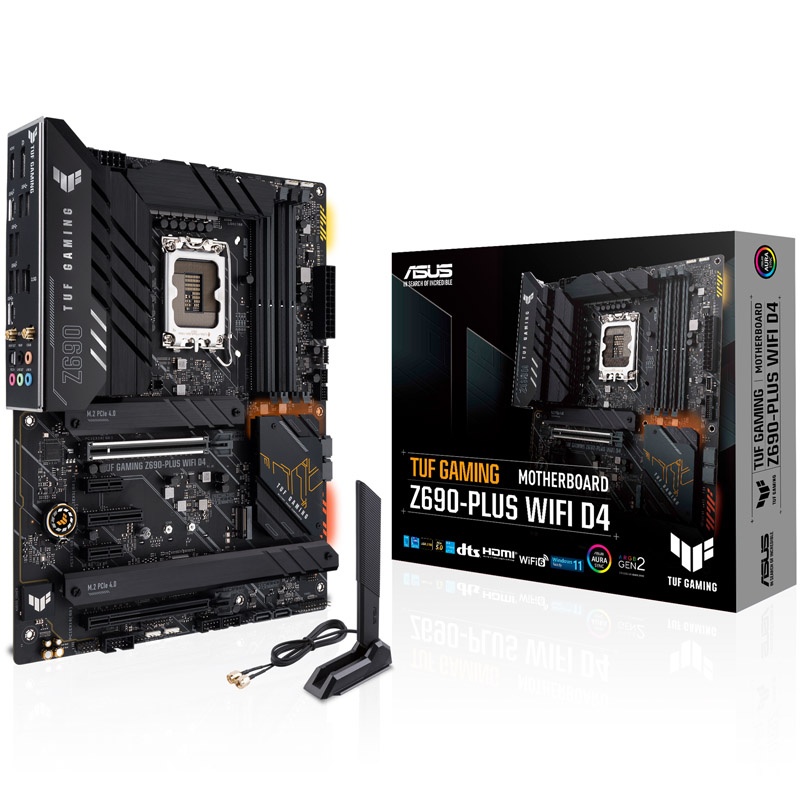

ASUS TUF GAMING Z690-PLUS WIFI D4, Intel Z690 Motherboard - Socket 1700, DDR4

4x M.2 slots, 4x with PCIe 4.0
USB on I / O panel: 1x USB 3.0 Type C / 4x USB 3.0 Type A / 2x USB 3.1 Type A and 1x USB 3.2 Type C
OC features: 16 + 1 + 2 phases, Clear CMOS header
RGB LED lighting and 4x RGB header
A total of 7 connections for fans and pumps

The ATX motherboard ASUS TUF GAMING Z690-PLUS WIFI D4 with Intel Z690 chipset in detail
The ASUS TUF GAMING Z690-PLUS WIFI D4 is an ATX motherboard with the high-end Intel Z690 chipset and the LGA 1700 socket. The motherboard is suitable for 12th generation Intel Core CPUs desktop processors, Alder Lake. It supports DDR4 memory up to 5,333 MHz and is ideal for overclocking thanks to its 16 + 1 + 2 phase power supply.

Hint: This motherboard supports memory with the DDR4 standard. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible performance of the processor, it is recommended to regularly perform BIOS updates for the motherboard. This is especially true for motherboards that may have been shipped by the manufacturer with an early BIOS version.

Our King Mod Service is happy to update the BIOS to the latest version in
advance:
Add BIOS update service to cart now

More information about Intel Alder Lake and the Core processors of the 12th generation can be found at the following link:
Intel Alder Lake Overview

Technical details:
Form factor:
ATX (305 x 244 mm)
Chipset:
Intel Z690
Socket:
1700 (for 12th Core Intel CPUs)
R.A.M:
4x DDR4 (3,200 MHz, up to 5,333 MHz via OC)
Dual channel
Max. 128 GB
Slots (physical):
1x PCIe 5.0 x16
1x PCIe 3.0 x16 (x4)
1x PCIe 3.0 x4
2x PCIe 3.0 x1

Internal ports: 4x SATA
6G 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
1x M.2 (PCIe 3.0 x4 / SATA
6G, 2242-2280, chipset) 1x M.2 (PCIe
4.0 x4, 2242-22110, chipset) 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
1x USB-C (one header, USB 3.2 Gen 2, max. 10 Gbps)
2x USB 3.0 (one header, USB 3.2 Gen 1, max 5
Gbit / s) 4x USB 2.0 (two headers, max. 480 Mbit / s)

1x Thunderbolt
1x Front Panel Audio Connector 1x Clear CMOS Jumper 1x COM Port Header 1x System Panel Header (20-3-pin) + Chassis Intrusion
fan
header: 1x CPU fan
(4-pin) 1x CPU OPT fan (4-pin)
1x pump
(4-pin) 4x case fan (4-pin)
RGB header:
3x 3-pin ARGB (5 V)
1x 4-pin AURA RGB (12 V)
External ports:
1x Optical S / PDIF Out
1x USB-C (USB 3.2 Gen 2×2, max. 20 Gbit / s)
2x USB 3.1 (USB
3.2 Gen 2, max. 10 Gbit / s) 4x
USB 3.0 (USB 3.2 Gen 1, max.
5 Gbit / s) 1x USB-C (USB 3.2 Gen 1, max. 5 Gbit / s) 1x DisplayPort 1.4
1x HDMI 2.1
1x RJ-45 (Intel I225-V, 2.5 Gbit / s)
1x Wi-Fi
module 5x 3.5 mm jack (Realtek ALC 897)
power
supply: 1x 24-pin ATX
1x 8-pin ATX / EPS 12V
1 x 4-pin + 12V
