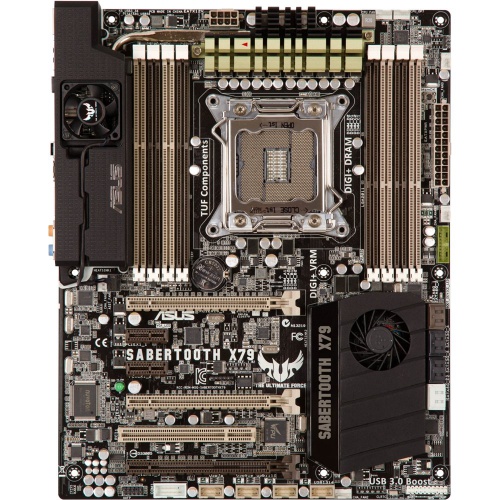

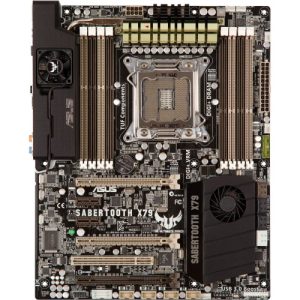

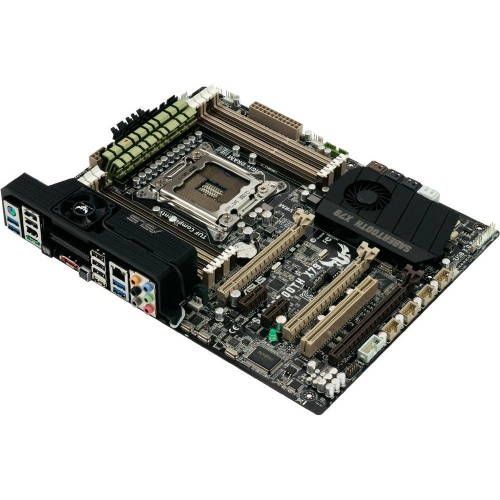

ASUS Sabertooth, Intel X79 Mainboard - Sockel 2011
The Sabertooth Series, Asus is aimed at gamers and overclockers budget conscious, looking for an unusually-designed motherboard. All have in common a military look with black, green and brown colors that are excellent, especially in cases with Window advantage. Large coolers are the first indication that the functionality of a lot of attention has been paid.
ASUS Sabertooth, Intel X79 Mainboard - Sockel 2011
The Sabertooth Series, Asus is aimed at gamers and overclockers budget conscious, looking for an unusually-designed motherboard. All have in common a military look with black, green and brown colors that are excellent, especially in cases with Window advantage. Large coolers are the first indication that the functionality of a lot of attention h...
ASUS Sabertooth, Intel X79 Mainboard - Sockel 2011
The Sabertooth Series, Asus is aimed at gamers and overclockers budget conscious, looking for an unusually-designed motherboard. All have in common a military look with black, green and brown colors that are excellent, especially in cases with Window advantage. Large coolers are the first indication that the functionality of a lot of attention h...
No products found
The x79 chipset from Intel first to support the new Intel Sandy Bridge E processors based on the 2011 base. In parallel, the motherboard as its sister models, a variety of internal and external ports, and an almost inconceivably large capacity for expansion cards, memory modules and other components.
A total of eight DDR3-bars can be installed in the Sabertooth, giving the user up to 64 gigabytes of memory in quad channel mode is available. Also on board is to support the modern USB 3.0 technology and an elaborately designed cooling and system tuning. Of course, also comes the newest offshoot of the Sabertooth series again the UEFI BIOS for use.
For the installation of expansion cards, three x16 PCIe slots long and two short x1 PCIe slots and one PCI slot. Two of the PCIe x16 slots even in compliance with the new PCIe 3.0 standard.
Demanding gamers and overclockers should also pleased that the Sabertooth a complex multi-zone temperature control, digital power converter and a version with high quality, resilient and durable electronic components offers. With the variety of connections and number of which continues the excellent features list.
Notes: To support new CPUs is necessary if a BIOS update. Through overclocking, and operation of the components outside of the specifications will void the warranty.
Technical details:
Format: ATX (305 x 244 mm)
Color: black / green / brown
Chipset: Intel X79
Base: 2011 (for Intel Sandy Bridge CPUs E)
RAM: DDR3 8x (max. 1866MHz)
Quad-Channel
Up to 64 GB
Slots:
2x PCIe x16 (3.0)
1x PCIe x16 (2.0)
Directions: 16/16/8
2 x PCIe x1 (2.0)
1x PCI
Internal connections:
4x SATA 6G
4x SATA II
1x USB 3.0
4x USB 2.0
1x Firewire
1x COM
7x 4-pin PWM
1x S / PDIF
Power / reset / LED / Front panel audio
External ports:
4x USB 3.0
6x USB 2.0
1x eSATA
1x eSATA Power
1x Firewire
1x Gigabit LAN
6x Audio (7.1)
1x S / PDIF optical
1x PS / 2 keyboard / mouse
Power supply:
1x 24-pin ATX
1x 8-pin EPS
Compatibility: Windows XP, Vista, 7
Features:
NVIDIA Quad-GPU SLI support
AMD Quad-GPU CrossFireX Support
Modern technologies: USB 3.0, SATA 6G, PCIe 3.0
High-quality components
TUF ENGINE! Power Design (8 +2 +2 +2 phases)
TUF Thermal Armor
TUF Thermal Radar
UEFI BIOS
