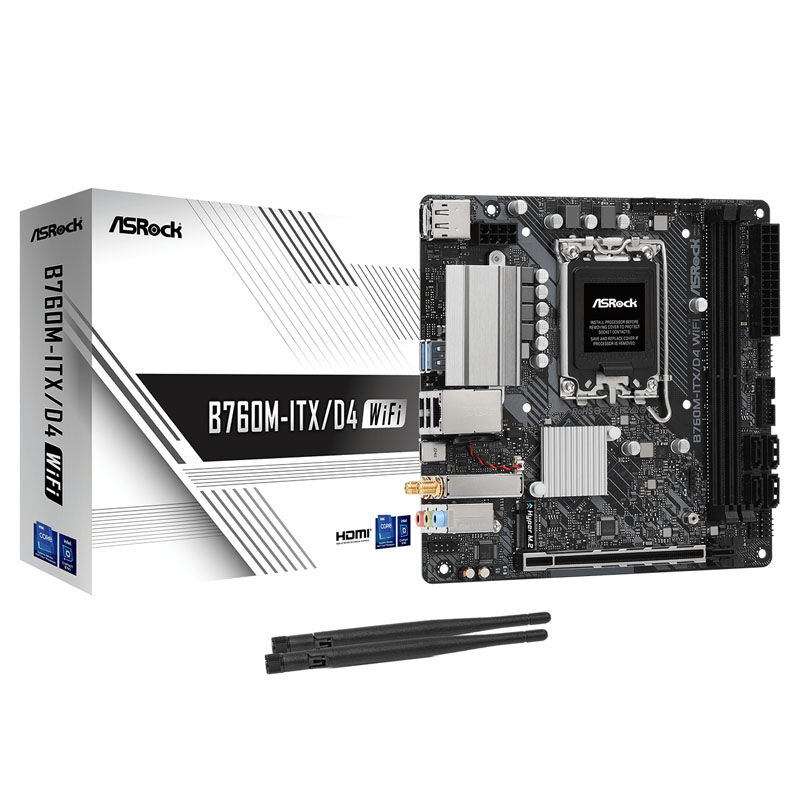

ASRock B760M-ITX/D4 WiFi, Intel B760 motherboard - Socket 1700, DDR4

– 1x PCIe x16 slot, including 1x PCIe 4.0
– DDR4 memory up to 3200 MHz, with RAM overclocking up to 5333 MHz
– 1x M.2 slot, including 1x PCIe 4.0
– USB on the I/O panel: 2x USB 3.1 Type A, 2x USB 2.0 Type A, and 2x USB 3.2 Type C
– A total of 3 connectors for fans and pumps
– 2.5 Gbit LAN and WLAN

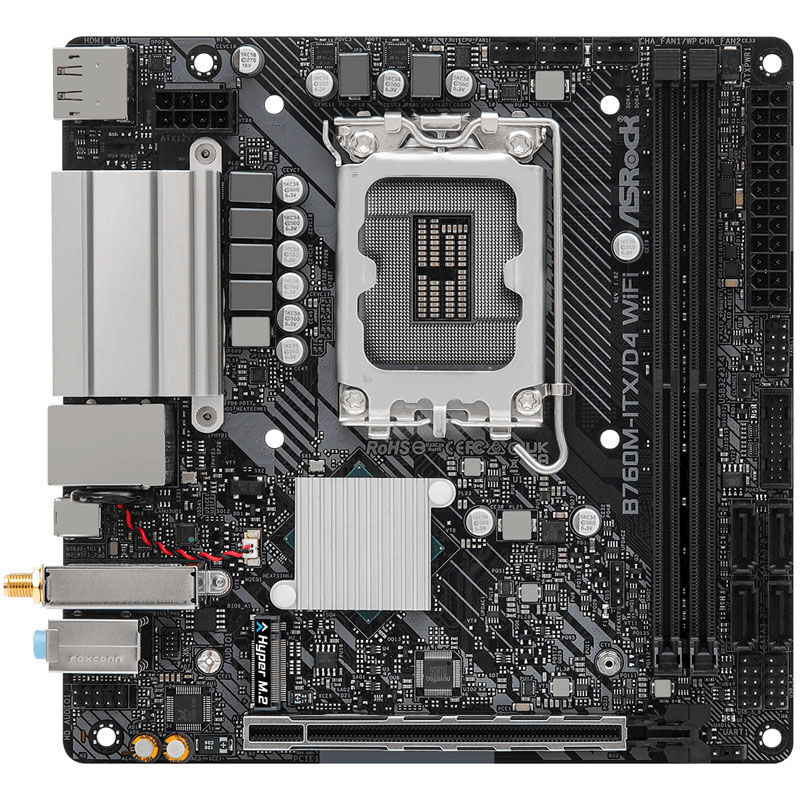

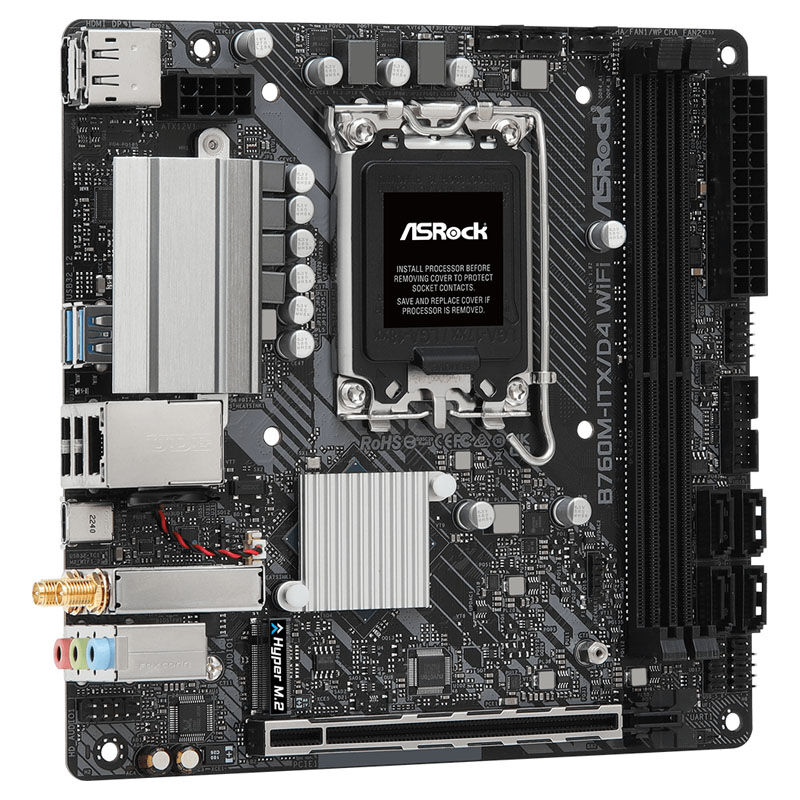

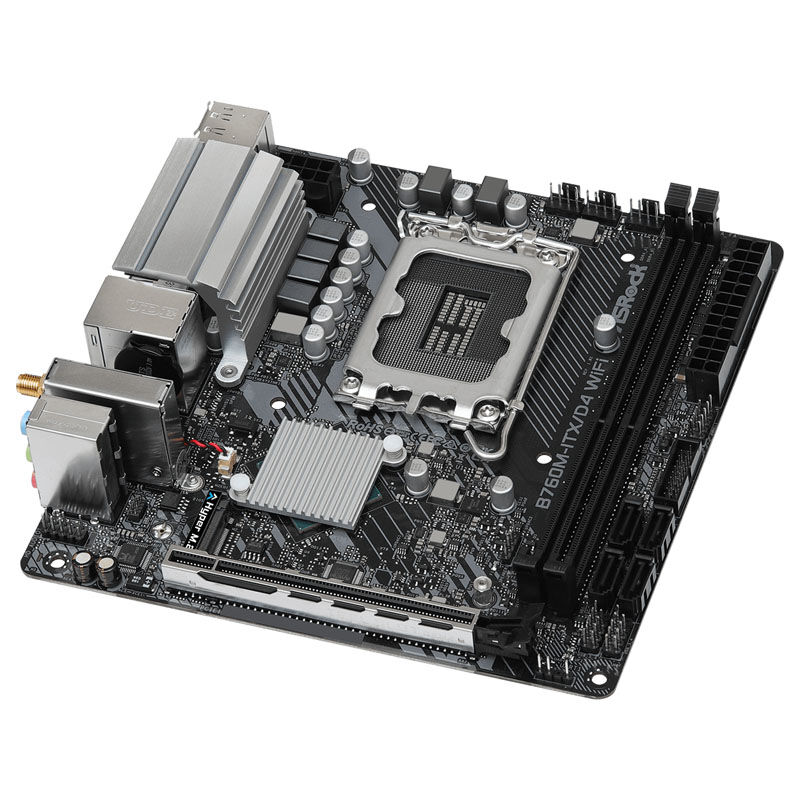

The ASRock B760M-ITX/D4 WiFi Mini-ITX motherboard with Intel B760M chipset in detail
The ASRock B760M-ITX/D4 WiFi is a Mini-ITX motherboard with the Intel B760M chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation desktop processors. 14th Generation Intel Core CPUs, Alder Lake and Meteor Lake. It supports DDR4 memory up to 5333 MHz and also offers features such as extensive heat spreaders for VRMs and chipset, and 2.5 Gb LAN.

Note: This motherboard supports DDR4 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– Mini-ITX (170 x 170 mm)
– Chipset:
– Intel B760M
– Socket:
– – 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 2x DDR4 (3200 MHz, up to 5333 MHz with overclocking)
– Dual-Channel
– Max. 64 GB
– Slots (Physical):
– 1x PCIe 4.0 x16
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
– 2x USB 3.0 (two headers, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (two headers, max. 480 Mbps)
– 1x Front Panel Audio Connector
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x Pump (4-pin)
– 1x Case Fan (4-pin)

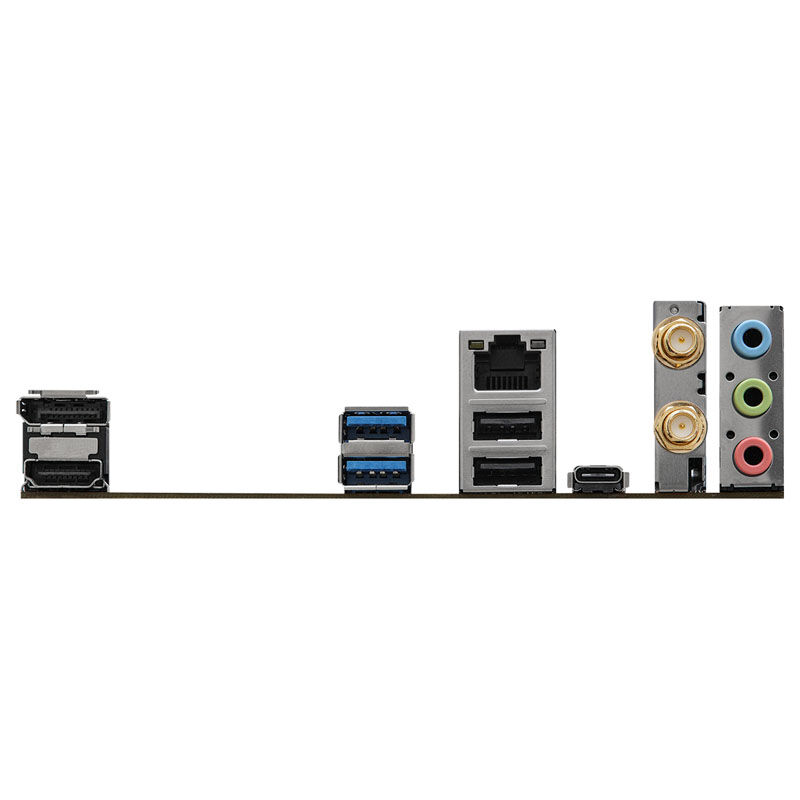

– External Connectors:
– 1x USB 3.2 (Type-C, USB 3.2 Gen 2×2, max. 20 Gbps)
– 2x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (Type-A, max. 480 Mbps)
– 2x WLAN Antenna (WiFi 6, WLAN ax, Bluetooth 5.2)
– 1x RJ-45 (Intel I225-V, max. 2.5 Gbps)
– 2x 3.5 mm jack (Realtek ALC 897)
– Power supply:
– 1 x 24-pin ATX
– 2 x 8-pin ATX/EPS 12V
– Manufacturers warranty: 2 years
