Haswell-E to scold Intels latest high-end processors from the legendary Extreme series, the X99 codenamed Wellsburg is the appropriate new chipset that! And the motherboard offered here Rampage V Edition 10 from ASUS is equipped with exactly this. For this purpose, on the enthusiast board a fresh base - the LGA2011-V3 - present, which is not compatible with earlier Extreme CPUs and thus alone will the new Intel top processors reserved.
Haswell-E to scold Intels latest high-end processors from the legendary Extreme series, the X99 codenamed Wellsburg is the appropriate new chipset that! And the motherboard offered here Rampage V Edition 10 from ASUS is equipped with exactly this. For this purpose, on the enthusiast board a fresh base - the LGA2011-V3 - present, which is not compatible with earlier Extreme CPUs and thus alone will...
Haswell-E to scold Intels latest high-end processors from the legendary Extreme series, the X99 codenamed Wellsburg is the appropriate new chipset that! And the motherboard offered here Rampage V Edition 10 from ASUS is equipped with exactly this. For this purpose, on the enthusiast board a fresh base - the LGA2011-V3 - present, which is not compatible with earlier Extreme CPUs and thus alone will...
No products found
But all power users and hardware fools who opt for a Haswell-E / X99-team, receive in return not only the brachialste, never before encountered in the consumer area processor performance, no, they also acquire more features, over which yesterday was rumored still awesome as tomorrow: so Intels hexa-core and octa-core monsters come first with integrated DDR4 memory controller, so that X99 motherboards have appropriate RAM banks in which the faster, while more energy efficient DDR4 RAM tinkers.
In addition, many X99 boards have the next-gen interfaces for SSDs called SATA Express (SATAE) and Pattern 2 (NGFF), the first time with the Z97 chipset and the 1150s Intel mainstream processors ( Haswell Refresh / Devils Canyon) reached the market. but unlike the latter, the Haswell There are not only 16, but all 40 PCIe 3.0 lanes available, which is why the fastest M.2 SSDs also via 4 lanes can be connected (via compatible motherboard slots) with maximum speed without abzuzwacken data lines to the graphics card.

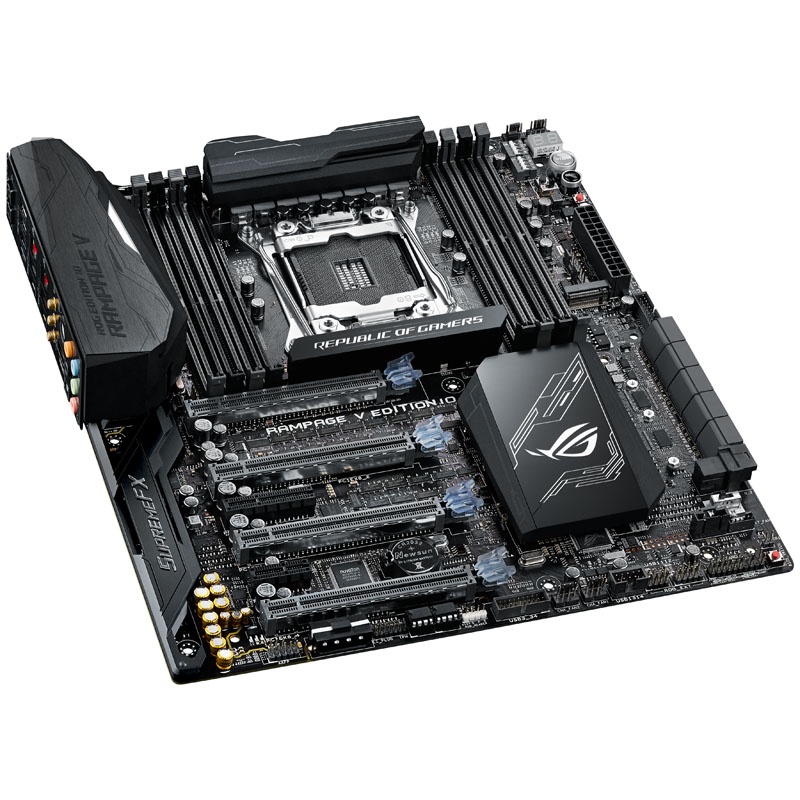

When ASUS Rampage V Edition 10 is a super-equipped X99 motherboard that represents an ideal basis for the mega strong Extreme processors the Core i7-6000er series with its 6, 8 or even 10 cores. The black board with RGB lighting comes with eight DIMM slots for up to 128GB DDR4 memory in super snappy quad-channel mode. As a sound chip by the quality ELNA capacitors supported ROG SupremeFX 2014 Bo (a) rd which can output five audio jacks and an optical S / PDIF connector 7.1 sound.
The further connectivity drops on the high-end chipset from very orderly, the E-ATX board provides a total of (partly external, partly internal) four USB 3.1 ports, 12 (!) USB 3.0 ports and eight USB 2.0 ports available and manages hard drives and SSDs over ten SATA 6G ports (incl. RST and partly RAID support) as well as one U.2- and M.2 slot. Expansion cards come in each under a PCIe 2.0 x4 slot or a PCIe 2.0 x1 slot. For graphics cards, four PCI Express slots available in standard 3.0.
The ASUS Rampage V Edition 10 convinced the bargain with a built-in WiFi and Bluetooth module, which even supports the particularly fast ac-Fi standard, also with Gigabit LAN, many practical onboard overclocking features DIGI + VRM 8 phases design USB boost , 5-Way Optimization , fan Xpert 3 , a UEFI BIOS, a good passive chipset cooling and many other useful features.

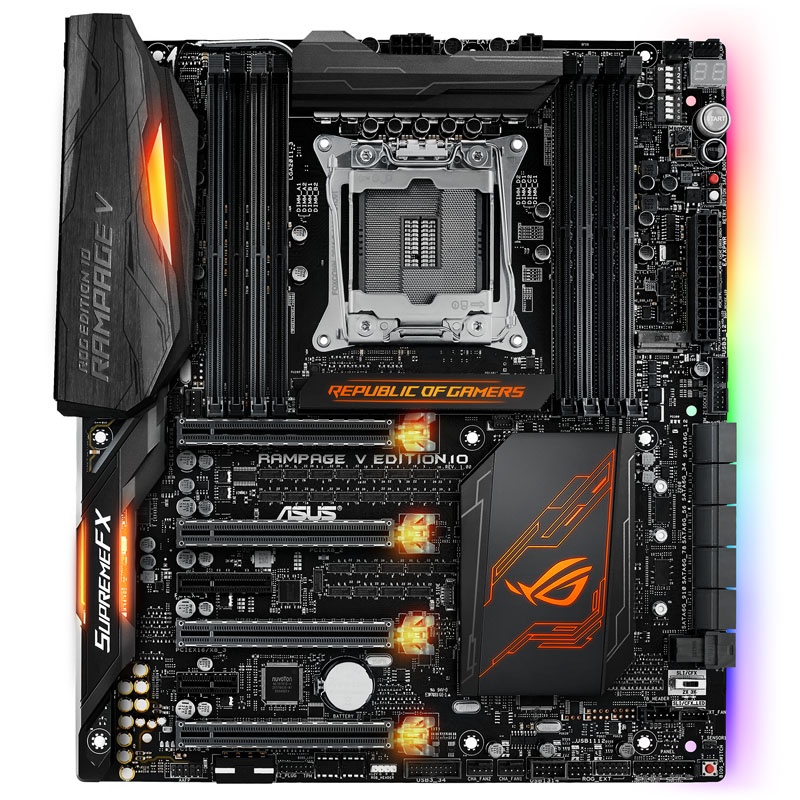

The ASUS Rampage V Edition 10 features Aura RGB LEDs and a RGB LED header, can be connected via the RGB LED strips directly on the motherboard. The control of the RGB LED Beluchtung over the aura software. Another highlight of the ASUS Rampage V Edition 10 motherboards ROG SupremeFX HD audio codec, which guarantees superb sound. In addition to ASUS 3T3R Dual Band WiFi module to the motherboard is a SupremeFX HiFi bezel. The faceplate with Sabre DAC is mounted in an external 5.25 drive bay of the chassis.
Technical details:
Format: E-ATX
Color: Black
Chipset: Intel X99
Socket: 2011-V3 (for Intels Haswell-E CPUs)
RAM: 8x DDR4 (max 128 GB.)
Quad-Channel
Slots (physically):
2x PCIe (3.0) x16
2x PCIe (3.0) x16 (electrical x8)
Compatible Multi-VGA configurations: Quad-GPU SLI and Quad-GPU CrossFireX
1x PCIe (2.0) x4
1x PCIe (2.0) x1
1x Mini-PCIe (evidenced by WiFi module)
Internal connections:
10x SATA 6G
1x M.2
1x U. 2
4x USB 3.0 (2x header)
4x USB 2.0 (2x header)
1x Aura RGB LED header
1x TPM header
1x Thunderbolt header
1x MemOK! Button
1x Thermal Sensor Header
9x ProbeIt measuring point
1x BIOS Switch
1x LN2 header
1x ROG_EXT (ASUS front panel header for OC Panel)
1x WiFi / Bluetooth module (incl. 802.11ac)
1x water pump header (4-pin)
1x ROG EXT_FAN fan (5-pin)
8x fan (4-pin)
Power / Reset / LED / Front-Audio
External connections:
1x P / S2 Mouse / Keyboard
4x USB 3.1 (2x each type A and type C)
4x USB 3.0
2x USB 2.0 (1x USB BIOS Flashback)
1x Clear CMOS
1x USB BIOS Flashback
1x Gigabit LAN (Intel I218-V)
1x Gigabit LAN (Intel I211-AT)
3x WiFi antenna (supplied)
1x S / PDIF optical
5x audio (7.1, ROG SupremeFX 2014)
Power supply:
1x 24-pin ATX
1x 4-Pin ATX 12V
1x 8-pin EPS 12V
