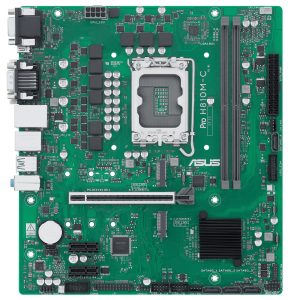

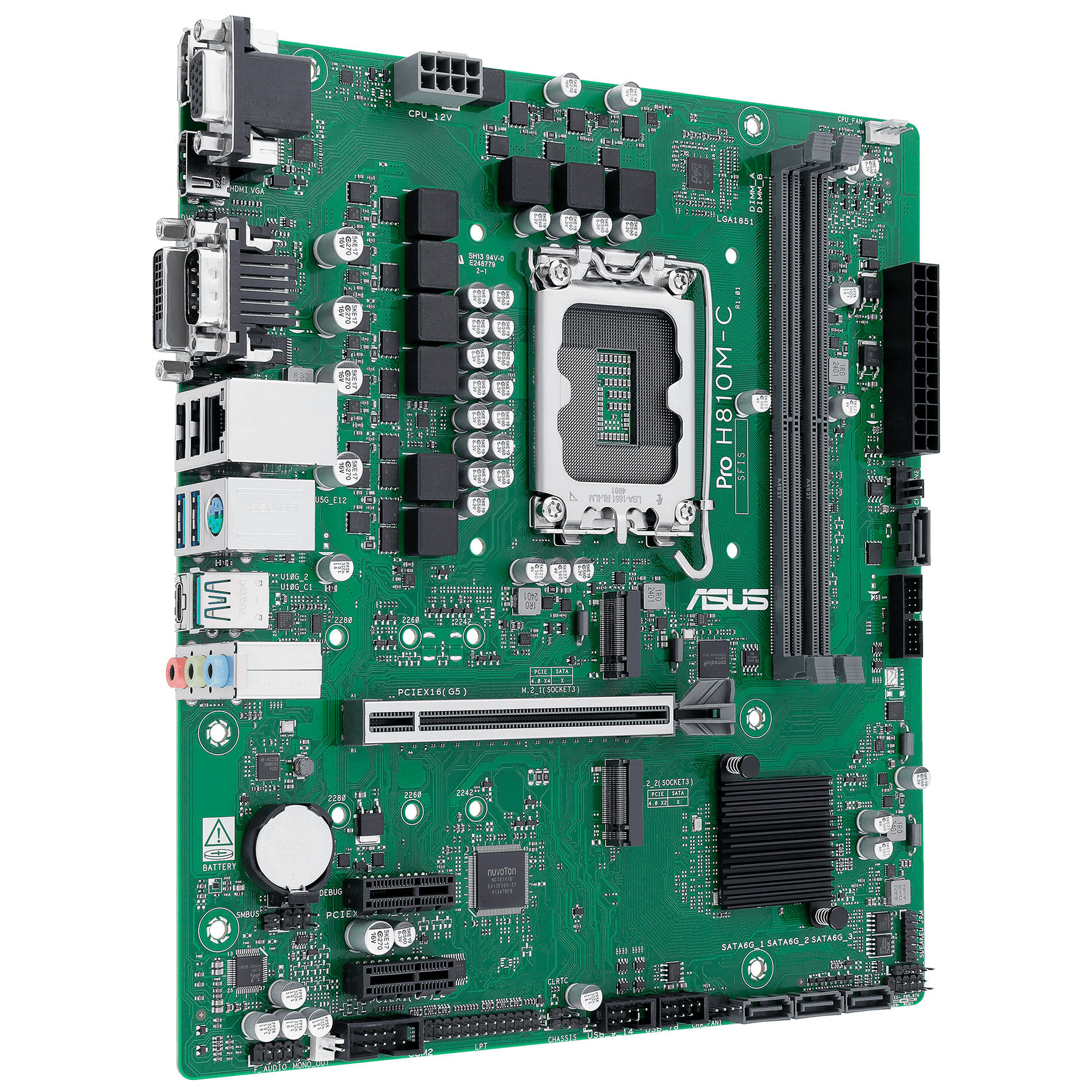

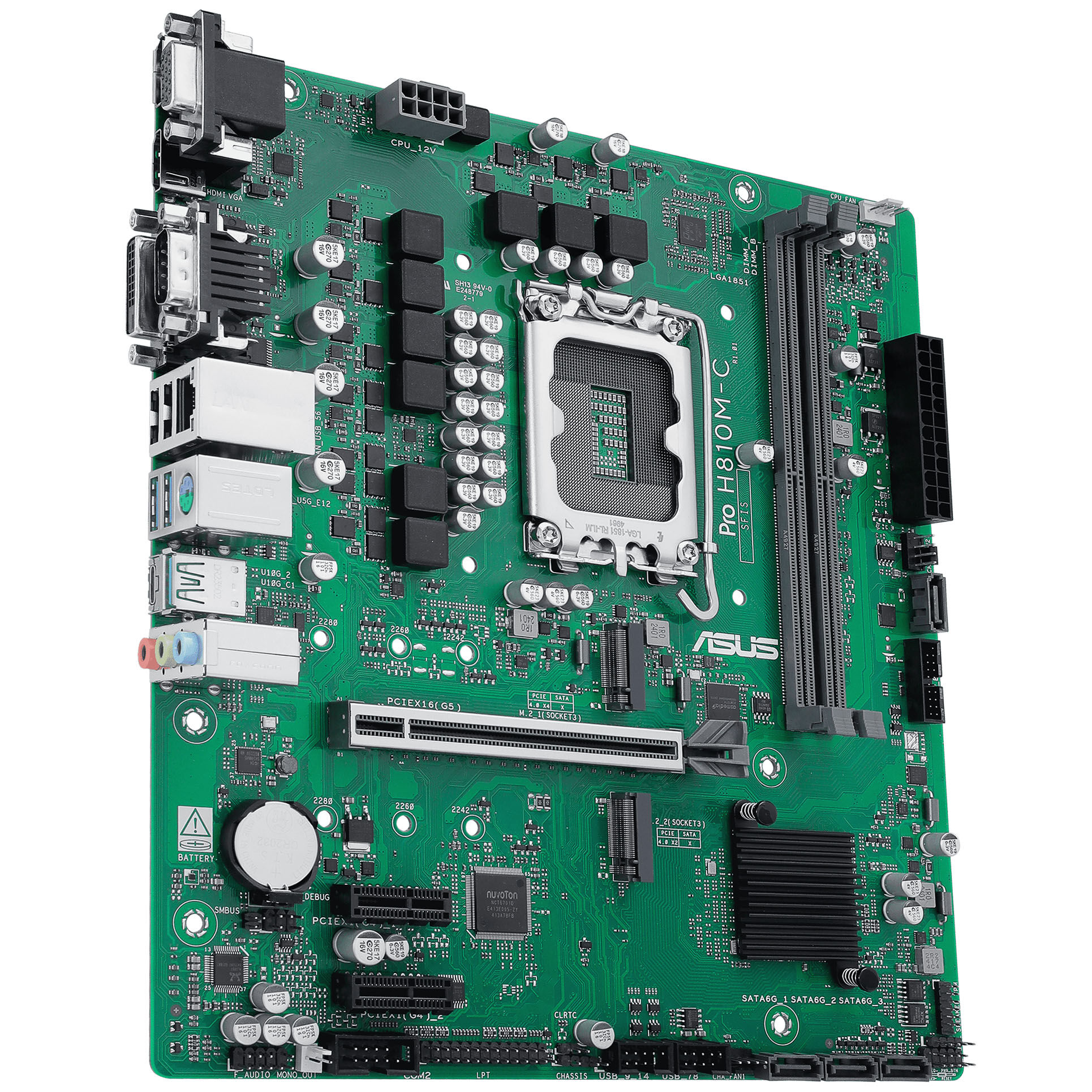

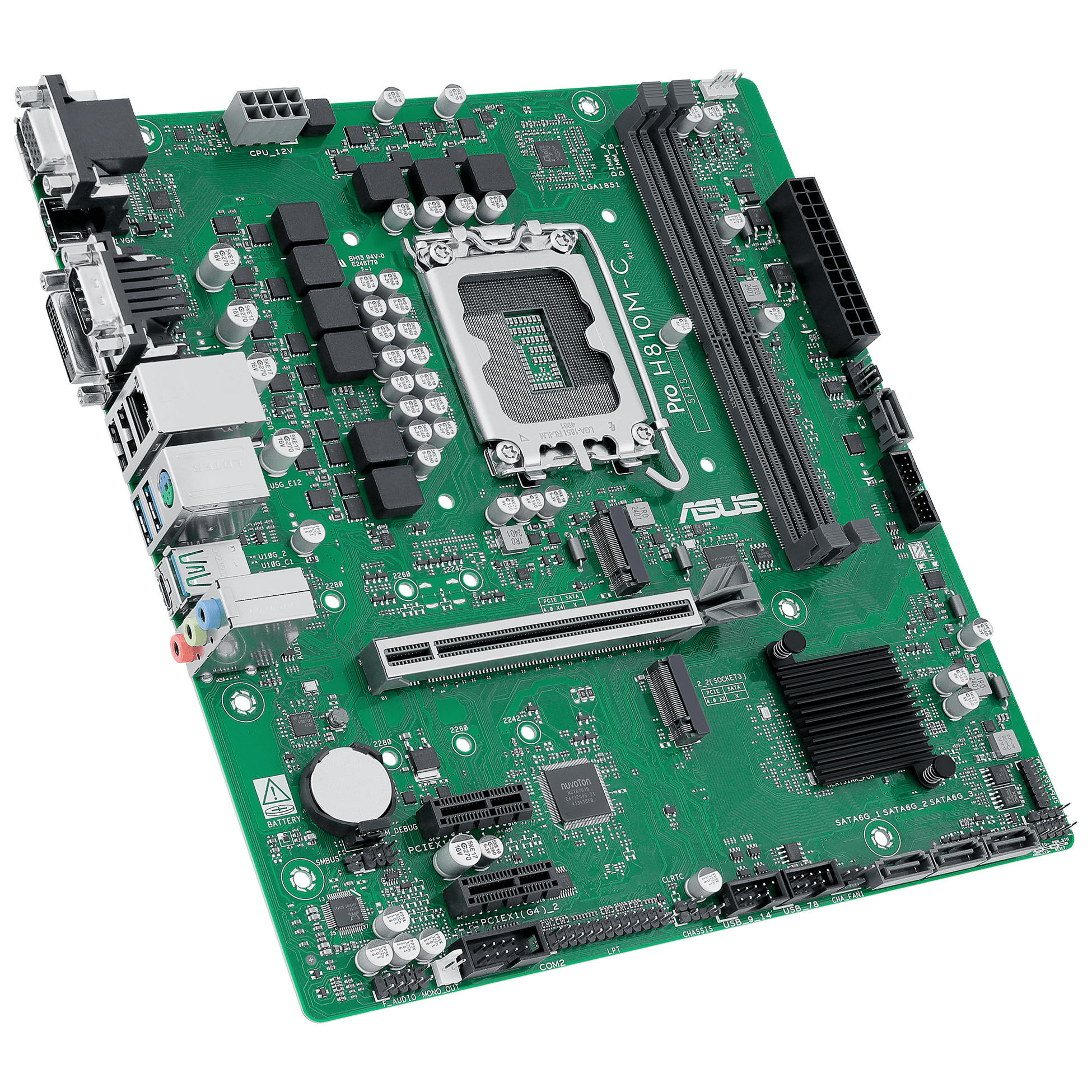

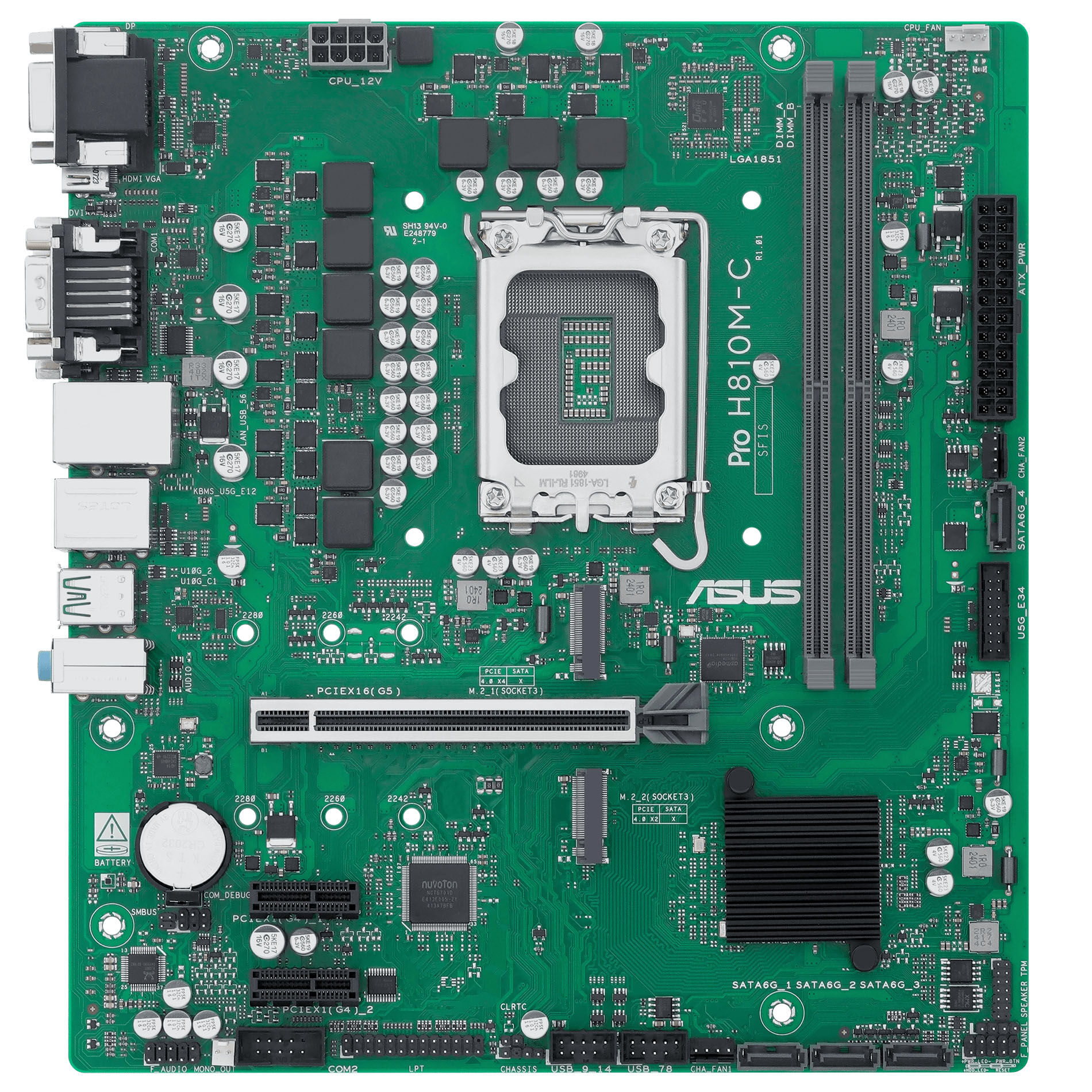

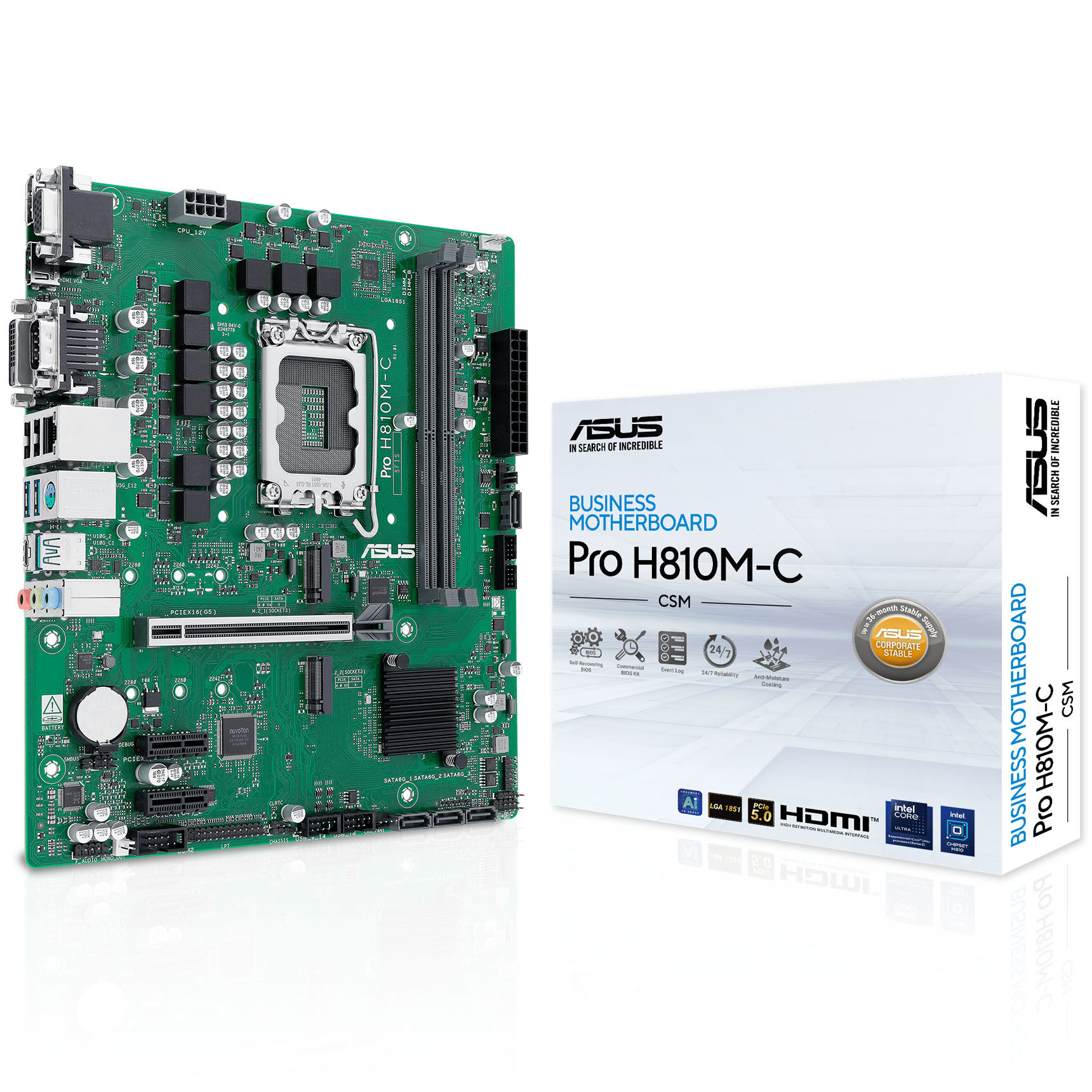

ASUS Pro B810M-C-CSM motherboard, socket LGA 1851, Intel H810, mATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x1
– RAM: 2x DIMM slots for up to 96 GB DDR5 RAM up to 6400 MT/s
– Storage: 2x M.2 (2x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.1, 1x USB 3.1, 2x USB 3.0, and 2x USB 2.0
– Cooling: 3x 4-pin PWM connectors for fans and radiators

ASUS Pro B810M-C-CSM: Micro-ATX motherboard with Intel LGA 1851 socket and H810 chipset
The ASUS Pro B810M-C-CSM is a Micro-ATX motherboard with the entry-level Intel H810 chipset and the Intel LGA 1851 socket 1851. It supports Intels Arrow Lake processor generation and is suitable for office tasks and casual gaming. Overclocking of the CPU and RAM is not possible.

The ASUS Pro B810M-C-CSM also offers PCIe 5.0 for graphics cards and PCIe 4.0 for M.2 SSDs.

Technical Details
– Dimensions
– Length / Depth
– 244 mm
– Width
– 222 mm
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– 1851
– Motherboard
– Motherboard Chipset
– Intel H810
– RAM
– Max. RAM
– 96 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (OC)
– 6400 MT/s
– ECC Support
– No
– Memory Slots
– 2x
– Performance Profile
– Intel XMP
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– WLAN / Bluetooth
– No
– Cooling
– Backplate
– Yes
– M.2 Heatsink
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 1x 8-pin
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) headers
– 2
– USB 2.0 (internal) possible ports
– 4
– Front panel audio header
– No
– SPI TPM header
– No

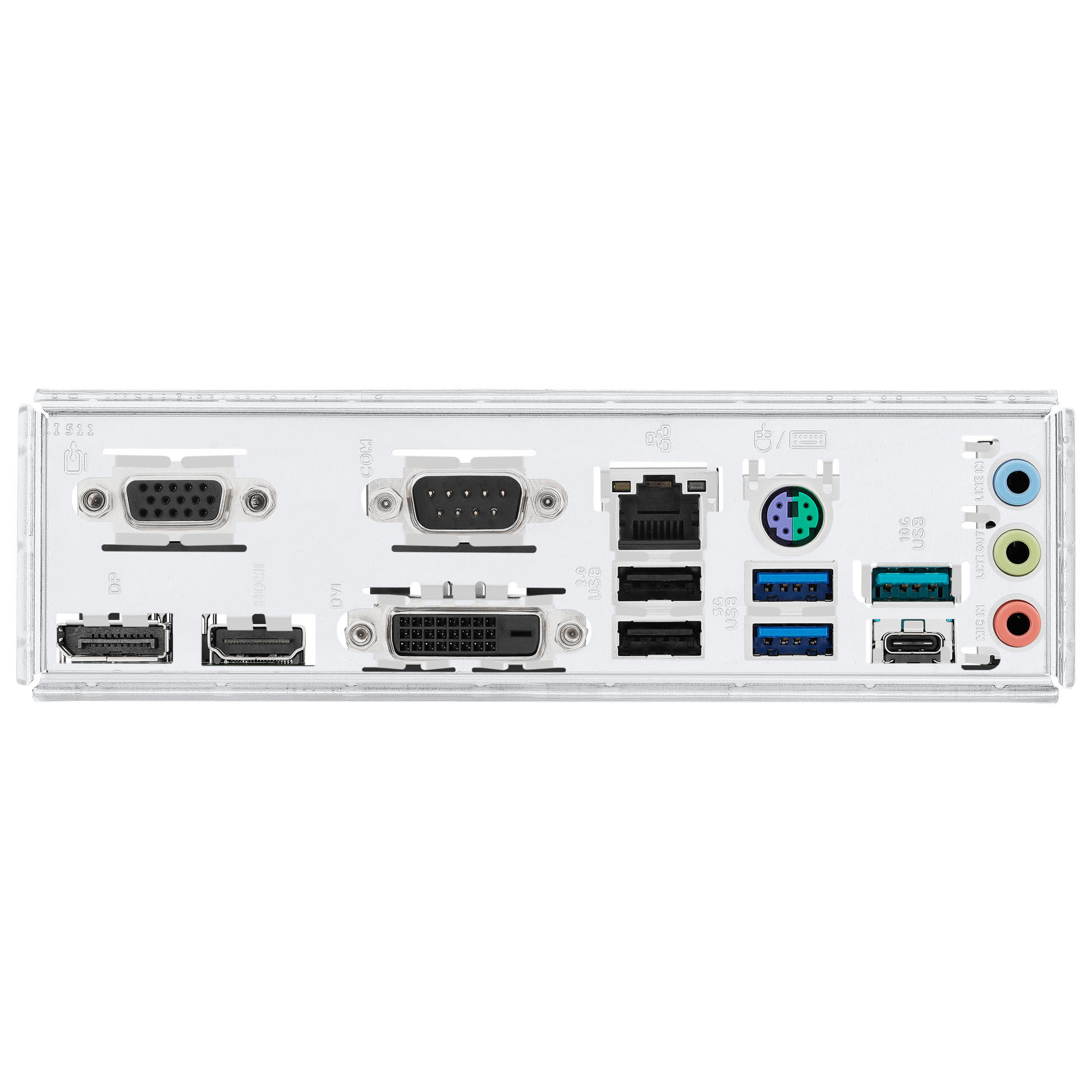

– External ports
– USB 3.1 (external) Type C
– 1
– USB 3.1 (external) Type A
– 1
– USB 3.0 (external) Type A
– 2
– USB 2.0 (external) Type A
– 2
– Display ports
– Display Port (1x), DVI (1x), HDMI (1x), VGA (D-Sub) (1x)
– Storage ports
– M.2 PCIe 4.0 x2
– 1
– M.2 PCIe 4.0 x4
– 1
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
