ASRock B650M-HDV/M.2, AMD B650 motherboard - Socket AM5, DDR5

– 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 6400 MHz
– 1x M.2 slot with PCIe 5.0 for fast NVMe SSDs
– USB on the I/O panel: 1x USB 3.0 Type-C, 2x USB 3.0, and 4x USB 2.0
– Overclocking features: 8+2+1 phase VRMs, Dr.MOS, VRM heatsink
– A total of 4 connectors for fans and pumps
– ASRock B650M-HDV/M.2: Micro-ATX motherboard with AMD Socket AM5

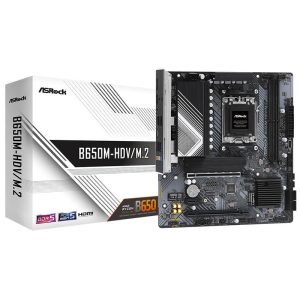

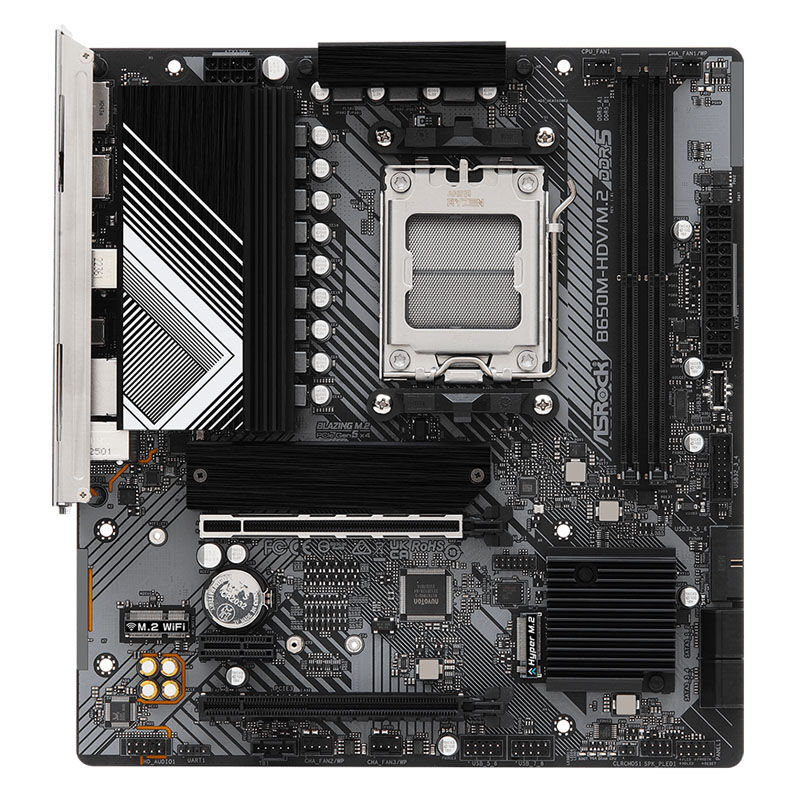

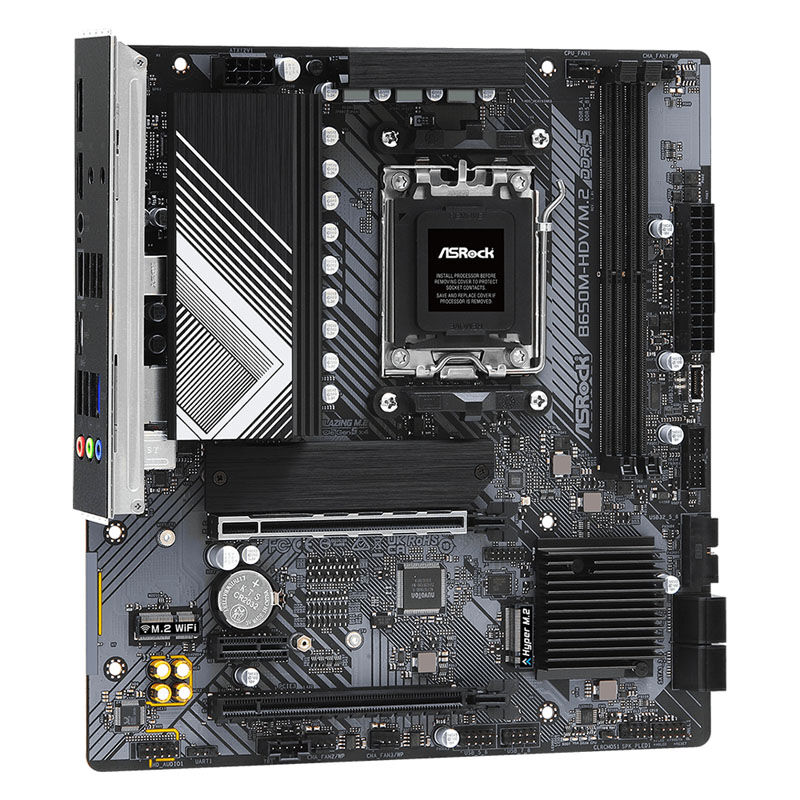

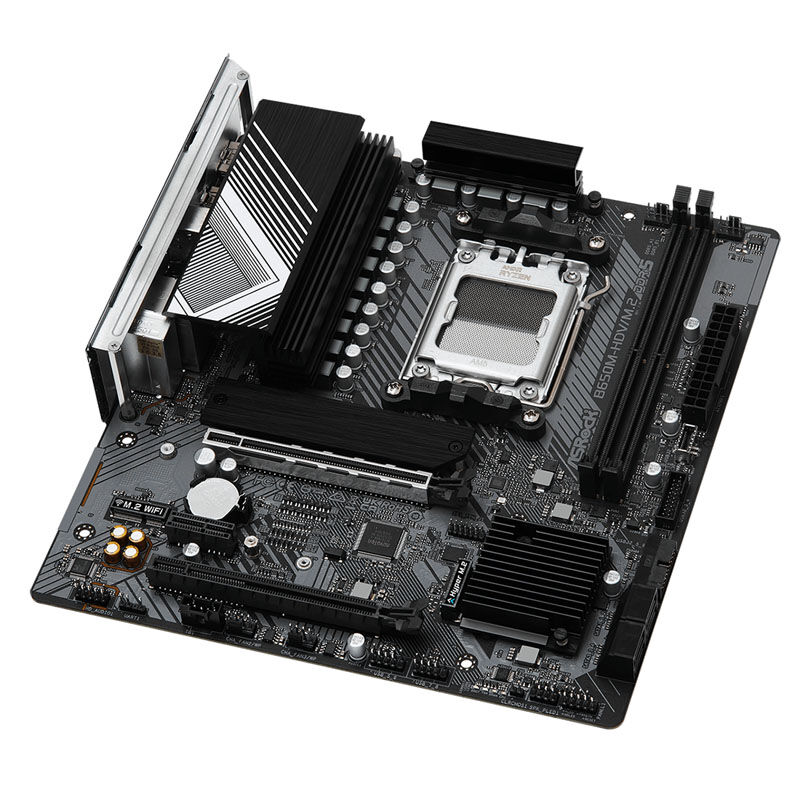

The image shows the ASRock B650M-HDV/M.2 motherboard.
The ASRock B650M-HDV/M.2 is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for Socket AM4 to be installed on the motherboard.

The ASRock B650M-HDV/M.2 offers good overclocking potential. The high-quality voltage converters with 8+2+1 virtual phases ensure a stable power supply to the CPU, ensuring high clock speeds even over extended periods. Dr.MOS allows automatic adjustment of VRM voltage and frequency modulation. Additionally, extensive VRM heat spreaders ensure cool temperatures.

Only compatible with AMD Ryzen 7000 series CPUs!

Technical Details:
– Processor
– Processor Manufacturer: AMD
– Processor Socket: AM5
– Compatible Processors: AMD Ryzen 7
– Memory
– Supported Memory: DDR5-SDRAM
– Number of Memory Slots: 2
– Memory Type: DIMM
– Non-ECC
– Maximum RAM: 64 GB
– Unbuffered Memory
– Storage Controller
– Supported Storage Drives: HDD & SSD
– Supported Storage Drive Interfaces: M.2, SATA III
– RAID Support:
– RAID Levels 0, 1, 10
– Internal I/O Ports:
– Number of USB 2.0 Ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) Ports: 2
– USB 3.2 Gen 2 (3.1 Gen 2) Ports: 1
– SATA III Ports: 4
– Front Panel Audio Connector:
– ATX Power Connector (24-pin)
– CPU Fan Connector:
– EPS Power Connector (8-pin)
– TPM Connector
– Thunderbolt headers: 1

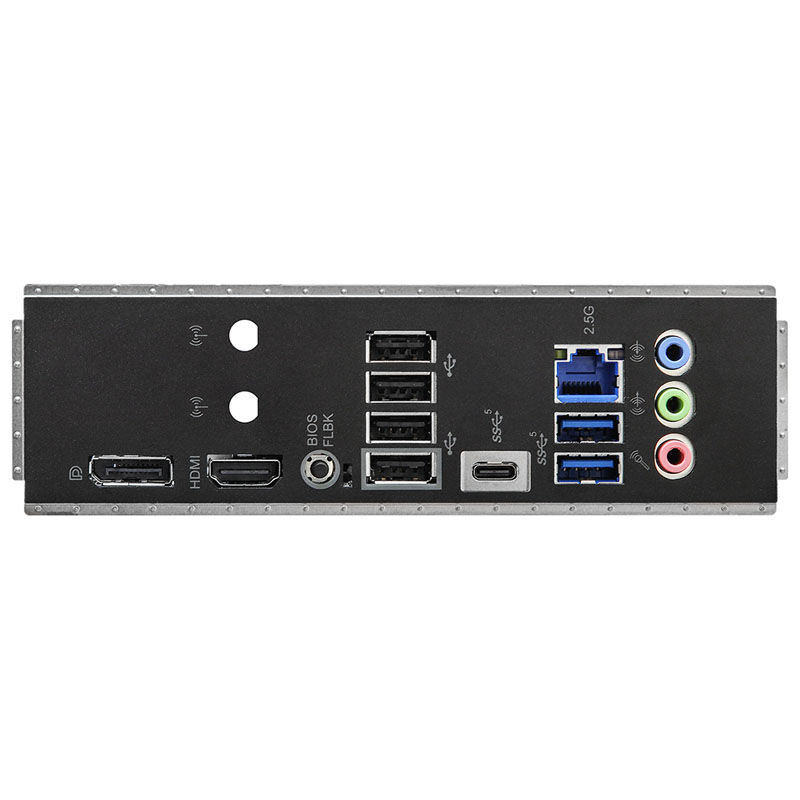

– Rear I/O ports
– Number of USB 2.0 ports: 4
– USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
– USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
– Rear I/O ports
– Number of Ethernet LAN ports (RJ-45): 1
– Number of HDMI ports: 1
– Number of DisplayPort ports: 1
– DisplayPort version 1.4
– Line-in
– Microphone input
– Network
– Built-in Ethernet port
– Ethernet interfaces: Type 2.5 Gigabit Ethernet
– LAN controller: Realtek RTL8125-BG
