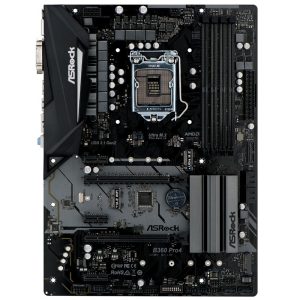

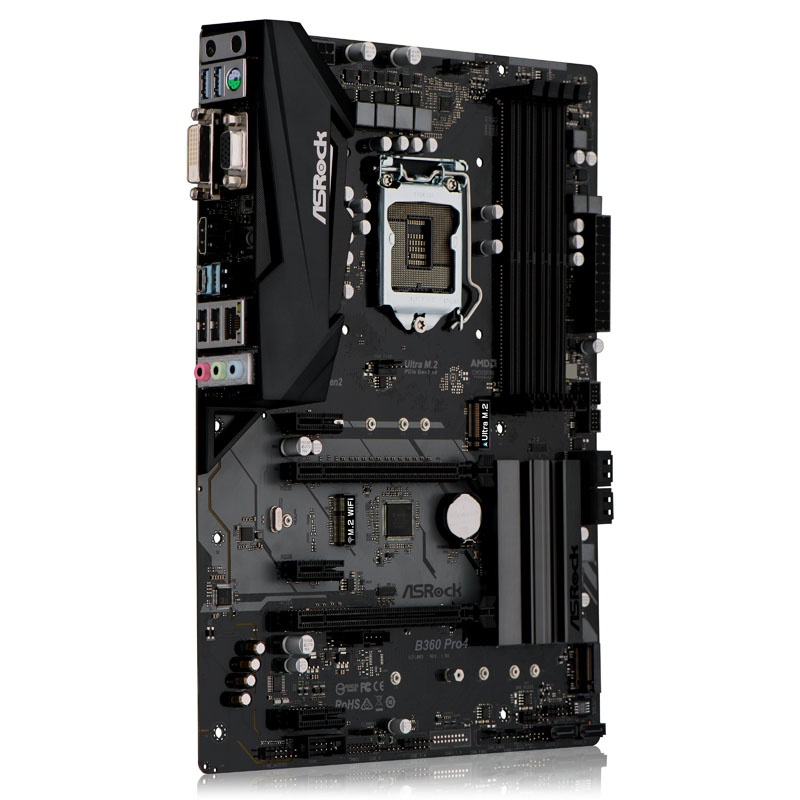

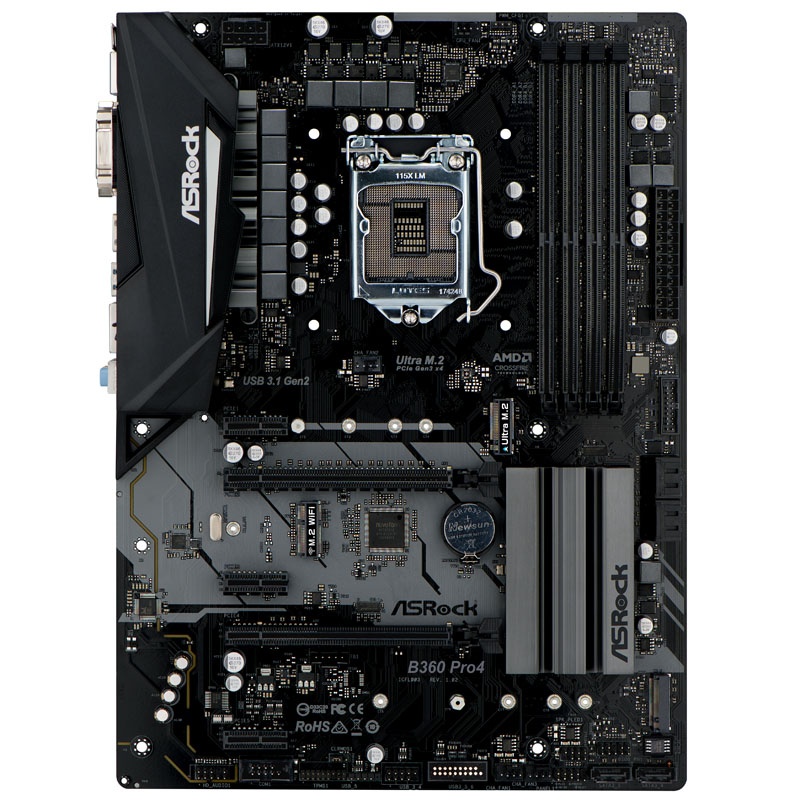

ASRock B360 Pro4, Intel B360 Motherboard - Socket 1151

 At the same time, the chipset natively supports a M.2 slot connected via PCIe for the particularly fast NVMe SSDs as well as Intel Optane. Socket 1151 motherboards with B360 chipset form a good basis for budget gaming PCs and home office computers.

The features of the ASRock B360 Pro4 at a glance:
2x PCIe (3.0) x16 (x16 / x4) & 3x PCIe (3.0) x1
2x M.2 (PCIe 3.0 x4 / x2) / 6x SATA 6G
1x USB 3.1 Type A & Type C each
A total of 4x USB 3.0 and 6x USB 2.0 (internal & external)
Supports max. 64 GB DDR4 RAM up to 2.666 MHz
M.2 slot (Key E, 2230) for WiFi / BT modules
The ASRock B360 Pro4 in detail
The ASRock B360 Pro4 ATX motherboard has two PCIe x16 slots, one with full 16 lanes and the other with four lanes attached to the chipset. For plug-in and expansion cards, the board has three PCIe x1 slots and one M.2 (Key E) slot for an optional WiFi / Bluetooth module. The two PCIe 3.0 x16 slots support AMDs CrossFire technology and allow the use of two graphics cards.

The M.2 slot, which is connected via four PCIe 3.0 lanes, supports the NVMe protocol and, in combination with a corresponding M.2 SSD, enables a data transfer rate of almost 4 GB / s. This is about eight times faster than a SATA 6G connected SSD! Another M.2 slot is connected via PCIe-3.0-x2. Additional drives such as SSDs, HDDs and optical drives can be connected via six SATA 3.0 ports. A maximum of 64 GB of RAM with a clock speed of up to 2,666 MHz can be accommodated in four DDR4 DIMM slots.

On the I / O panel, the ASRock B360 Pro4 provides two USB 3.1 ports, one of which is a particularly thin and two-way plug-in Type C port. USB 3.1 ports are twice as fast as conventional USB 3.0 ports with maximum speeds of 10 Gbps! Other peripheral devices can be connected via two USB 3.0 and one USB 2.0 slots.

One DVI, one HDMI and one D-Sub connection for image reproduction via the integrated graphics unit of the processor are also located on the I / O panel. For the output of the on-board sound (Realtek ALC892), the motherboard has three 3.5 mm jack outputs. The internal ports include a COM port, TPM, power LED and speaker headers, four water pump / fan ports, two USB 2.0 and one USB 3.0 headers, and a Thunderbolt connector.

Technical details:
Format: ATX
Chipset: Intel B360
Socket: 1151 (for Intel CPUs of the 8th core generation (Coffee Lake))
RAM: 4x DDR4 (max .: 2.666 MHz, max 64 GB)
Dual-Channel
Slots (physical):
1x PCIe 3.0×16
1x PCIe 3.0 x16 (electric x4)
Compatible Multi-VGA Configurations: AMD 2-Way CrossFire (Quad GPU)
3x PCIe 3.0×1
1x M.2 Key-E (2230, for WiFi / Bluetooth)
Internal connections:
6x SATA 6G
1x M.2 (PCIe 3.0 x2, 2242/2260/2280/22110)
1x M.2 (PCIe 3.0 x4, 2242/2260/2280)
1x COM port header
1x TPM header
1x Power LED & Speaker header
1x CPU fan (4-pin)
3x Water Pump / Case Fan Headers (4-Pin)
1x front panel audio connector
1x Thunderbolt AIC Connector (5-Pin)
2x USB 3.0 (one header)
4x USB 2.0 (two headers)
External connections:
1x PS / 2 keyboard / mouse
2x USB 3.1 (1x Type-A & Type-C each)
2x USB 3.0
2x USB 2.0
1x RJ45 LAN
2x WiFi antenna slots
1x HDMI
1x DVI-D
1x D-sub (VGA)
3x audio (Realtek ALC892)
Power supply:
1x 24 pin EATX
1x 8-pin ATX 12V
