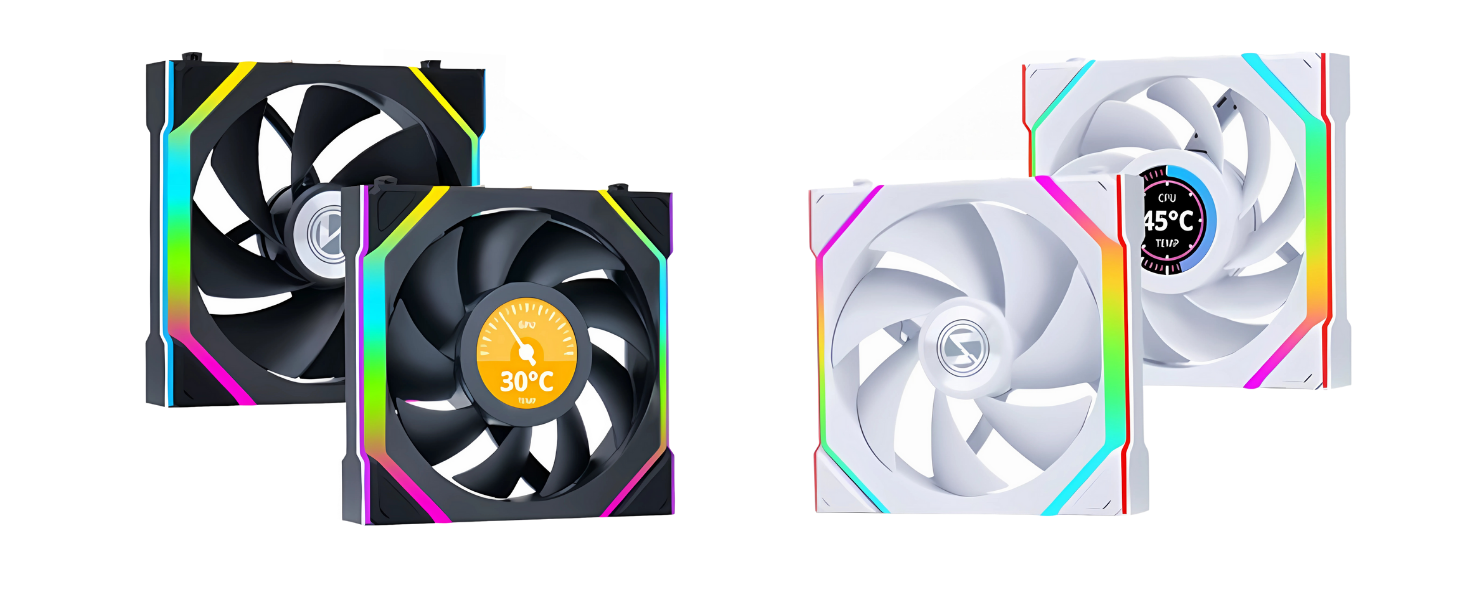

Lian Li UNI FAN Wireless Range

How It Works

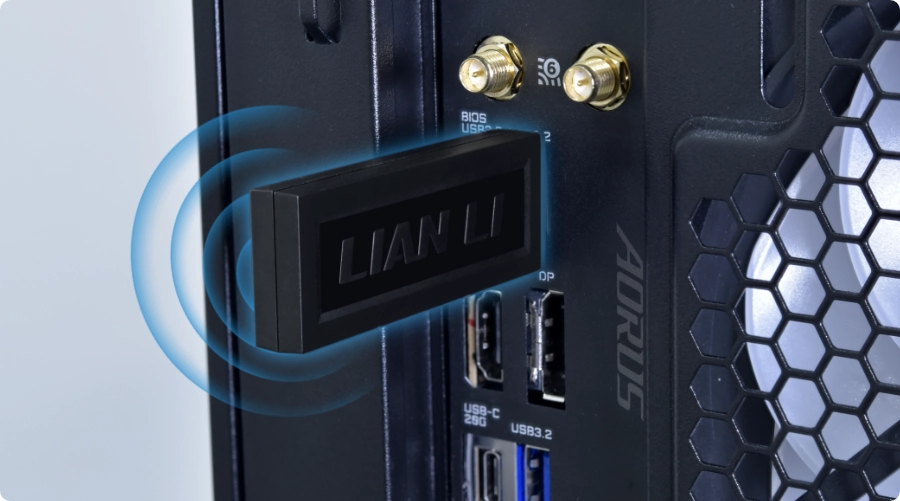

• 1. Plug the L-Wireless USB dongle into a rear USB port
• 2. Connect each fan cluster with a single 4-pin PWM power cable
• 3. Open L-Connect 3 – fans appear automatically
• 4. Control speed, lighting and LCD content wirelessly

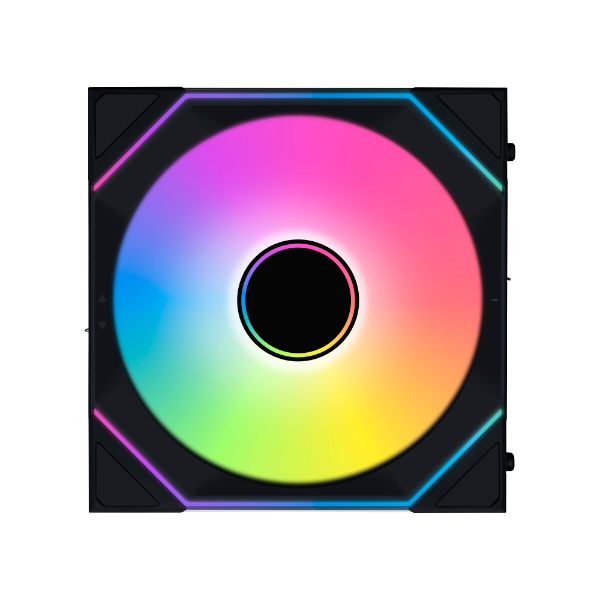

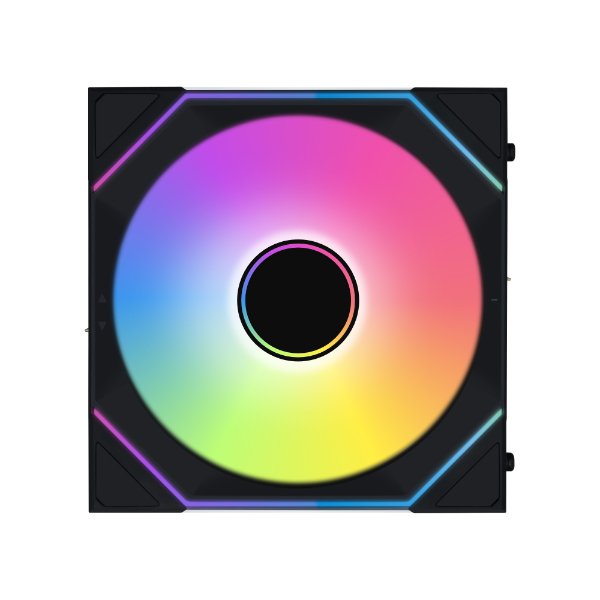

The SL-INF Wireless is the most visually striking fan in the wireless range. Three individually controlled lighting zones – blade hub with infinity mirror effect, diffused side strip with infinity mirrors on both sides, and inner edge highlighting – give you complete control over the look of every fan. Each side features a different edge style: tapered on one side, dual-rectangle on the other. Flip the fan to change the aesthetic.

With 58 addressable LEDs on the 120mm (62 on the 140mm), the SL-INF delivers the deepest lighting customisation in the UNI FAN range. The wireless receiver includes an upgraded 4-pin PWM cable for 12V power delivery and BIOS fan detection – your motherboard sees each cluster as a standard fan header.

• Three lighting zones with independent control
• Asymmetrical infinity mirror edges
• 58-62 addressable LEDs per fan
• Anti-static protective cap on contacts
• Standard and reverse blade options
• Compatible with HydroShift II and Strimer

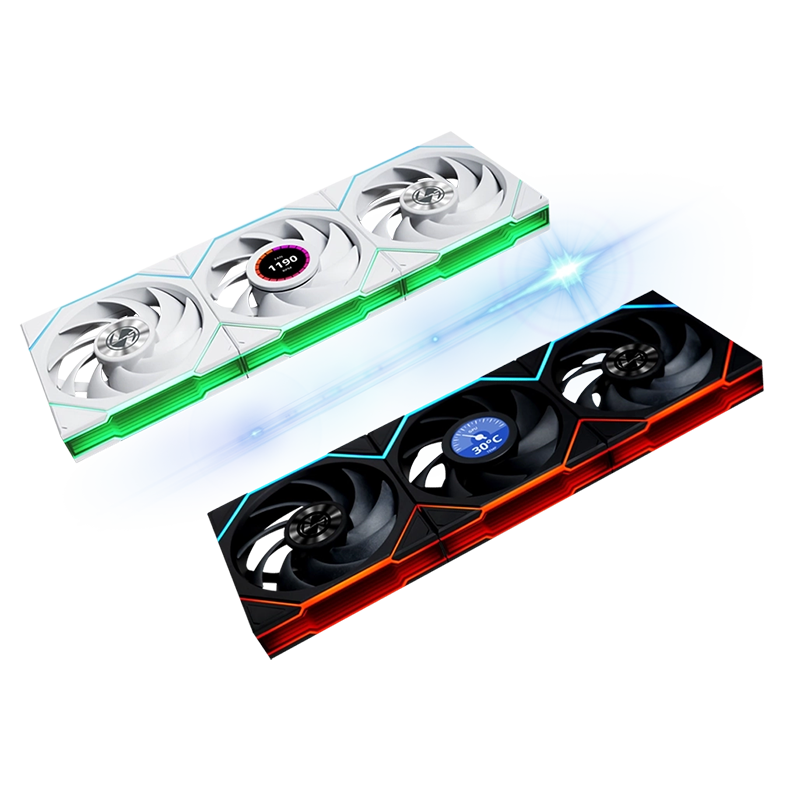

TL Wireless LED

• Airflow: 90.1 CFM (120) / 103.9 CFM (140)
• Pressure: 3.97 mmH2O (120)
• Noise: 33 dB(A) (120) / 29 dB(A) (140)
• Speed: 0-2600 RPM (120)
• Lighting: 26 LEDs + infinity mirror

Features

• LCP blades for tight tolerance, maximum airflow
• 28mm thick frame with indented screw holes
• Mix LED and LCD fans freely in one cluster
• FDB bearing with copper shielding and metal shell

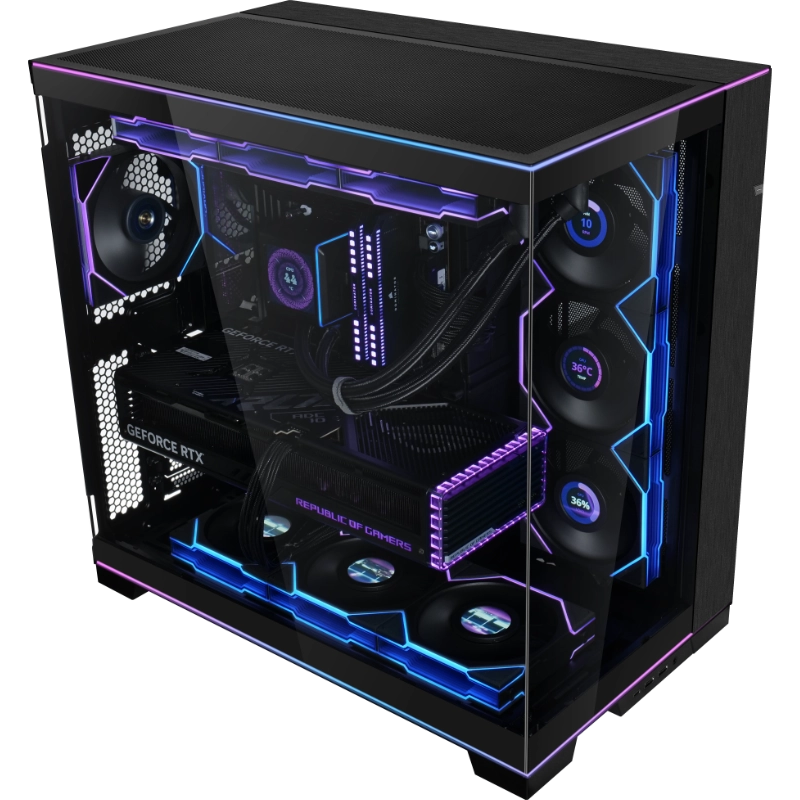

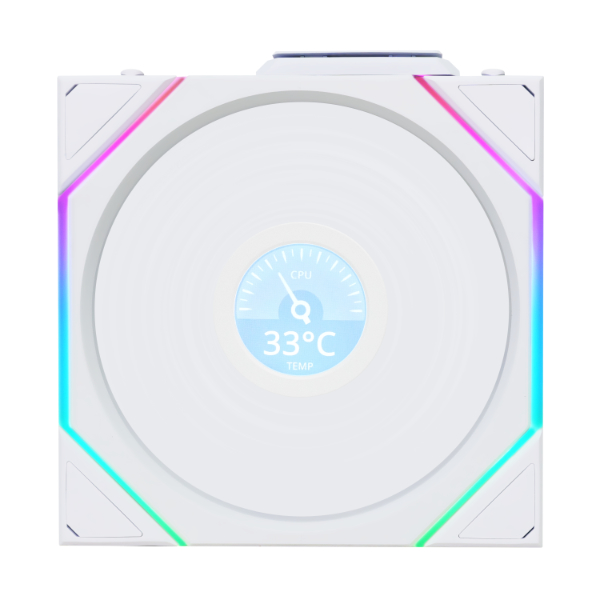

TL Wireless LCD

• Airflow: 62 CFM (120) / 68.1 CFM (140)
• Pressure: 2.9 mmH2O (120)
• Noise: 27 dB(A) (120) / 28.5 dB(A) (140)
• Speed: 0-1900 RPM (120)
• Screen: 1.6″ IPS, 400×400, 500 nits

Features

• 1.6″ LCD: custom GIF/MP4/JPG/PNG uploads
• Built-in hardware monitoring dashboards
• Enlarged infinity mirror (30% larger than SL-INF wired)
• Up to 16 TL and TL LCD fans on one controller

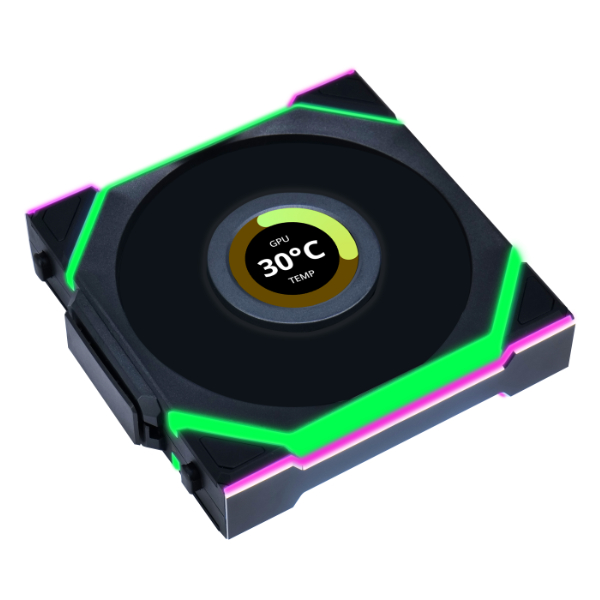

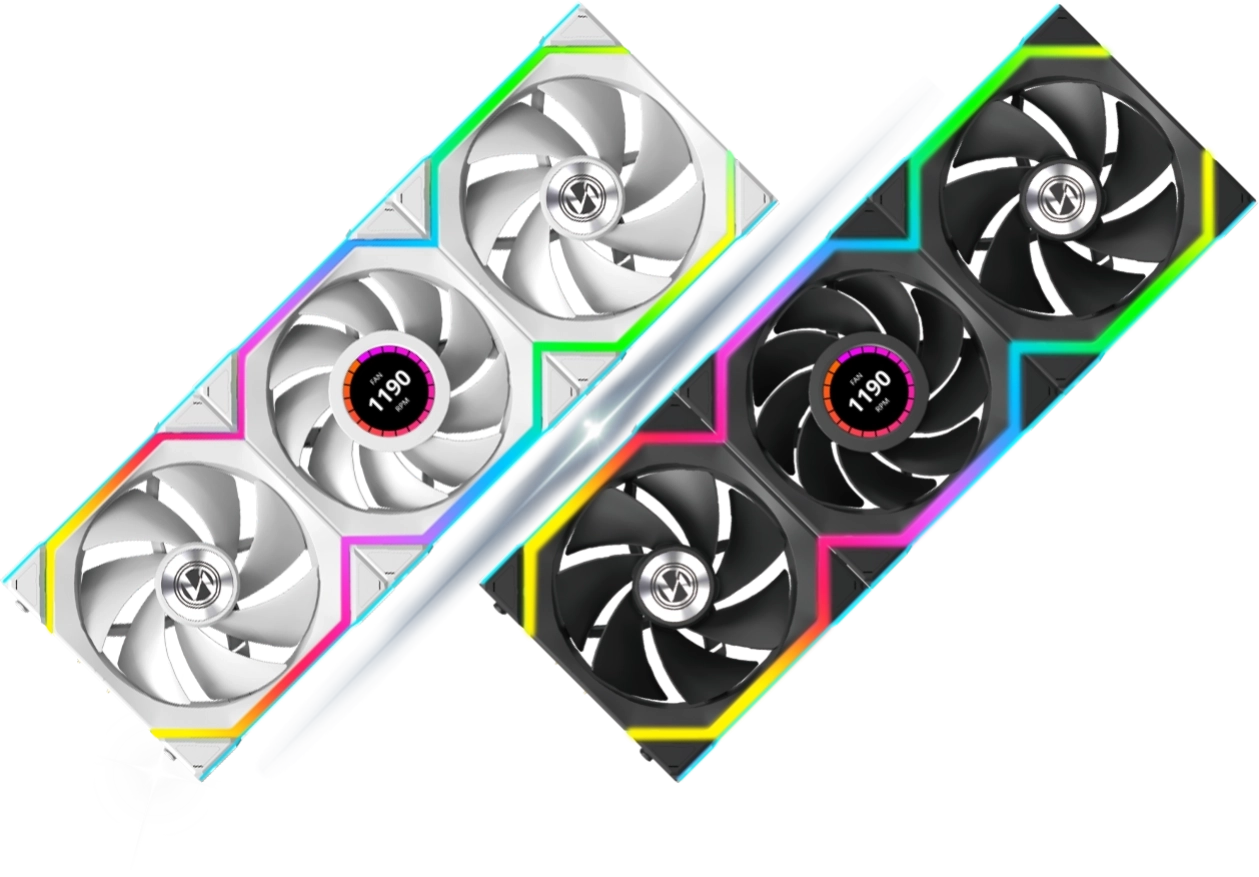

The SL Wireless gives you full flexibility over how you configure each cluster. A group of 4 fans can be LCD x2 + LED x2, LCD x3 + LED x1, or LED x4. A group of 3: LCD x3. The LCD version features the same 1.6-inch screen as the TL LCD, supporting custom content, hardware monitoring dashboards, and preset animations. Each side of the fan features an additional light strip for duo-zoned lighting with 40 LEDs total.

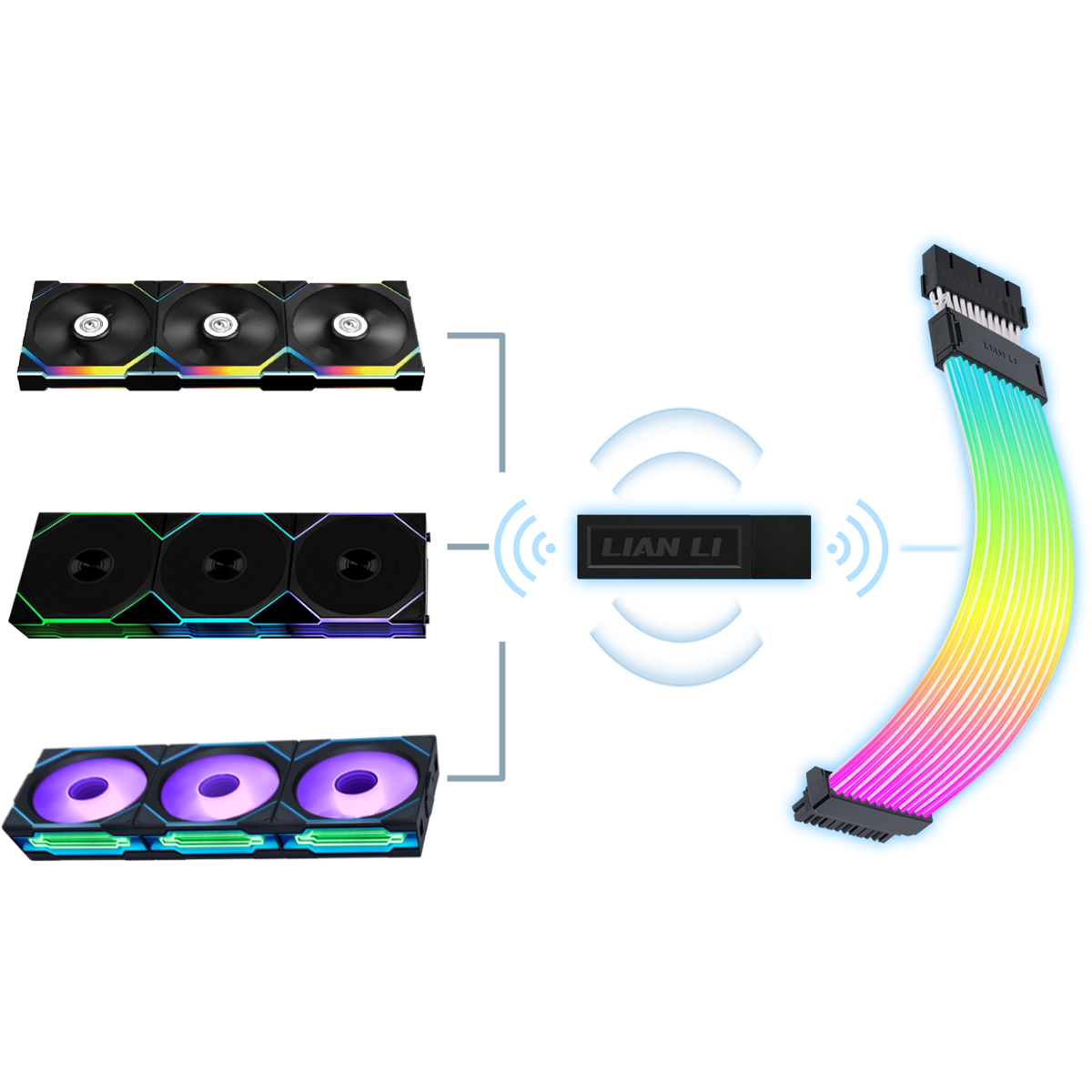

A single motherboard supports up to 20 SL LCD Wireless fans with USB splitter support. The L-Wireless Controller handles 10 channels simultaneously and is fully compatible with the Strimer Wireless on the same system.

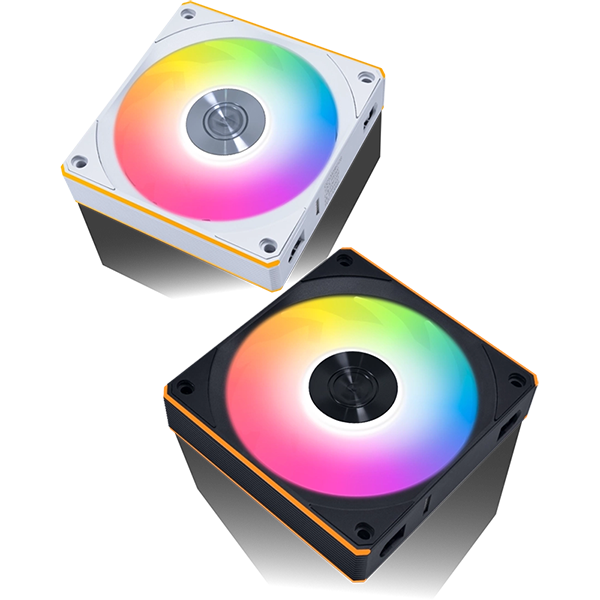

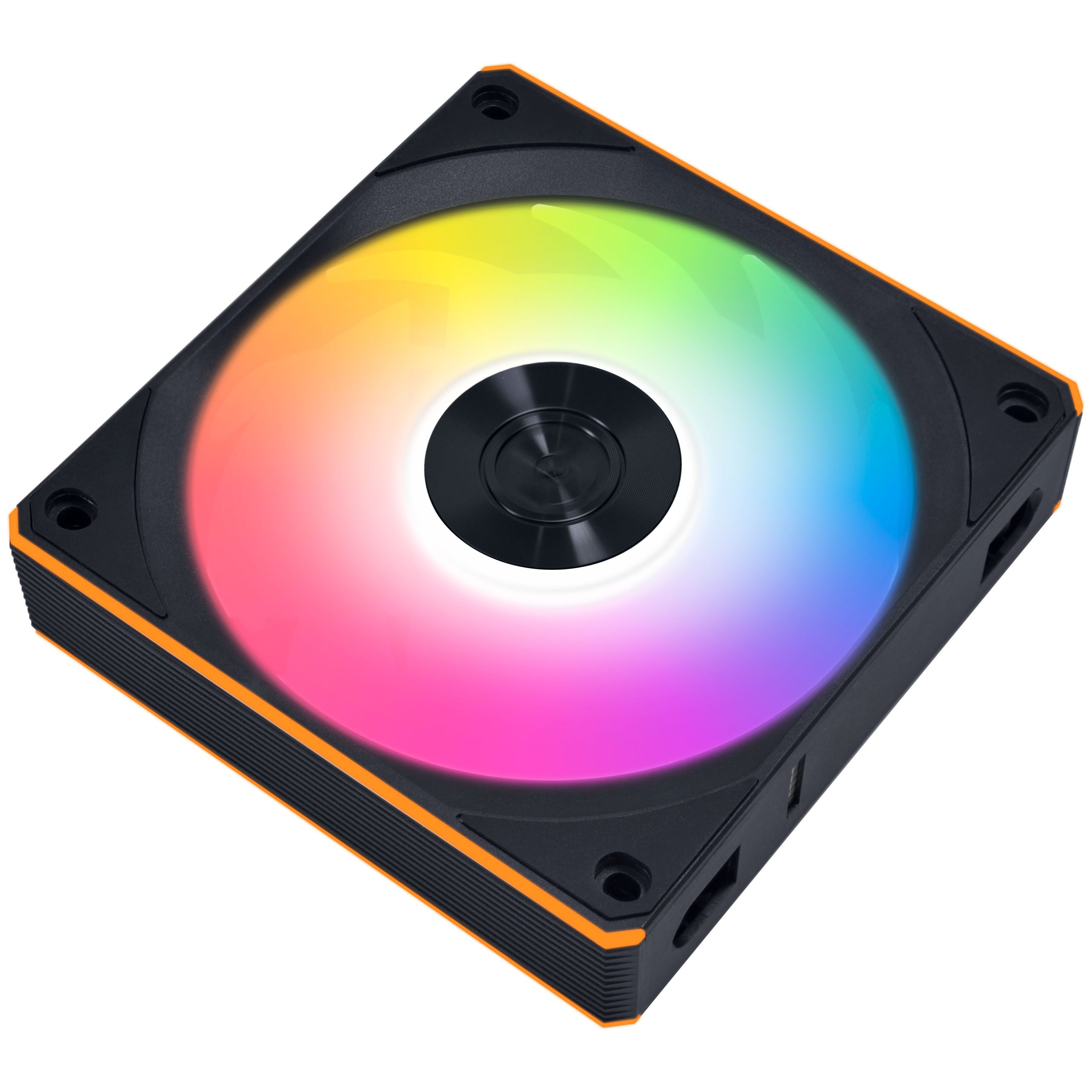

The CL Wireless takes a different approach to installation. A push-to-connect interlocking system means no screws, no fiddling – push fans together and they lock securely in seconds. An aluminium nameplate at the centre adds a premium look that sets it apart from other fans in the range.

Dual-zone ARGB lighting gives you independent control over fan blade and side strip effects. A 4-pin main header handles automatic PWM detection while a 2-pin tail header provides additional power. Cable management is built in – an integrated cable organiser with custom cable combs keeps wiring tidy even in builds with multiple clusters.
