Introducing the latest D5 Tank reservoir, including XSPC D5 PWM, now with Halo aRGB lighting and a brand-new design.
- SKU: XS-PMP-016
- MPN: 5060596651821
- EAN: 5060596651821
B-Grade
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Watercool HEATKILLER Laing D5 PWM Pump (6 Pin) - B-Grade
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Earn 80 Points
We price match UK retailers. Try It Now!
- SKU: BG-S0TV-235
- MPN: 30060
- EAN: 42513126071420
- Warranty: 3 Months
Details
This item has been inspected and is fully functional. B-Grade items may show signs of previous handling.
Item opened but unused
Missing or damaged original packaging
**item has been repacked in a new box

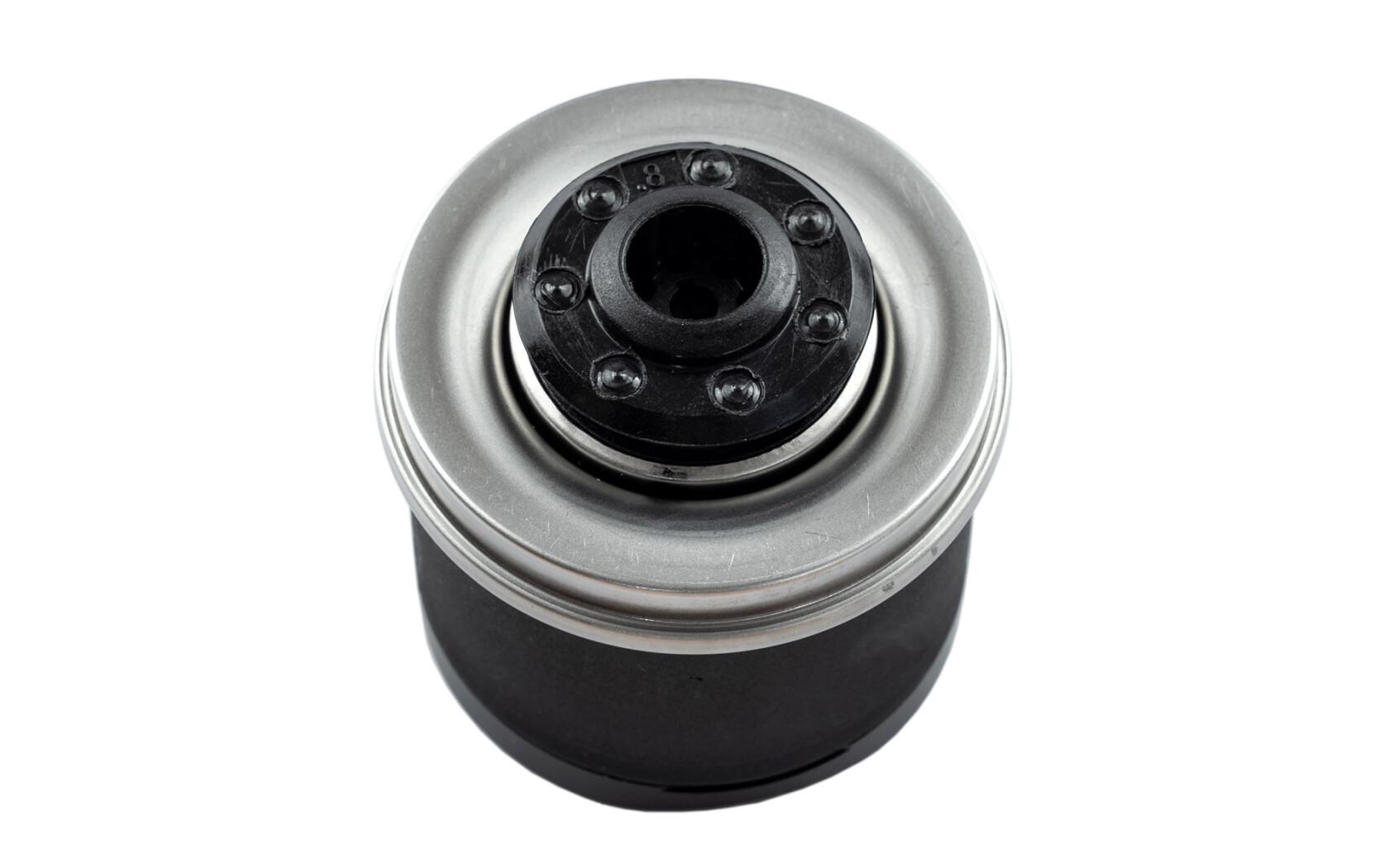

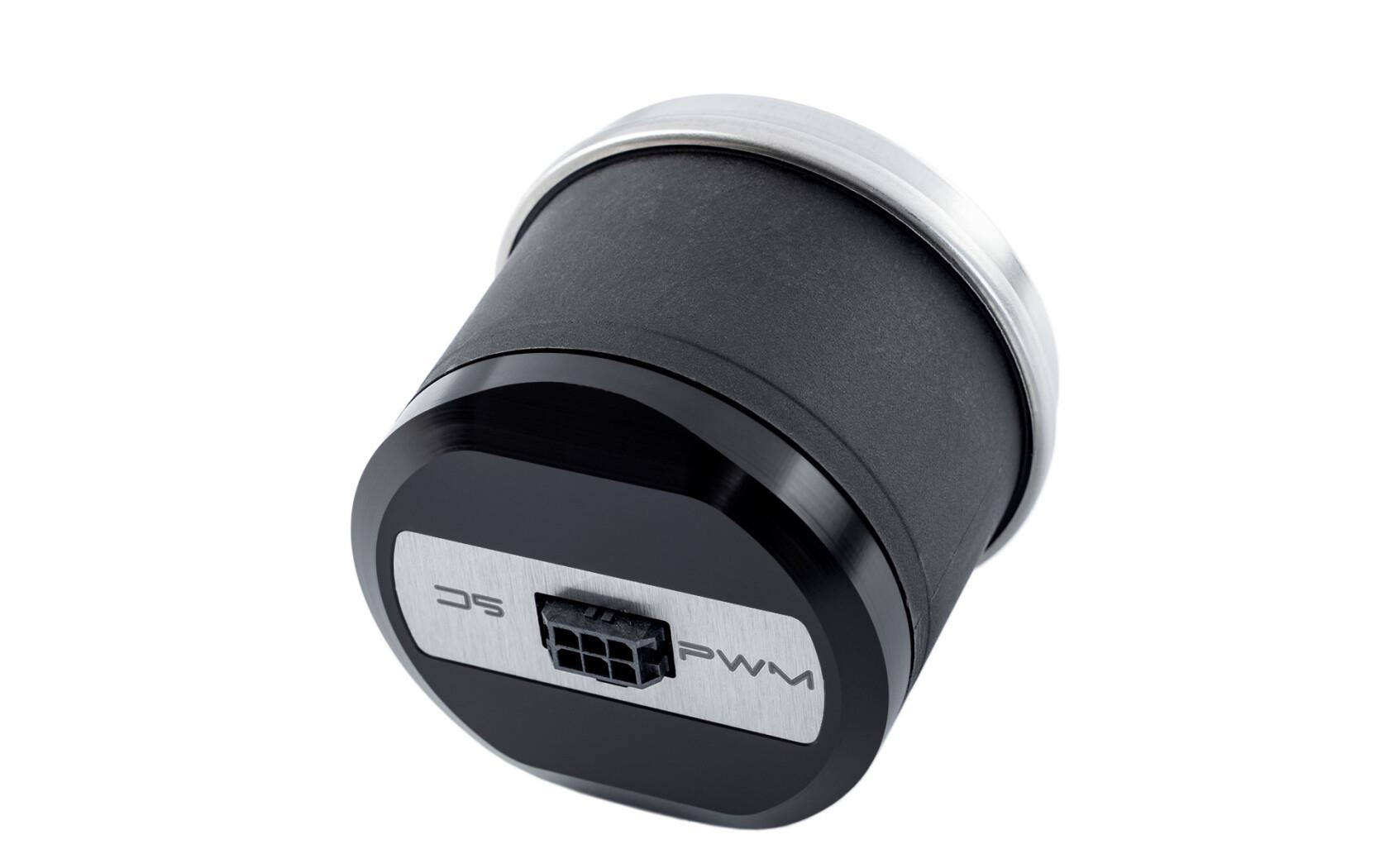

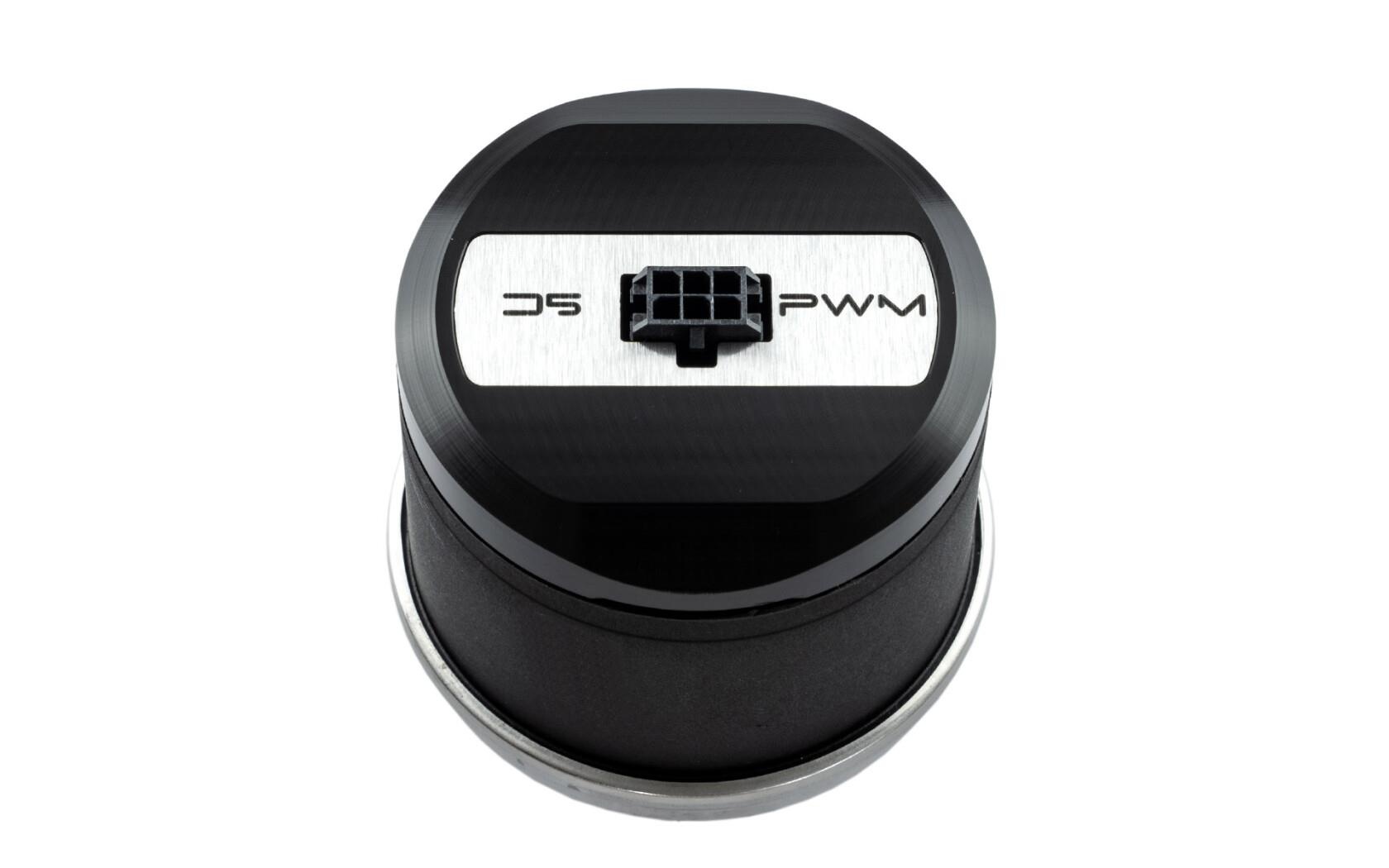

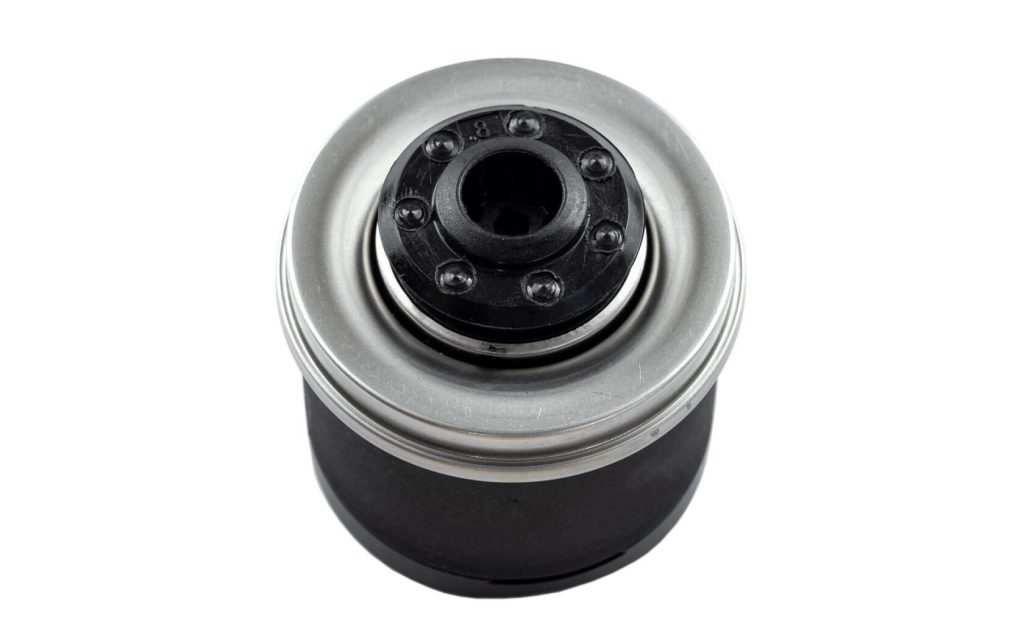

The WCP D5-VARIO is a DC pump using the spherical motor design as developed by Laing. The only moving part in a spherical motor pump is a spherically shaped rotor/impeller unit, which is seated on an ultra-hard, wear-resistant ceramic ball.
The conventional shaft, shaft bearings, and shaft seals have been eliminated. The occurrence of bearing clearance – and the associated increase of noise – is not possible due to the principle involved. Consequently, the pump continues to work quietly throughout its entire service life.
The bearing is self-adjusting. It is lubricated directly by the medium being pumped (wet rotor design). Separate maintenance is not required. All parts in contact with the medium are corrosion resistant.
Under normal conditions, it is impossible for the rotor to become locked due to the spherical motor design. Reliable starting is also ensured even after long periods of shutdown. The permanent magnetic mechanism allows high efficiency output.
The pumps rotation speed can be finely adjusted throughout a wide output range via a speed governor, which is integrated into the stator. Thus, you may easily regulate hydraulic performance or limit power consumption. The pump always uses the same torque, independent of rotational speed, ensuring reliable starting also on the lowest power level.
The pump comes without attachment parts. Operation requires an appropriate pump cover, which is separately available.
Power supply is provided by a 4 pin Molex connector. The pump also offers a 3 pin Molex plug for rotational speed monitoring.
| Specifications | |
|---|---|
| Dimensions (L × W × H) | 65 × 65 × 57 mm |
| Motor Design | Electronically commutated spherical motor |
| Materials | Stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminium oxide, hard carbon |
| Rated Voltage | 12V DC |
| Power Consumption | Max. 30W |
| Voltage Range | 8–24V DC |
| Pressure Head (12V) | 3.7 m |
| Max. Flow Rate | 1500 l/h |
| Acceptable Media | Water, water-glycol mixtures |
| Max. System Temperature | 60°C |
| Max. System Pressure | 1.5 bar |
| Power Supply | 4-pin Molex |
| RPM Monitoring | Yes (via 3-pin Molex) |
| PWM Control | Yes |
| Scope of Delivery | |

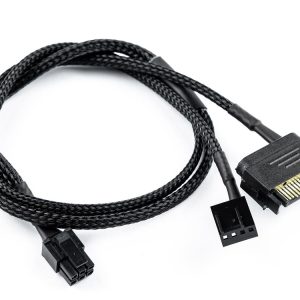

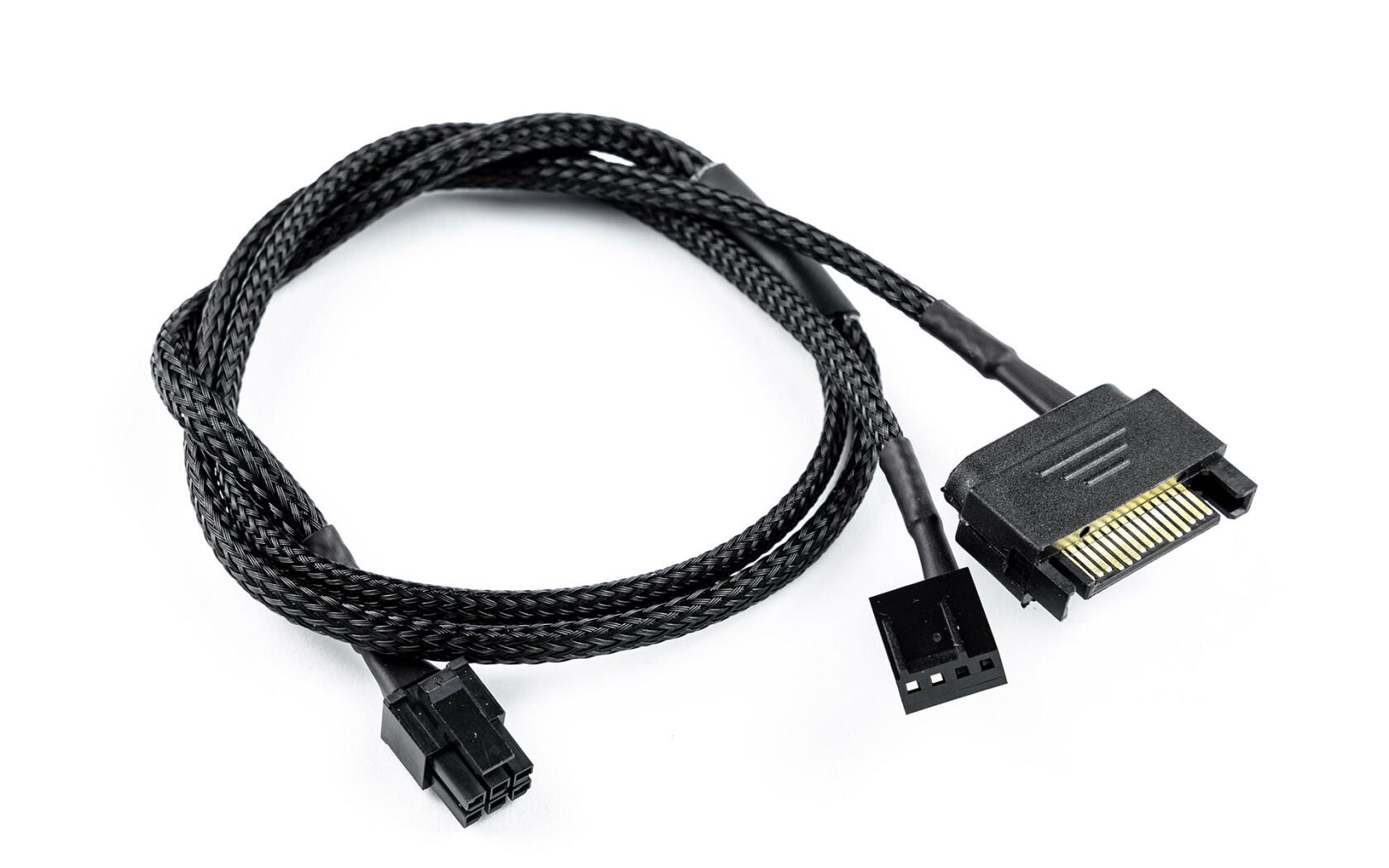

| Included | 1 × HEATKILLER D5 PWM (6-Pin) 1 × SATA cable |
