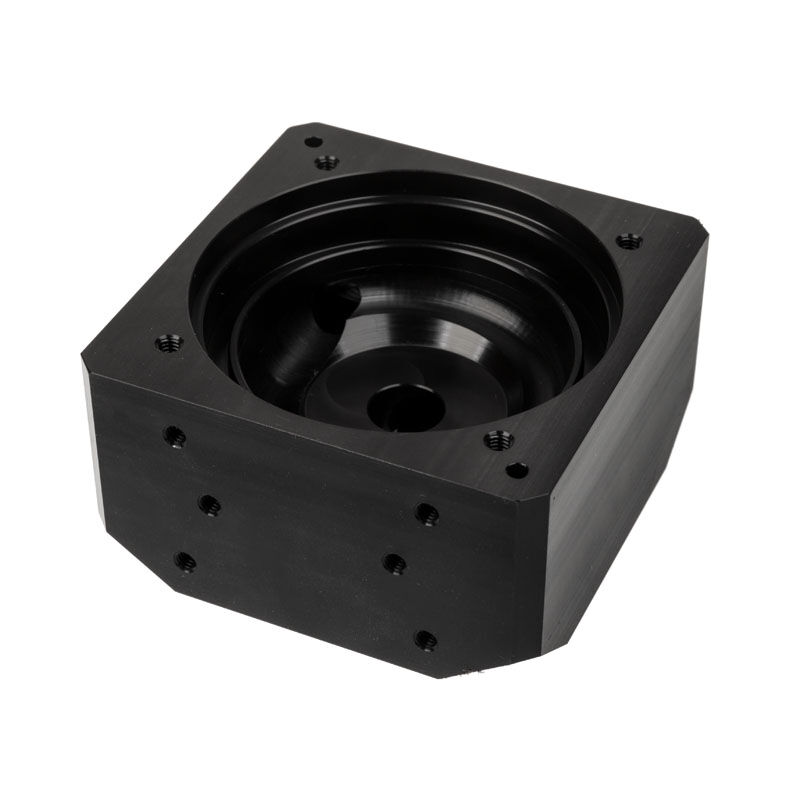

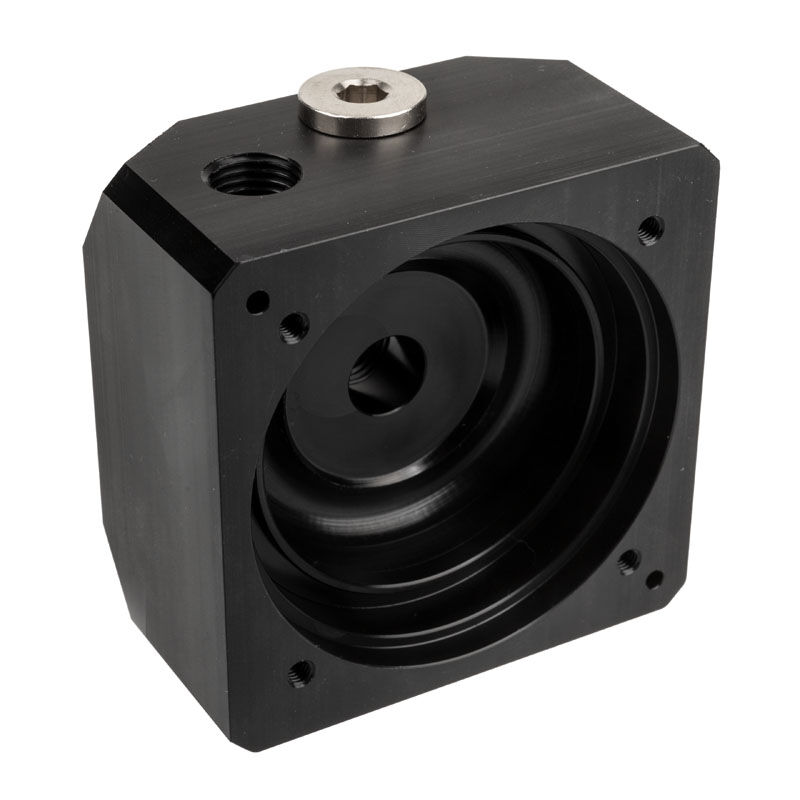

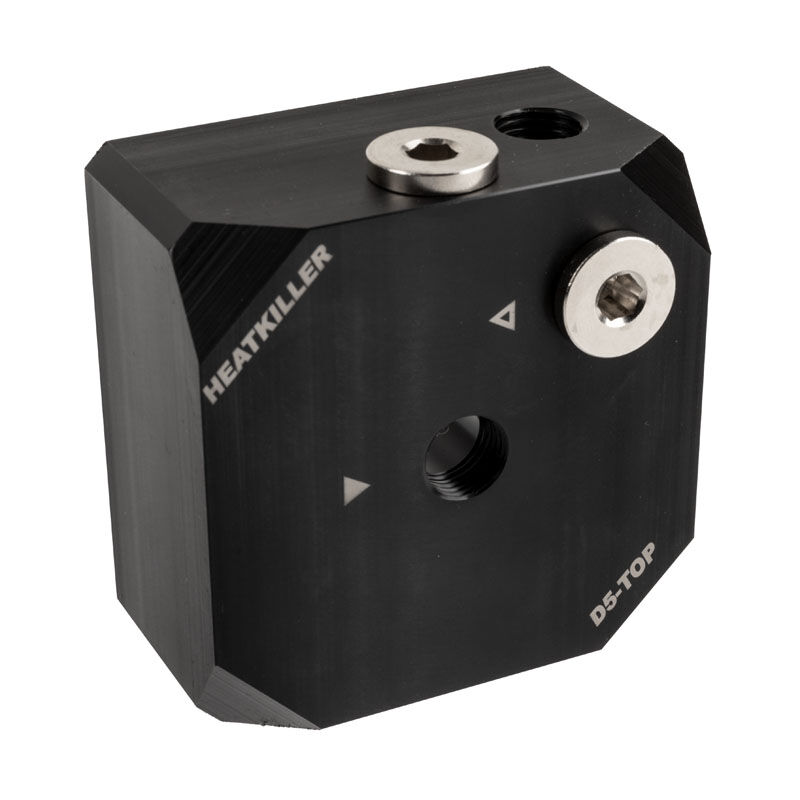

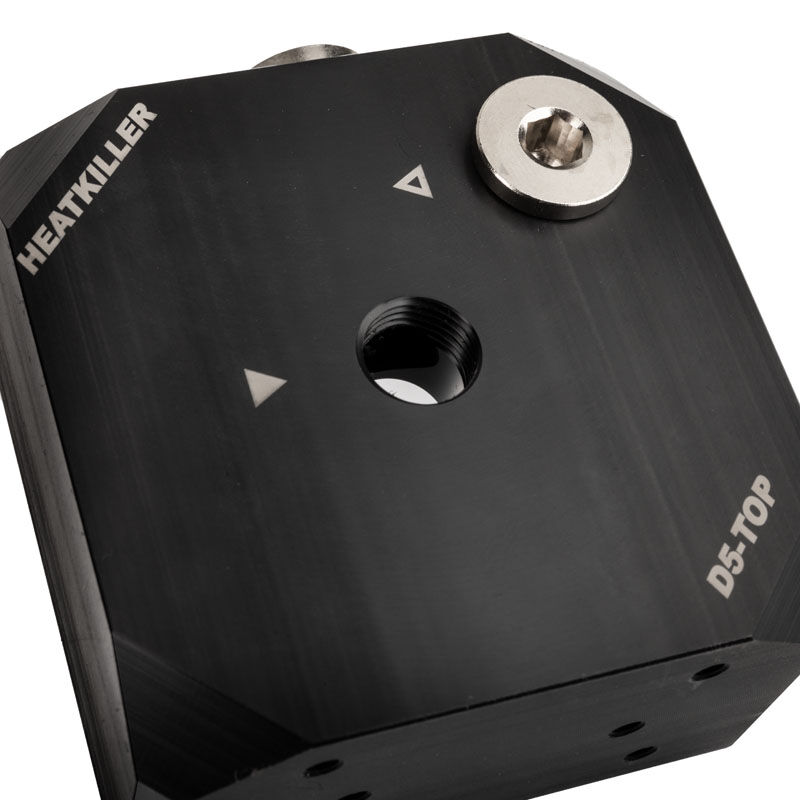

Watercool Heatkiller D5-TOP pump attachment

With a total of four G1 / 4-inch ports and the enclosed mounting bracket, the Top enables individual placement in the housing and flexible integration into the water circuit.

The features of the Watercool Heatkiller D5-Top at a glance:
– Pump attachment from Watercool
– For D5 pumps from different manufacturers
 -Made entirely from high quality POM
– A total of four G1 / 4-inch threads

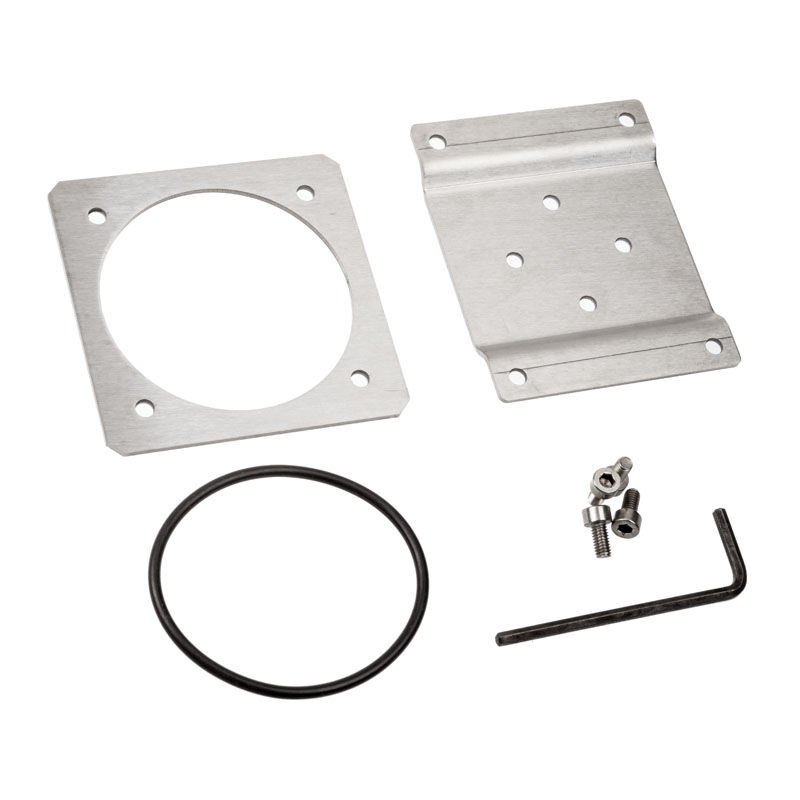

– Including holder made of stainless steel + 2x sealing plugs
– Various mounting options

The features of the Watercool Heatkiller D5-Top in detail
The high-quality black pump attachment is made entirely of POM and suitable for pumps based on the Laing D5. It is compatible with many models from different manufacturers. The top offers a total of four G1 / 4-inch threads for integration into a water cycle.

The enclosed bracket offers the greatest possible variety of mounting options. The pump is installed using the enclosed stainless steel bracket. This can also be installed rotated by 90 degrees, which facilitates installation in narrow housings. Use as a stand is also possible.

Technical details:
– Dimensions (block only, without pump): 74 x 42 x 74 mm (W x H x D)
– Dimensions (block with stand, without pump): 80 x 64 x 80 mm (W x H x D)
– Weight: 350 g
– Material: POM (top), stainless steel (bracket)
– Color: Black
– Connections: 4x G1 / 4-inch
– Compatibility:
– Watercool: WCP D5-PWM, WCP D5
– Watercool: TPP 644, VPP655, VPP655 PWM
– Aquacomputer: D5, D5 PWM
 -EKWB: EK-D5 Vario, EK-D5 PWM
– Koolance: PMP-450, PMP-450S
– Swiftech: MCP655, MCP655-B
– XS-PC: D5 Vario, D5 PWM
– Laing / Xylem / Lowara: D5 pumps
– Scope of delivery:
– 1x HEATKILLER D5-TOP
– – 1x stainless steel bracket
– 2x sealing plugs
