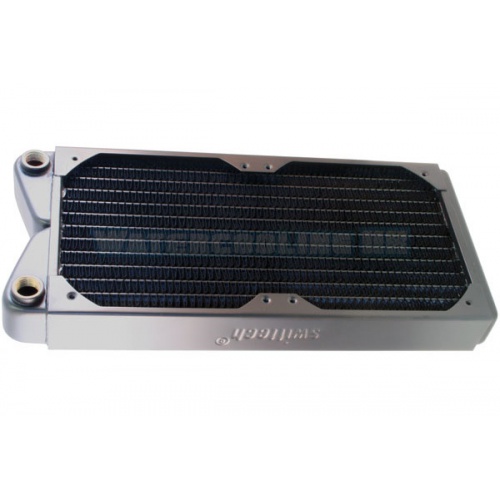

Swiftechs XP (eXtreme Performance) radiator series is optimized for fans with a medium speed range. Designed in the USA!
Unlike the parallel running QP respectively QPK series, which is designed for rather slow-spinning fans, the fin density on the XP series has been increased from 12FPI to 20FPI. This results in a performance range which is optimized for medium speed fans (approx. 1200rpm). The ideal range is between 1000 and 1800rpm. If a fan which spins slower than 1000rpm is used, a radiator from the QP respectively QPK series should be used.
Swiftechs XP (eXtreme Performance) radiator series is optimized for fans with a medium speed range. Designed in the USA!
Unlike the parallel running QP respectively QPK series, which is designed for rather slow-spinning fans, the fin density on the XP series has been increased from 12FPI to 20FPI. This results in a performance range which is optimized for medium speed fans (approx. 1200rpm...
Swiftechs XP (eXtreme Performance) radiator series is optimized for fans with a medium speed range. Designed in the USA!
Unlike the parallel running QP respectively QPK series, which is designed for rather slow-spinning fans, the fin density on the XP series has been increased from 12FPI to 20FPI. This results in a performance range which is optimized for medium speed fans (approx. 1200rpm...
No products found
The outer dimensions and optical design were left completely unchanged. The compact dimensions and fine structure make the radiator easy to be integrated even in Midi- or even Mini towers. Of course 120mm fans can be mounted to both sides with UNC 6-32 screws. The connection threads are 1/4 in size, the standard in the PC water cooling sector. The satin black finish of the radiator with the integrated Swiftech logo round off the optical design of the radiator perfectly!
Technical specifications:
Material: Brass tubes and chassis, copper fins
Colour: Satin black
Connection thread size: G1/4
Outer dimensions (LxWxH): 280 x 128 x 37mm
Weight: 594g
Fan thread size: UNC 6-32
Extent of delivery:
1x 240mm radiator
Mounting screws
Please note: Screwing in the screws too far can damage the radiator. Always ensure the proper length of the screws. The included screw are not always the right size!
Please note: Flush the radiator thoroughly before mounting and use to remove possible residue from storage and manufacturing and to prevent it from entering your cooling loop.
