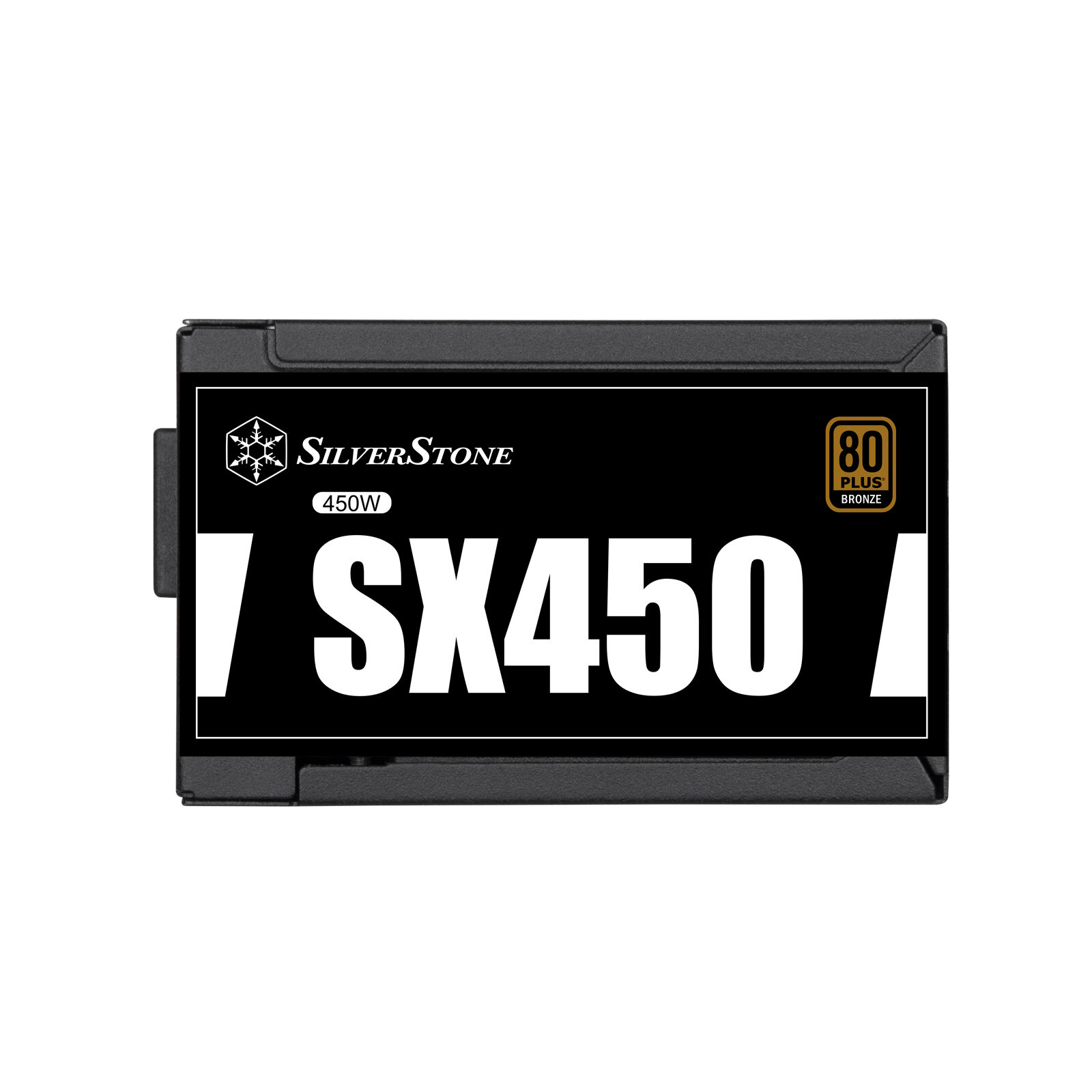

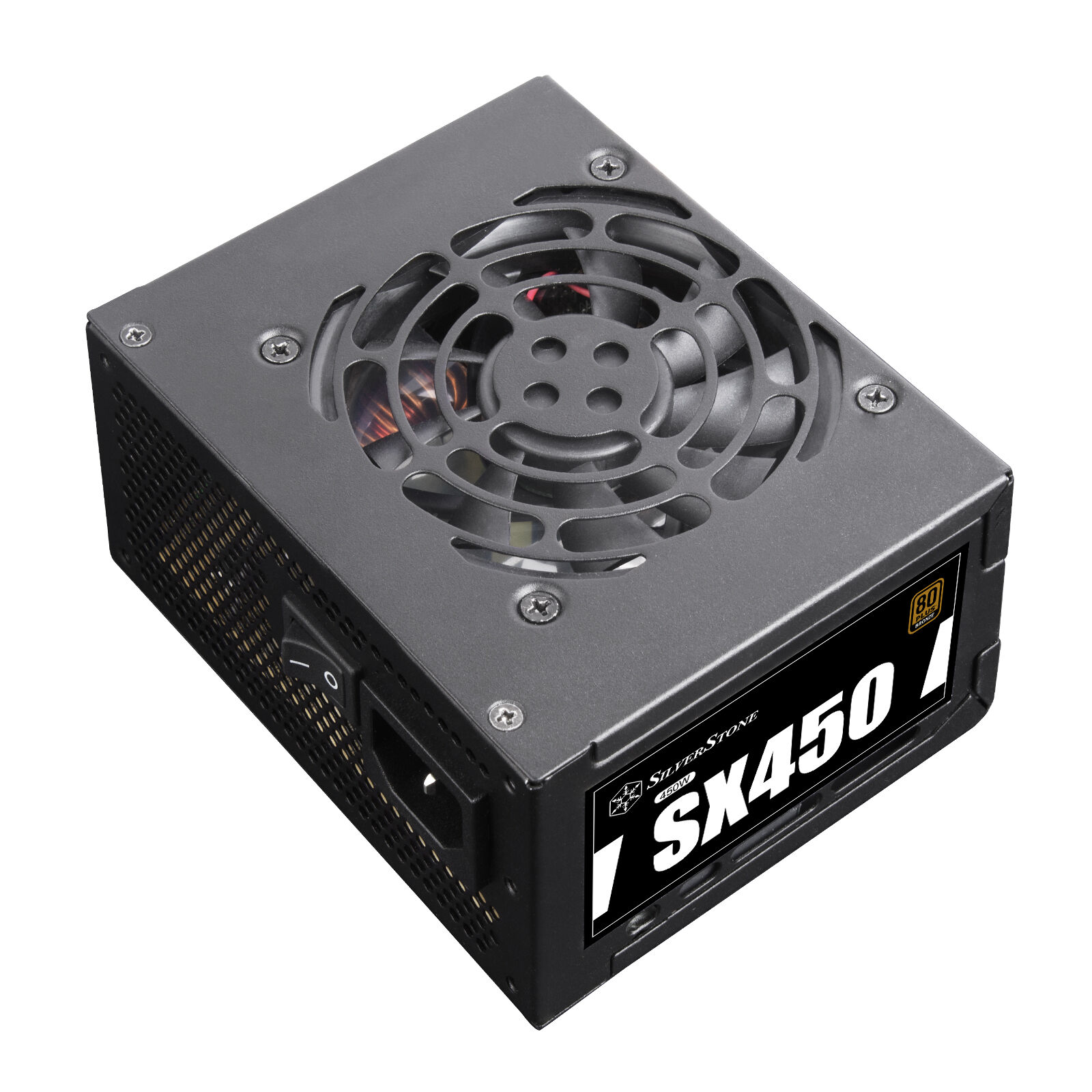

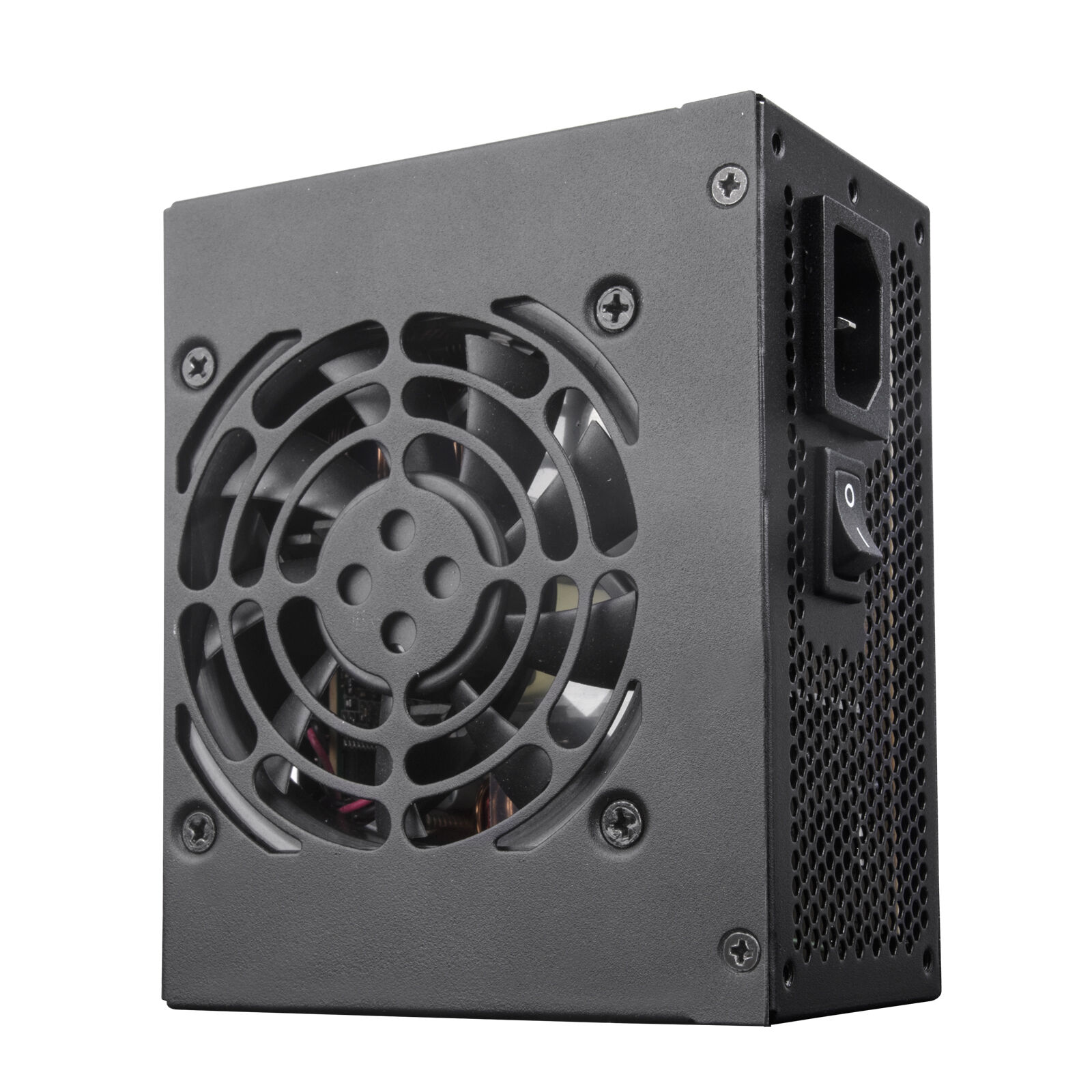

SilverStone SST-SX450-B SFX Series - 450 watts

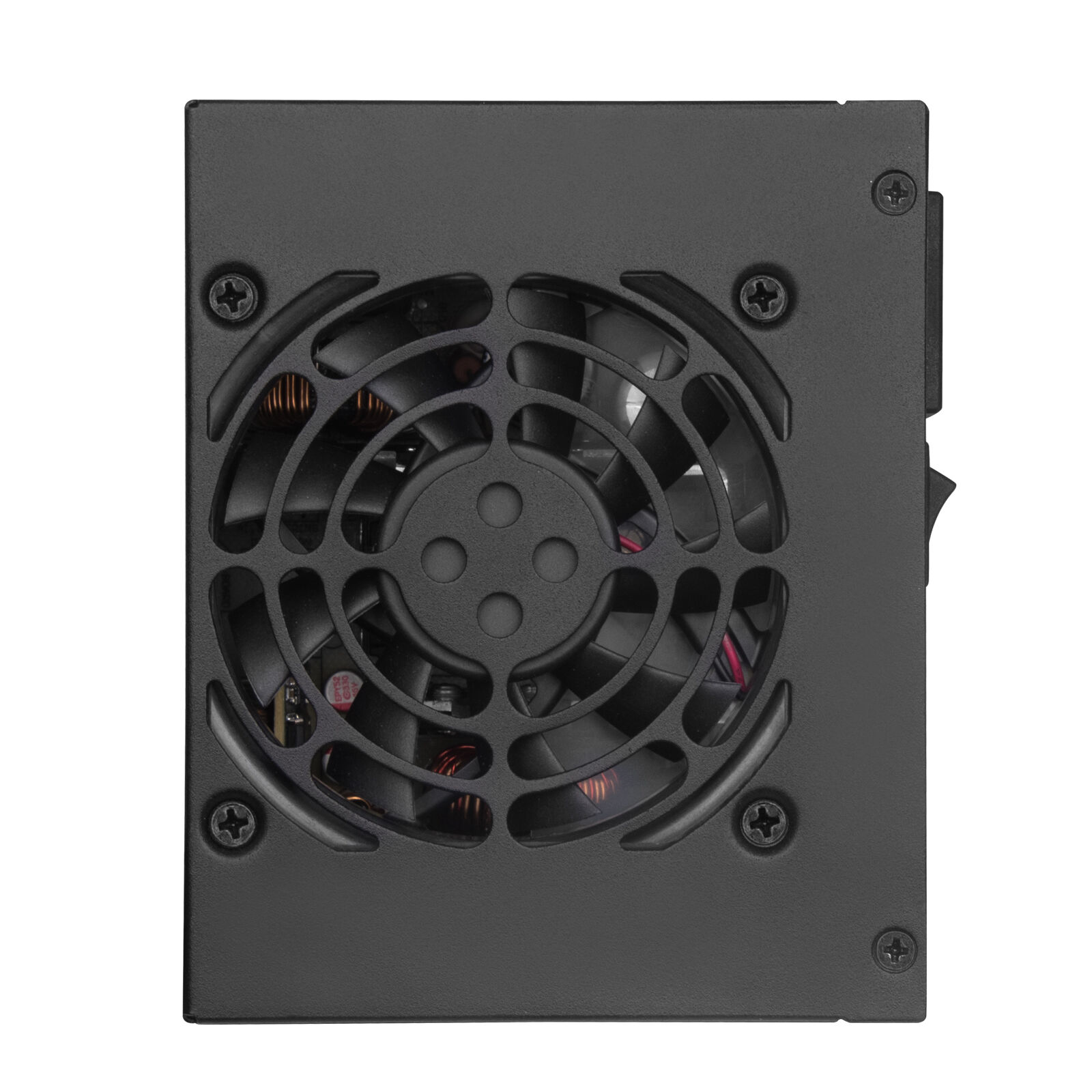

Thanks to the SFX format, the SilverStone SST-SX450-B is primarily designed for mini cases (mostly in mini-ITX format) and offers high performance with minimal dimensions. It comes with a quiet 80-millimeter fan with an optimized fan curve. This makes the SST-SX450-B a good solution for almost all users who want to combine high performance with low noise.

The power on the 12-volt line, which is important for graphics cards, also delivers enough power at a full 450 watts (37.5 amps). Important protective circuits are on board with overload protection (OPP), undervoltage protection (UVP), overcurrent protection (OCP), overvoltage protection (OVP) and short-circuit protection (SCP). Instead of a multiple-split 12-V line, this version has a very powerful single rail and is therefore even suitable for multi-GPU systems.

There are two PCIe 6+2 pin connectors in total. In addition, there is a 20+4 pin, a 4+4 pin, three SATA, two 4-pin Molex and a floppy connector for the mainboard and peripherals. But the SST-SX450-B is also in the top league when it comes to efficiency, achieving an efficiency of up to 85 percent, which is why it has been awarded an 80 PLUS Bronze certification.

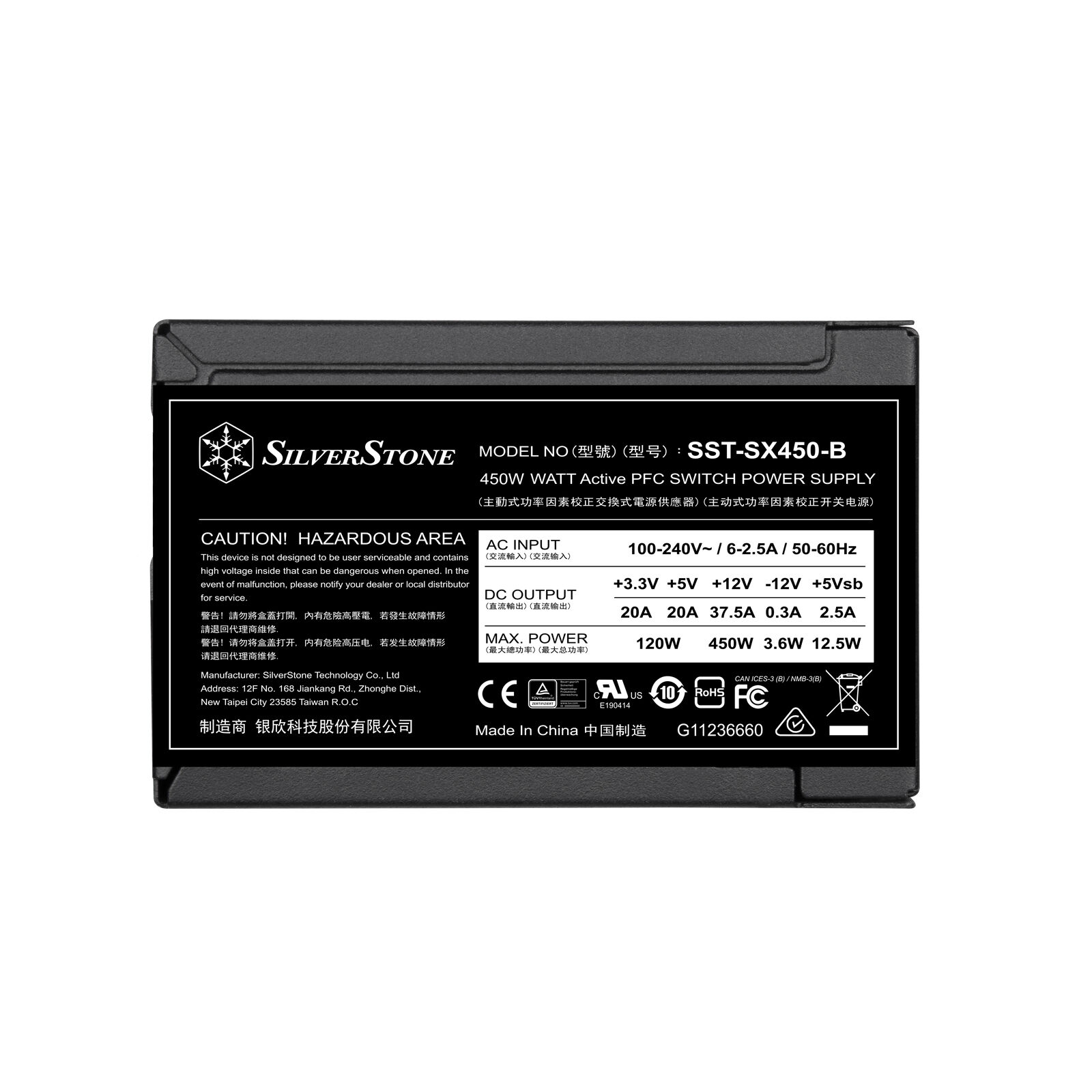

Technical data:
– Dimensions: 125 x 63.5 x 100 mm (WxHxD)
– Fan: 80 mm (min. 18 dB(A))
– Form factor: SFX
– Average service life: 100,000 h
– Efficiency: 80 PLUS Bronze
– Power: 450 watts
– +3.3V: 20 A
– +5V: 20 A
– 3.3+5V: 120 W
– +12V: 37.5 A (450 W)
– -12V: 0.3 A
– +5Vsb: 2.5 A
– Connections:
– 1x 20+4-pin (300 mm)
– 1x 4+4-pin (ATX12V/EPS12V, 400 mm)
– 2x 6+2-pin PCIe (400 + 150 mm)
– 3x SATA (300 + 200 + 100 mm) 2x 4-pin Molex (300 + 200 mm) 1x Floppy (100 mm) Protection circuits: OCP/ OVP / SCP / OPP / RRP
