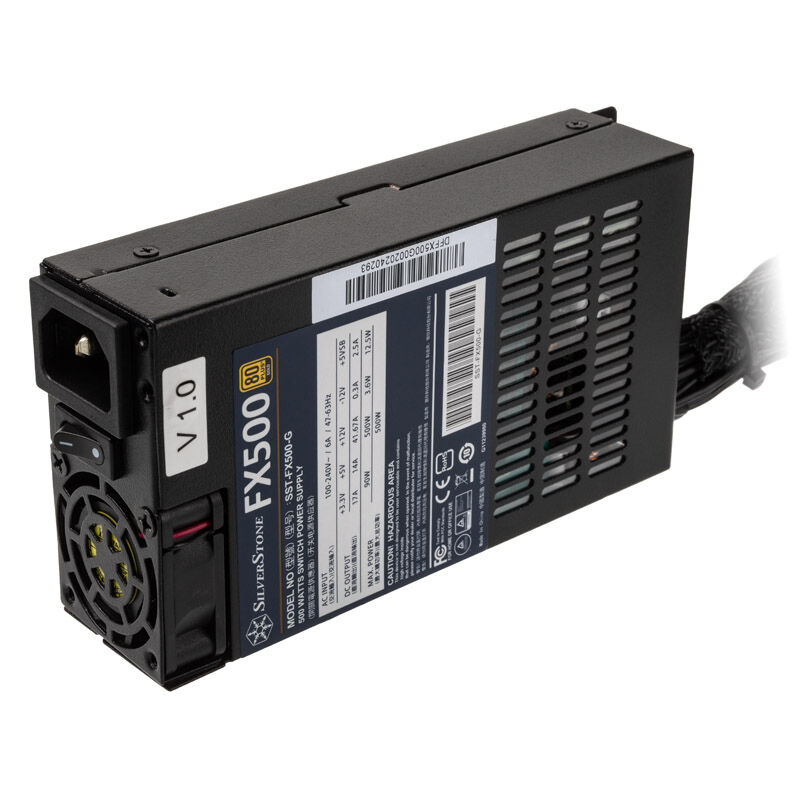

Silverstone SST-FX500-G 80 PLUS Gold - 500 watts

The minimal dimensions do not reveal anything about the power of the tiny thing: A total of 500 watts with a powerful 12 V single rail slumber in the small TFX power supply unit.

The features of the Silverstone SST-FX500-G power supply at a glance:
– Super compact power supply from Silverstone in Flex ATX format
– 500 W power with high 80 PLUS Gold efficiency
– Suitable for 24/7 operation
– Strong 12 V single rail with 41.67 amps
– Two 6 + 2-pin PCIe connectors for graphics cards

The features of the Silverstone SST-FX500-G power supply in detail
The small Silverstone power supply unit differs from classic ATX PSUs primarily in its compact dimensions. Thanks to the TFX format, the Silverstone SST-FX500-G is primarily intended for mini cases and offers high performance with minimal dimensions.

This TFX power supply unit is particularly characterized by its resilience in continuous operation, but the extensive connection arsenal is also impressive. A 40 mm fan provides cooling. Due to its efficiency, the small SST-FX500-G plays in the upper league and achieved the 80 PLUS Gold certificate.

The TFX power supply unit also supplies the hardware with currents of 41.67 amps via the powerful 12 V line. In addition, a 20 + 4-pin, two 6 + 2-pin PCIe, one 4 + 4-pin, four SATA, three 4-pin Molex and a floppy are available for the mainboard, graphics card and peripherals.

Technical details:
– Dimensions: 81.5 x 40.5 x 150 mm (W x H x D)
– Weight: 960 g

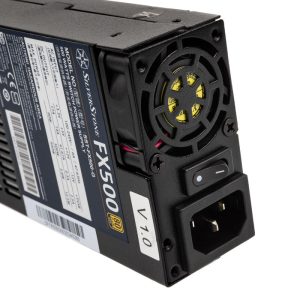

– Fan: 40 mm (min. 20 dB (A))
– Form factor: TFX
– Average duration of use: 100,000 h
– Efficiency: at least 88/92/88 percent at 20/50/100 percent load (230 volts), incl. 80 PLUS Gold certificate.
– Active PFC
– Power: 500 watts
– + 3.3V: 14 A
– + 5V: 17 A
– 3.3 + 5V: 90W
– + 12V: 41.67 A
– -12V: 0.3A
– + 5Vsb: 2.5 A

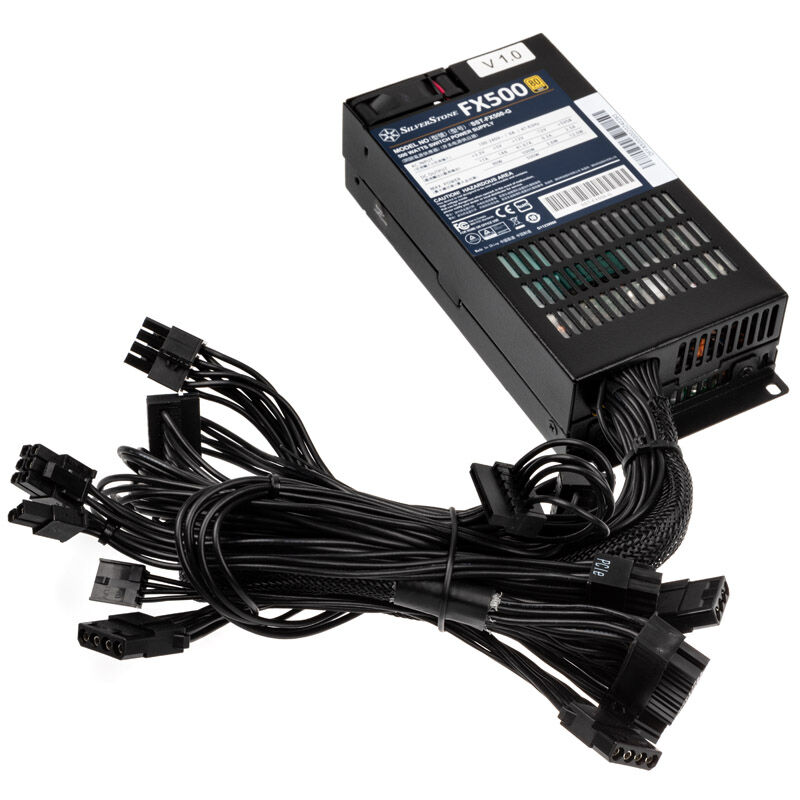

Connections:
– 1x 20 + 4-pin (350 mm)
– 1x 4 + 4-pin (ATX12V / EPS12V) (450 mm)
– 2x 6 + 2-pin PCIe (350/150 mm)
– – 4x SATA (350mm / 150mm / 150mm / 150mm)
– 3x 4-pole Molex (350mm / 150mm / 150mm)
– 1x floppy (150 mm)
