Silverstone SST-EX500-B Extreme SFX power supply 80 PLUS Bronze - 500 watts

The Silverstone SST-EX500-B Extreme delivers a full 500 watts of power and has a powerful 12 V single rail with 41.7 amps . And all of this with a size of only 125 by 63.5 by 100 millimeters.

The Silverstone SST-EX500-B Extreme 80 PLUS Bronze power supply at a glance:

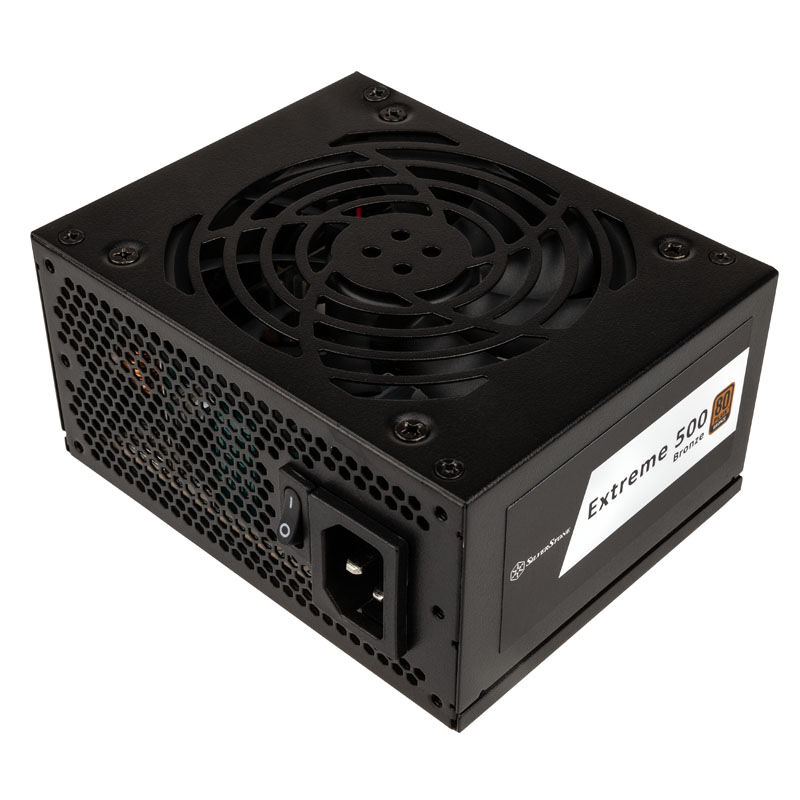

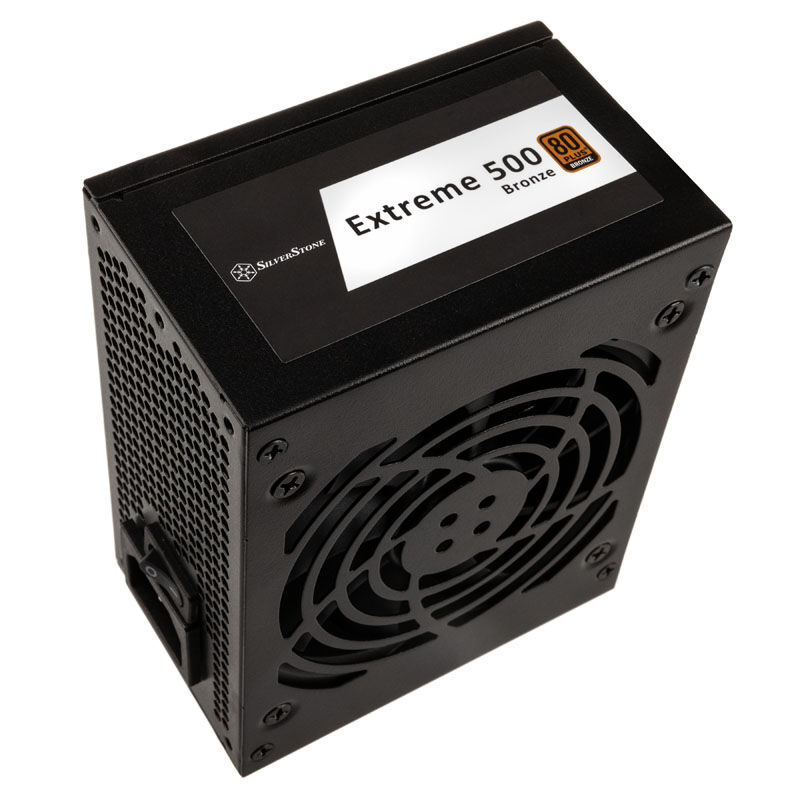

Compact SFX power supply from Silverstone
500 watts of power with efficient 41.7 A single rail (12 V)
Very high efficiency with 80 PLUS bronze certificate
Quiet 92 mm fan with semi-passive mode
Two 6 + 2-pin PCIe connectors for graphics cards

Compact SFX power supply with 80 PLUS bronze efficiency and powerful 41.7 A single rail
With the SST-BX300-B Extreme power supply, Silverstone relies on the compact SFX form factor. Silverstone installed a compact but quiet 92 mm fan with semi-passive control. The result is a powerful SFX power supply unit with a continuous output of 500 watts, a powerful 12 V single rail with 41.7 amps. Thanks to the SFX format, the SST-SX300-B Extreme is primarily intended for mini housings, but still stands out due to its extensive connection arsenal and offers good performance with minimal dimensions.

Fully modular cable management & 80 PLUS Bronze efficiency
The installation of the power supply unit in small housings is particularly convenient thanks to the excellent cable management, because the device is supplied with flexible ribbon cables for needs-based connection equipment. The extremely high efficiency of the power supply, averaging 82% to 85%, was awarded the 80 PLUS bronze certificate and ensures that only relatively little electrical energy is converted into heat.

Instead of a multiple split 12 V line, this version has a powerful single rail with 41.7 amps and offers various protective functions such as OCP (overcurrent protection), OPP (overload protection), OVP (overvoltage protection), UVP (undervoltage protection) and SCP ( Short circuit protection). The fixed connections illustrate the power of the power supply unit: In addition to 20 + 4-pin, one 8-pin and 4 + 4-pin ATX / EPS connector, there are also two 6 + 2-pin PCI Express connectors and three SATA connectors available. Two 4-pin Molex connectors and a floppy connector are available for peripheral devices such as HDDs.

Technical details:
Dimensions: 125 x 63.5 x 100 mm (W x H x D)
Weight: 1.02 kg

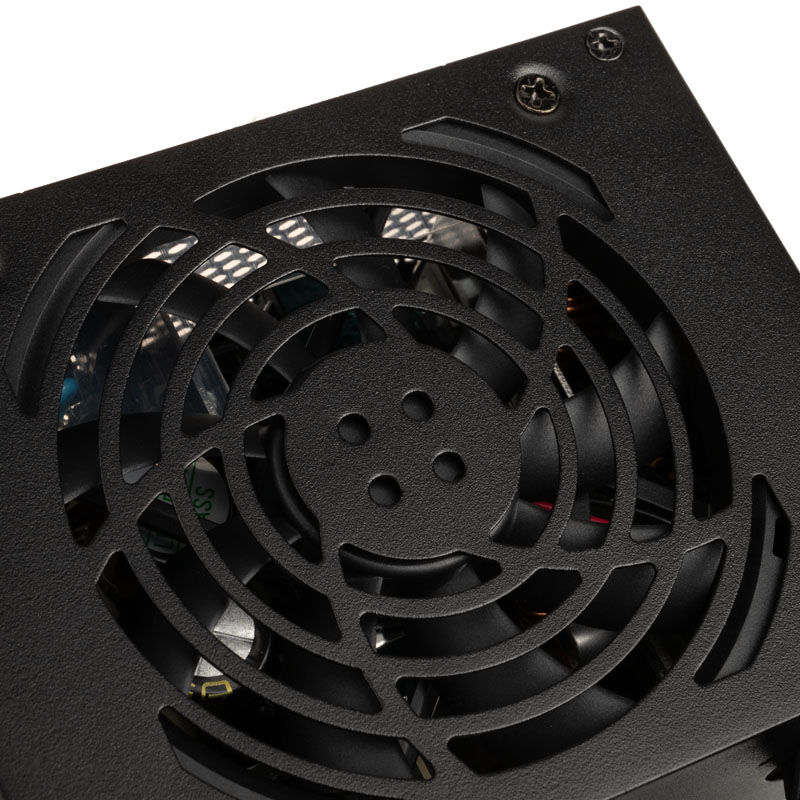

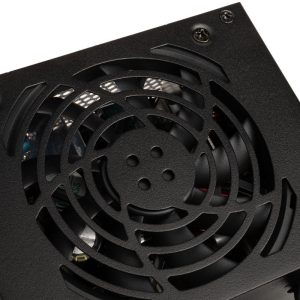

Fan: 92 mm (automatic control, semi-passive)
Efficiency: at least 82/85 percent at 20/100 percent load (230 volts), incl. 80 PLUS bronze certificate.
Active PFC (> 0.9)
Form factor: SFX
Power: 500 W
+ 3.3V: 20 A
+ 5V: 20 A
+ 3.3V & + 5V: 120 W.
+ 12V: 25 A (max. 499.2 W)
-12V: 0.3A
+ 5Vsb: 2.5 A

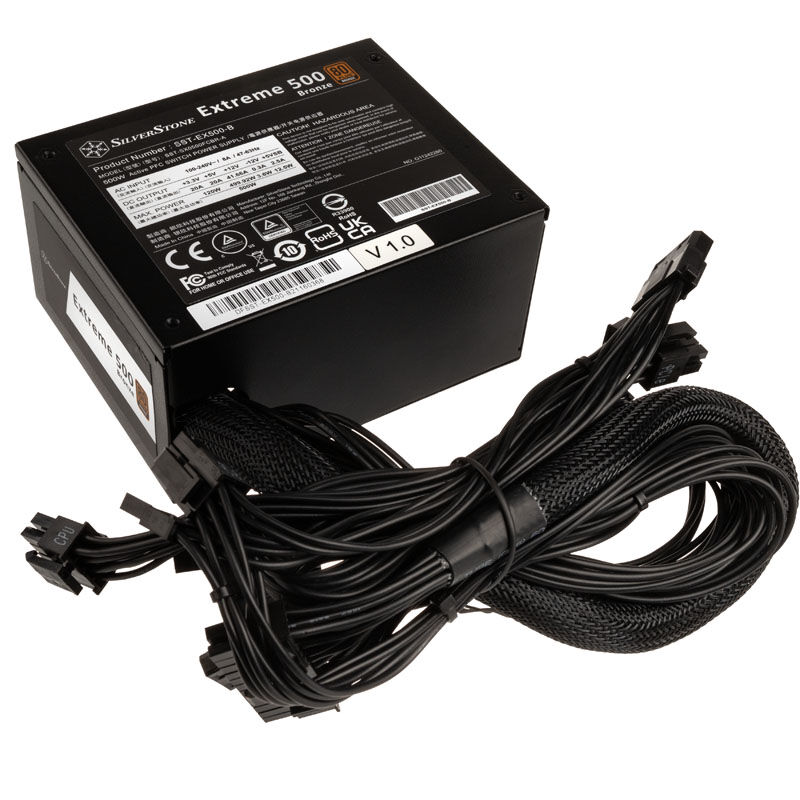

Connections (removable):
1x 20 + 4-pin ATX12V (400 mm)
1x 8-pin and 4 + 4-pin ATX12V / EPS12V (450 + 150 mm)
1×2 6 + 2-pin PCIe (400 + 150 mm)
1×3 SATA (350 + 150 + 150 mm)
1×2 + 1 4-pole Molex + 4-pole floppy (300 + 150 + 150 mm)
Protection circuits:
OVP / UVP (protection against overvoltage and undervoltage)
SCP (short circuit)
OPP (overload)
OCP (overcurrent on rails +12, +3.3 and +5 volts)
Average duration of use: 100,000 h
Manufacturers guarantee: 3 years
