Small 40 mm fan with high speeds of up to 7,000 rpm
– Strong airflow from 0.62 to 3.87 m³ at an air pressure of 0.62 – 3.87 mmH2O

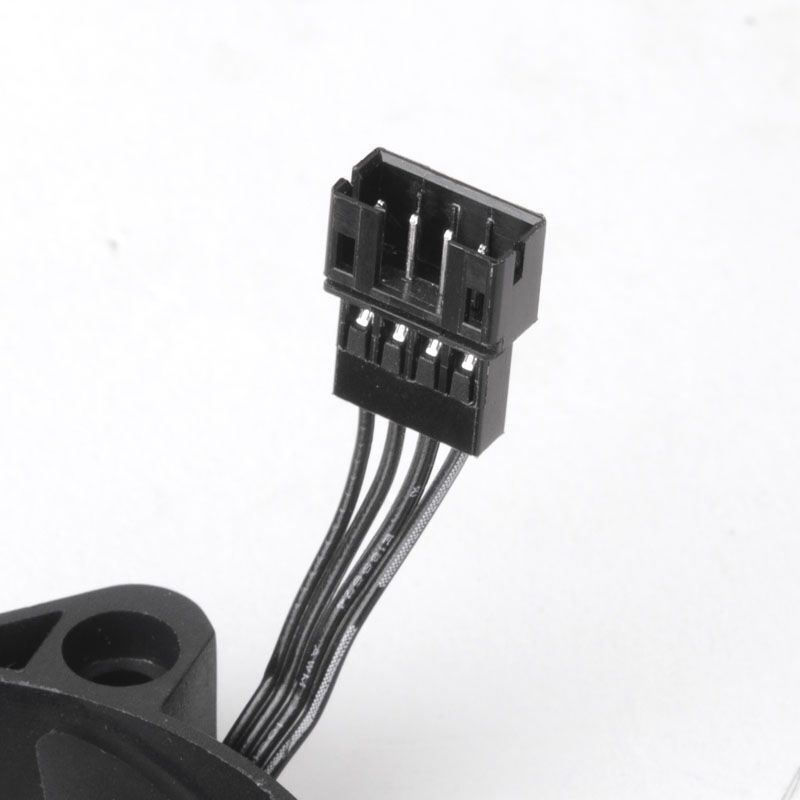

– 4-pin PWM connector for fan speed control and monitoring
– Flexible connectors with additional 2+1 pin
– Speed reduction cable creates a balance between volume and RPM

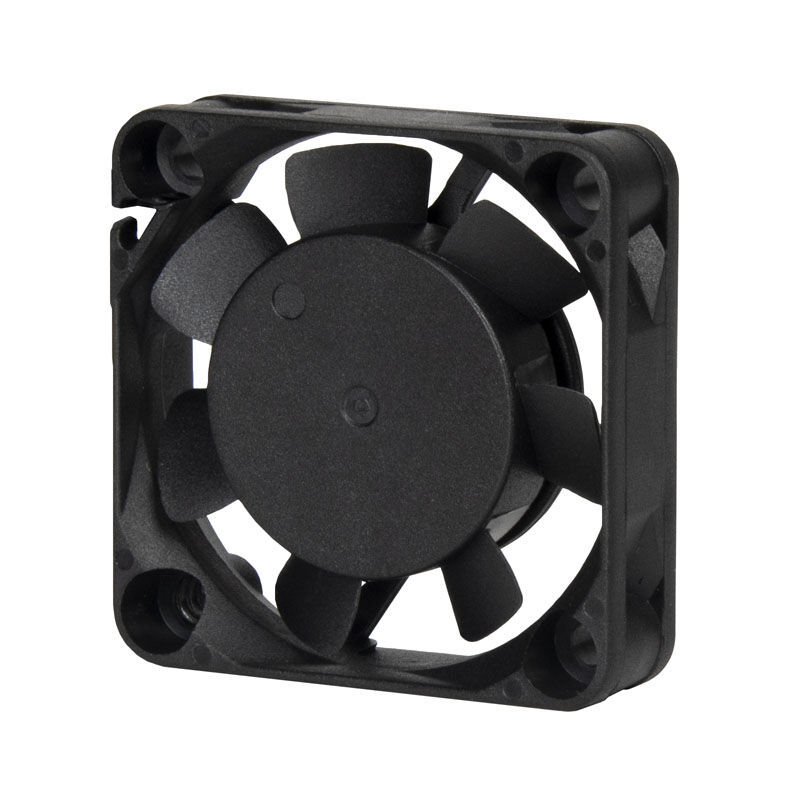

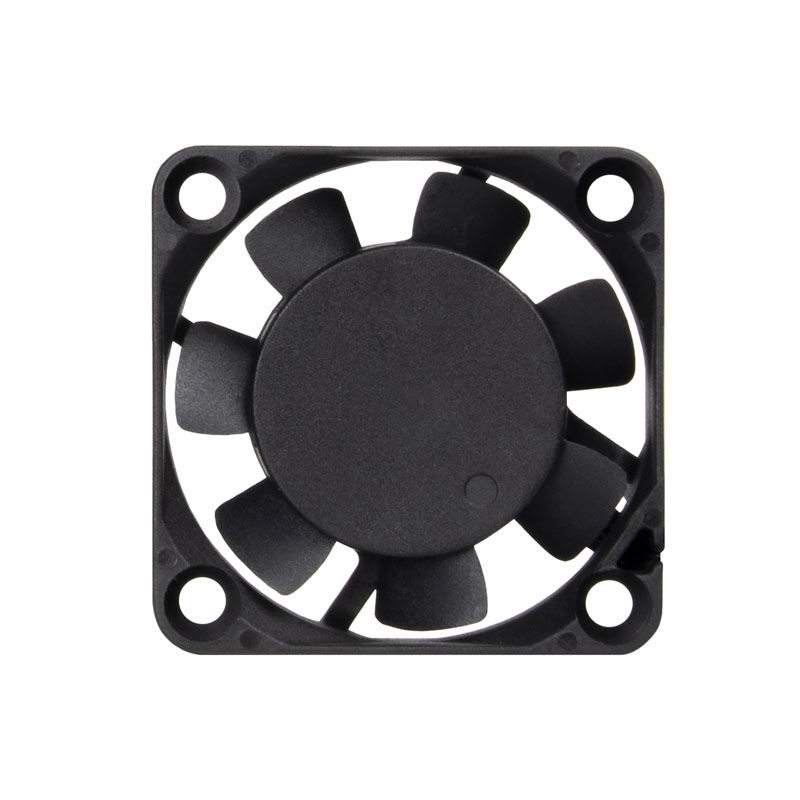

The SilverStone FTF 4010 PWM fan is small and powerful

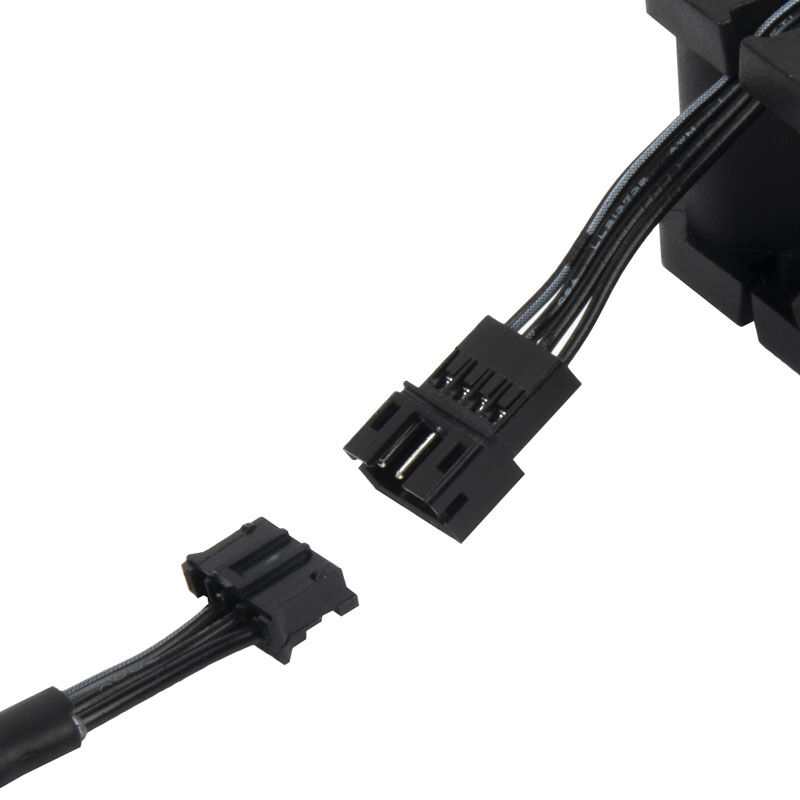

With the FTF 4010, SilverStone offers you an efficient 40 mm fan. Depending on the 12 or 5 V voltage, the dual ball bearing creates different performances, which are at 12 V speeds from 0 to 7,000 rpm. At maximum performance, the fan reaches a maximum volume of 23.9 dB(A). It generates a static pressure between 0.62 to 3.87 mmH2O. The fan receives the PWM signal via a 4-pin connector from the mainboard, but the connection interface is far more flexible, because there is also a 2+1-pin connector.

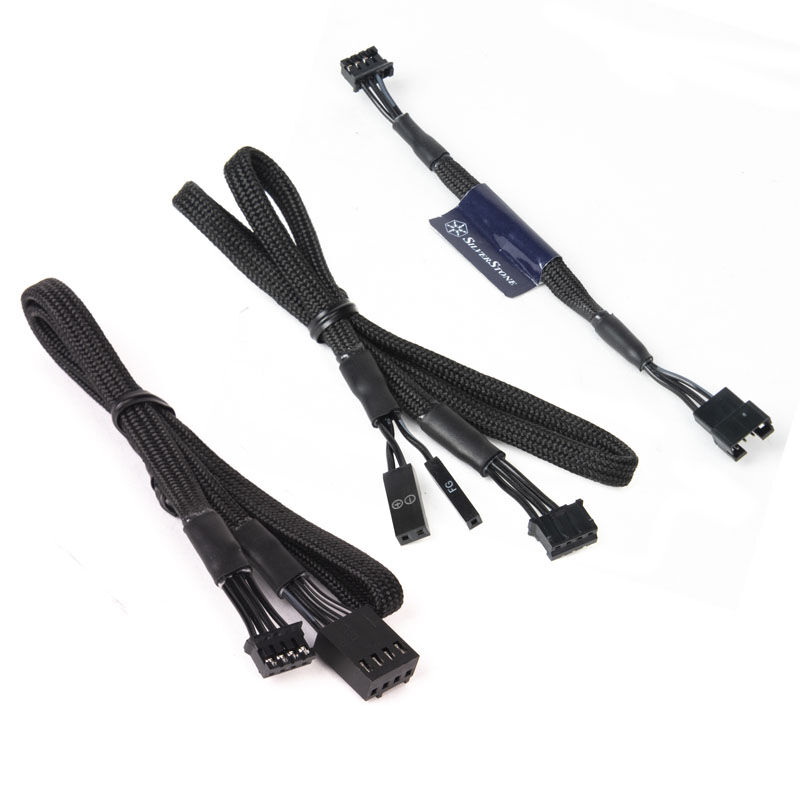

In addition to these, there is also a speed reduction cable. With its help you call up high speeds of 5,9000 rpm at a volume of 19.8 dB(A).
Technical details:

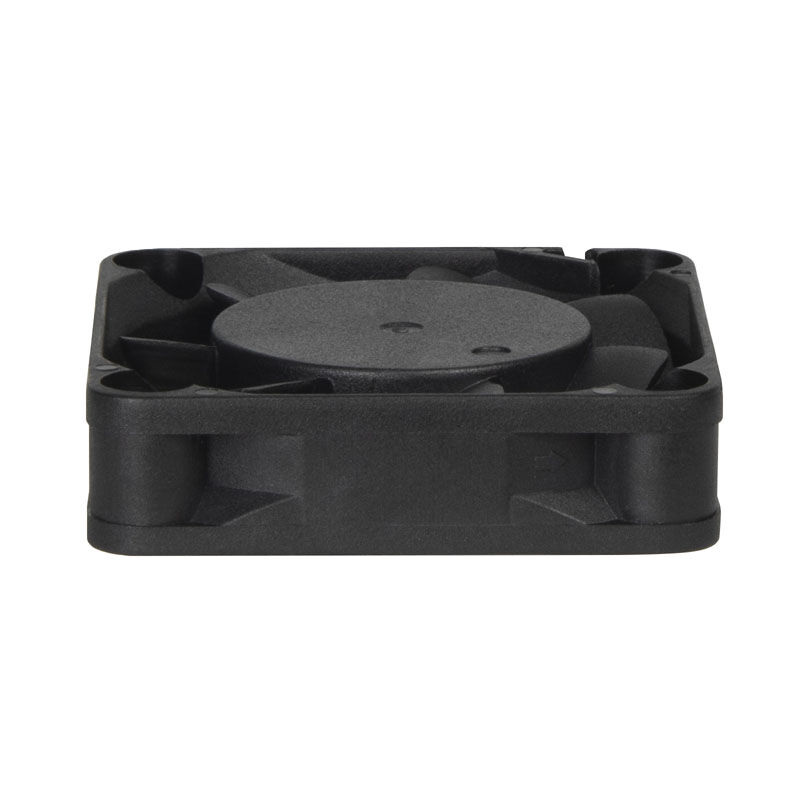

– Dimensions: 40 x 10 x 40 mm (W x H x D)
– Material: PBT
– Weight: 14.5g
– Bearing: Dual Ball Bearing
– Volume:
– 12V: 23.9dB(A)
– 5V: 15.6dB(A)
– Speed Reduction Cable: 19.8 dB(A)
Rotational speed:
– PWM: 0 – 7,000 rpm ± 10%
– 12V: 7,000 rpm ± 10%
– 5V: 2,600 rpm ± 10%
– Speed reduction cable: 5,900 rpm ± 10%
Static pressure:
– 12V: 3.87mm H2O
– 5V: 0.62mmH2O
– Speed Reduction Cable: 2.95mm H2O
– delivery volume
– : 12V: 10.26 m³/h
– 5V: 3.08 m³/h
– Speed Reduction Cable: 8.83 m³/h
– Current: 0.07±0.01A
– Tension:
– 12v
– 5V adapter
Connections:
– 4-pin PWM
– 2+1 pin
– Manufacturers warranty: 2 years
