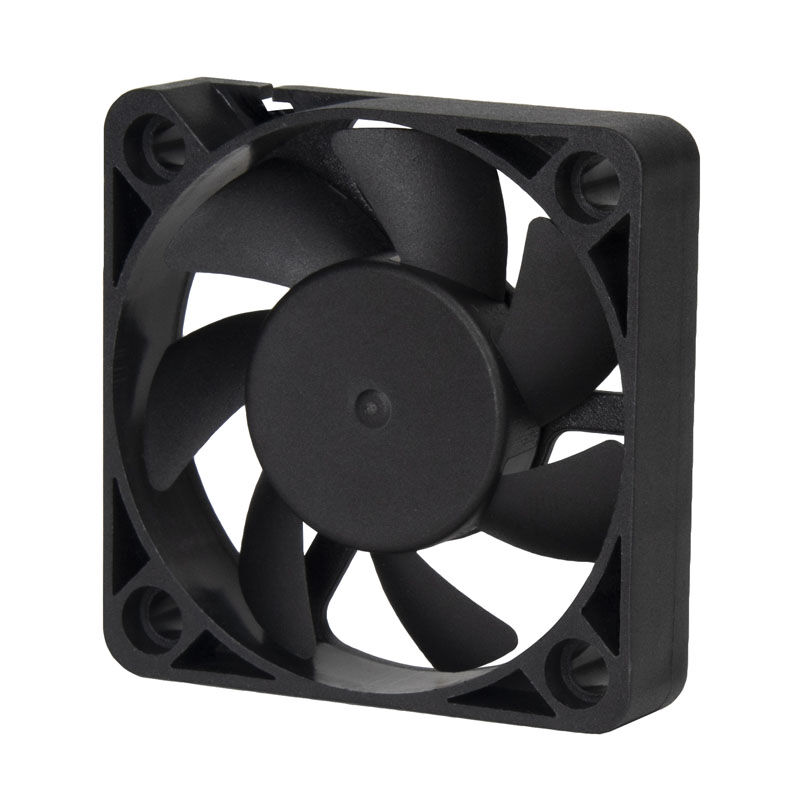

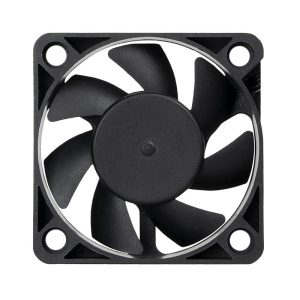

Silverstone FTF 5010 PWM fan - 50mm

– Strong airflow from 5.66 to 12.47 m³ at an air pressure of 0.48 – 1.83 mmH2O
– 4-pin PWM connector for fan speed control and monitoring
– Flexible connectors with additional 2+1 pin
– Speed reduction cable creates a balance between volume and RPM

The SilverStone FTF 5010 PWM fan is small and powerful
With the FTF 5010, SilverStone offers you an efficient 50 mm fan. Depending on the 12 or 5 V voltage, the hydrodynamic bearing creates different performances, which are at 12 V speeds from 0 to 4,500 rpm. At maximum performance, the fan reaches a maximum volume of 28 dB(A). It generates a static pressure between 0.48 to 1.83 mmH2O. The fan receives the PWM signal via a 4-pin connector from the mainboard, but the connection interface is far more flexible, because there is also a 2+1-pin connector.

In addition to these, there is also a speed reduction cable. With its help you call up high speeds of 3,4000 rpm at a volume of 20 dB(A).

Technical details:
– Dimensions: 50 x 10 x 50 mm (W x H x D)
– Materials: PBT
– Weight: 19g
– Bearing: hydrodynamic bearing
 -Volume:
– 12V: 28dB(A)
– 5V: 16.5dB(A)
– Speed reduction cable: 20 dB(A)
– Rotational speed:
– PWM: 0 – 4,500 rpm ± 10%
– 12V: 4,500 rpm ± 10%
– 5V: 2,000 rpm ± 10%
– Speed reduction cable: 3,400 rpm ± 10%
– Static pressure:
– 12V: 1.83mm H2O
– 5V: 0.48mmH2O
– Speed Reduction Cable: 1.14mm H2O
– delivery volume
– : 12V: 12.47 m³/h
– 5V: 5.66 m³/h
– Speed Reduction Cable: 10.04 m³/h
– Current: 0.04±0.01A
– Tension:
– 12v
– 5V adapter
– Connections:
– 4-pin PWM
– 2+1 pin
– Manufacturers warranty: 2 years
