Small 60 mm fan with high speeds of up to 3,600 rpm
– Strong airflow from 5.66 to 12.47 m³ at an air pressure of 0.49 – 3.55 mmH2O

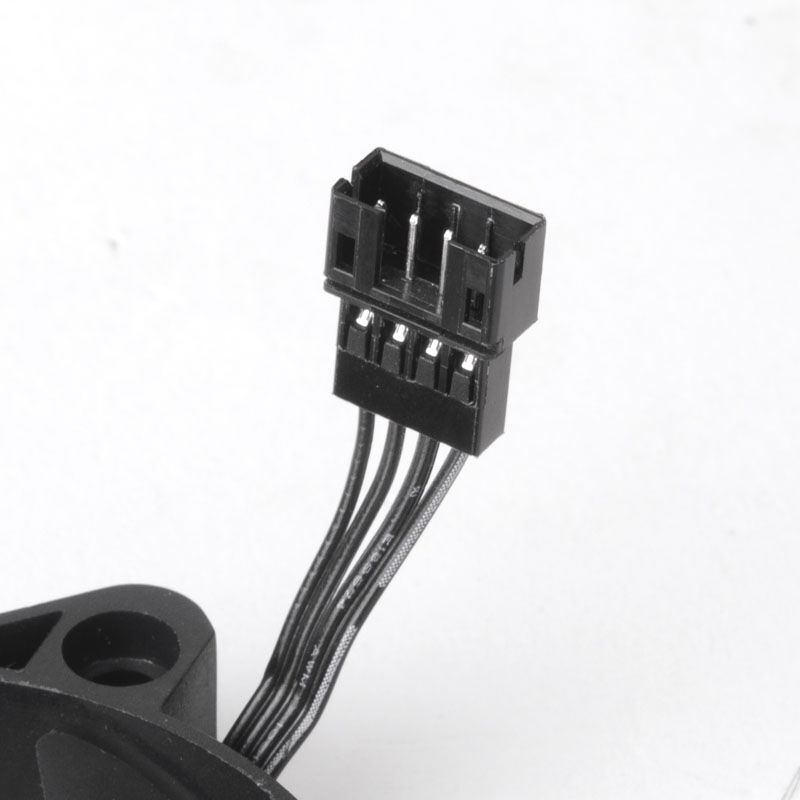

– 4-pin PWM connector for fan speed control and monitoring
– Flexible connectors with additional 2+1 pin

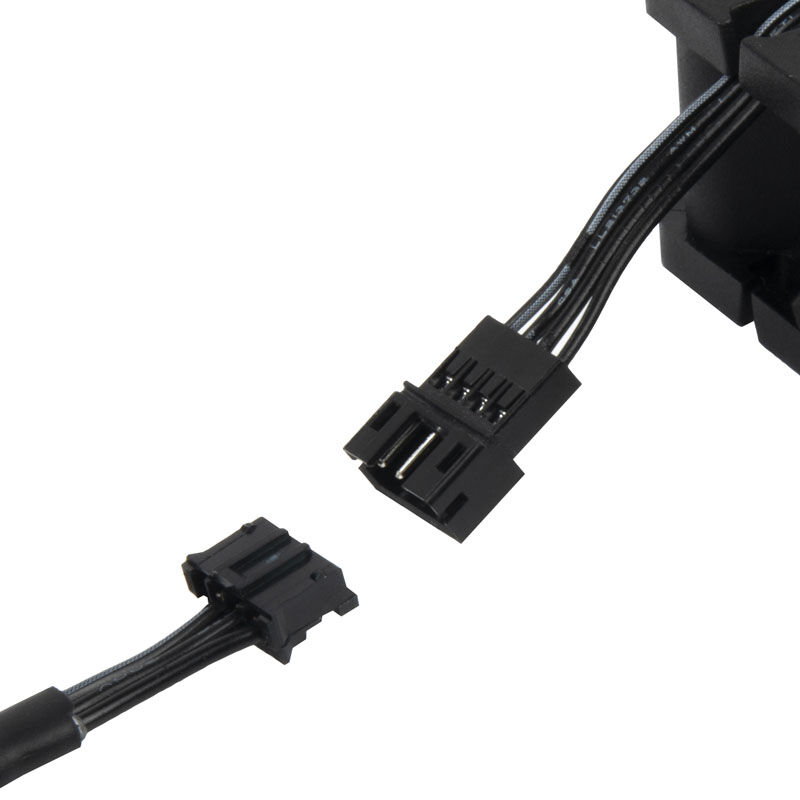

– Speed reduction cable creates a balance between volume and RPM

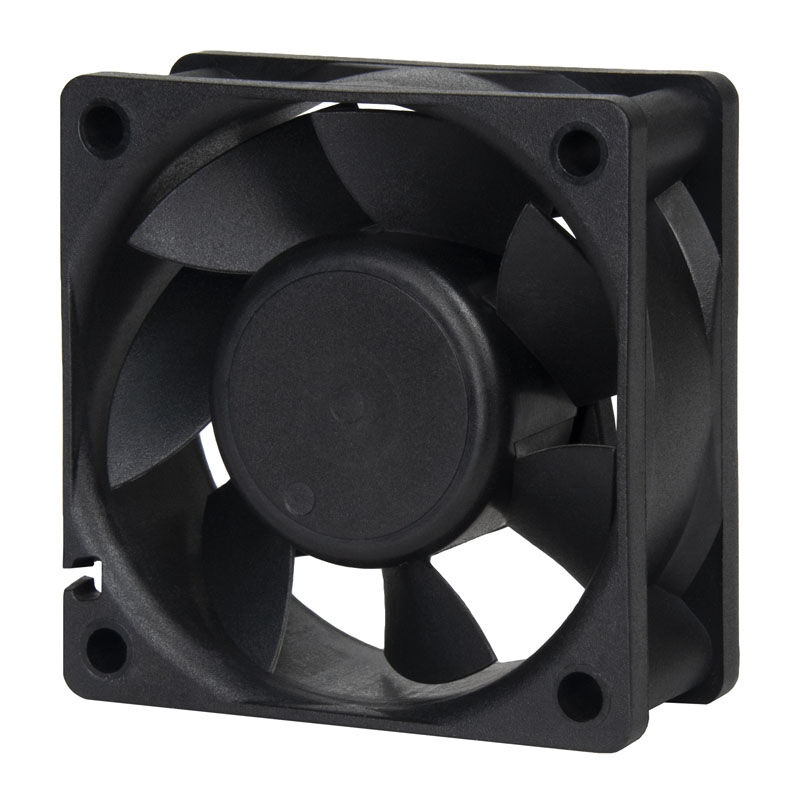

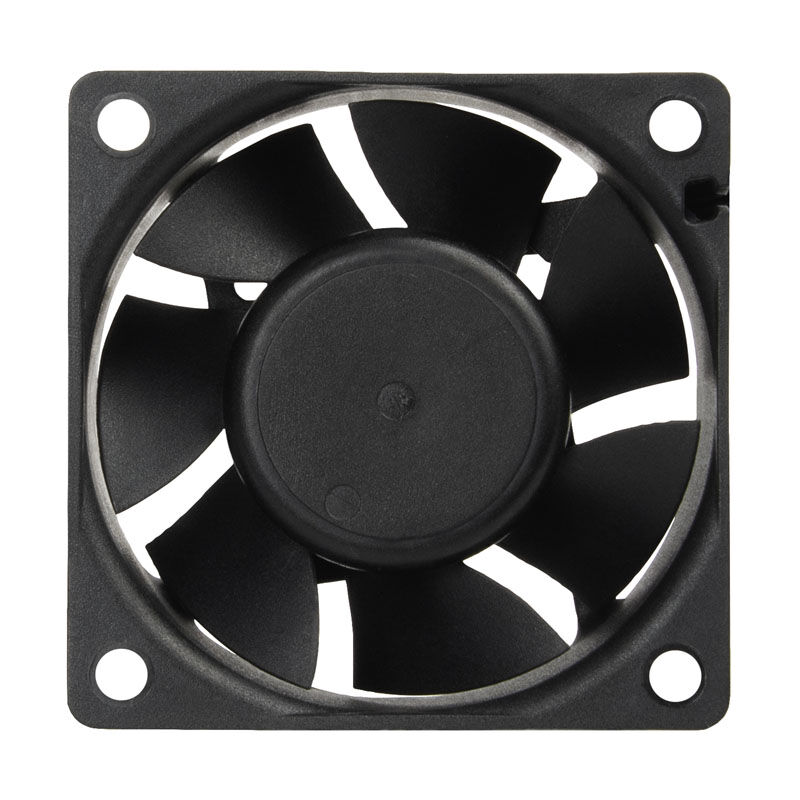

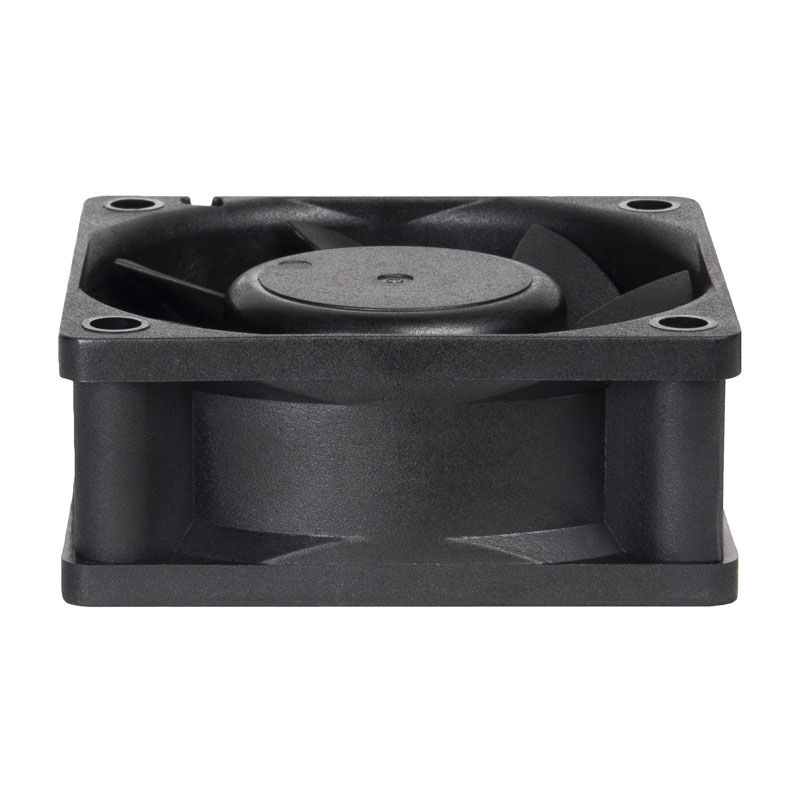

The SilverStone FTF 6025 PWM fan is small and powerful
With the FTF 6025, SilverStone offers you an efficient 60 mm fan. Depending on the 12 or 5 V voltage, the hydrodynamic bearing creates different performances, which range from 0 to 3,600 rpm at 12 V. At maximum performance, the fan reaches a maximum volume of 25.9 dB(A). It generates a static pressure between 0.49 to 3.55 mmH2O. The fan receives the PWM signal via a 4-pin connector from the mainboard, but the connection interface is far more flexible, because there is also a 2+1-pin connector.
In addition to these, there is also a speed reduction cable. With its help you call up high speeds of 2,8500 rpm at a volume of 20.2 dB(A).
Technical details:
– Dimensions: 60 x 25 x 60 mm (W x H x D)
– Materials: PBT
– Weight: 57.78g
– Bearing: hydrodynamic bearing
– Volume:
– 12V: 25.9dB(A)
– 5V: 15.5dB(A)
– Speed Reduction Cable: 20.2 dB(A)
– Rotational speed:
– PWM: 0 – 3,600 rpm ± 10%
– 12V: 3,600 rpm ± 10%
– 5V: 1,300 rpm ± 10%
– Speed Reduction Cable: 2,850 RPM ± 10%
– Static pressure:
– 12V: 3.55mm H2O
– 5V: 0.49mm H2O
– Speed Reduction Cable: 2.21mm H2O
– delivery volume
– : 12V: 26.25 m³/h
– 5V: 6.20 m³/h
– Speed Reduction Cable: 20.17 m³/h
– Current: 0.08±0.01A
– Tension:
– 12v
– 5V adapter
– Connections:
– 4-pin PWM
– 2+1 pin
– Manufacturers warranty: 2 years
