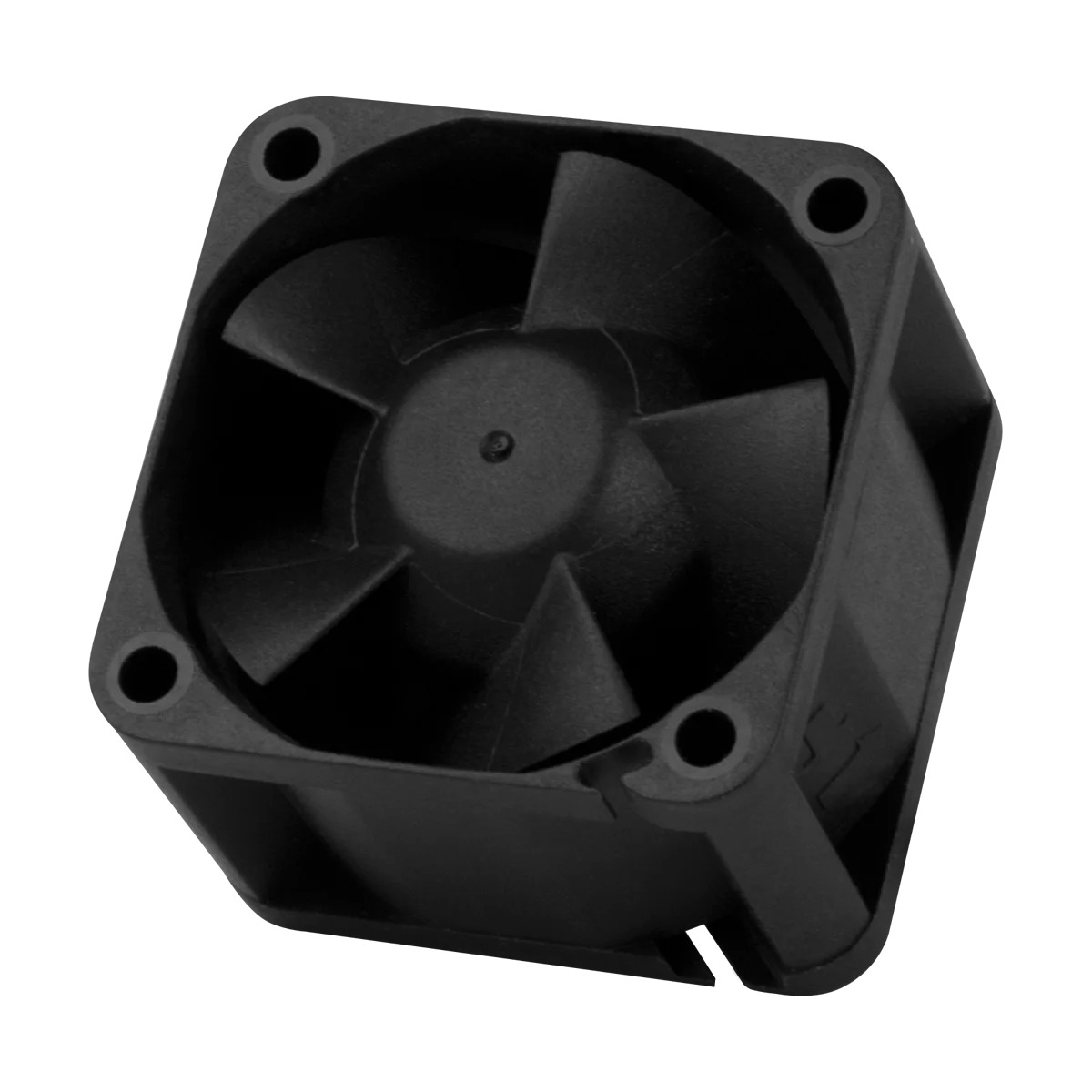

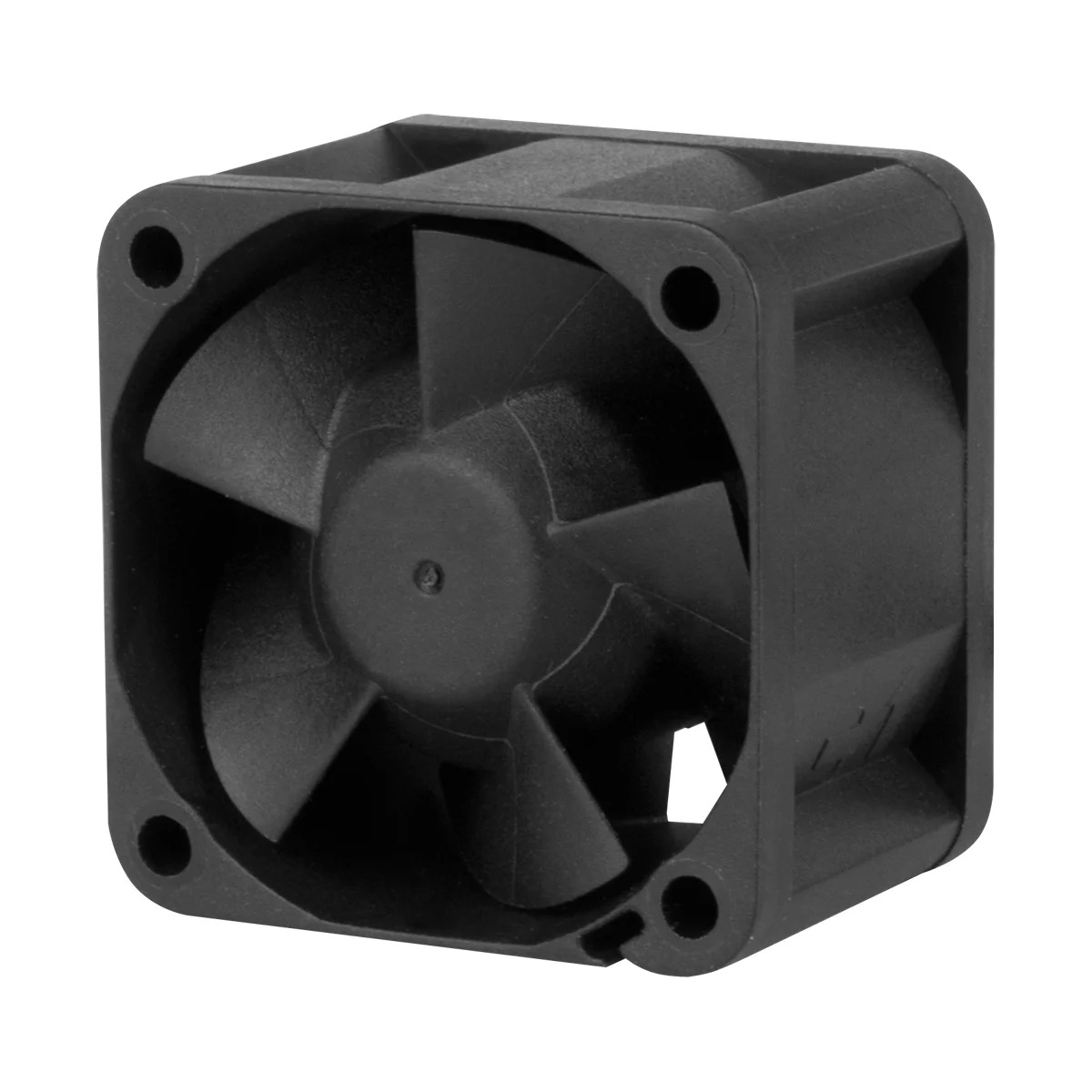

Designed for continuous operation
The impeller of the S4028-6K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimizes sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.
Designed for continuous operation
The impeller of the S4028-6K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimizes sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.
Designed for continuous operation
The impeller of the S4028-6K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimizes sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.
Designed for continuous operation
The impeller of the S4028-6K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimizes sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.
S4028_speed
Full control with a wide speed range
The S4028-6K has a very wide speed range that can be regulated via PWM and voltage. With its 6000 rpm max, it offers a good balance between cooling power and noise.
S4028-P-Q Curve
High airflow and static pressure
With a static pressure of 4.2 mmH2O and a maximum airflow of 12.06 m³/h, the S4028-6K is a true all-rounder and is suitable as both a radiator and case fan.
S4028_Server_Farm_3
Wide range of applications
The S4028-6K fits into 1U server cases and can serve as a replacement fan for routers, switches, and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures, and 3D printers.
4-Pin_Socket
Flexible connection options
The fan has a standard 4-Pin fan connector and can also be connected to and controlled on 2-Pin or 3-Pin headers, while the 40cm cable allows a lot of flexibility in positioning.
Quality Warranty New
Quality You Can Rely On
70 °C ambient temperature, high dust exposure and changing humidity – we carry out our long-term tests under these extreme conditions to ensure the service life of our products. Some of these test fans have been running for over 15 years.
This not only allows us to continuously improve our products, but the excellent test results also confirm our high manufacturing quality. We are happy to pass this assurance on to our customers and offer a 6-year manufacturer’s warranty.
| General Specifications | |
|---|---|
| Fan Speed | 250 – 6,000 rpm |
| Airflow | 7.1 CFM (12.06 m³/h) |
| Speed Control | PWM (Pulse Width Modulation) |
| Static Pressure | 4.2 mmH₂O |
| Fan Details | |
| Frame Type | Standard |
| Connector | 2510 4-Pin |
| Bearing Type | Dual Ball Bearing |
| Operating Temperature | 0 – 40 °C |
| Warranty | 6 Years |
| Electrical Specifications | |
| Starting Voltage | 4.5 V |
| Rated Voltage | 12.0 V DC |
| Current | 0.1 A |
| Cable Length | 400 mm |
| Size & Weight | |

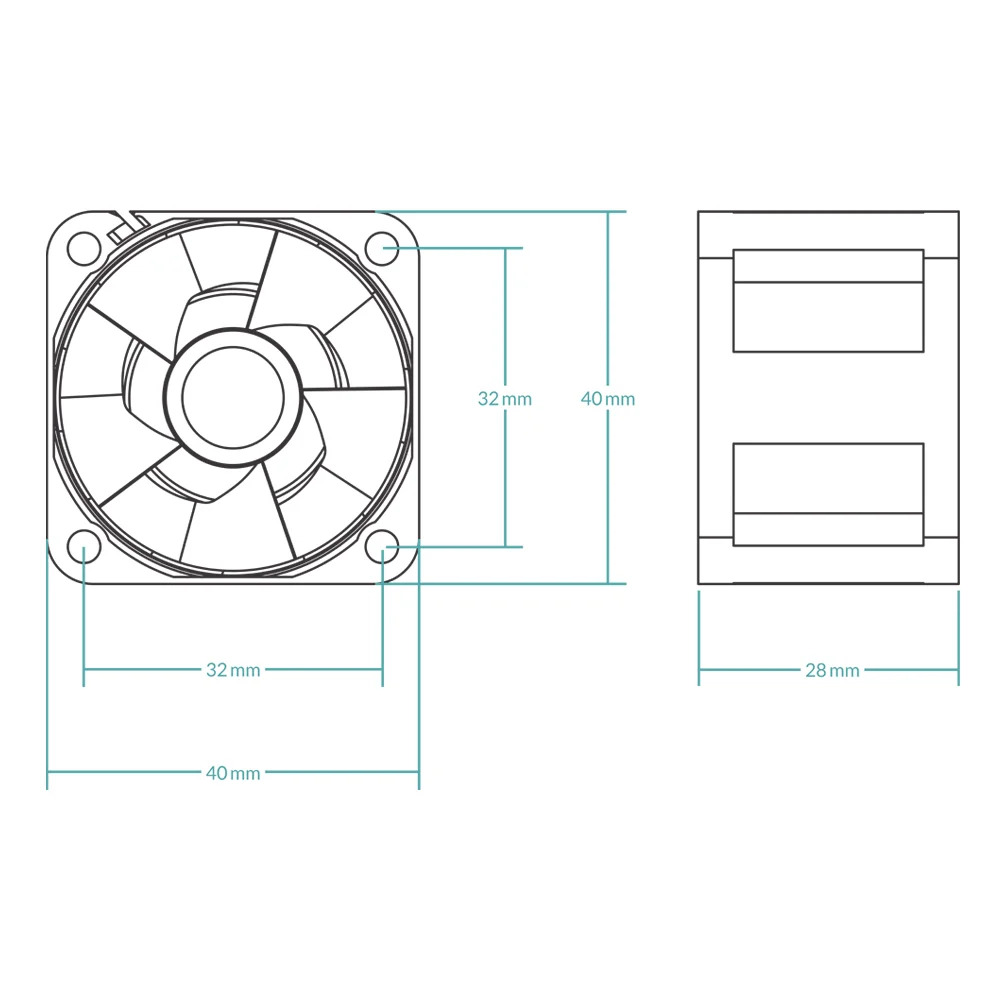

| Dimensions (L × W × H) | 40 × 40 × 28 mm |
| Weight | 40 g |
£6.49£5.41 Inc VatEx Vat
