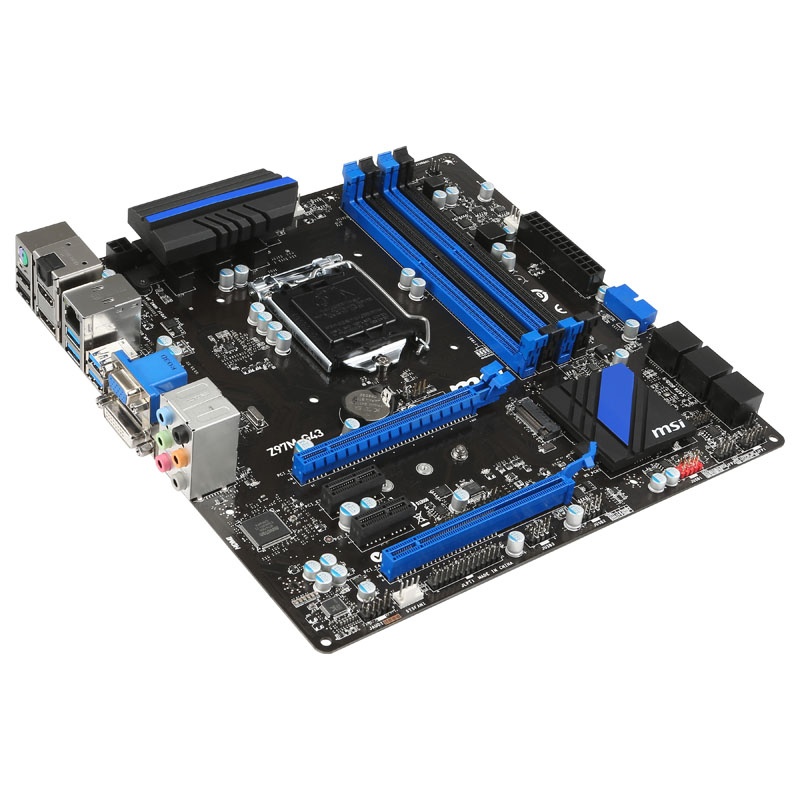

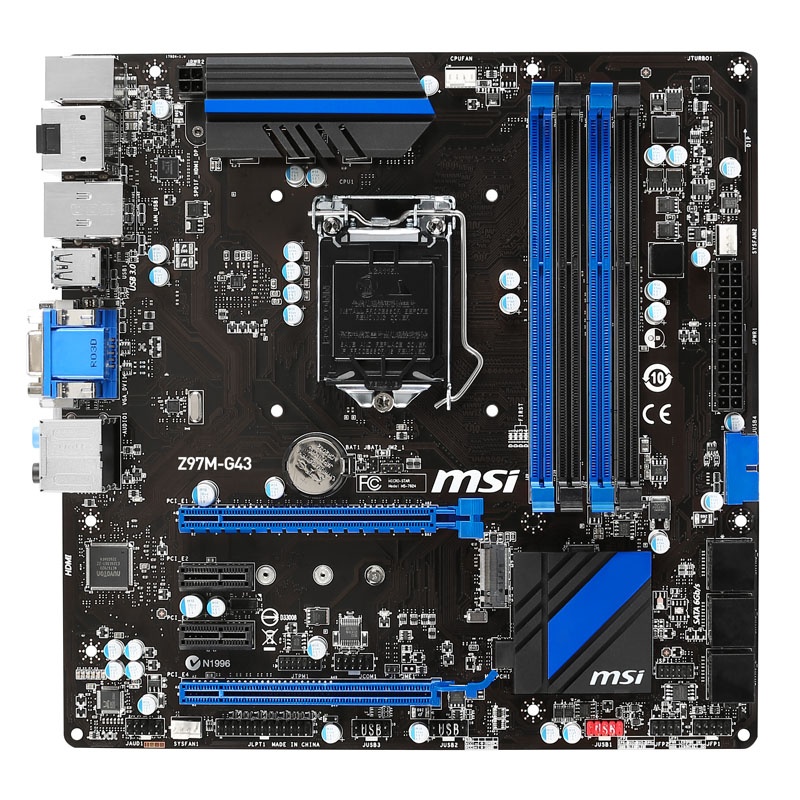

MSI Z97M-G43, Intel Z97 Motherboard - Socket 1150
With the previous Haswell CPUs Intel also put on a new chipset family , codenamed Lynx Point and the socket LGA1150 . The in an efficient 32-nm Srukturbreite made boards can be divided into a performance sector ( Z87 , H87 ) and a value segment ( Q85 , B85 ) divided - between also exists a broad mainstream field ( H81 , Q87 ) .
This offer former most internal and external connections , le...
- SKU: MBMC-116
- MPN: 7924-001R
- EAN: 4719072345907
- Warranty: 12 Months
With the previous Haswell CPUs Intel also put on a new chipset family , codenamed Lynx Point and the socket LGA1150 . The in an efficient 32-nm Srukturbreite made boards can be divided into a performance sector ( Z87 , H87 ) and a value segment ( Q85 , B85 ) divided - between also exists a broad mainstream field ( H81 , Q87 ) .
This offer former most internal and external connections , le...
Featured products
No products found
Details
The new chipset Z97 also supports the new Haswell refresh CPUs , the slightly higher overclock for example, than their predecessors. In addition, the new and some still future interfaces M.2 and SATA Express are supported by many Z97 motherboards. When something stripped down H97 chipset only the distribution of the PCI Express lanes in operation with multiple graphics cards and overclocking are suppressed compared to the Z97 , which makes the H97 chipsets in turn more favorable , however .
When MSI Z97M – G43 is a well-equipped Z97 motherboard in the compact micro – ATX form factor , which is an ideal base for quad-core processors , the Core i7 or Core i5 series . The black and blue board comes with four DIMM slots for DDR3 memory in the fast dual- channel mode . As a sound chip Realtek ALC892 is the Bo ( a) rd, which can output over six audio jacks 7.1 sound .
The connectivity falls extensively from , the mATX board provides a total (some externally , some internally ) six USB 3.0 ports and eight USB 2.0 ports and manages hard drives and SSDs over six SATA 6G ports (including RST 12 and RAID support) and a M.2 port. Expansion cards come in under two PCIe 2.0 x1 slots and graphics cards , two PCI Express slots – partly in Standard 3.0 – ready .
If there is no dedicated graphics card is to be used , can be thanks to the integrated GPU of many Haswell processors (Intel HD) , a monitor over the existing DisplayPort, HDMI output , a DVI -D port or the VGA port on the back of the mainboard connect . The MSI Z97M – G43 convinced to boot with OC Genie 4 , Click BIOS II , Siper Charger and many other great features.
Technical details :
Format: Micro ATX
Color: Black, Blue
Chipset: Intel Z97
Socket 1150 ( Intel Core i CPUs of the 4th and 5th generation Haswell and Haswell Refresh )
RAM: 4x DDR3 ( max. 32 GB)
Dual – Channel
Slots ( physically ) :
2x PCIe ( 3.0) x16
Compatible Multi-VGA configurations : 2 -way CrossFireX
2x PCIe 2.0 x1
Internal connections:
6x SATA 6G
1x M.2 NGFF
2x USB 3.0 ( 1x header)
6x USB 2.0 ( 3x header)
1x Serial port
1x Parallel Port
3x fan
Power / reset / LED / front audio
External connections :
1x PS / 2 keyboard / mouse
4x USB 3.0
2x USB 2.0
1x Gigabit LAN
1x DisplayPort 1.2
1x HDMI
1x DVI -D
1x VGA (D -Sub)
6x Audio (7.1, Realtek ALC892 )
Power supply:
1x 24-pin ATX
1x 4- pin ATX 12V
Compatibility: Windows Vista , 7, 8, 8.1
