MSI MAG B760 Tomahawk WiFi, Socket LGA 1700, Intel B670, ATX - DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 x1
– DDR5 memory up to 5,600 MHz, with RAM overclocking up to 7,000 MHz
– 3x M.2 slots, including 3x PCIe 4.0
– USB on the I/O panel: 1x USB 3.2 Type-C, 4x USB-A 3.1, and 4x USB 2.0
– A total of 7 connectors for fans and pumps

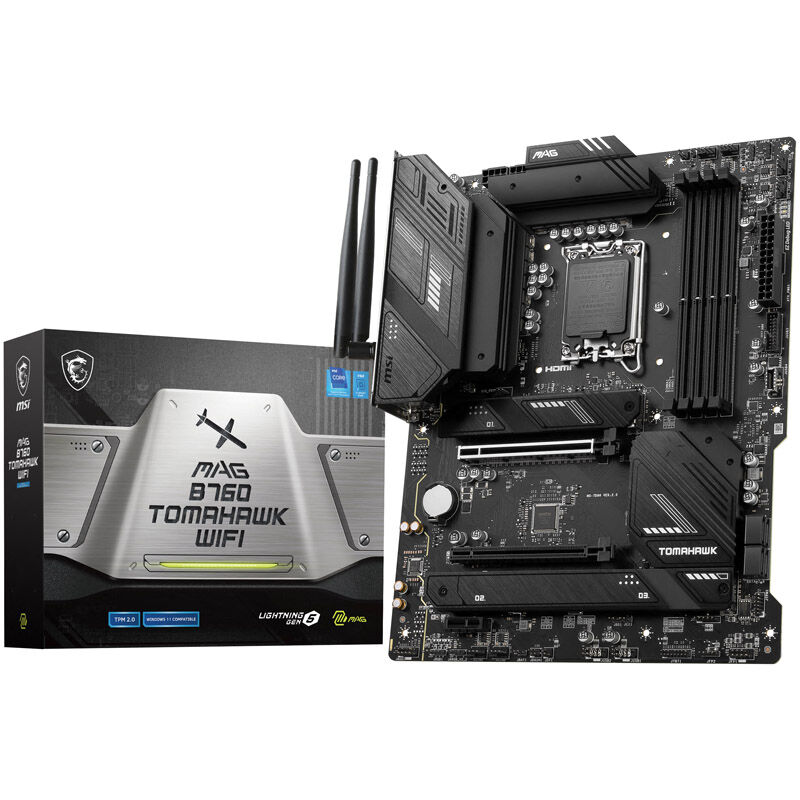

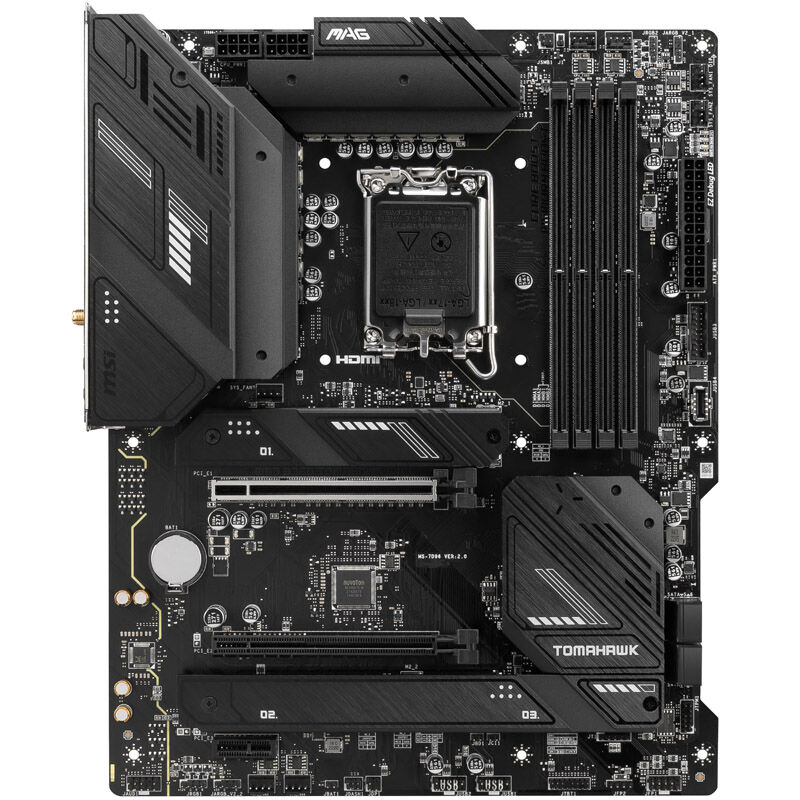

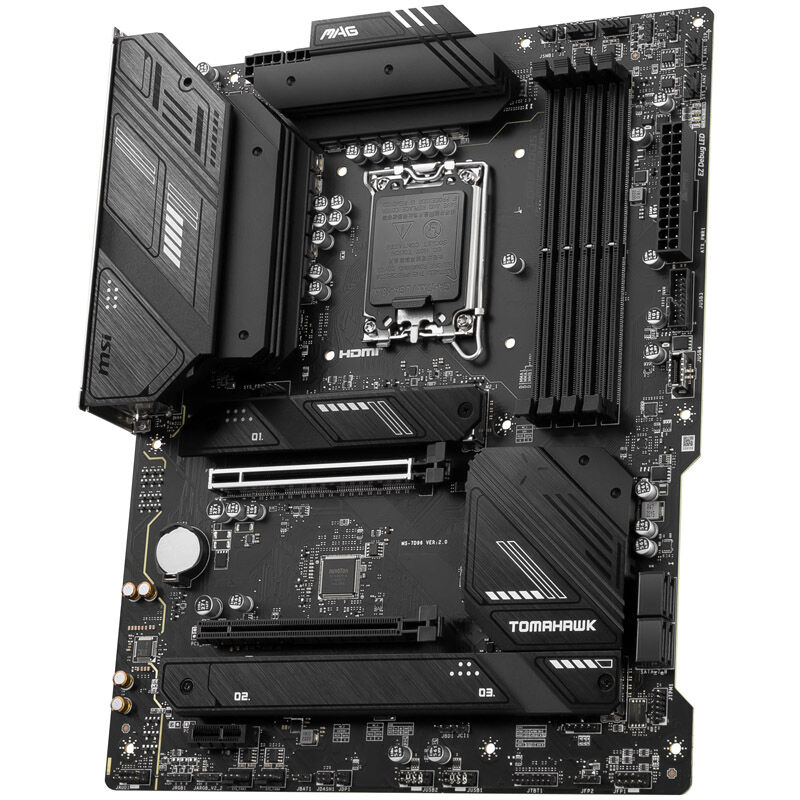

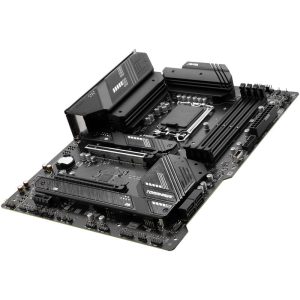

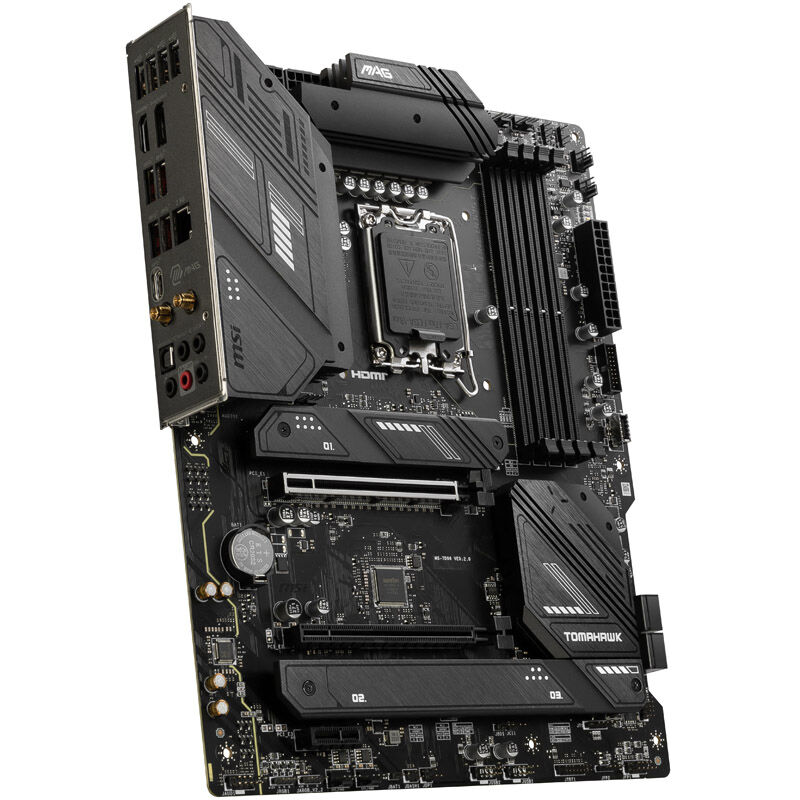

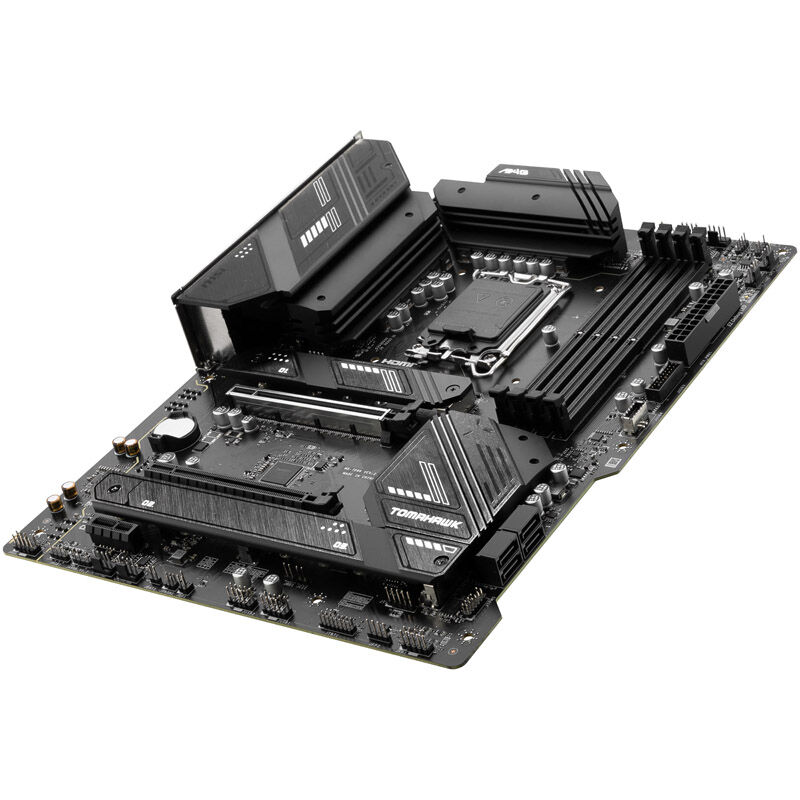

The MSI MAG B760 Tomahawk WiFi ATX motherboard with Intel B760 chipset in detail
The MSI MAG B760 Tomahawk WiFi is an ATX motherboard with the Intel B760 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation desktop processors. It supports 8th-generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory up to 7,000 MHz and, thanks to its outstanding power supply, is ideal for RAM overclocking.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Format:
– Mini-ITX (305 x 244 mm)
– Chipset:
– Intel B760
– Socket:
– LGA 1700 (for Intel 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 4x DDR5 (5,600 MHz, up to 7,000 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– 1x PCIe 3.0 x1
– Internal Connections:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
– 1x M.2 (PCIe 4.0 x4, 2242-2280, chipset)
– 1x M.2 (PCIe 4.0 x4 and SATA, 2242-2280, chipset)
– 1x M.2/E-Key (used) 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Front Panel Audio Header (AAFP)
– 1x 10-1 pin system panel header
– 1x Thunderbolt header (15-pin)
– 1x Chassis intrusion headers
– 1x TPM header
– 1x MSI tuning controller header 5-pin
– Fan header:
– 1x CPU fan (4-pin)
– 1x AiO pump (4-pin)
– 5x case fans (4-pin)
– RGB header:
– 2x RGB headers (4-pin, 12 V)
– 2x ARGB (3-pin, 5V)

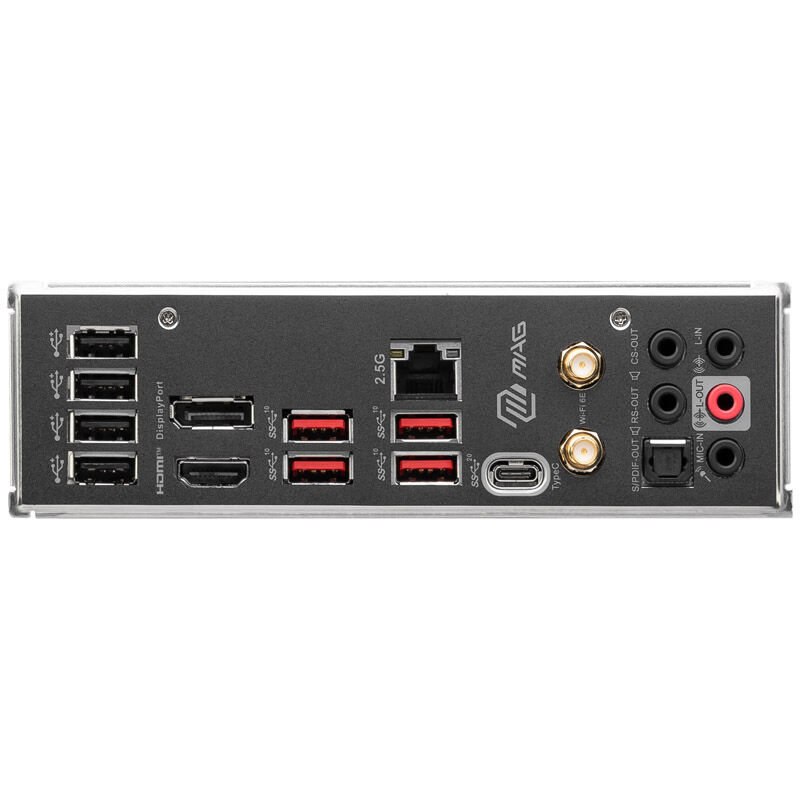

– External connections:
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x DisplayPort 1.4
– 1x RJ-45 (max. 2.5 Gbit/s, Realtek RTL8125BG)
– 2x Wi-Fi antennas (Wi-Fi 6, Intel AX211, Bluetooth 5.3)
– 5x 3.5 mm jacks (Realtek ALC897 7.1)
– 1x Optical S/PDIF
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX/EPS 12V
