MSI H110M gaming, Intel H110 Mainboard - Socket 1151

For memory, two DIMM slots are in dual-channel mode for either DDR3L- or DDR4 RAM and ready for connection of storage devices Up to four SATA 6G slots are used. Boards with the H110 chipset provides an inexpensive variant of Sunrise Point family and are particularly suitable as a business solution, or as a basis for a powerful home-office PC.

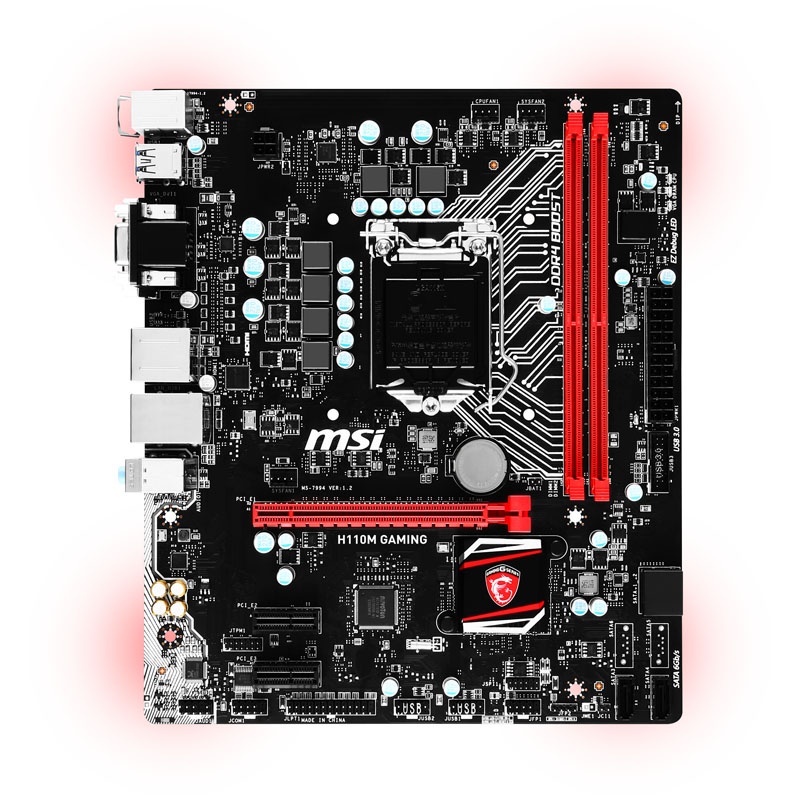

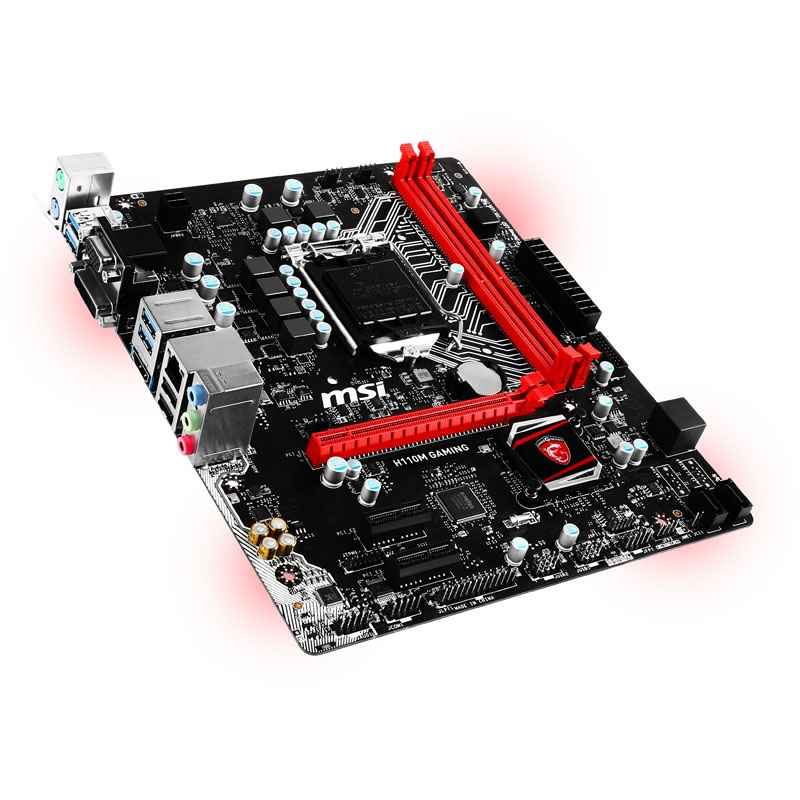

When MSI H110M Gaming is an H110-mainboard Micro-ATX format. The black and red board has two DIMM slots for DDR4 memory and a single PCIe x16 slot for graphics cards in the fast PCIe 3.0 standard. For insertion and expansion cards, two PCIe x1 slots in PCIe 2.0 standard. As a special the MSI mainboard has red LED lighting at the back of the board.

Thanks to the built in Skylake CPU GPU monitors can be connected directly to the motherboard H110. For this, three ports available with HDMI, DVI-D and VGA. The MSI mainboard convinces with many other features. These include, inter alia, four SATA 6G connections, four USB 3.0 and six USB 2.0 ports, depending on a serial port, parallel port, TPM and chassis intrusion header, a Clear CMOS jumper and integrated Gigabit LAN port with Intel chipset and onboard sound by the Realtek ALC887 chip.

Technical details:

    Format: Micro ATX
    Color: Black, Red
    Chipset: Intel H110 (?? ?? Sunrise Point)
    Socket 1151 (?? for Intel CPUs the 6 core generation Skylake ??)
    RAM: 2 x DDR4 (regularly DDR4-2.133)
    Dual-Channel
    Slots (physically):
    1 x PCIe 3.0 x16
    2 x PCIe 2.0 x1
    Internal connections:
    4 x SATA 6G
    2 x USB 3.0 (a header)
    4 x USB 2.0 (two header)
    1 x chassis intrusion header
    1 x Serial Port (COM header)
    1 x parallel port
    1 x TPM header
    1 x Clear CMOS jumper
    3 x fan (4-pin)
    Power / Reset / LED / Front-Audio
    External connections:
    1 x PS / 2 keyboard / mouse
    4 x USB 3.0
    2 x USB 2.0
    1 x Gigabit LAN (Intel I-219-V)
    1 x HDMI
    1 x DVI-D
    1 x VGA
    3x audio (Realtek ALC887)
    Power supply:
    1 x 24-pin EATX 12V
    1 x 4-pin ATX 12V
