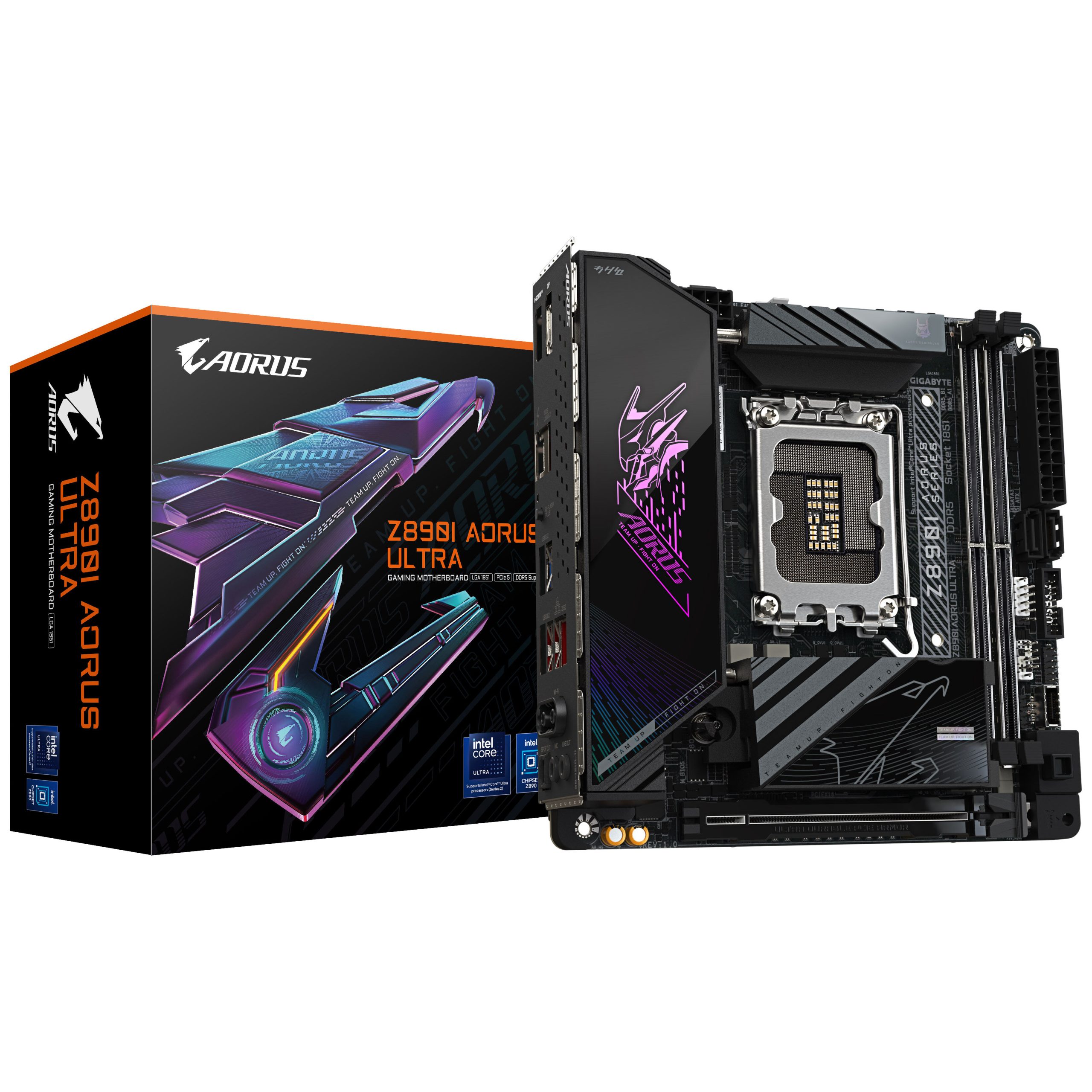

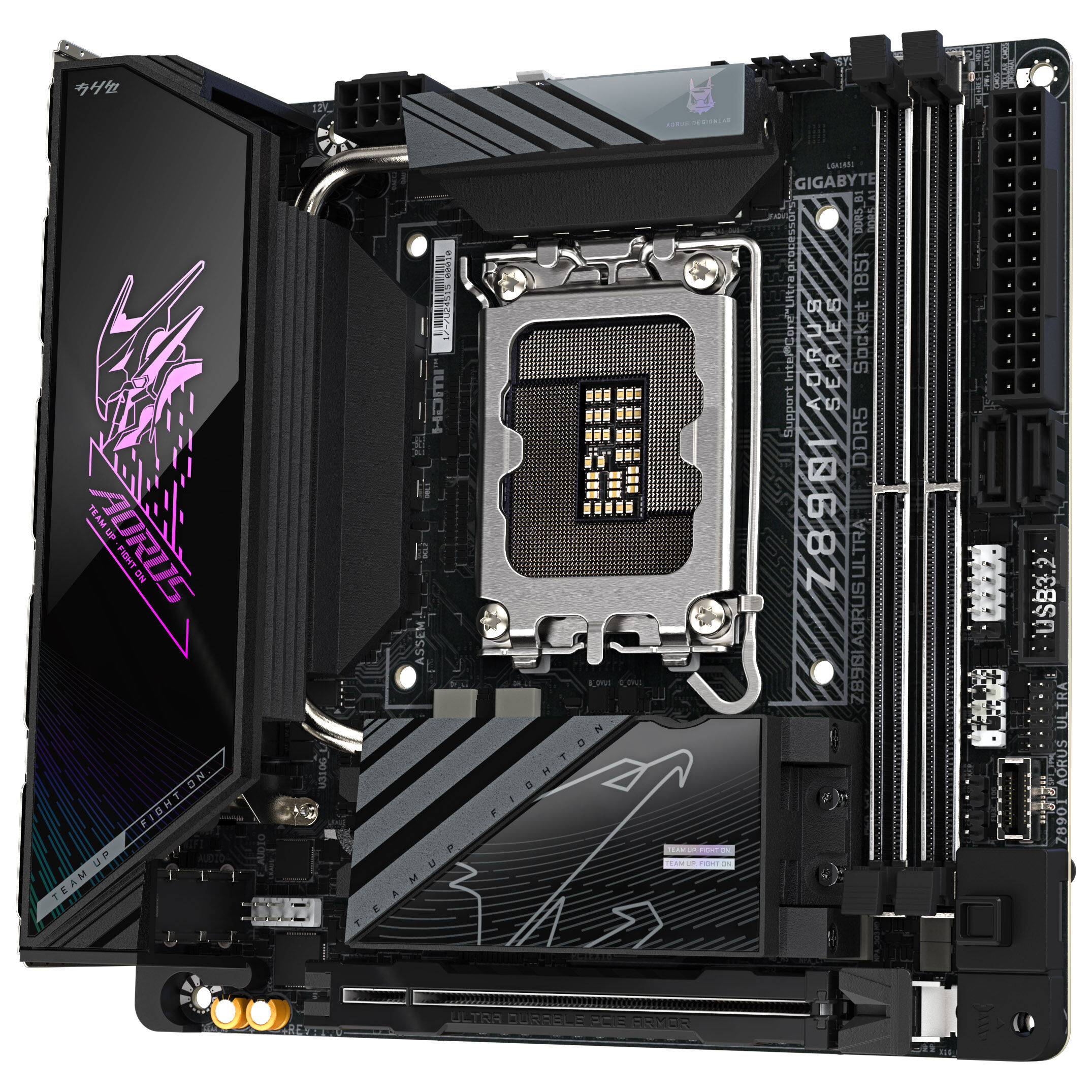

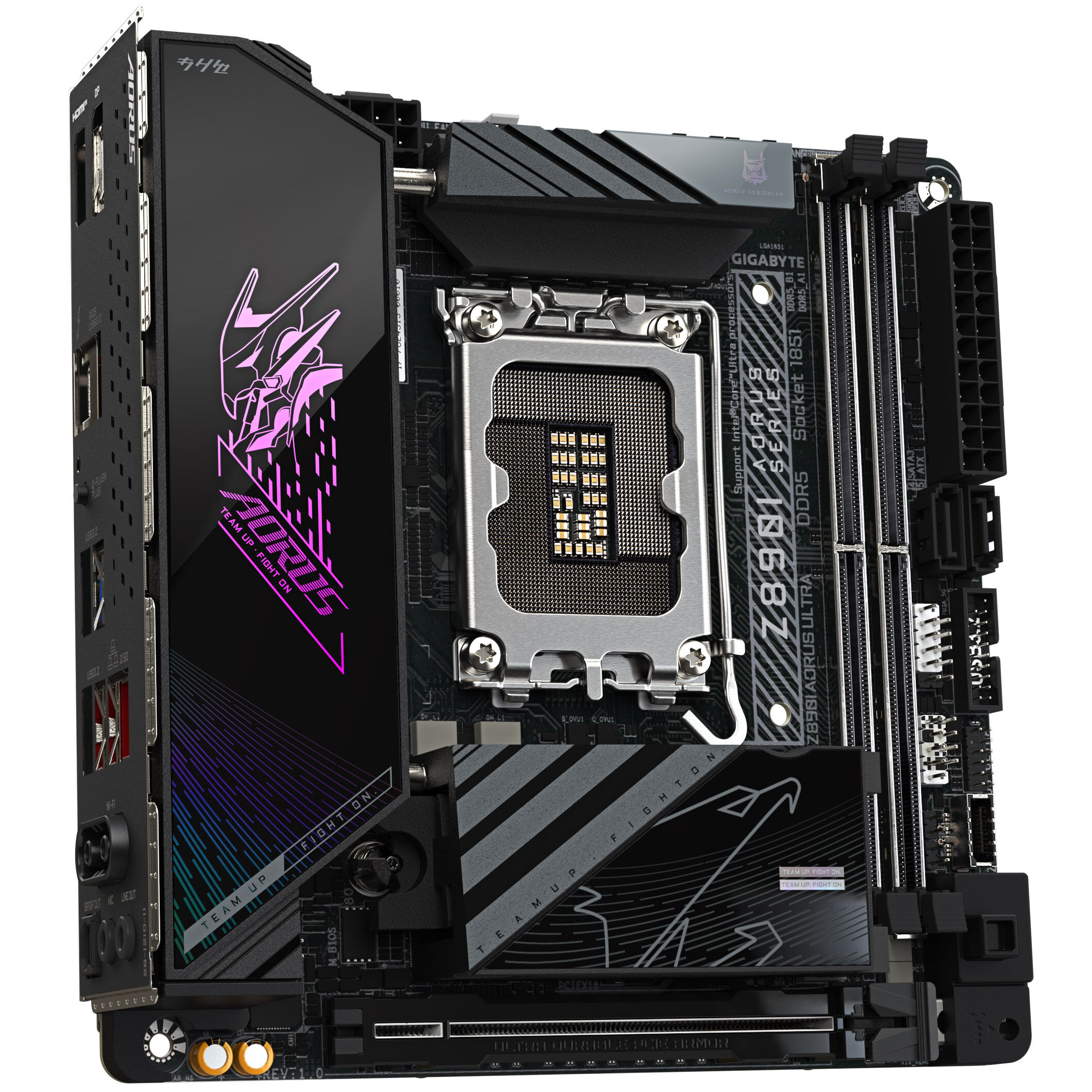

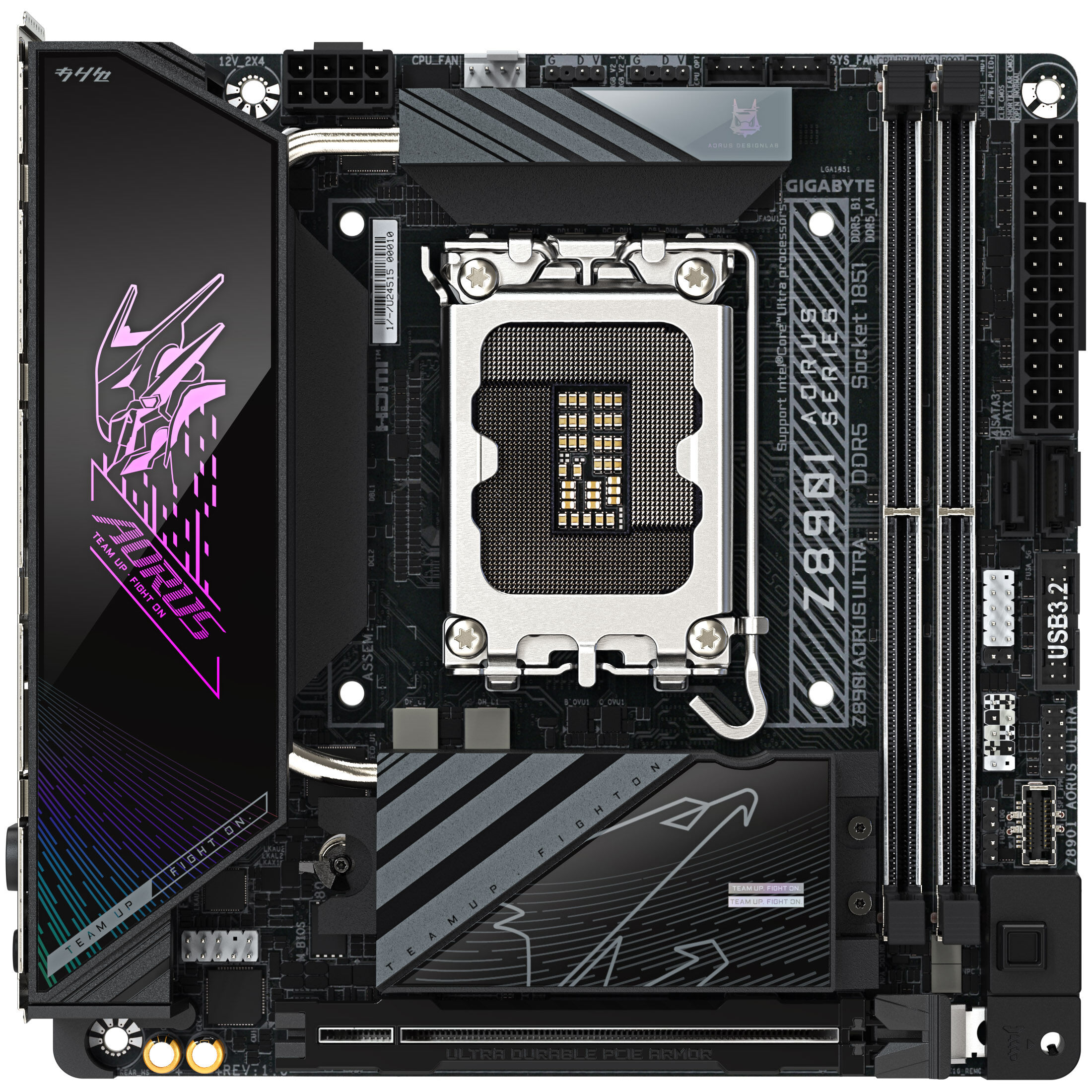

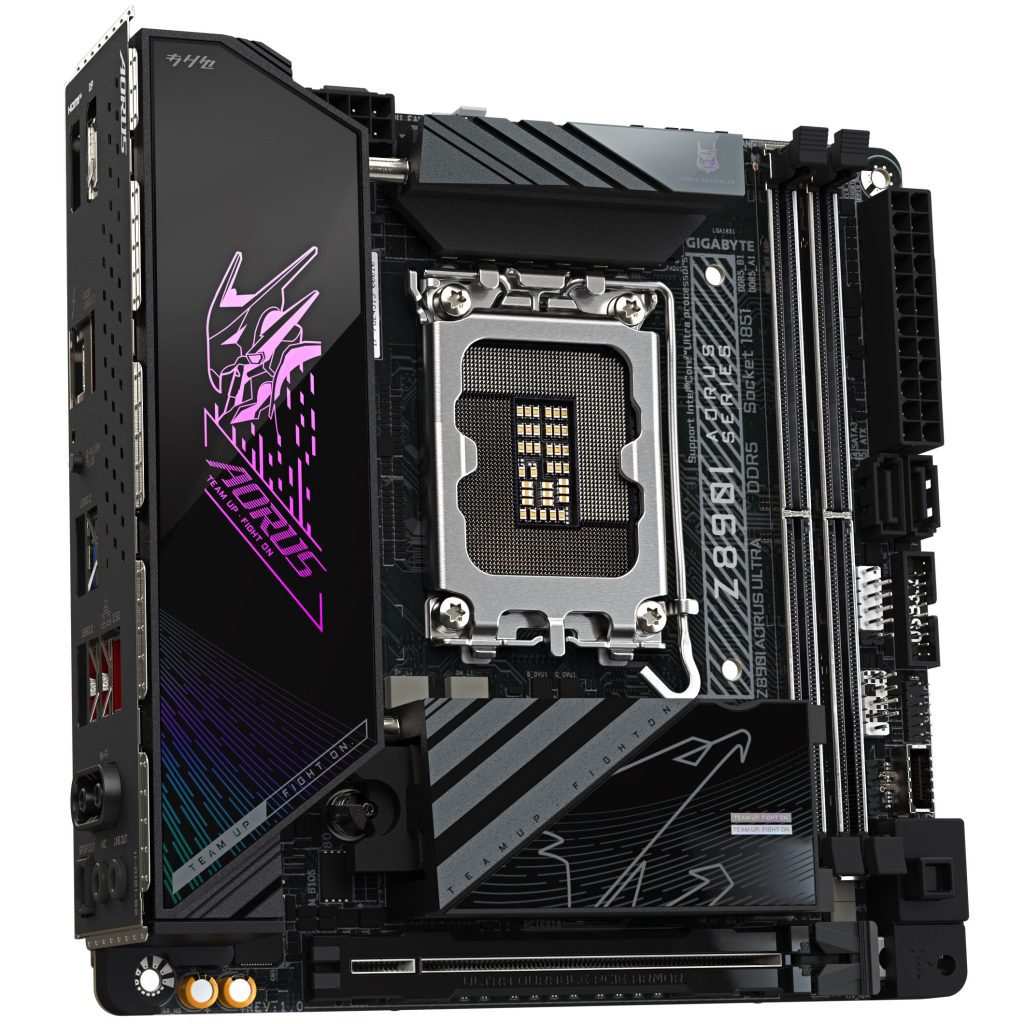

Gigabyte Z890I AORUS Ultra motherboard, socket LGA 1851, Intel Z890, Mini-ITX, DDR5

This motherboard is ideal for compact, high-end systems.

– 1x PCIe 5.0 x16 (x16)
– 2x DIMM slots for up to 128 GB DDR5 RAM up to 8800 MHz
– 2x M.2 (including 1x PCIe 5.0 and 1x PCIe 4.0) / 2x SATA 6G
– USB on the I/O panel: 1x USB 4, 3x USB 3.1, and 2x USB 3.0
– A total of 3x 4-pin connectors for fans and pumps

GIGABYTE Z890I AORUS Ultra: Mini-ITX motherboard with Intel LGA 1851 socket and Z890 chipset
The GIGABYTE Z890I AORUS Ultra is a Mini-ITX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE Z890I AORUS Ultra boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Gaming
The GIGABYTE Z890I AORUS Ultra is specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruption. However, its form factor also allows it to fit into smaller cases that require less space on your desk.

Technical Details
Form Factor:
– Mini-ITX (170 x 170 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 2x DDR5 DIMM (6400 MHz, up to 8800 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 2x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4/x2; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 1) 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 1x Thunderbolt header
– 1x front panel audio header
– 1x front panel
– 1x noise detection header
– 1x speaker header
– 1x Q-Flash Plus button
– 1x reset jumper
– 1x Clear CMOS button
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU fan/pump (4-pin)
– 1x case fan (4-pin)
– RGB header:
– 2x 3-pin ARGB (5V)

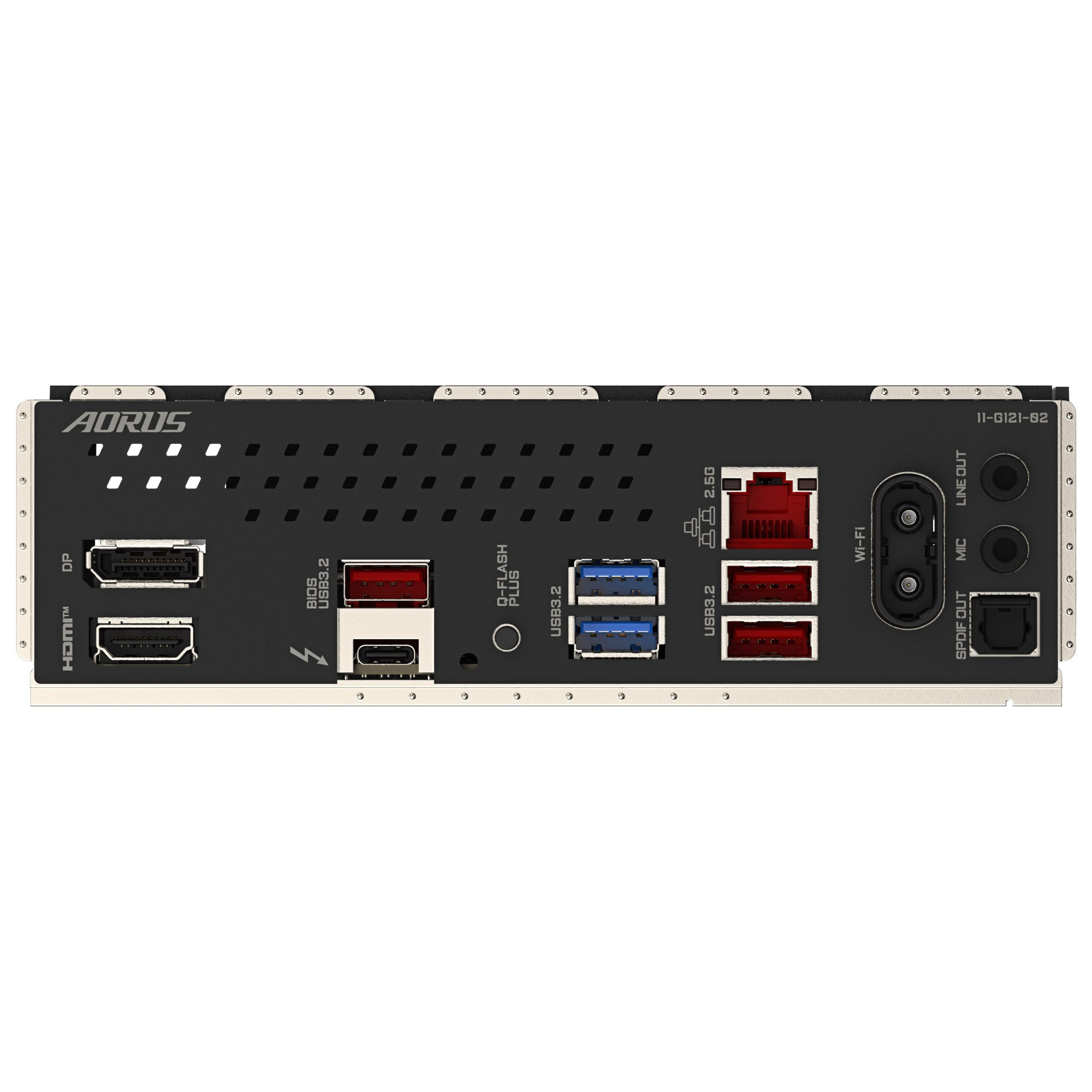

– External connections:
– 1x USB4 (Type C, USB 3.2 Gen 3×2, max. 40 Gbit/s)
– 3x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 1xHDMI
– 1x DisplayPort
– 1x 2.5 Gigabit LAN (Intel I219V)
– 2x 3.5 mm jack
– 1x WiFi/Bluetooth module
– 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin +12V CPU
