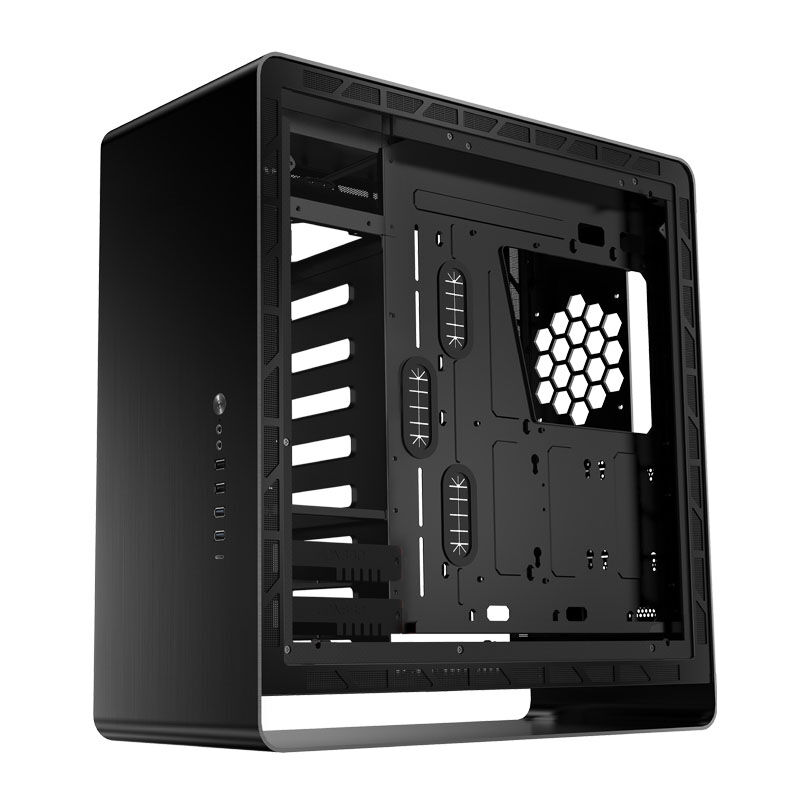

Noble midi tower made of aluminum and steel in black

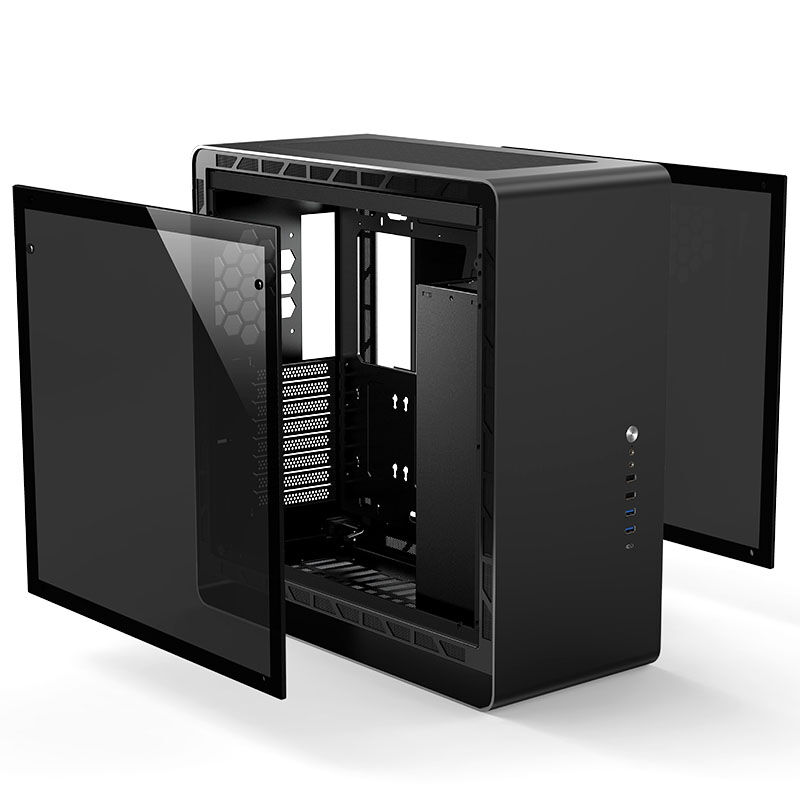

– Large side panel made of tempered glass
– For boards up to E-ATX (max. 305 x 285 mm) and large ATX power supplies
– Space for a radiator up to 360 mm in the lid
– Eight PCI slots for graphics cards up to 330 mm in length
– Space for up to 2x 2.5 and 4x 2.5/2x 3.5 inch data carriers
The Jonsbo UMX6S for high-end gaming PCs:

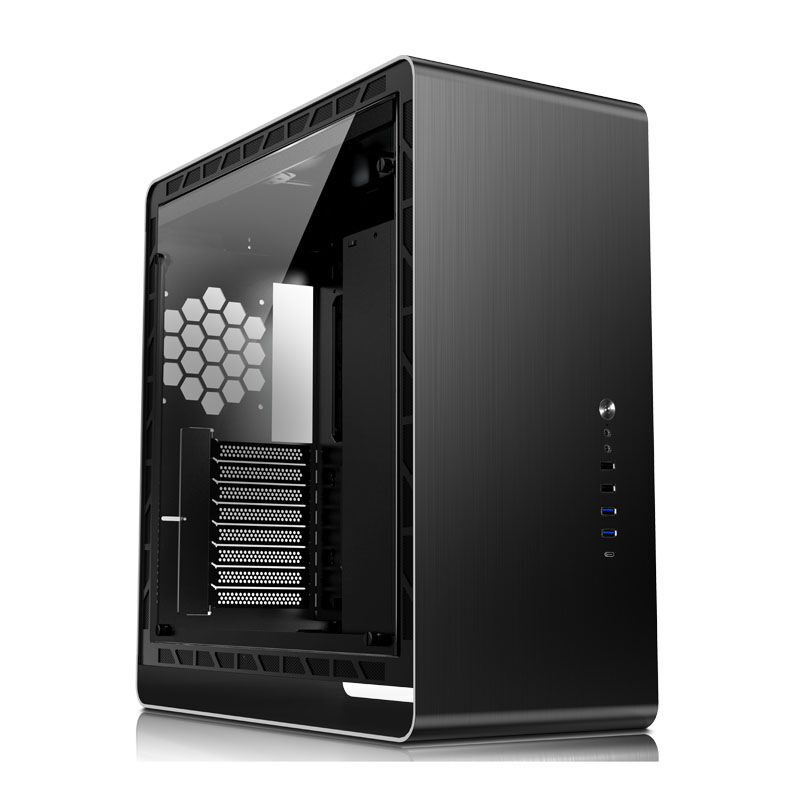

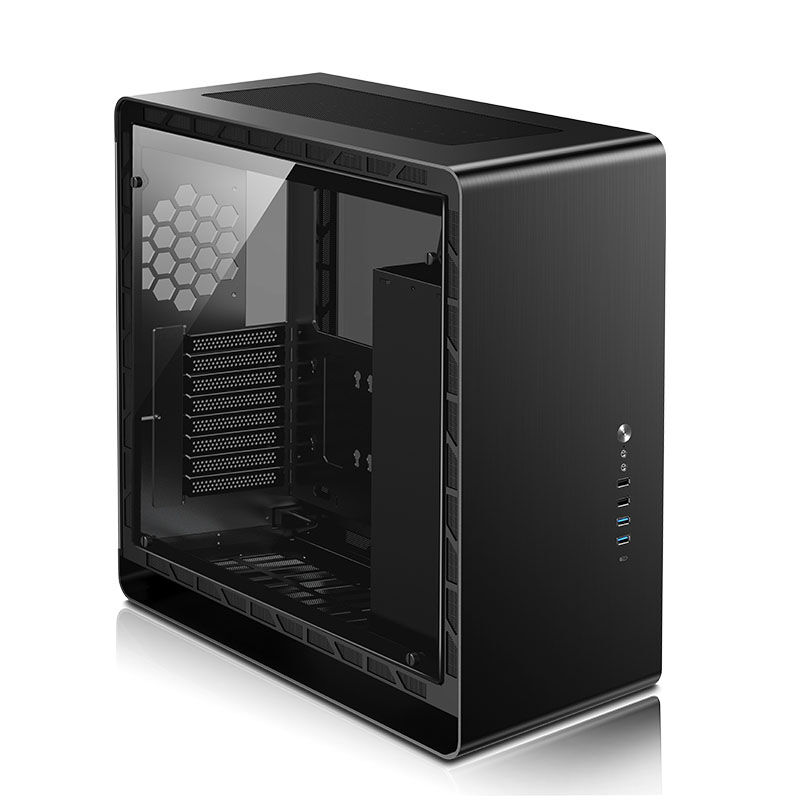

This noble midi tower made of aluminum and steel is suitable for mainboards up to the E-ATX form factor (max. 305 x 285 mm). Jonsbos UMX6S features an elegant design with rounded edges and a brushed aluminum body. Inside, the case can accommodate a powerful gaming system and the large side panel made of tempered glass allows a view of the built-in hardware.
design and hardware compatibility

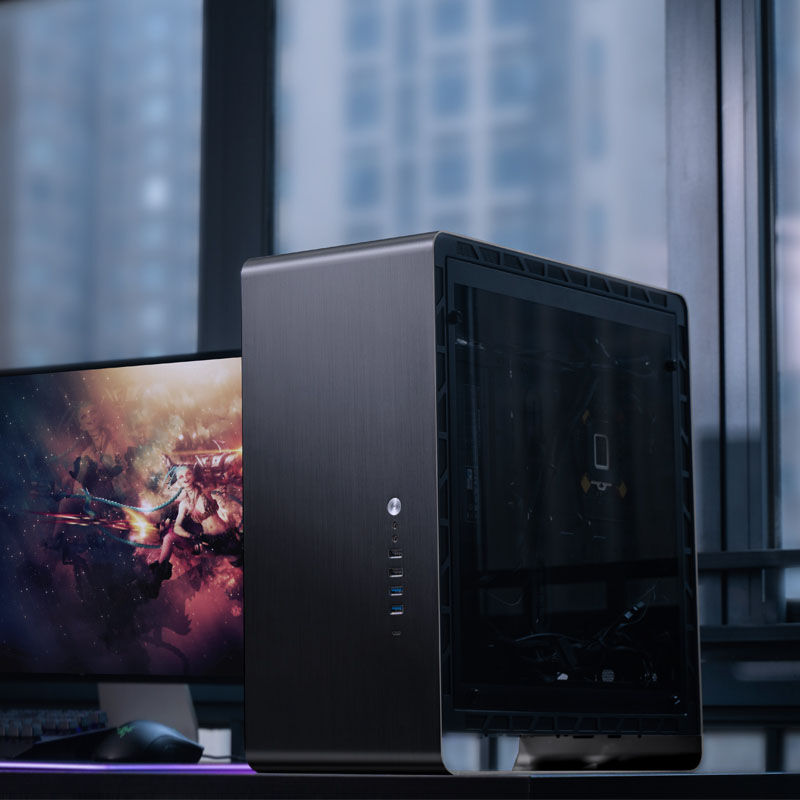

Externally, the Jonsbo UMX6S impresses with its subtle and elegant design and flawless workmanship. The entire case is made of brushed aluminum and steel and the large side panel made of tempered glass allows a view of the built-in hardware inside.

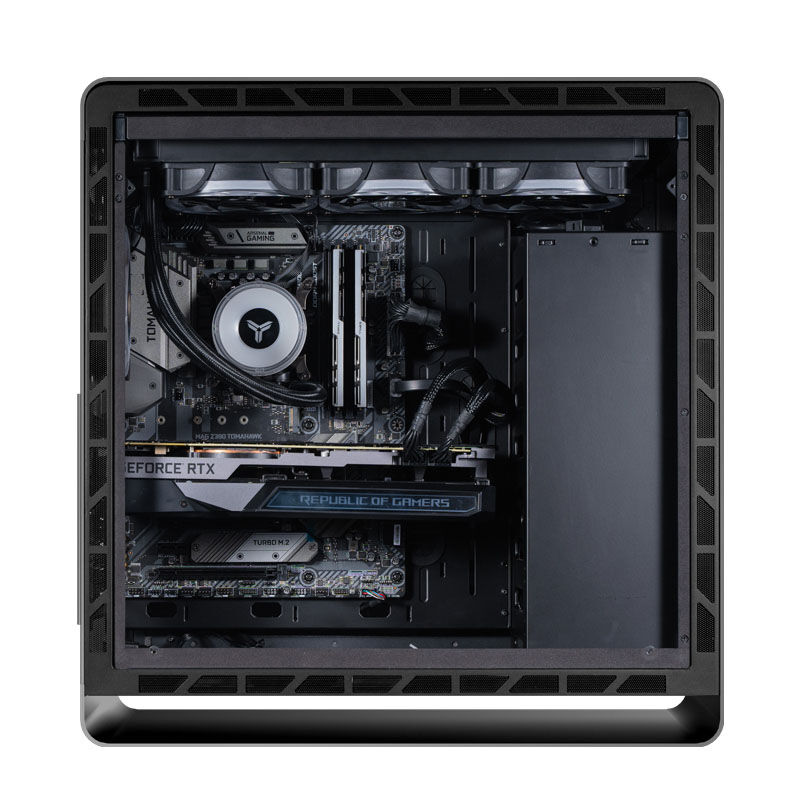

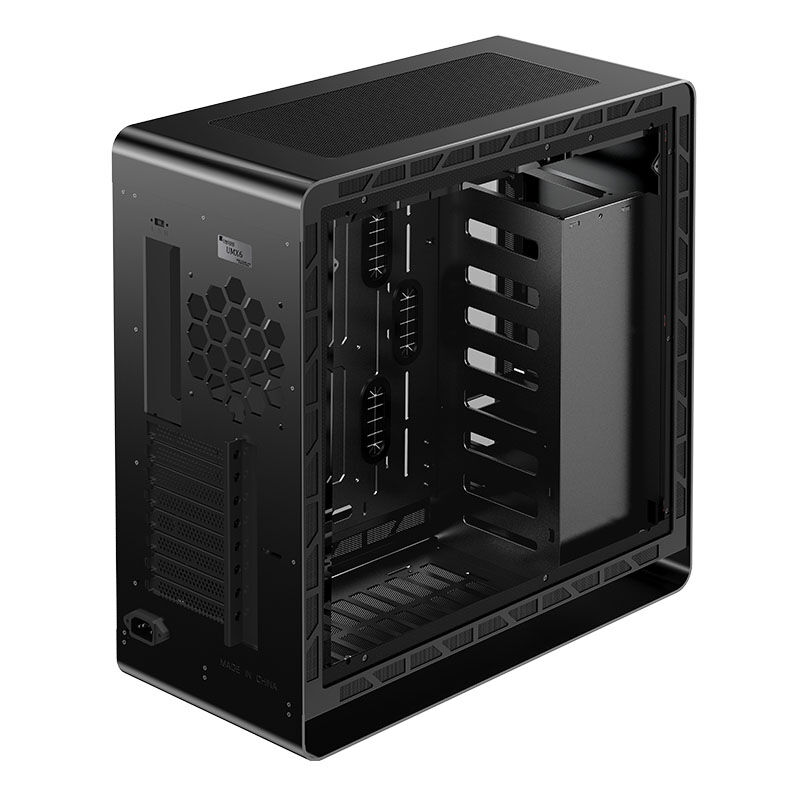

The noble design case can accommodate a powerful gaming system. In addition to a mainboard up to the E-ATX form factor (max. 305 x 285 mm), graphics and expansion cards with a length of up to 330 millimeters can be installed in the eight PCI slots. Even large ATX power supplies up to 200 mm in length can be installed in the housing.
cooling and drive slots

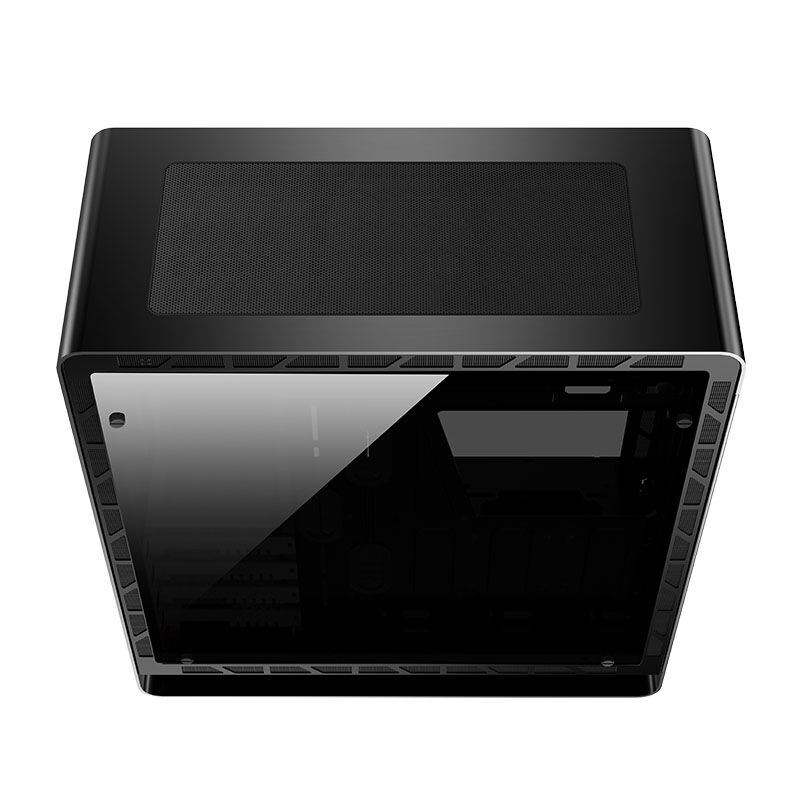

Three 120 or two 140 mm fans can be installed in the cover for cooling. There is space for two more 120 mm fans in the floor and a 120 mm fan can also be installed in the rear wall. A total height of 169 mm is available for large CPU air coolers. Do you prefer water cooling? A radiator up to 360 mm in size can be installed in the lid and a 120 mm radiator in the rear wall. A removable dust filter protects the interior from dust and dirt.

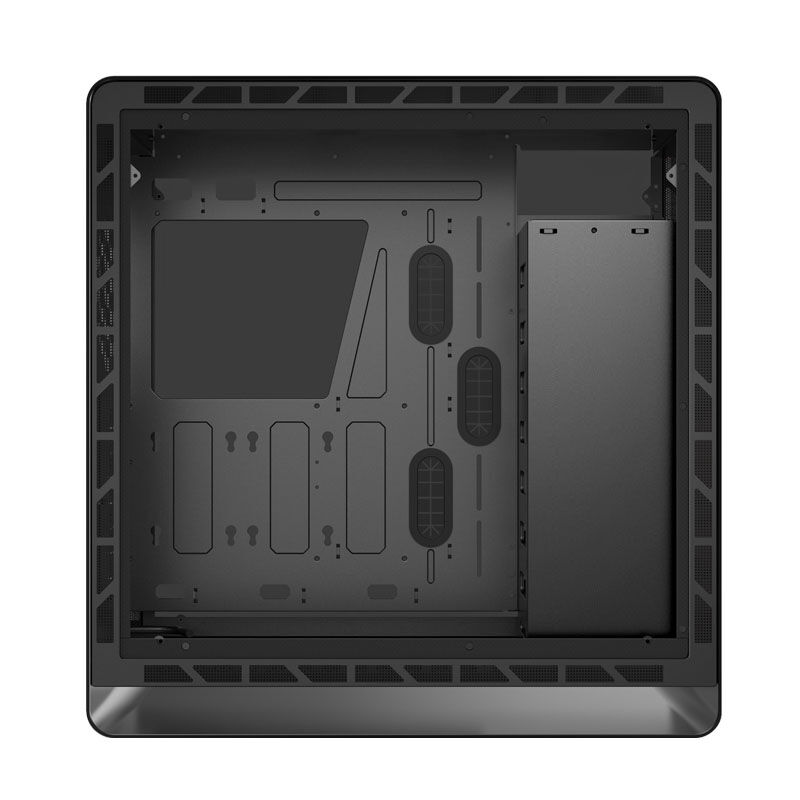

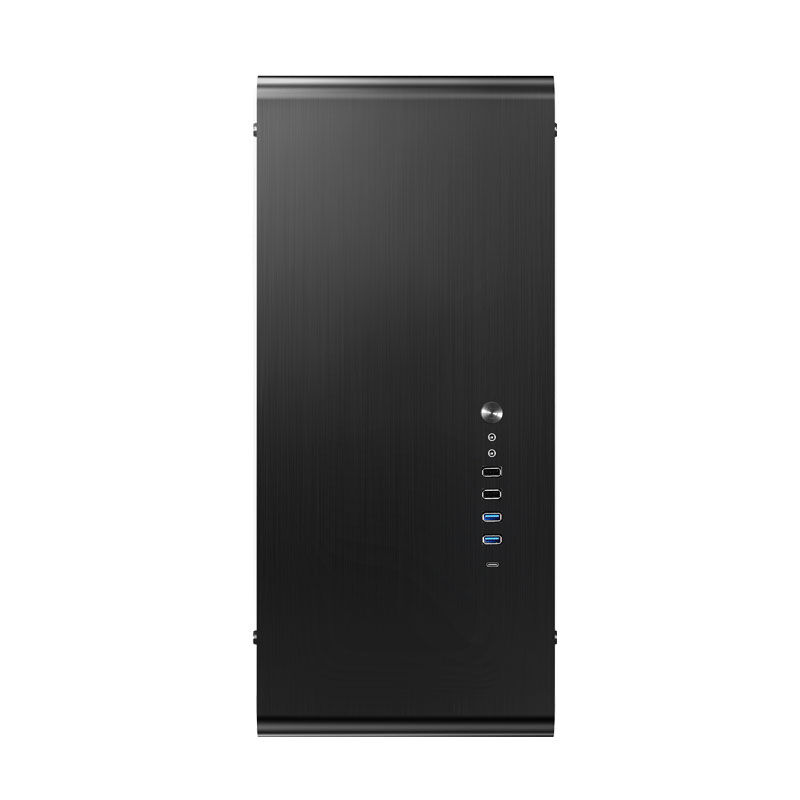

The UMX6S can accommodate a total of four 2.5-inch data carriers or two 3.5-inch hard drives and two 2.5-inch drives. Appropriate mounting options are available for this on the mainboard tray of the housing. The I/O panel is on the front and includes a power switch, two audio jacks and a USB type C port, two USB 2.0 and two USB 3.0 ports.
| Specification | |
|---|---|
| Primary Colour | Black |
| Secondary Colour | Transparent |
| Dimensions | |
| Length / Depth | 482 mm |
| Width | 224 mm |
| Height | 501 mm |
| Weight | 11.7 kg |
| Case | |
| Case Type | Mid Tower |
| Motherboard Support | |
| Compatible Formats | ATX, E-ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Size | E-ATX |
| Internal Clearance | |
| Max CPU Cooler Height | 169 mm |
| Max GPU Length | 330 mm |
| Max PSU Length | 200 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| PSU Position | Internal |
| Fan Support | |
| 120 mm Fans | Up to 6 |
| 140 mm Fans | Up to 2 |
| Radiator Support | |
| Max Compatibility | 1× 360 mm (Triple) 1× 280 mm (Dual) 1× 240 mm (Dual) 1× 120 mm (Single) |
| Drive Bays | |
| 2.5″ Bays | 6 |
| 3.5″ Bays | 2 |
| Hot-Swap Bays | No |
| External Ports | |
| USB-C (USB 3.1) | 1 |
| USB-A (USB 3.0) | 2 |
| USB-A (USB 2.0) | 2 |
| Audio I/O | 1× out + 1× in (3.5 mm TRS) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | No |
| Dust Filters | Yes |
| Noise Dampening | No |
| Motherboard Tray | No |
| Remote Included | No |
| Transport System | No |
| Housing Feedthrough | No |
| Materials | |
| Construction | Aluminium, Steel, Tempered Glass |
| Lighting | |
| RGB Lighting | No |
| Fan/RGB Controller | No |
| Included Contents | |
| Included Fans | None |
£112.63£93.86 Inc VatEx Vat
