The features of the Jonsbo U4 Mini Micro-ATX case in detail

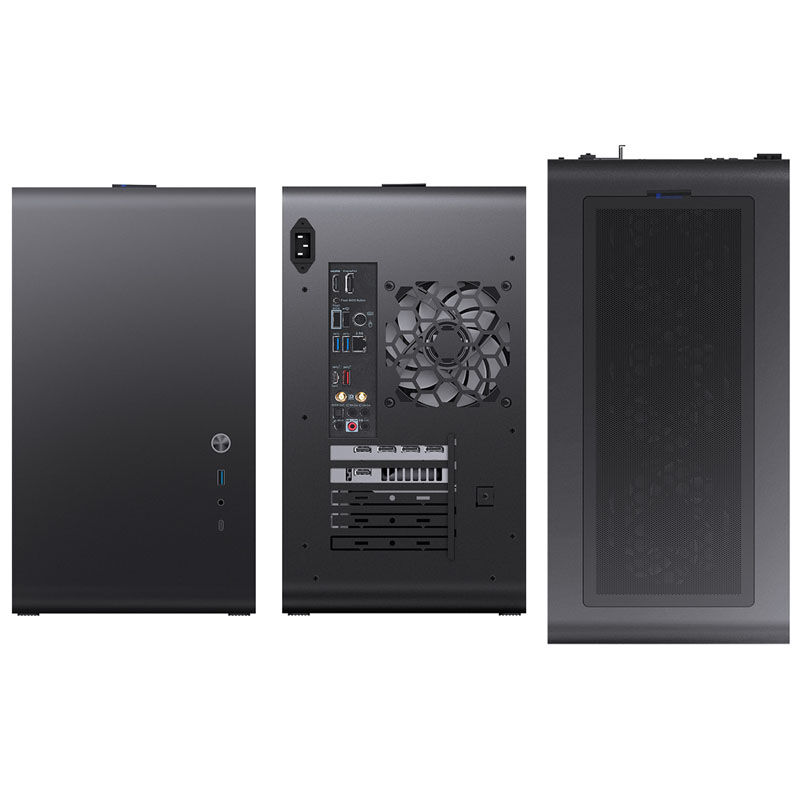

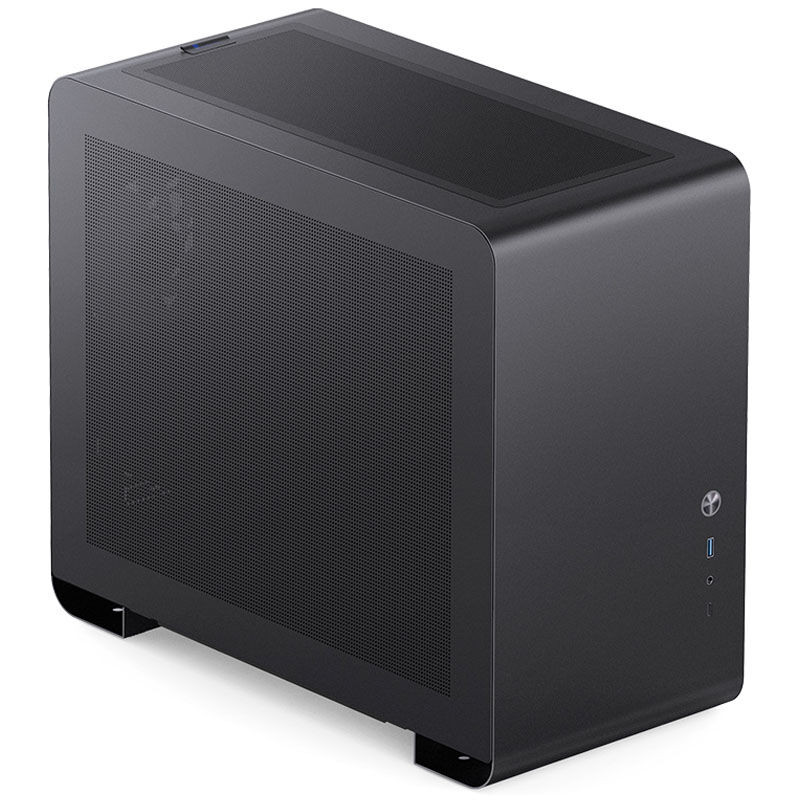

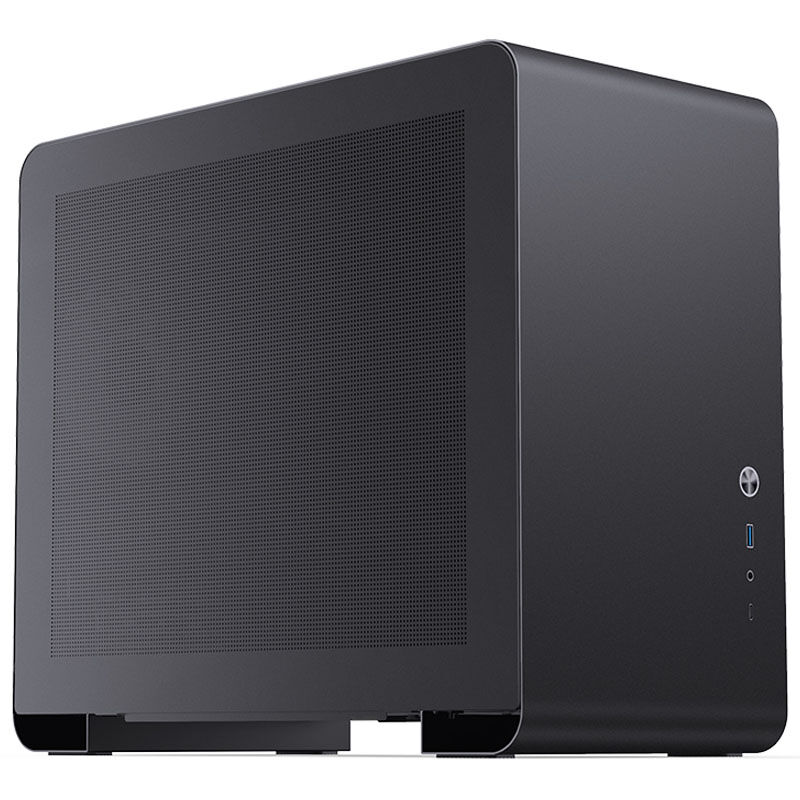

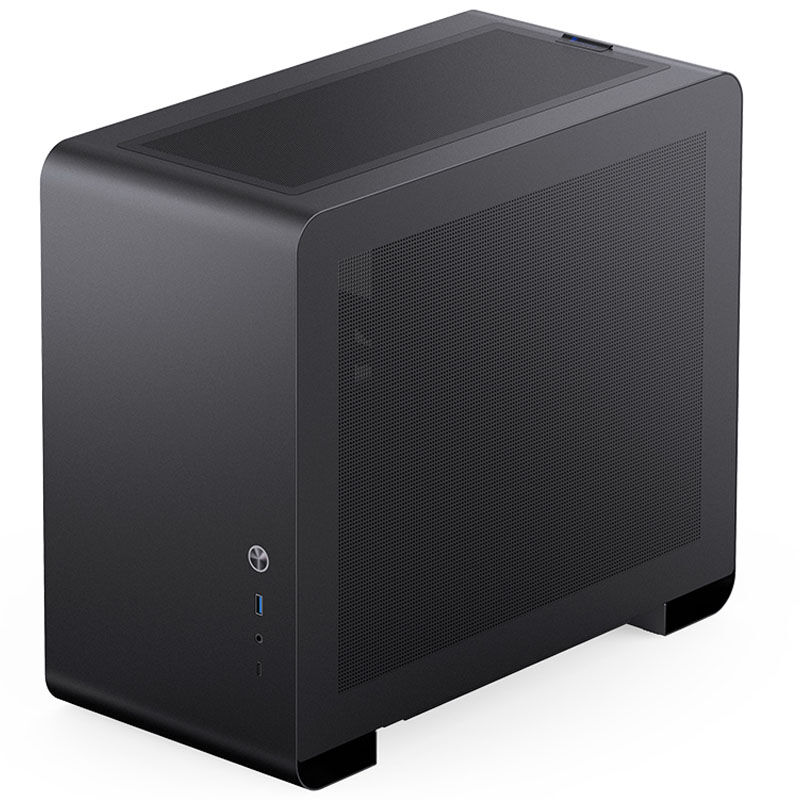

On the outside, the U4 Mini from Jonsbo impresses with its subtle and clear design, the stylish side panel with mesh and the flawless workmanship. The Micro-ATX case offers a power switch, a USB-C 3.1 and a USB 3.0 port as well as a combined audio jack on the right side. The Micro-ATX case offers plenty of space for powerful hardware and skilfully showcases it.

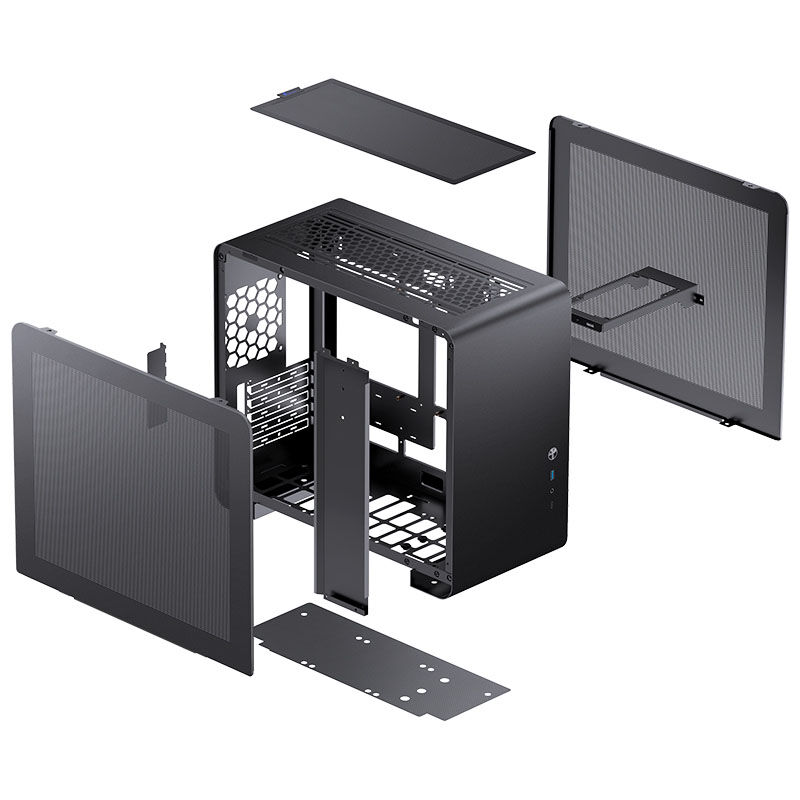

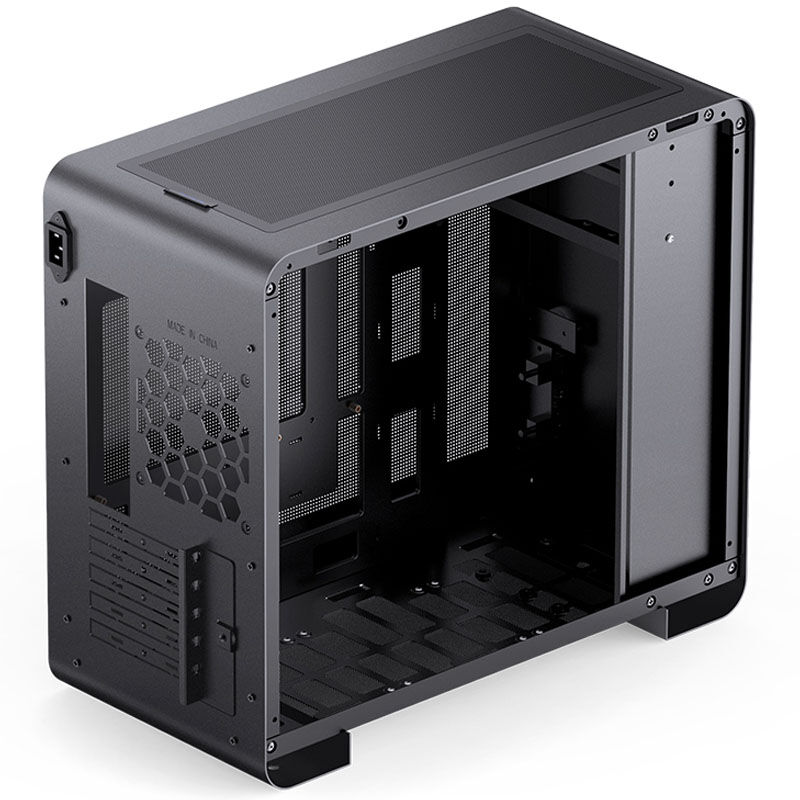

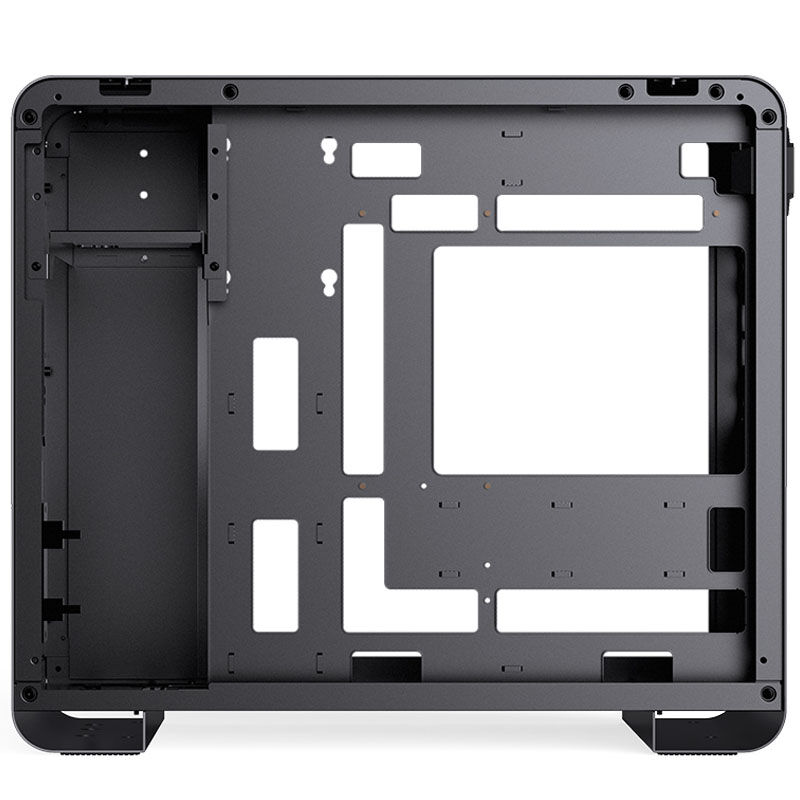

With its dimensions of 222 x 385 x 440 millimeters, the U4 Mini from Jonsbo is still quite compact, but it can accommodate full-fledged gaming hardware inside. In addition to a Mini-ITX and Micro-ATX mainboard, there is also space for graphics cards up to 420 millimeters in length. With four slots, there is enough space for expansion cards such as capture cards or sound cards.
The U4 Mini can accommodate up to one 2.5-inch and one 3.5-inch data storage device. For cooling, two 120 mm or three 120 mm fans can be mounted on the bottom, without the HDD cage, and a 120 mm fan can be mounted in the rear panel. Three additional 120 mm fans can be installed in the lid of the elegant case and reinforce the natural chimney effect, which benefits the cooling of all components and is supported by the mesh on the left side panel. The power supply is housed in the front of the case and can be up to 220 mm long. 165 mm is enough space for common CPU cooler models.
| Specification | |
|---|---|
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 440 mm |
| Width | 222 mm |
| Height | 385 mm |
| Weight | 6 kg |
| Case | |
| Case Type | Mini Case |
| Compatible Motherboard Formats | Micro-ATX, Mini-ITX |
| Max. Motherboard Format | Micro-ATX |
| Internal Dimensions | |
| Max. CPU Cooler Height | 165 mm |
| Max. GPU Length | 420 mm |
| Max. PSU Length / Depth | 200 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Included | No |
| PSU Format | ATX |
| Power Supply Position | Internal |
| Fan Support | |
| 120 mm Fans | 7 |
| Radiator Support | |
| Max. Radiator Compatibility | No |
| Drive Bays | |
| 2.5 inch Internal Drive Bay | 1 |
| 3.5 inch Internal Drive Bay | 1 |
| Hot Swap Drive Bays | No |
| External Ports | |
| USB 3.1 Type-C | 1 |
| USB 3.0 Type-A | 1 |
| Audio Outputs & Inputs | 1x 3.5 mm jack (4-pin, TRRS) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | Closed |
| Front Door | No |
| Cable Management | No |
| Filters Included | No |
| Noise Dampening | No |
| Mainboard Slide / Tray | No |
| Remote Included | No |
| Transport System | No |
| Features | |
| Housing Feedthrough | No |
| Materials | |
| Materials | Steel |
| Lighting | |
| Lighting / RGB | No |
| Fan / RGB Control | No |
| Additional Contents | |
| Included Fans | None |
£65.74£54.78 Inc VatEx Vat
