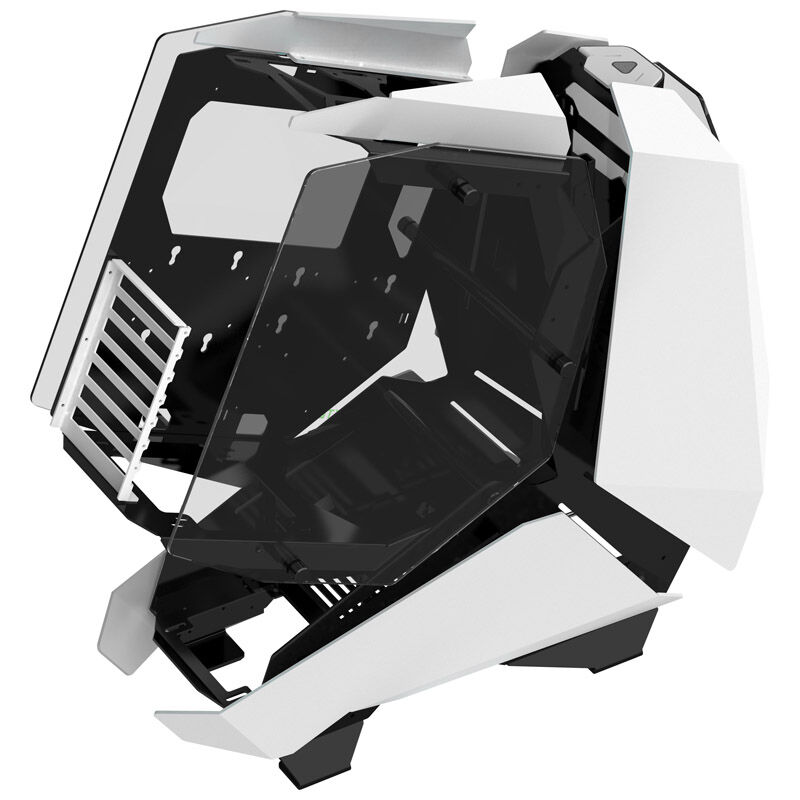

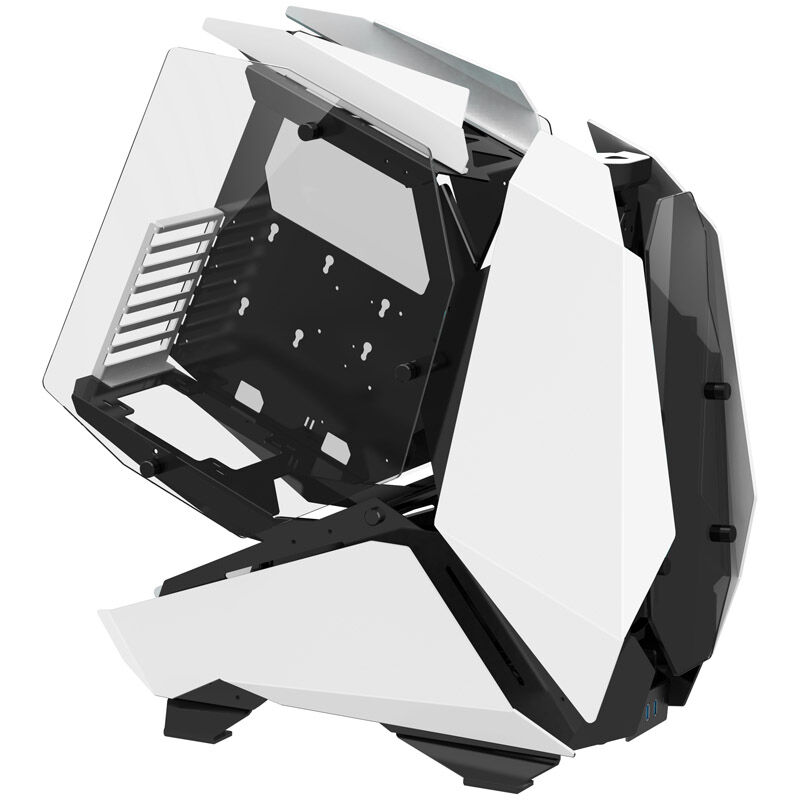

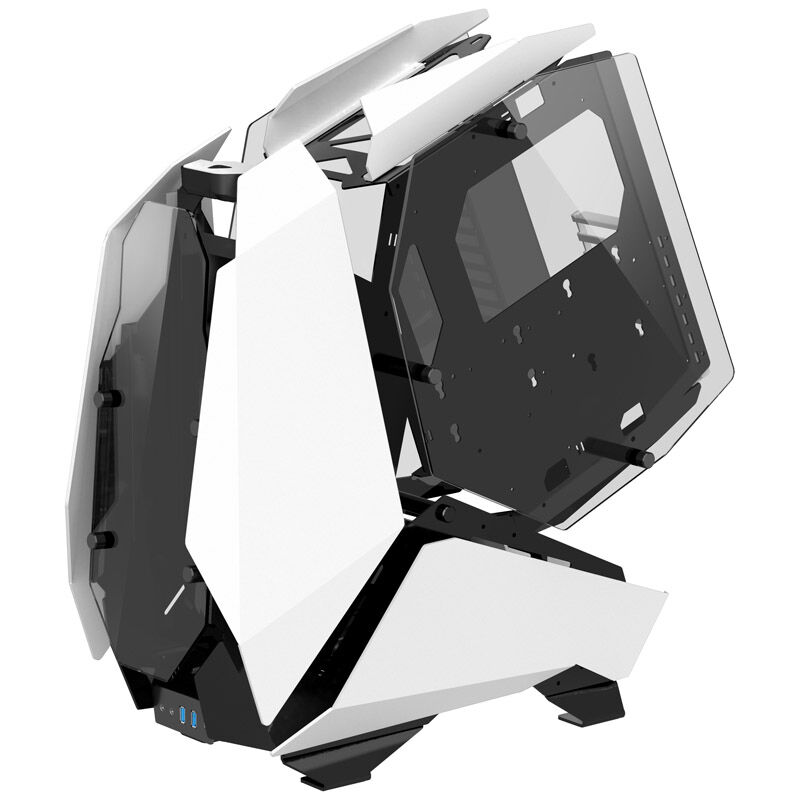

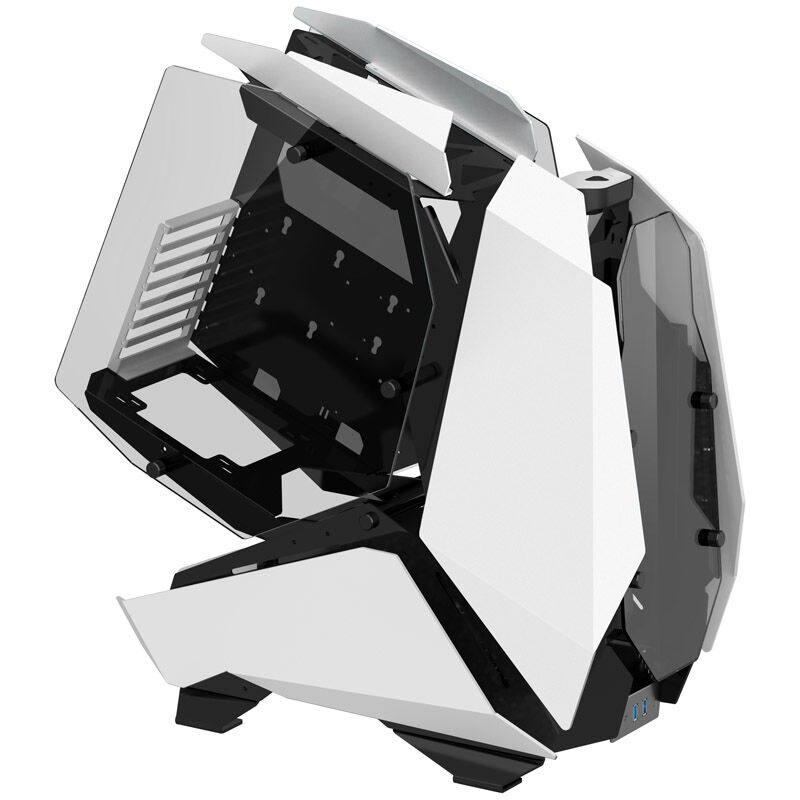

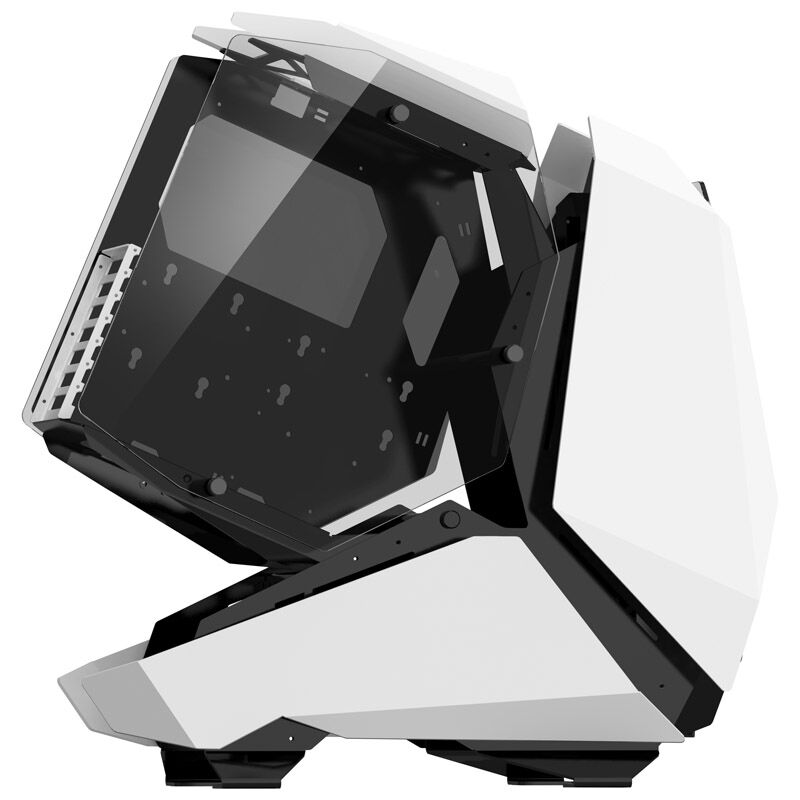

With the Jonsbo MOD5, the name says it all: the elaborately designed big tower showcase is a real eye-catcher with its aerodynamic design and stages the built-in hardware behind tinted tempered glass.
With the Jonsbo MOD5, the name says it all: the elaborately designed big tower showcase is a real eye-catcher with its aerodynamic design and stages the built-in hardware behind tinted tempered glass.

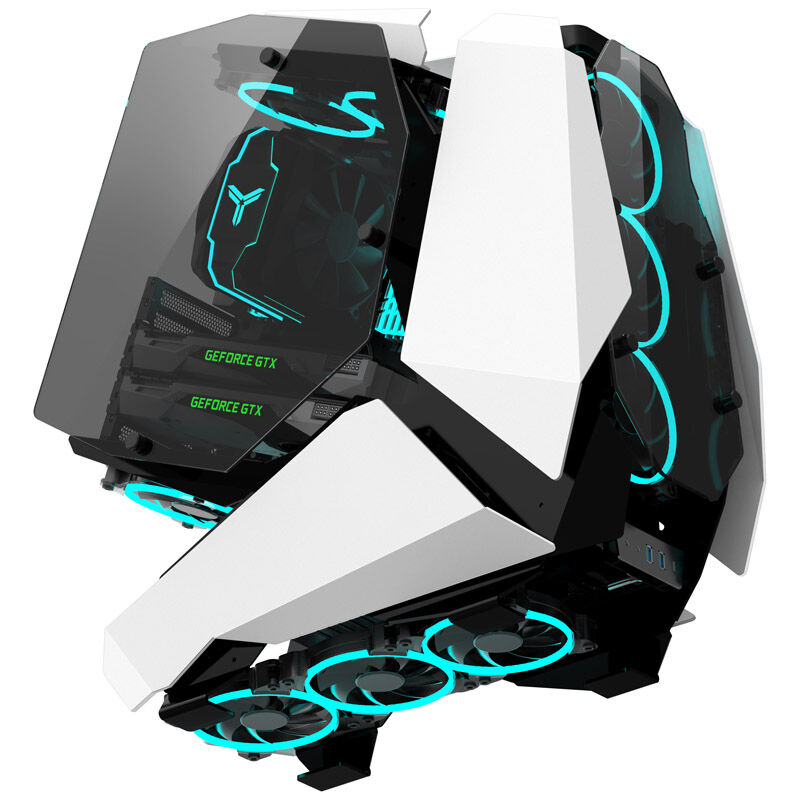

With the Jonsbo MOD5, the name says it all: the elaborately designed big tower showcase is a real eye-catcher with its aerodynamic design and stages the built-in hardware behind tinted tempered glass.
With the option of installing several large radiators, this gem is suitable for exclusive high-end builds.
The features of the Jonsbo MOD5 Showcase-Big-Tower at a glance:
– Elaborate showcase design
– Digitally addressable RGB LED lighting
– Suitable for mainboards from Mini-ITX to E-ATX
– Open design with covers made of aluminum and tempered glass
– Space for two 360 and one 240 radiators
– A total of up to nine fans are possible
– For up to 3x 3.5 / 2.5-inch and 1x 3.5-inch drives
– Jonsbo MOD5: design and functionality combined
A total of nine 120 mm fans can be installed in the Jonsbo MOD5: three fans on the front, two on the lid, three on the bottom and one on the rear of the Big Tower. A maximum height of 180 mm is provided for processor coolers, so that there are no restrictions when choosing a CPU cooler.
The Jonsbo MOD5 shows its real strengths when it comes to water cooling. Up to 360 mm large triple radiators can be mounted on the front and on the floor and a 240 mm large dual radiator on the lid. This makes the MOD5 suitable for complex custom loops that are able to cool heavily overclocked high-end hardware.
Space for drives and components
Main boards in mini-ITX, micro-ATX, ATX or E-ATX format (up to 287 mm) can be attached to the mainboard tray. With a maximum length of 400 millimeters, there is also plenty of space for graphics cards. The Jonsbo MOD5 offers a total of seven expansion slots.
The ATX power supply is mounted in the floor of the Jonsbo MOD5 and can be up to 220 mm long. There is space for two 3.5 / 2.5-inch drives on the back of the mainboard tray. Another drive with 3.5 or 2.5 inches can be mounted on the carrier for the pump unit and the expansion tank at the bottom of the housing, if this is not needed for Wakü components. Instead of the 240 mm radiator, a 3.5-inch drive can also be mounted on the cover.
Connections and lighting
In addition to the mandatory power button, the I / O panel offers a 3.5 mm jack socket for headphones and a microphone as well as two USB 3.0 Type A ports and a USB 3.1 Type C port.

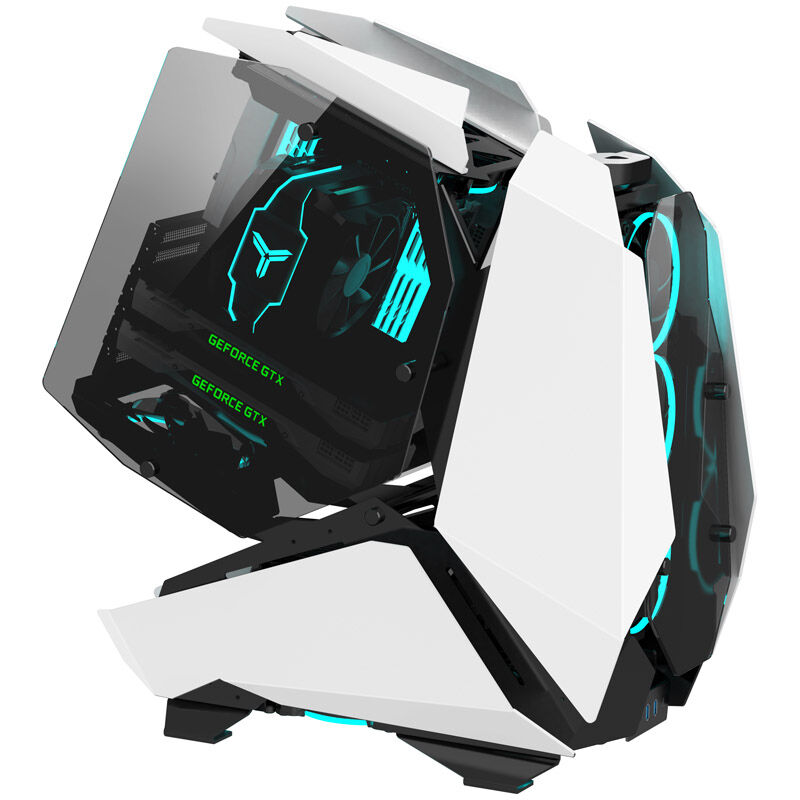

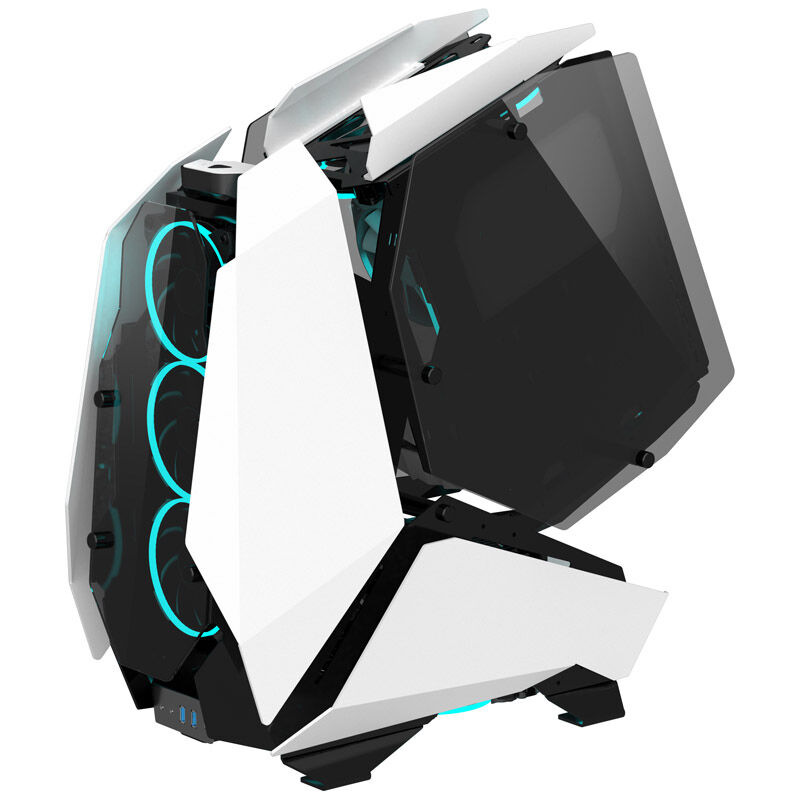

The Jonsbo MOD5 is equipped with digitally addressable RGB lighting. This is connected to the mainboard via a 3-pin connection (5V) and can be controlled and synchronized via the software interface of the respective mainboard manufacturer.
| Specification | |
|---|---|
| Dimensions (W × H × D) | 255 × 635 × 600 mm |
| Material | Aluminium, Steel, Tempered Glass |
| Weight | 9 kg |
| Colour | White |
| Motherboard Support | |
| Compatible Formats | ATX, Micro-ATX, Mini-ITX |
| Fan Support | |
| Possible Fans | Front: 3 × 120 mm Top: 2 × 120 mm Bottom: 3 × 120 mm Rear: 1 × 120 mm |
| Pre-installed Fans | None |
| Radiator Support | |
| Possible Radiators | Front: 1 × 360 mm Top: 1 × 240 mm Bottom: 1 × 360 mm |
| Drive Bays | |
| 3.5/2.5 inch | 2 × (MB tray), 1 × (reservoir bracket bottom) |
| 3.5 inch | 1 × (if top radiator is omitted) |
| Power Supply | |
| Type | ATX (optional) |
| Max Length | 220 mm |
| Expansion | |
| PCI Slots | 7 |
| I/O Panel | |
| Ports | 1 × USB 3.1 Type C 2 × USB 3.0 Type A 2 × 3.5 mm Jack (3-pole, TRS, Audio In/Out) |
| Clearance | |
| Max CPU Cooler Height | 180 mm |
| Max GPU Length | 400 mm |
| Specification | |
|---|---|
| Primary Colour | White |
| Secondary Colour | Black |
| Dimensions | |
| Length / Depth | 600 mm |
| Width | 255 mm |
| Height | 635 mm |
| Weight | 9 kg |
| Case | |
| Case Type | Aluminium Case, Full Tower |
| Motherboard Support | |
| Compatible Formats | ATX, E-ATX, Micro-ATX, Mini-ITX |
| Max. Motherboard Size | E-ATX |
| Internal Clearance | |
| Max CPU Cooler Height | 180 mm |
| Max GPU Length | 400 mm |
| Max PSU Length | 220 mm |
| Display | |
| Display Included | No |
| Power Supply | |
| PSU Format | ATX |
| PSU Position | Rear Bottom |
| Fan Support | |
| 120 mm Fans | 9 |
| Radiator Support | |
| Max Compatibility | 1 × Dual (240 mm), 2 × Triple (360 mm) |
| Drive Bays | |
| 3.5″ Bays | 1 |
| 3.5 / 2.5″ Combined Bays | 3 |
| Hot-Swap Bays | No |
| External Ports | |
| USB-C (USB 3.1) | 1 |
| USB-A (USB 3.0) | 2 |
| Audio I/O | 1 × output + 1 × input (3.5 mm TRS) |
| Card Reader | No |
| Case Features | |
| I/O Position | Front |
| Side Panel | Window |
| Front Door | No |
| Cable Management | No |
| Filters Included | No |
| Noise Dampening | No |
| Motherboard Tray | No |
| Remote Included | No |
| Transport System | No |
| Housing Feedthrough | No |
| Materials | |
| Construction | Aluminium, Steel, Tempered Glass |
| Lighting | |
| RGB Lighting | Yes |
| Fan/RGB Controller | No |
| Lighting Colour | RGB |
| Included Contents | |
| Included Fans | None |
£359.62£299.68 Inc VatEx Vat
