Gigabyte H110M-S2HP, Intel H110 Mainboard - Socket 1151

For two memory DIMM slots are available in dual-channel mode for either DDR3L- or DDR4 RAM and prepared for connection of storage devices Up to four SATA 6G slots be used. Motherboards with the H110 chipset represent a cost-effective variant of Sunrise Point family and are particularly suitable as a business solution, or as a basis for a powerful home-office PC.

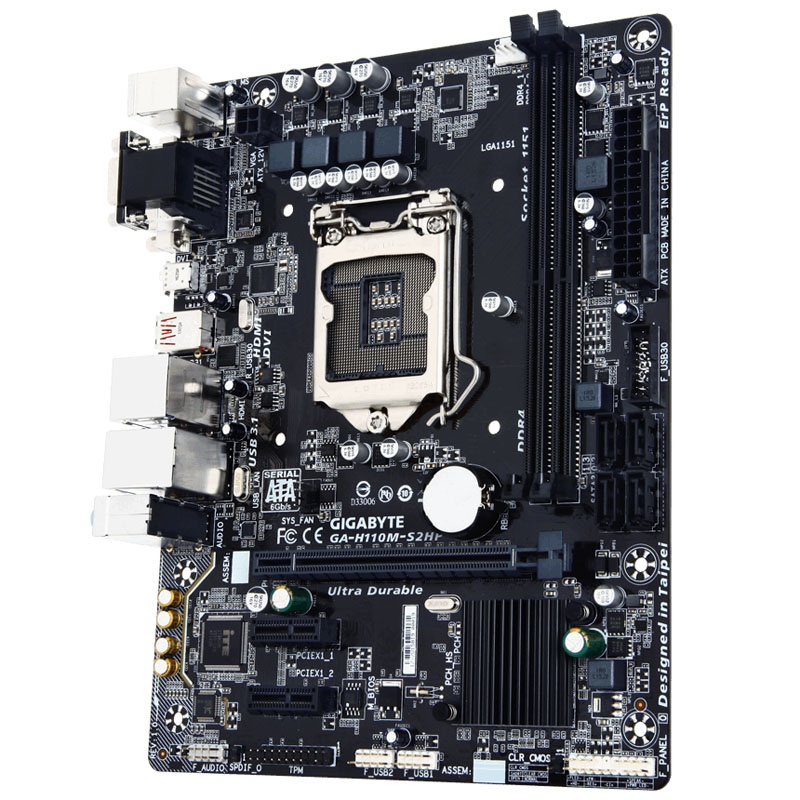

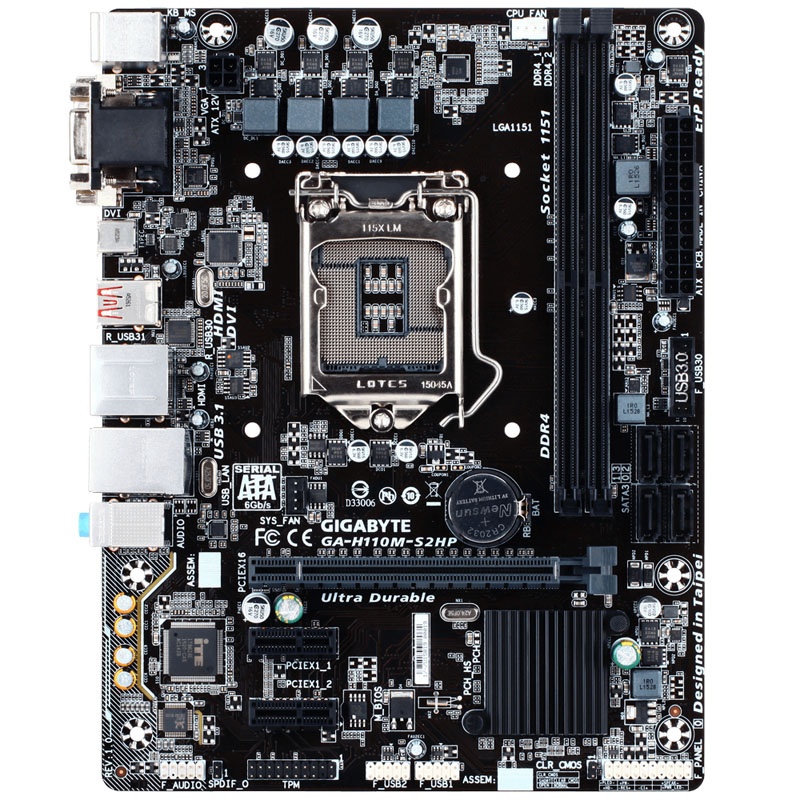

When H110M-gigabyte S2HP is a H110 mainboard in MicroATX format. The black and gray board has two DIMM slots for DDR4 memory and a single PCIe x16 slot for graphics cards in the fast PCIe 3.0 standard. For insertion and expansion cards, two PCIe x1 slots in the PCIe 2.0 standard.

Thanks to the built-in Skylake CPU GPU monitors can be connected directly to the H110-motherboard. For this, three ports available with HDMI, DVI-D and VGA. The Gigabyte motherboard is convincing with many other features. These include (once each Type A and Type C), four USB 3.0 and six USB 2.0 ports, depending on a TPM and SPDIF header and, inter alia, four SATA 6G connections, two USB 3.1 ports Integrated Gigabit LAN connection Realtek chipset and onboard sound through the Realtek ALC887 chip.

Technical details:

    Format: Micro ATX
    Color: Black, Grey
    Chipset: Intel H110 (Sunrise Point)
    Socket 1151 (for Intel CPUs the 6th generation Core Skylake)
    RAM: 2 x DDR4 (regularly DDR4-2.133)
    Dual-Channel
    Slots (physically):
    1 x PCIe 3.0 x16
    2 x PCIe 2.0 x1
    Internal connections:
    4 x SATA 6G
    2 x USB 3.0 (a header)
    4 x USB 2.0 (two headers)
    1 x chassis intrusion header
    1 x SPDIF header
    1 x TPM header
    2 x fan (4-pin)
    Power / reset / LED / front-Audio
    External connections:
    2 x PS / 2 keyboard / mouse
    2 x USB 3.1 (1 x Type A and Type C, by ASMedia ASM1142)
    2 x USB 3.0
    2 x USB 2.0
    1 x Gigabit LAN (Realtek)
    1 x HDMI
    1 x DVI-D
    1 x VGA
    3x audio (Realtek ALC887)
    Power supply:
    1 x 24-pin EATX 12V
    1 x 4-pin ATX 12V
