Gigabyte H110M-HD3 DDR3, Intel H110 Mainboard - Socket 1151

For two memory DIMM slots are available in dual-channel mode for either DDR3L- or DDR4 RAM and prepared for connection of storage devices Up to four SATA 6G slots be used. Motherboards with the H110 chipset represent a cost-effective variant of Sunrise Point family and are particularly suitable as a business solution, or as a basis for a powerful home-office PC.

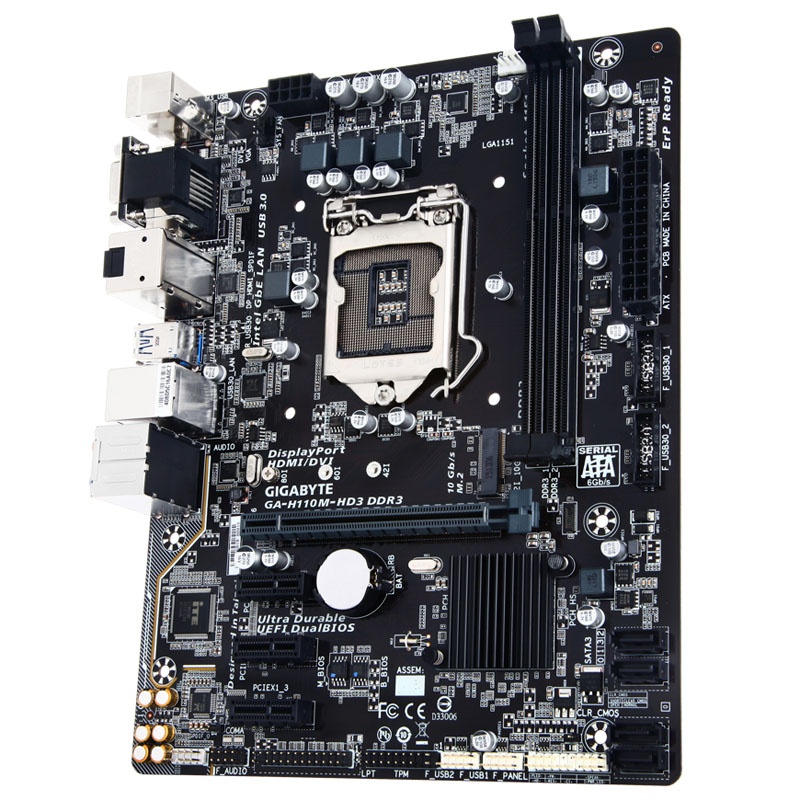

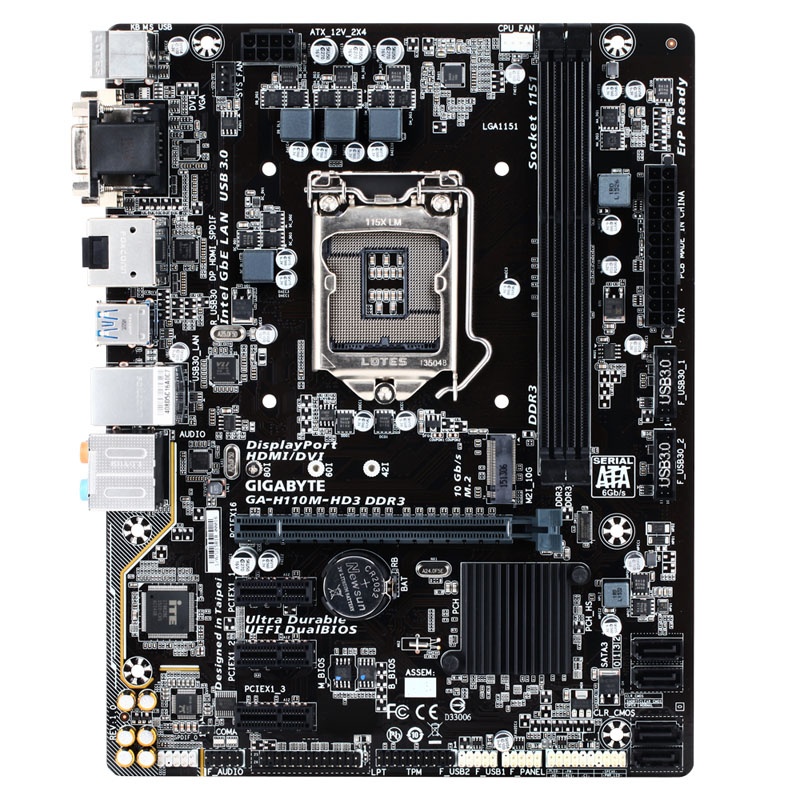

When H110M Gigabyte DDR3-HD3 is a H110 mainboard in MicroATX format. The black and gray board has two DIMM slots for DDR3L memory and a single PCIe x16 slot for graphics cards in the fast PCIe 3.0 standard. For insertion and expansion cards, three PCIe x1 slots in the PCIe 2.0 standard.

Thanks to the built-in Skylake CPU GPU monitors can be connected directly to the H110-motherboard. For this, four connections are available with DisplayPort, HDMI, DVI and VGA. The Gigabyte motherboard is convincing with many other features. These include among others a M.2 slot, four SATA 6G connections, eight USB 3.0 ports and six USB 2.0 ports, a COM ever, TPM and SPDIF header and an integrated Gigabit LAN port and onboard sound through the Realtek ALC892 chip.

Technical details:

    Format: Micro ATX
    Color: Black, Grey
    Chipset: Intel H110 (  Sunrise Point)
    Socket 1151 ( for Intel CPUs the 6th generation Core Skylake )
    RAM: 2 x DDR3L (regularly DDR3-1.600 / 1133)
    Dual-Channel
    Slots (physically):
    1 x PCIe 3.0 x16
    3 x PCIe 2.0 x1
    Internal connections:
    4 x SATA 6G
    1 x M.2 (max. 32 Gb / s)
    4 x USB 3.0 (two headers)
    4 x USB 2.0 (two headers)
    1 x TPM header
    1 x SPDIF header
    1 x Serial Port (COM header)
    2 x fan (4-pin)
    Power / reset / LED / front-Audio
    External connections:
    1 x PS / 2 keyboard / mouse
    4 x USB 3.0 (by VIA VL805)
    2 x USB 2.0
    1 x Gigabit LAN (Intel GbE LAN chip)
    1 x DisplayPort
    1 x HDMI
    1 x DVI-D
    1 x VGA
    6 x audio (Realtek ALC892)
    Power supply:
    1 x 24-pin EATX 12V
    1 x 8-pin ATX 12V
