The Black Ice PC Radiators ushered the dawn of professional PC watercooling over 10 years ago with the Black Ice Pro and Xtreme series. These were followed by the groundbreaking Black Ice Gen Two, GTS and GTX PC radiators, providing unprecedented performance for compact form factor heat exchangers.
The Black Ice NEMESIS Advanced PC Radiators are a culmination of over a decades worth of experience in ultra compact heat exchanger design. Black Ice NEMESIS radiators feature Supercruise™ optimizations that maximize performance for an even wider range of fan speeds
The Black Ice PC Radiators ushered the dawn of professional PC watercooling over 10 years ago with the Black Ice Pro and Xtreme series. These were followed by the groundbreaking Black Ice Gen Two, GTS and GTX PC radiators, providing unprecedented performance for compact form factor heat exchangers.
The Black Ice NEMESIS Advanced PC Radiators are a culmination of over a decades worth of experien...
The Black Ice PC Radiators ushered the dawn of professional PC watercooling over 10 years ago with the Black Ice Pro and Xtreme series. These were followed by the groundbreaking Black Ice Gen Two, GTS and GTX PC radiators, providing unprecedented performance for compact form factor heat exchangers.
The Black Ice NEMESIS Advanced PC Radiators are a culmination of over a decades worth of experien...

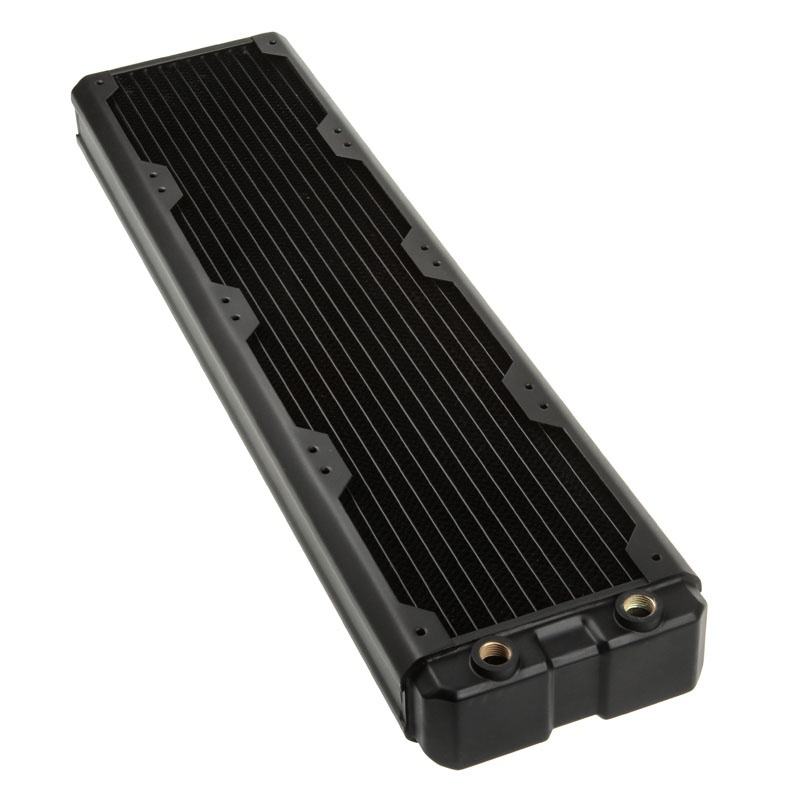

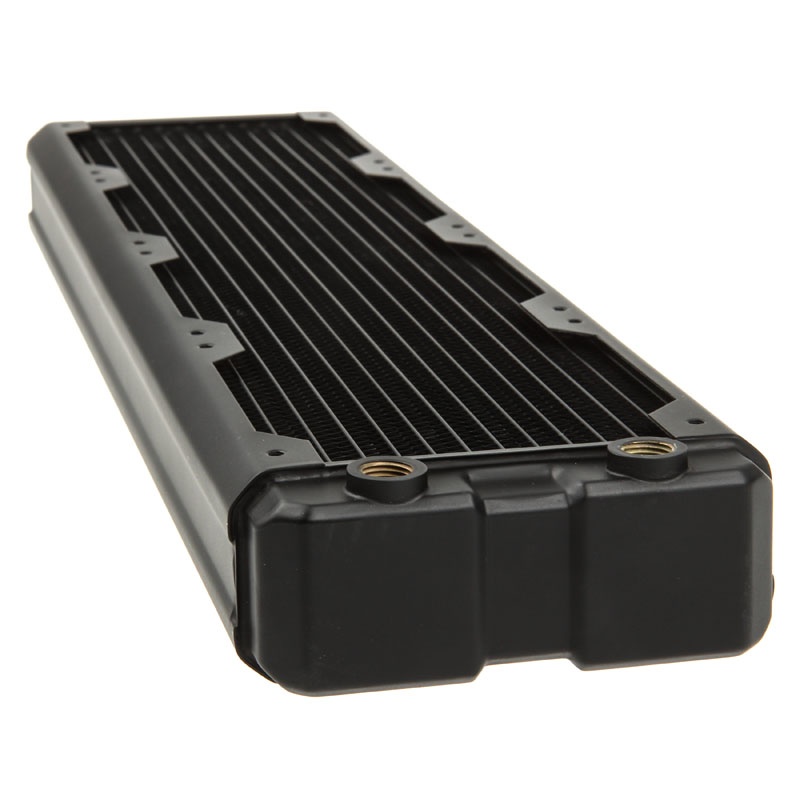

The Black Ice Nemesis 480GTX is the quad 120mm fan implementation of the Nemesis series of radiators.
Featuring an enhanced flow GTX core with Supercruise optimizations, we give the hardcore PC case modder all that is needed to execute a multi-CPU/multi-GPU setup while maintaining whisper quiet operations with better flow and significantly enhanced scalability.
Technical details:
120 mm x 4 fan Xtreme form factor two-pass radiator
518mm x 133mm x 54mm (L x W x H)
16 FPI 25 Micron Copper Fins
Now optimized for sub-800 rpm ultra-stealth fans
Supercruise optimizations for scalable performance with higher speed fans
15% more tubing area in the same Black Ice GTX™ 480 form factor
Increased internal coolant flow rates

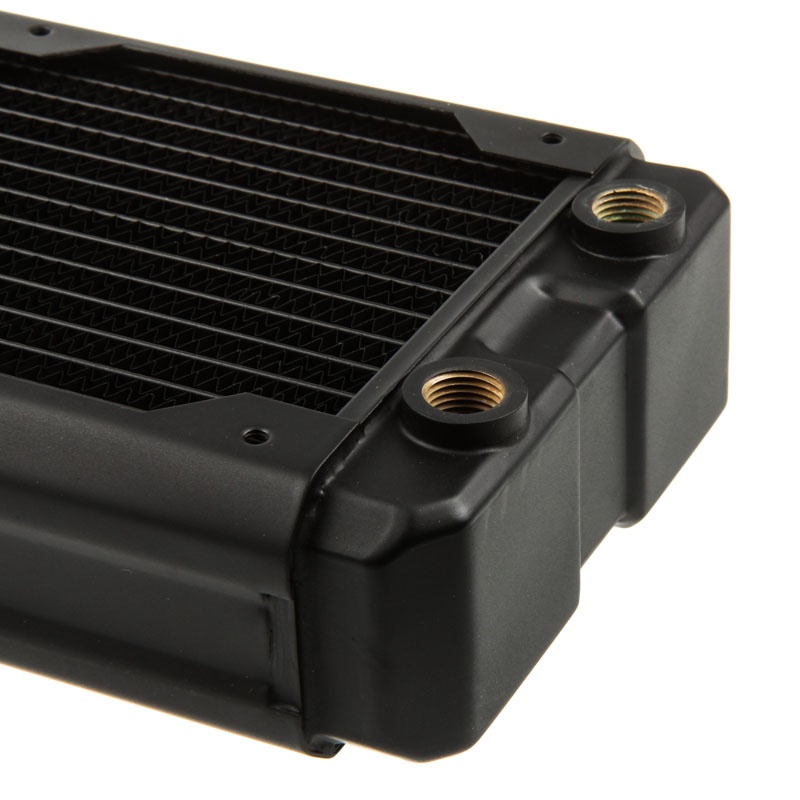

Standard G 1/4 inlet/outlet fittings
Standard M4 mounting threads
Custom Black Carbon™ high quality finish
Fully ROHS Compliant
100% Made from conflict-free materials
Industry standard Black Ice quality
Lifetime warranty against manufacturing defects*
* Limited warranty information: www.hardwarelabs.com/nemesis/warranty
Black Ice Nemesis GTX 480 Mounting Diagram [ 45 kb ]
