It is important that, among others, for the equipment with M.2 slots that now – depending on the motherboard – can contain up to three slots, each with four PCIe 3.0-lines, where it previously was only one slot, which in most cases was connected only with two data lines. This allows having a bandwidth of approximately 4 GB / s per slot, the use of several extremely fast M.2 SSDs and enables bypassing the slower SATA 6G standards, there are still up to six times. Even with USB 3.0 lot has changed, from a maximum of 14 USB ports now support up to 10 fast 3.0 standard and not only at most 6. Overall, a Skylake CPU together with a series-100 chipset is a very modern and well-equipped platform.

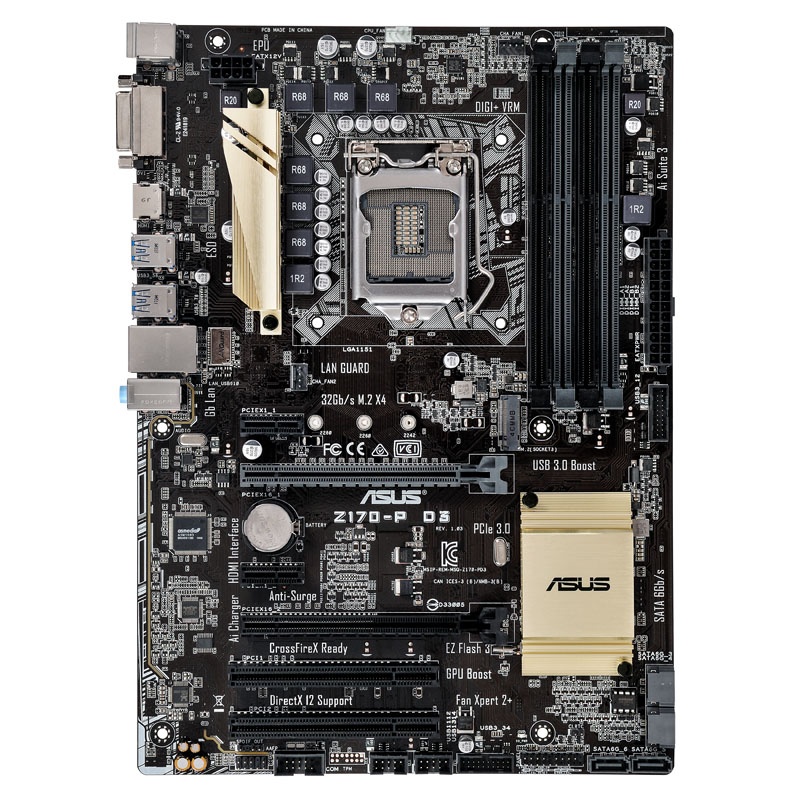

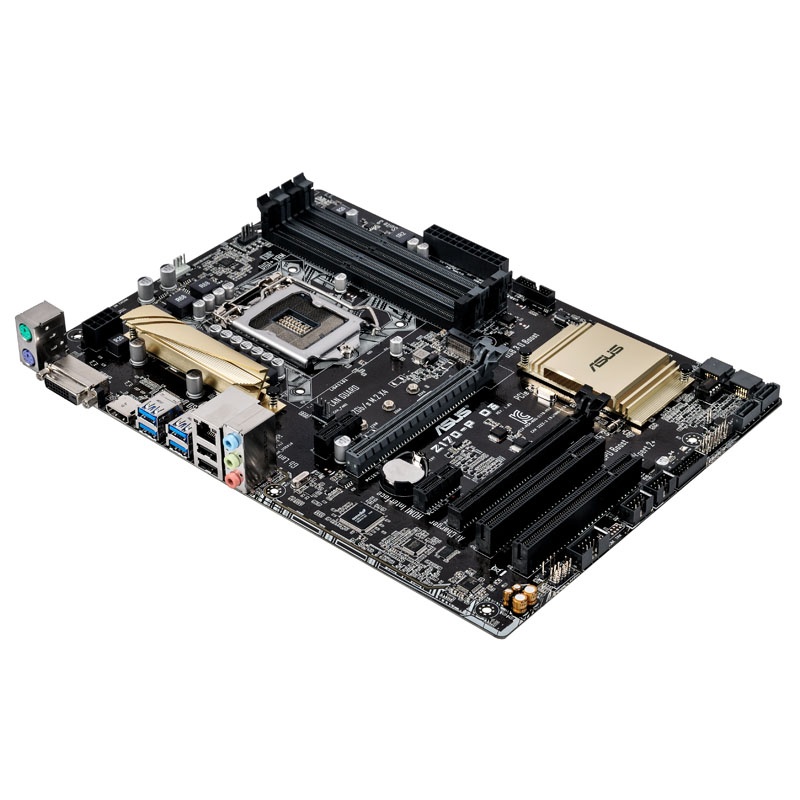

When in black held ASUS Z170-P D3 is a well-equipped Z170 mainboard in ATX format, which represents particularly for fast quad-core processors of the Core i7 or Core i5 series an ideal base – as Z170- Board support it of course also overclocking of CPUs of the K-series, which are equipped with a freely selectable multiplier. The ASUS Z170-P D3 has four DIMM slots for DDR4 memory in fast dual-channel mode. For graphics cards provides the board a PCIe 3.0 x16 slot ready, supported the Board both NVIDIA SLI and AMD CrossFireX technology. Another slot in x16 format is connected with four lanes in the PCIe 3.0 standard to the chipset, for further plug-in cards are each two PCIe x1 and PCI slots available.
If no graphics card is present, can be thanks to the integrated graphics processor a Skylake CPU monitors connected directly to the back of the motherboard – this stand with HDMI and DVI two ports. The ASUS motherboard convinced bargain among others with 7.1 sound (Realtek ALC887), an ultra-M.2 slot, 4x USB 3.0, three fan connectors, a Gigabit LAN controller Realtek (RTL8111GR), XMP support and several overclocking features.
Technical details:
Format: ATX
Color: Black
Chipset: Intel Z170 (Sunrise Point ?? ??)
Socket 1151 (?? for Intel CPUs the 6th generation Core Skylake ??)
RAM: 4 x DDR4 (regularly DDR4-1.600 / 1,333, max 3,100 by OC.)
Dual-Channel
Slots (physically):
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (electrical x4)
Compatible Multi-VGA configurations: dual-GPU SLI, dual-GPU CrossFireX
2 x PCIe x1
2 x PCI
Internal connections:
4 x SATA 6G
1 x Ultra-M.2 (max. 32 Gb / s, type 2242/2260/2280)
4 x USB 3.0 (2x USB 3.0 headers)
4 x USB 2.0 (2x USB 2.0 headers)
3 x fan (4-pin)
1 x S / PDIF Out Header
1 x Serial Port (1x COM header)
Power / reset / LED / front-Audio
External connections:
2 x PS / 2 keyboard / mouse
4 x USB 3.0
2 x USB 2.0
1 x Gigabit LAN (Realtek RTL8111GR)
1 x HDMI 1.4b
1 x DVI-D
3x audio (Realtek ALC887 7.1)
Power supply:
1 x 24-pin EATX
1 x 8-pin ATX 12V
