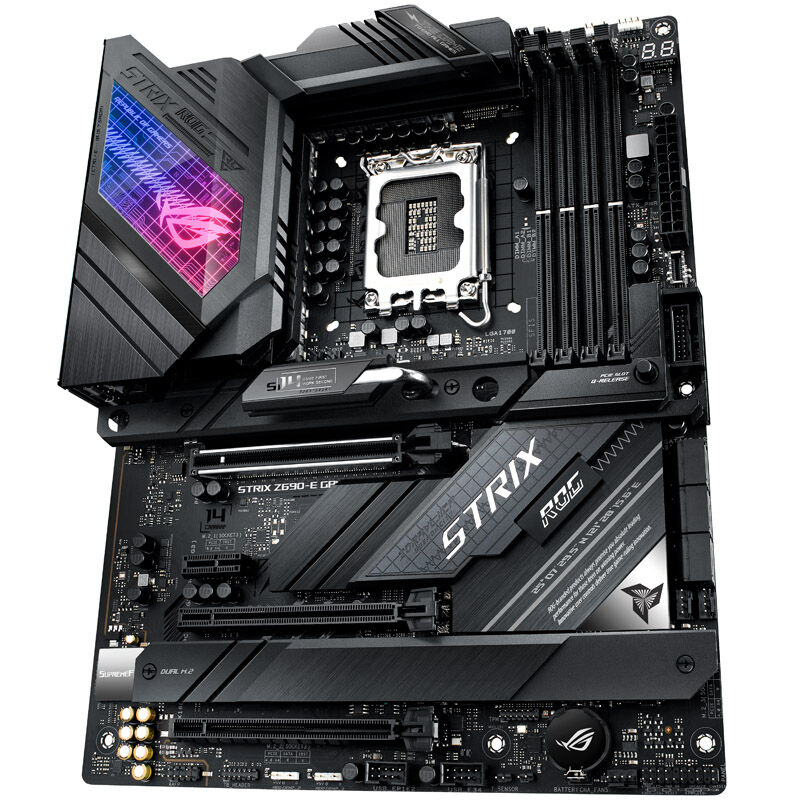

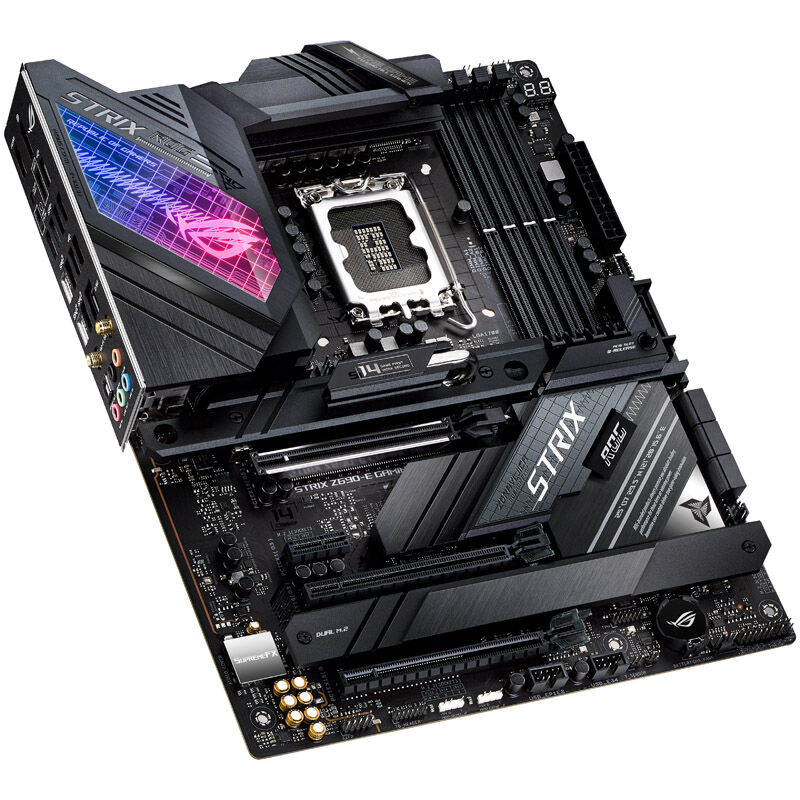

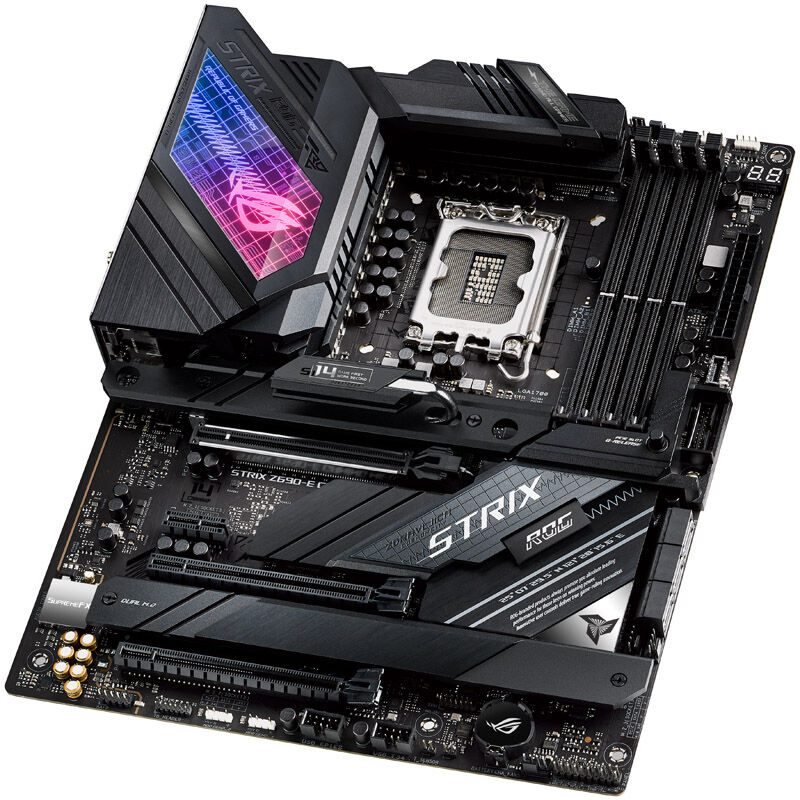

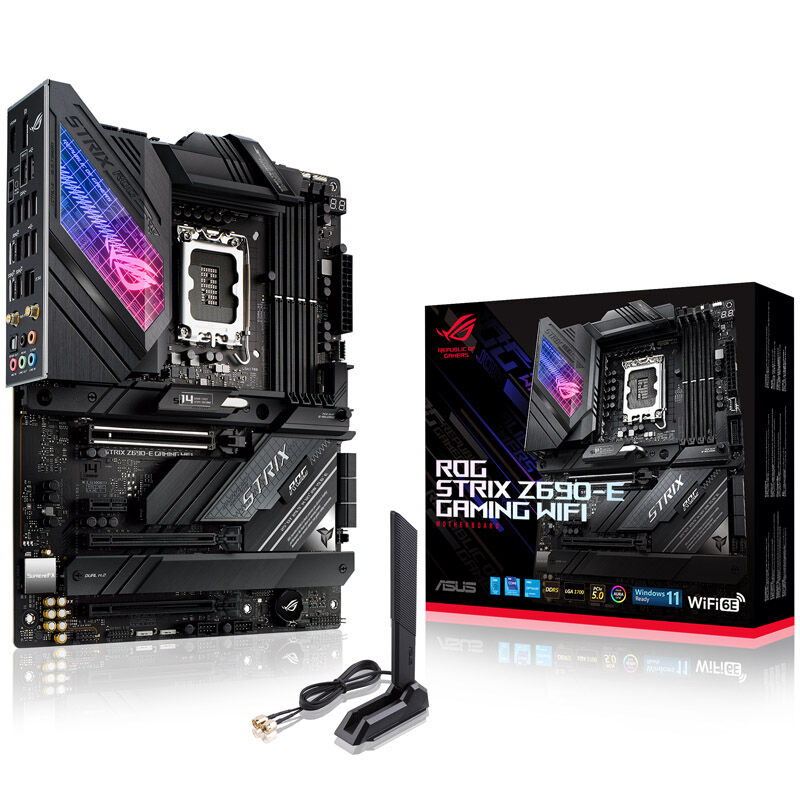

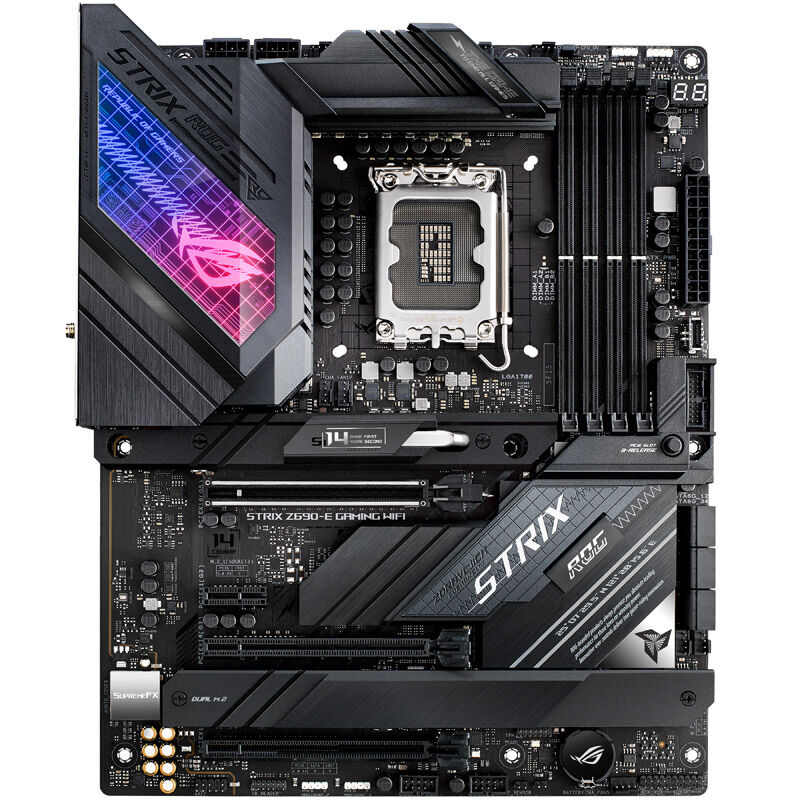

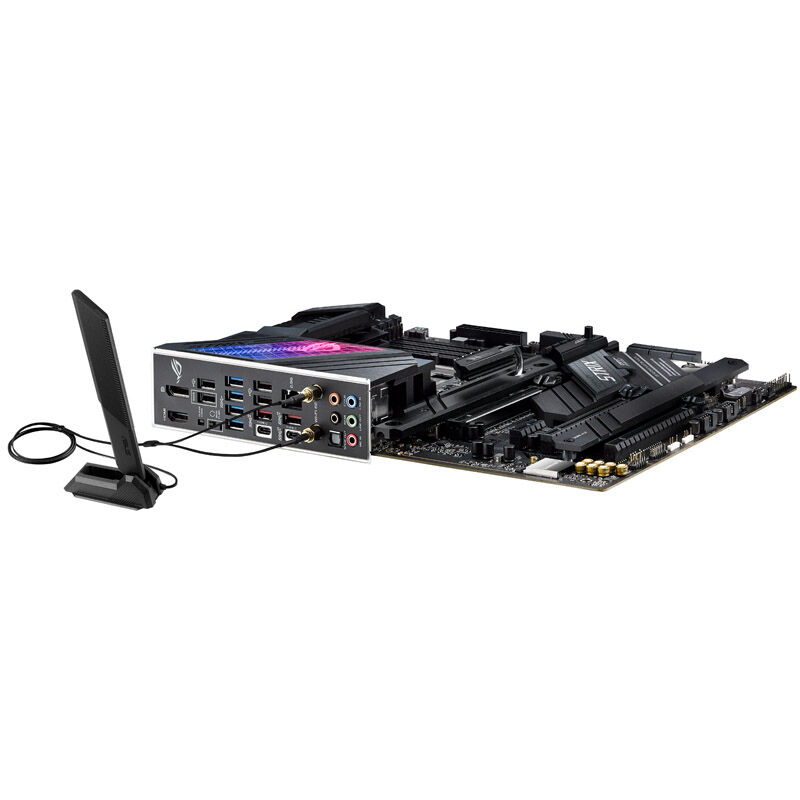

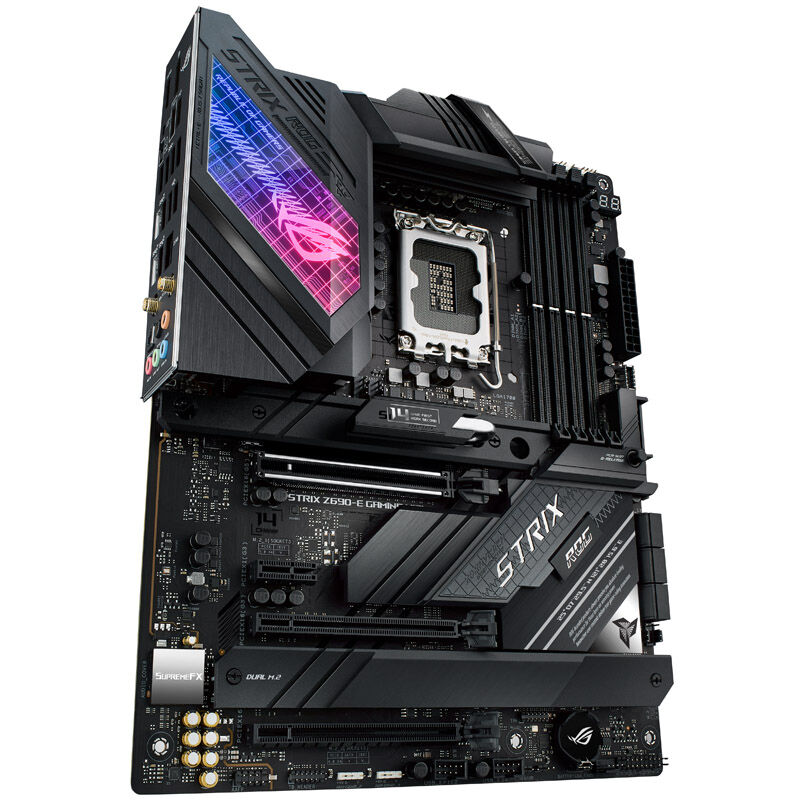

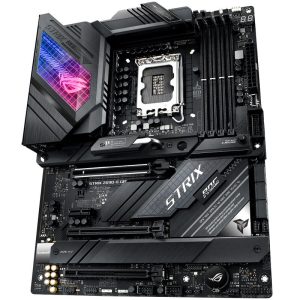

ASUS ROG STRIX Z690-E GAMING WIFI, Intel Z690 motherboard - Socket 1700, DDR5

BIOS Updates for Intel Raptor Lake CPUs
A BIOS update is required for use with Intels 13th Gen CPUs, also known as Raptor Lake. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

– 3x PCIe x16 slots, including 1x PCIe 5.0
– DDR5 memory up to 4800 MHz, with RAM overclocking up to 6400 MHz
– 5x M.2 slots, including 4x PCIe 4.0 and 1x PCIe 5.0
– USB on the I/O panel: 4x USB 2.0 / 4x USB 3.0 Type A / 3x USB 3.1 and 1x USB 3.2 Type C
– Overclocking features: BIOS Flashback, diagnostic LEDs
– RGB LED lighting and 4x RGB headers
– A total of 8 connectors for fans and pumps
– With 2.5 Gbit LAN and Wi-Fi ax including Bluetooth 5.2

The ASUS ROG STRIX Z690-E GAMING WIFI ATX motherboard with Intel Z690 chipset in detail
The ASUS ROG STRIX The Z690-E GAMING WIFI is an ATX motherboard with the high-end Intel Z690 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake, and Raptor Lake desktop processors. It supports DDR5 memory up to 6400 MHz and, thanks to its power supply, is ideal for overclocking.

Note: This motherboard supports DDR5 memory. Socket 1700 motherboards with DDR4 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR4 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake and Raptor Lake, as well as the 12th, 13th, and 14th generation Core processors, can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z690
– Socket:
– 1700 (for 12th, 13th, and 14th generation Intel Core CPUs)
– RAM:
– 4x DDR5 (4800 MHz, up to 6400 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 5.0 x16

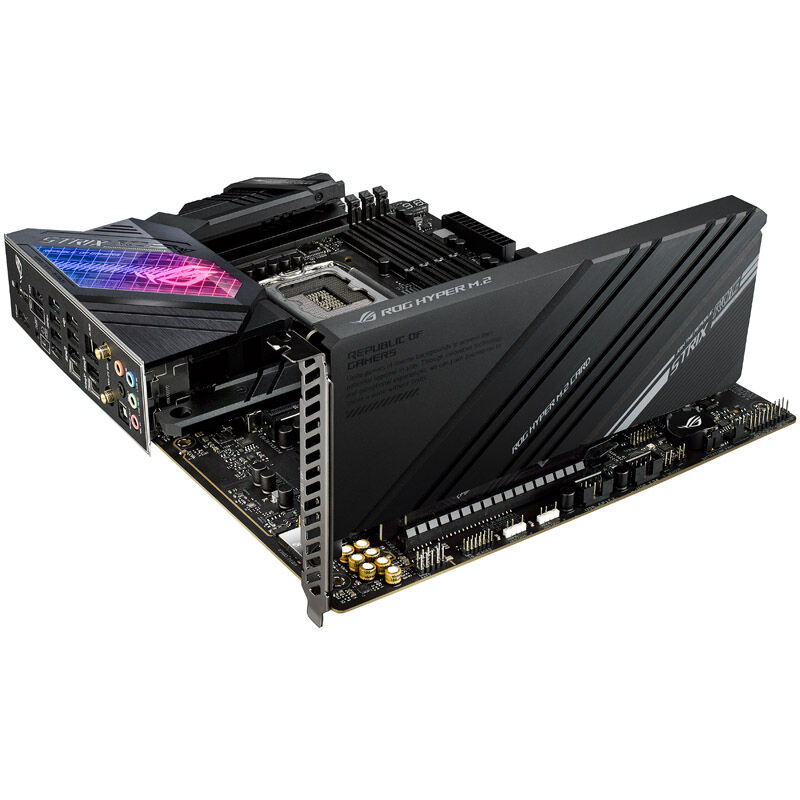

– 1x PCIe 4.0 x16 (electrical x4 or x4/x4 for ROG HYPER M.2 CARD)
– 1x PCIe 3.0 x16 (electric x4)
– 1x PCIe 3.0 x1
– Internal connections:
– 6x SATA 6G
– 1x M.2 (PCIe 5.0 x4, 2242-22110, CPU)
– 1x M.2 (PCIe 4.0 x4, 2242-22110, CPU)
– 1x M.2 (PCIe 4.0 x4 / SATA 6G, 2242-2280, chipset)
– 1x Hyper M.2 (via Hyper M.2 Card, PCIe 4.0 x4, 2242-22110, CPU/chipset)
– 1x Hyper M.2 (via Hyper M.2 Card, PCIe 4.0 x4, 2242-22110, chipset)
 -2x USB 3.0 (two headers, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (two headers, max. 480 Mbit/s)
– 1x CPU Over Voltage Jumper
– 1x Front Panel Audio Connector
– 1x SPI TPM Header (14-pin)
– 1x 20-pin System Panel Connector with Chassis Intrusion Function
– 1x Thermal Sensor Header
– 1x Thunderbolt Header
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x CPU OPT Fan (4-pin)
– 1x Pump (4-pin)
– 5x Case Fans (4-pin)
– RGB Header:
– 3x 3-pin ARGB (5 V)
– 1x AURA RGB

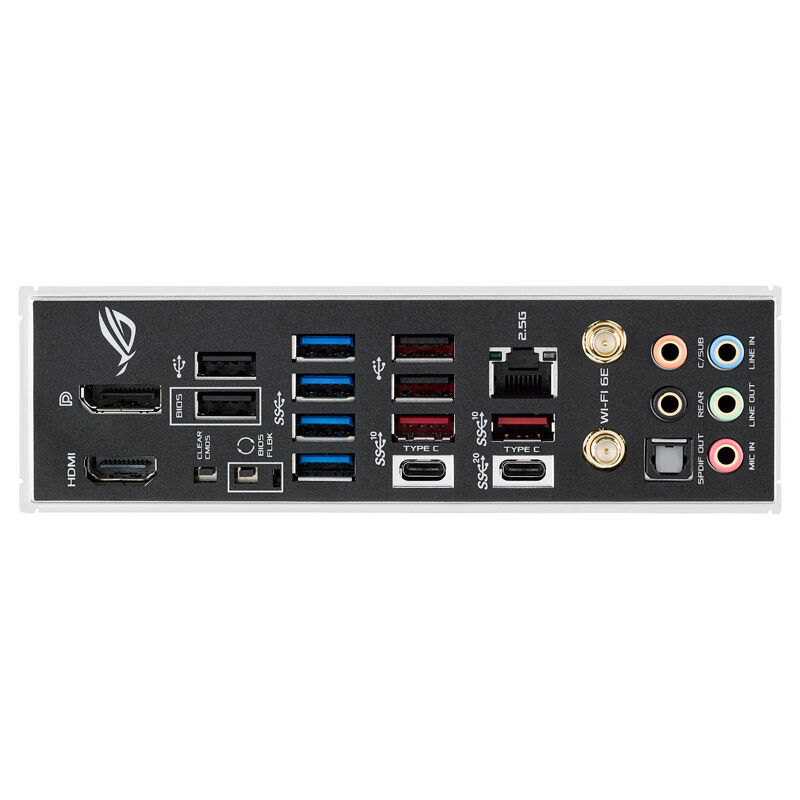

– External Connectors:
– 1x USB-C (USB 3.2 Gen 2×2, max. 20 Gbps)
– 2x USB-A 3.1 (USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB-C 3.1 (USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x Wi-Fi module
– 1x RJ-45 (Intel I225-V, max. 2.5 Gbit/s)
– 2x antenna connection (Intel Wi-Fi 6E, WLAN ax, Bluetooth 5.2)
– 5x 3.5 mm jack
– 1x Optical S/PDIF Out
– 1x BIOS FlashBack button
– 1x Clear CMOS button
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin ATX/EPS 12V
