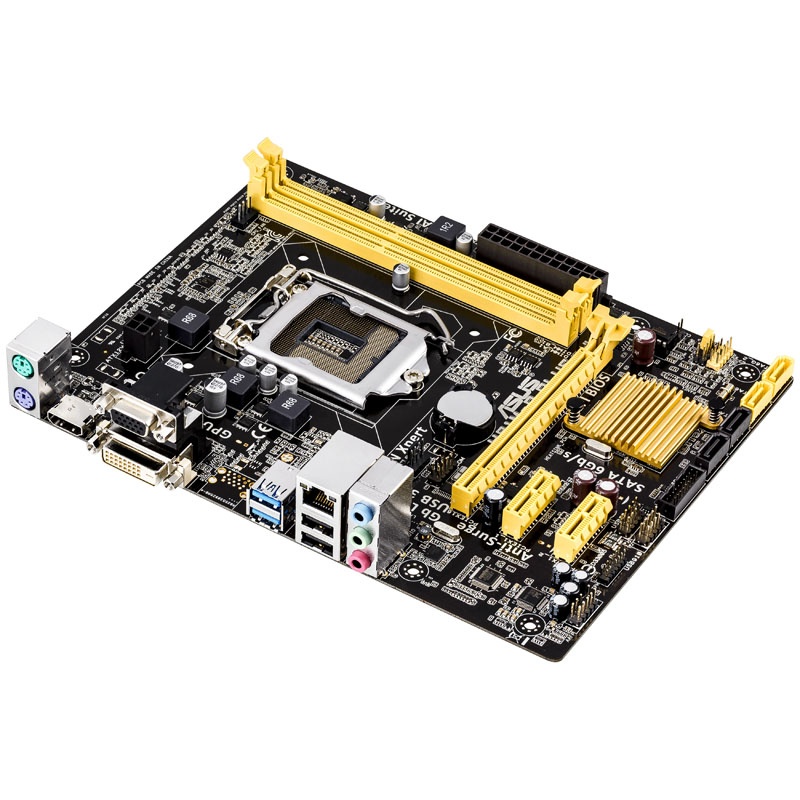

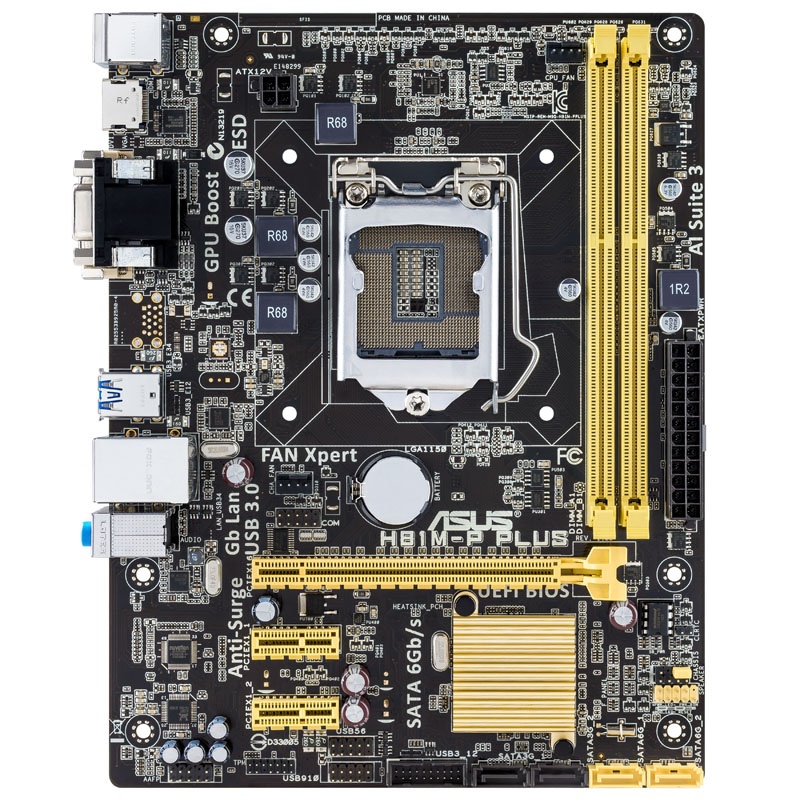

When ASUS H81M-P Plus is a well-equipped H81 motherboard, which is the perfect base, particularly for processors of the Core i7 or Core i5 series. The black board with many gold accents comes with two DIMM slots for DDR3 memory in the fast dual channel mode. The onboard sound chip from Realtek (ALC887) can be used via the three analog jacks and play eight channels sound.
The connectivity falls extensively from that MicroATX board provides a total of (partly external and partly internal) four USB 3.0 and six USB 2.0 ports available and manages hard drives and SSDs on two SATA 6G and two SATA II ports (incl. 12 and RST RAID support). Expansion cards come in under two PCI x1 slots and video card is a PCI Express slots available.
To use the integrated graphics unit (iGPU) many Haswell CPUs can be found on the I / O Shield of ASUS H81M-P Plus one HDMI, one DVI-D and a VGA output, said iGPUs the Core-i allow the image output to three monitors simultaneously the fourth generation processors.
Technical details:
Format: Micro ATX
Color: Black, Gold
Chipset: Intel H81
Socket 1150 (for Intel Core-i CPUs 4th generation Haswell)
RAM: 2x DDR3 (regularly DDR3-1.600 MHz)
Dual-Channel
Slots (physically):
1x PCIe x16
Compatible Multi-VGA configurations: CrossFireX
2x PCIe x1
Internal connections:
2x SATA 6G
2x SATA II
2x USB 3.0 (1x header by ASMedia ASM1042))
4x USB 2.0 (2x header)
1x Chassis Intrusion Connector
1x Serial port (COM port header)
1x S / PDIF output
2x fan
Power / reset / LED / front-Audio
External connections:
1x PS / 2 keyboard
1x PS / 2 mouse
2x USB 3.0
2x USB 2.0
1x Gigabit LAN (Intel I218V)
3x audio
1x HDMI
1x DVI-D
1x VGA (D-Sub)
Power supply:
1x 24-pin EATX
1x 4-pin ATX 12V
