MSI MAG Z890 Tomahawk WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

– 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x4
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9200 MHz
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4, 1x USB-C 3.2, 3x USB 3.1, and 4x USB 3.0
– A total of 8x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

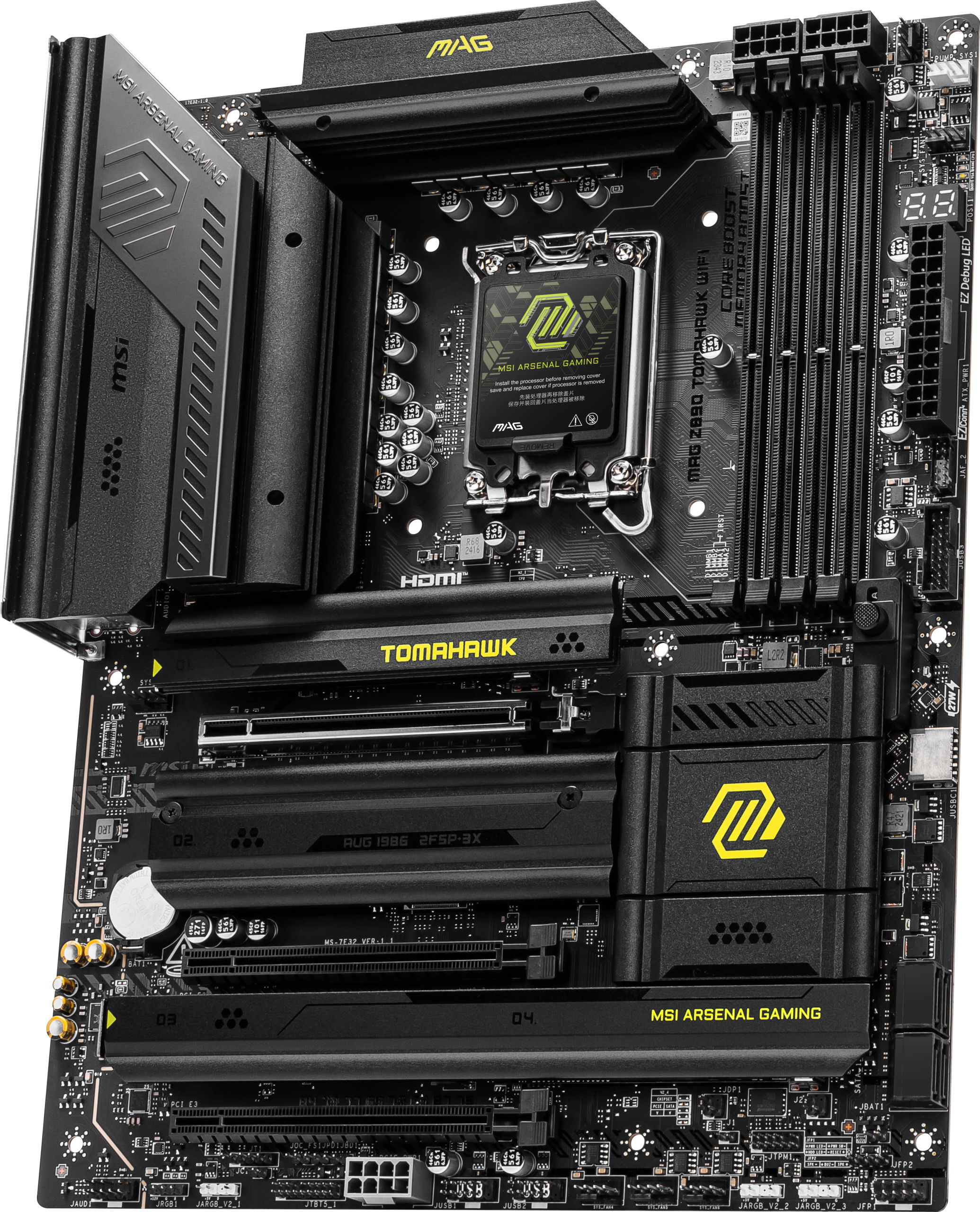

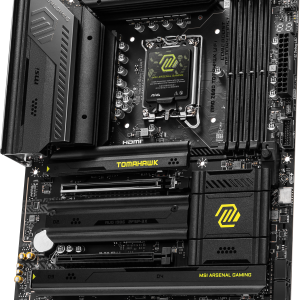

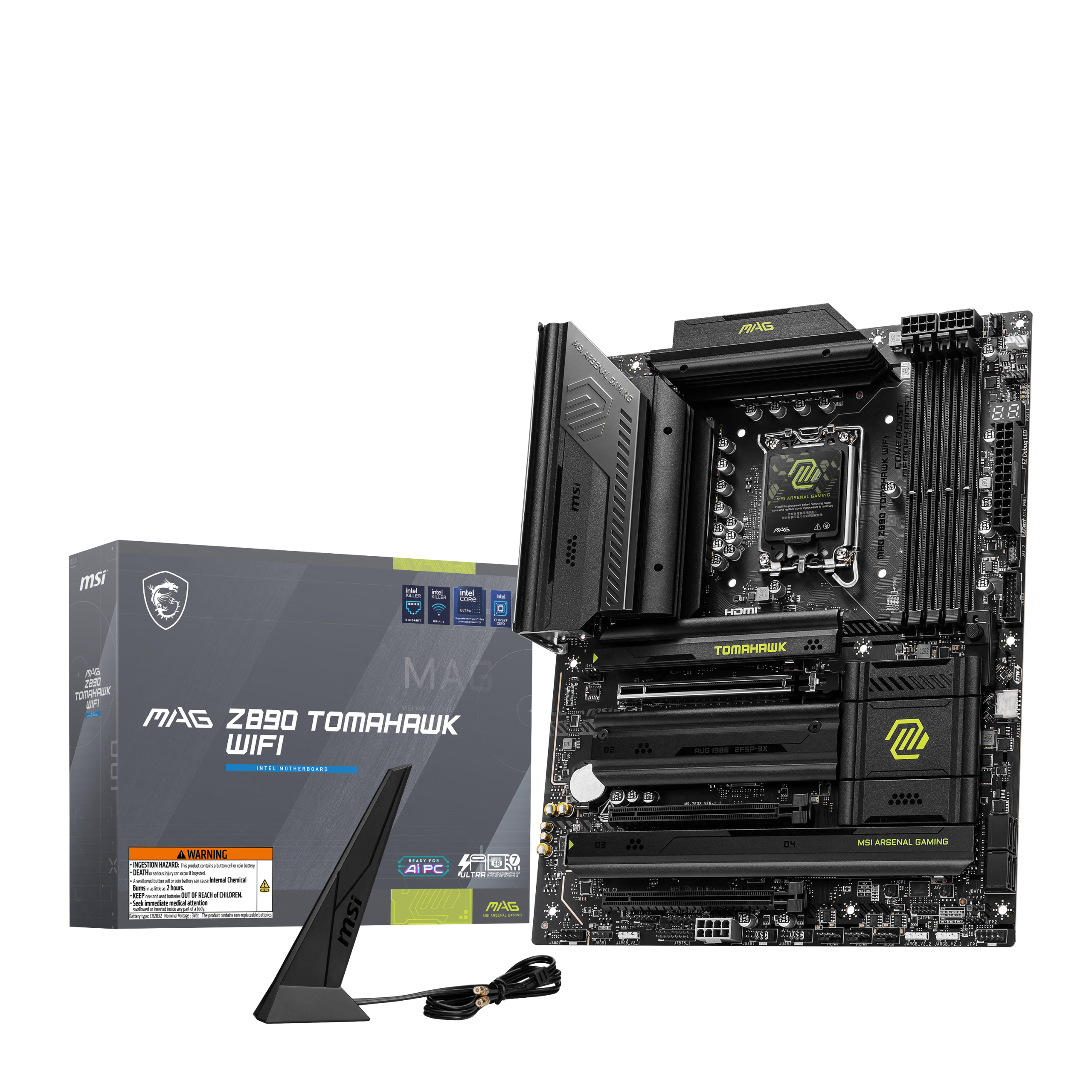

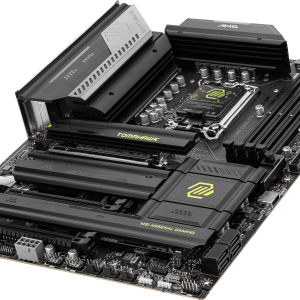

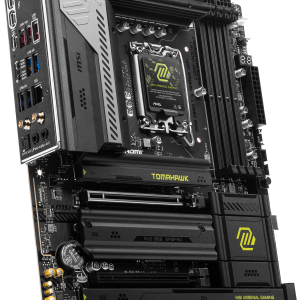

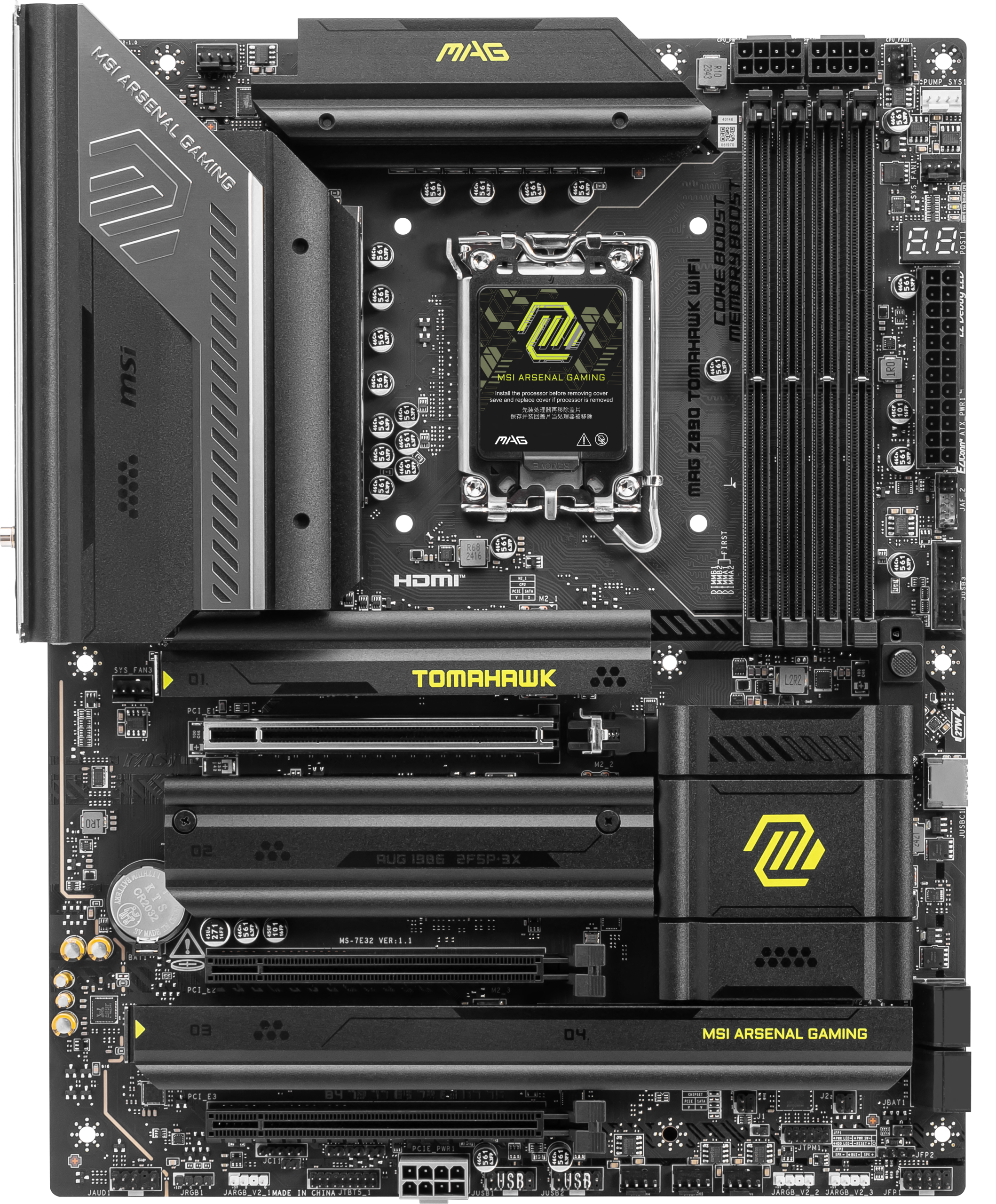

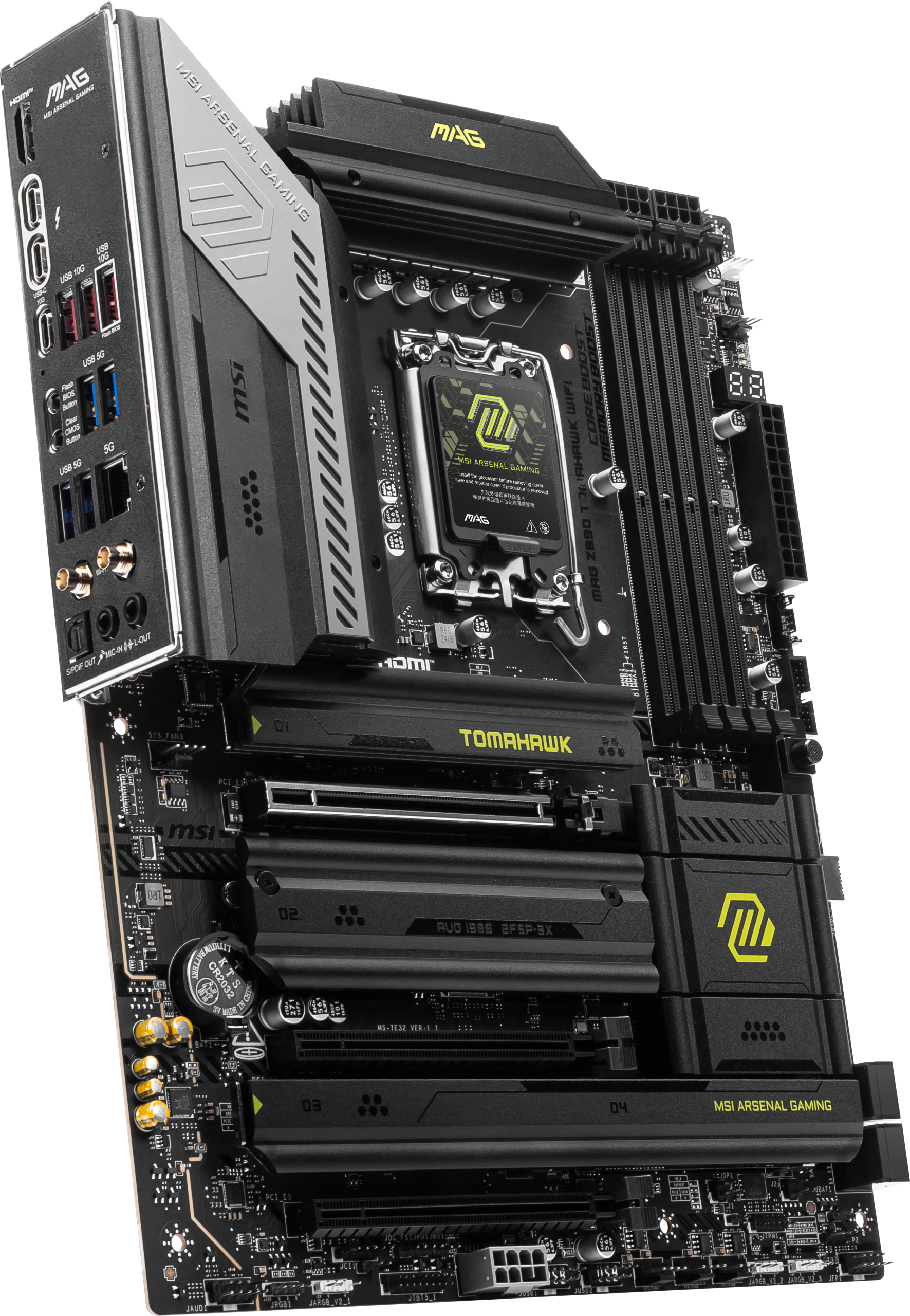

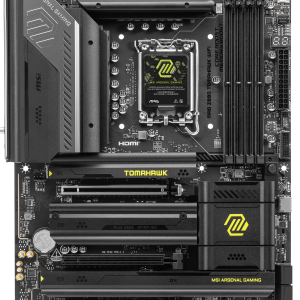

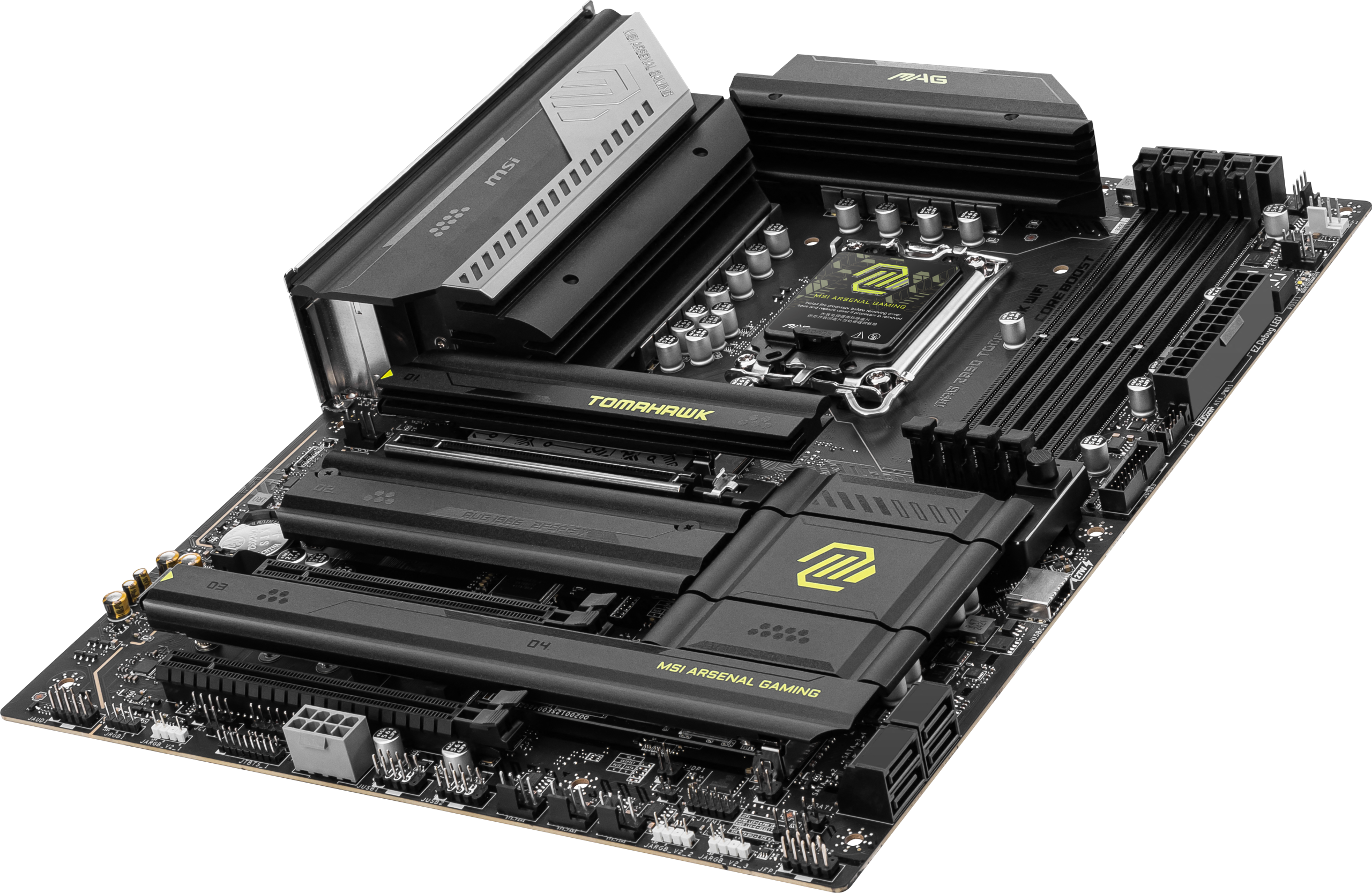

MSI MAG Z890 Tomahawk WiFi: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The MSI MAG Z890 Tomahawk WiFi is an ATX motherboard with the high-end Intel chipset Z890 and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the MSI MAG Z890 Tomahawk WiFi boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Gaming
The MSI MAG Z890 Tomahawk WiFi was specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruption. The first-class voltage converters ensure a stable power supply to the CPU, ensuring it operates reliably even at high clock speeds for extended periods. The DDR5 RAM can also be overclocked to higher clock speeds.

Technical Details
Form Factor:
– ATX (244 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMMs (up to 9,200 MHz via OC / XMP 3.0)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 2x PCIe 4.0 x4 (electrical x4, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 22110 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x chassis intrusion
– 1x Thunderbolt 5 card connector
– 2x front panels
– 1x front audio
– 1x TPM header (2.0)
– 1x ARGB fan USB 2.0 header
– Fan header:
– 1x CPU fan (4-pin)
– 1x Pump_Sys (4-pin)
– 6x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x RGB

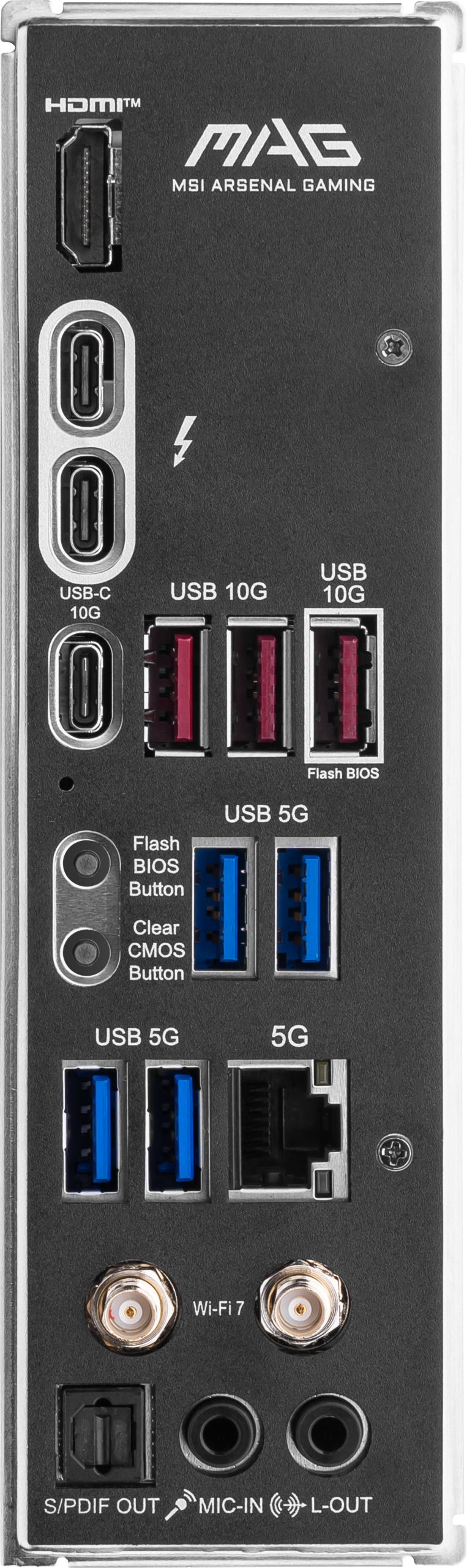

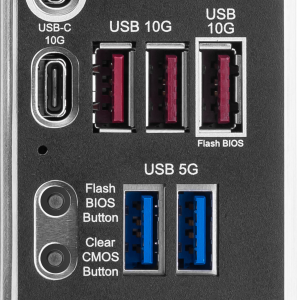

– External connections:
– 2x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2 max. 10 Gbit/s)
– 3x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 1x 5 Gigabit LAN (Killer E500)
– 2x 3.5 mm jack (Realtek ALC 1220P)
– 1xHDMI
– 1x DisplayPort
– 1x Flash BIOS button
– 1x Clear CMOS button
– 1x S/PDIF out
– 2x WiFi/Bluetooth module
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
– 1x 8-pin PCIe
