ASUS B150 Plus D3, Intel B150 Mainboard - Socket 1151

Skylake CPUs are especially economical in energy consumption as a direct predecessor models and are equipped with an improved integrated graphics processor. A maximum of twelve USB ports, six support the fast 3.0 standard from which to be able to be provided on the B150 motherboards. For hard drives and SSDs are up to six ports in SATA 6G standard prepared from these, up to two ports are used for connection with SATA Express. As a small highlight many B150 boards offer a slot for extremely fast M.2 SSDs.

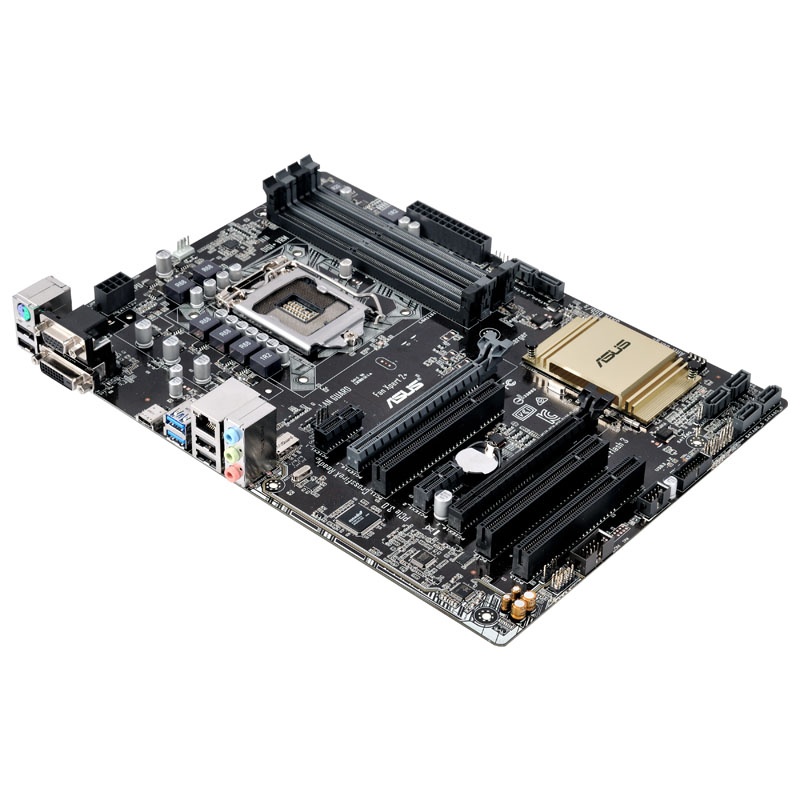

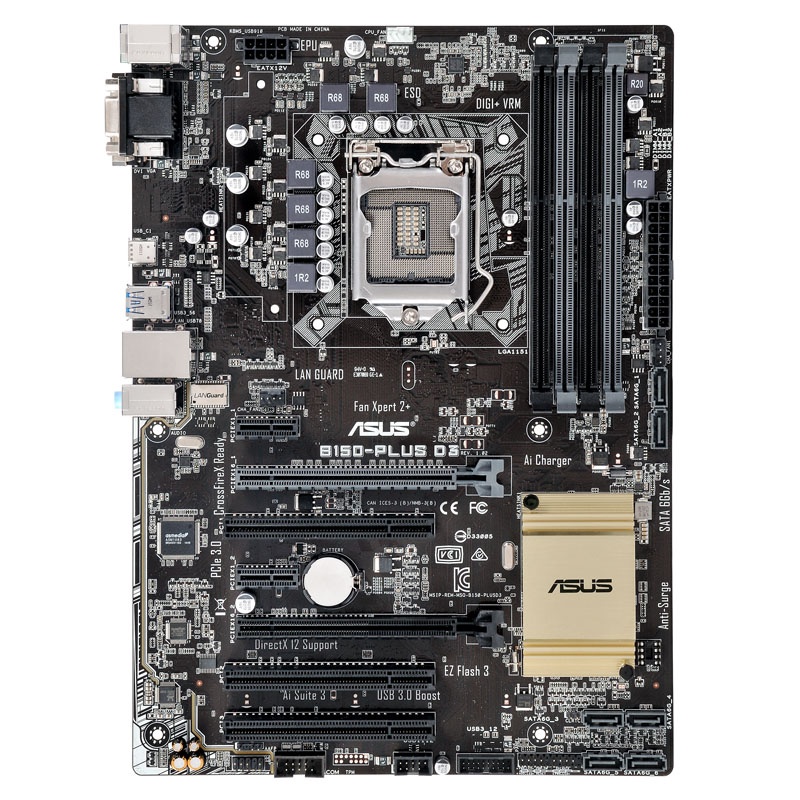

When ASUS B150 Plus D3 is a well-equipped B150 mainboard in ATX format, which represents an ideal basis for especially fast quad-core processors of the Core i7 or Core i5 series of Intel. The black motherboard has four DIMM slots for memory DDR3L with a particularly low voltage of 1.35 volts in the fast dual-channel mode. Insertion and expansion cards come with two PCIe x1 and three PCI slots, while the board for graphics cards a PCIe 3.0 x16 slot and another slot in x16 format provides, with four lanes in PCIe 3.0 is connected standard.

For the video output of the built-in Skylake CPU GPU are at the back of the motherboard with two DVI and VGA ports. Among the many features of ASUS motherboards include an integrated Gigabit LAN port with Realtek RTL8111GR chipset, excellent 7.1 sound, six SATA 6G ports, a USB 3.0 port (Type C, 3 A power output, max. 5 Gb / s), six USB -2.0- and four USB 3.0 ports, three fan connectors, depending on a COM and TPM header and a chassis intrusion connector.

Technical details:

    Format: ATX
    Color: Black
    Chipset: Intel B150 (Sunrise Point)
    Socket 1151 (for Intel CPUs the 6th generation Core Skylake)
    RAM: 4 x DDR3L
    Dual-Channel
    Slots (physically):
    1 x PCIe 3.0 x16
    1 x PCIe 3.0 x16 (electrical x4)
    Compatible Multi-VGA configurations: dual-GPU CrossFireX
    2 x PCIe x1
    3 x PCI
    Internal connections:
    6 x SATA 6G
    2 x USB 3.0 (a header)
    2 x USB 2.0 (a header)
    1 x Serial port (COM header)
    1 x Clear CMOS jumper
    3 x fan (4-pin)
    Power / reset / LED / front-Audio
    External connections:
    1 x PS / 2 keyboard / mouse
    1 x USB 3.0 (Type C, 3 A power output, max. 5 Gb / s)
    2 x USB 3.0
    4 x USB 2.0
    1 x Gigabit LAN (Realtek RTL8111GR)
    1 x DVI-D
    1 x VGA
    3x audio (Realtek ALC887)
    Power supply:
    1 x 24-pin EATX
    1 x 8-pin ATX 12V
