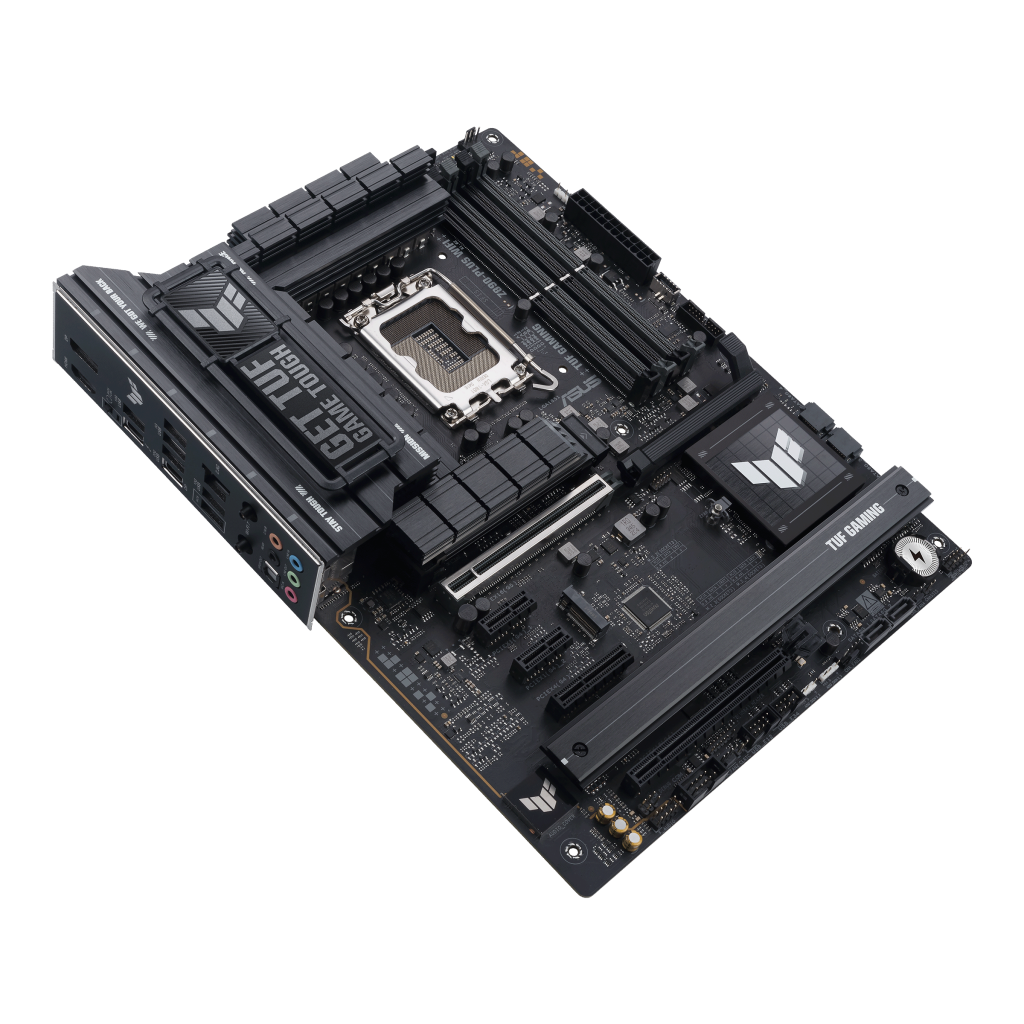

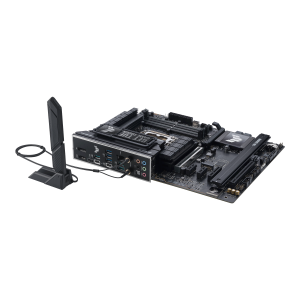

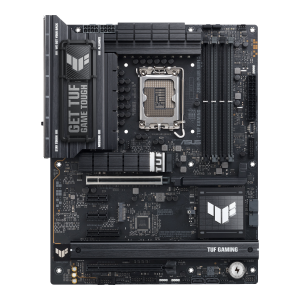

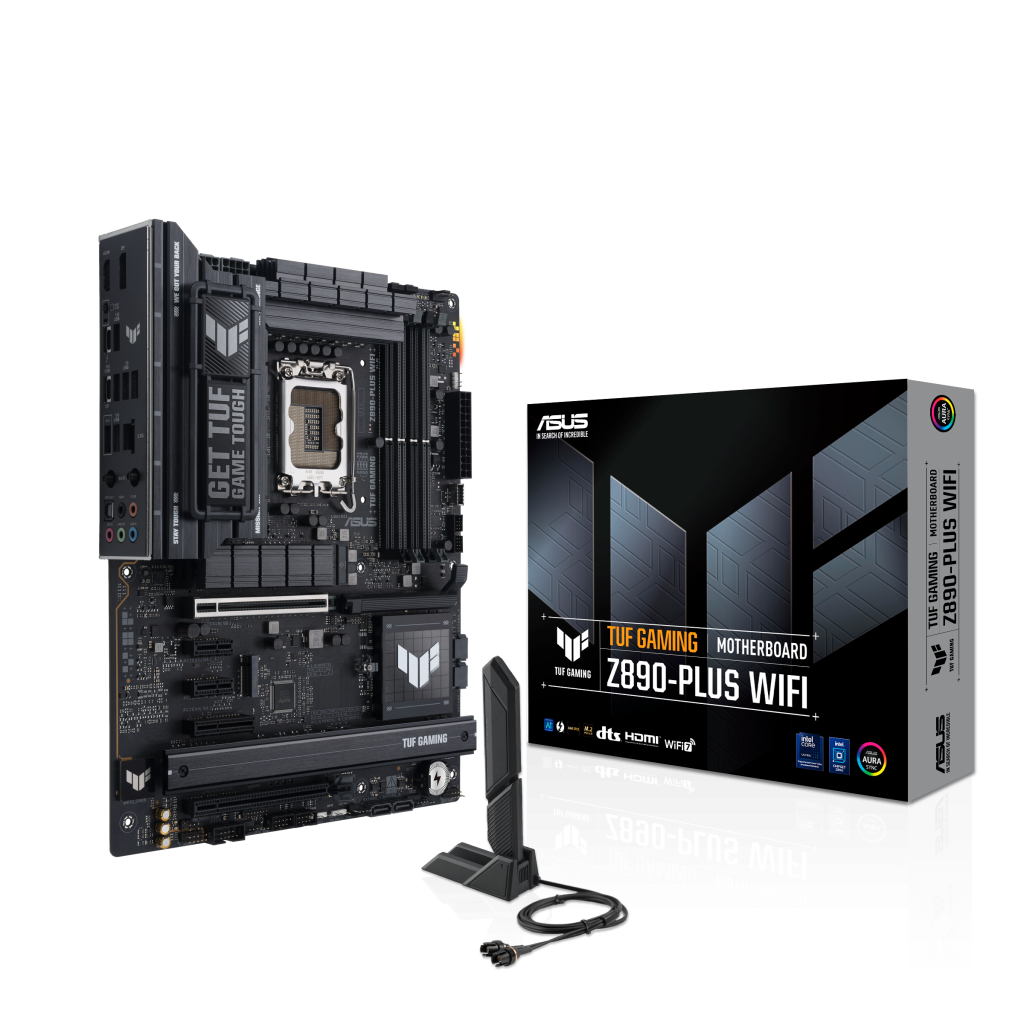

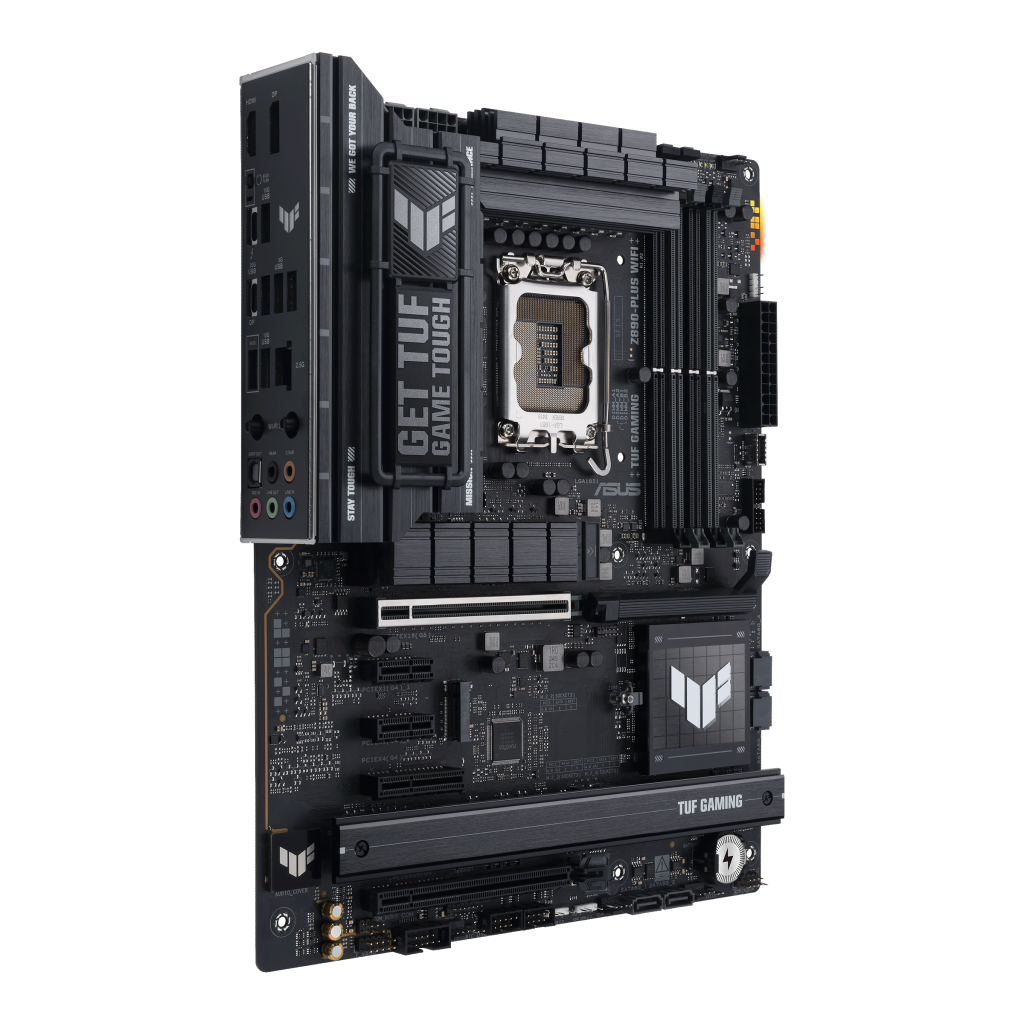

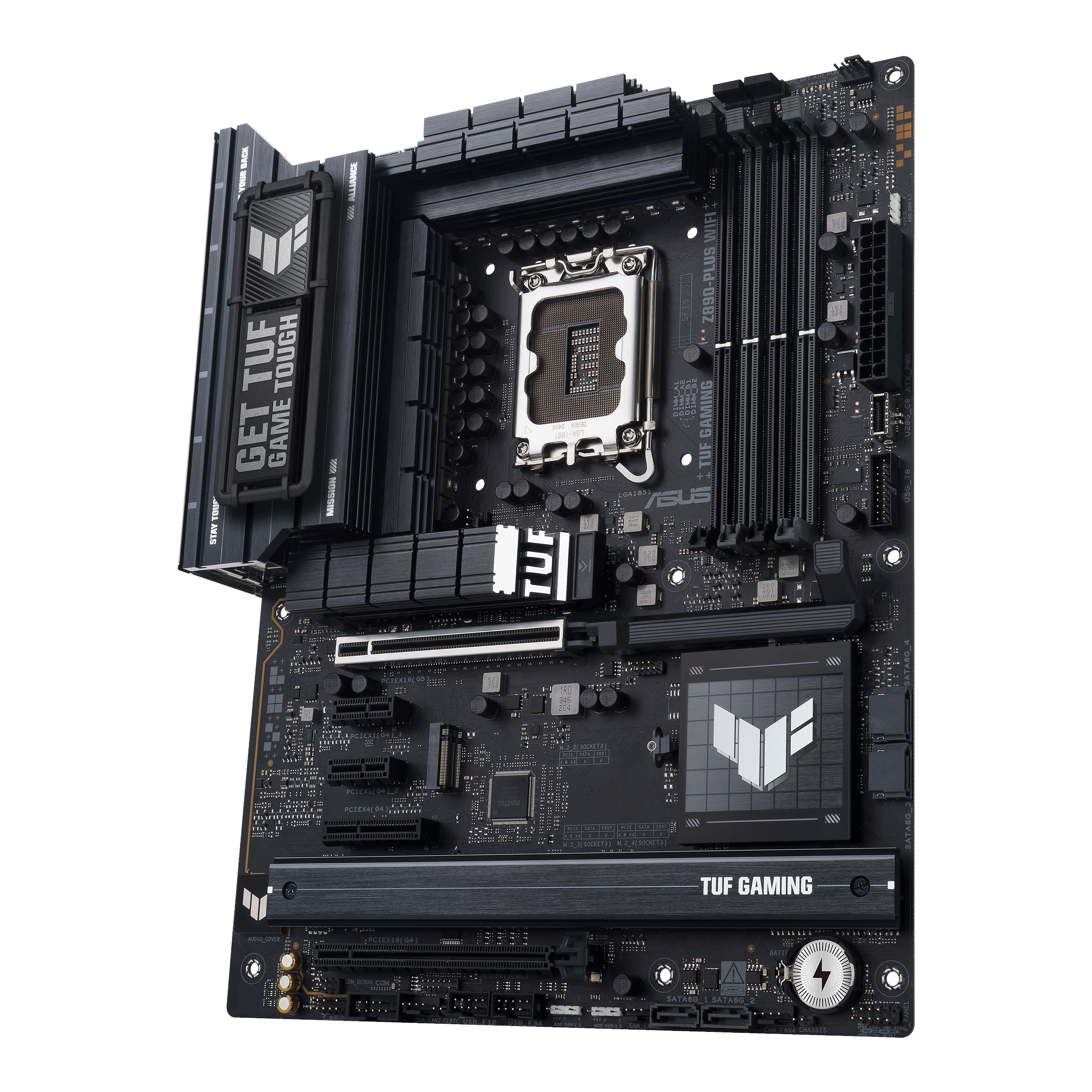

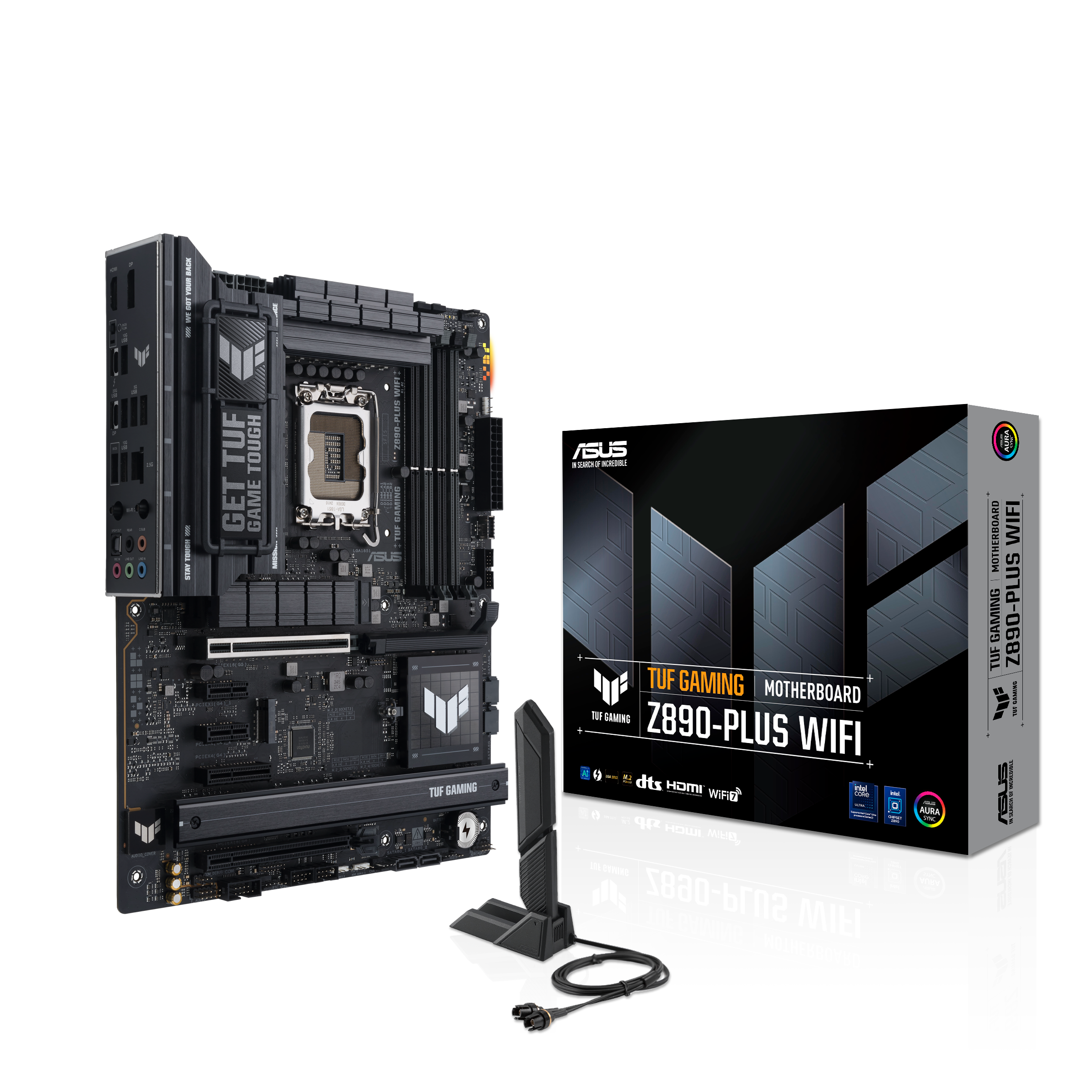

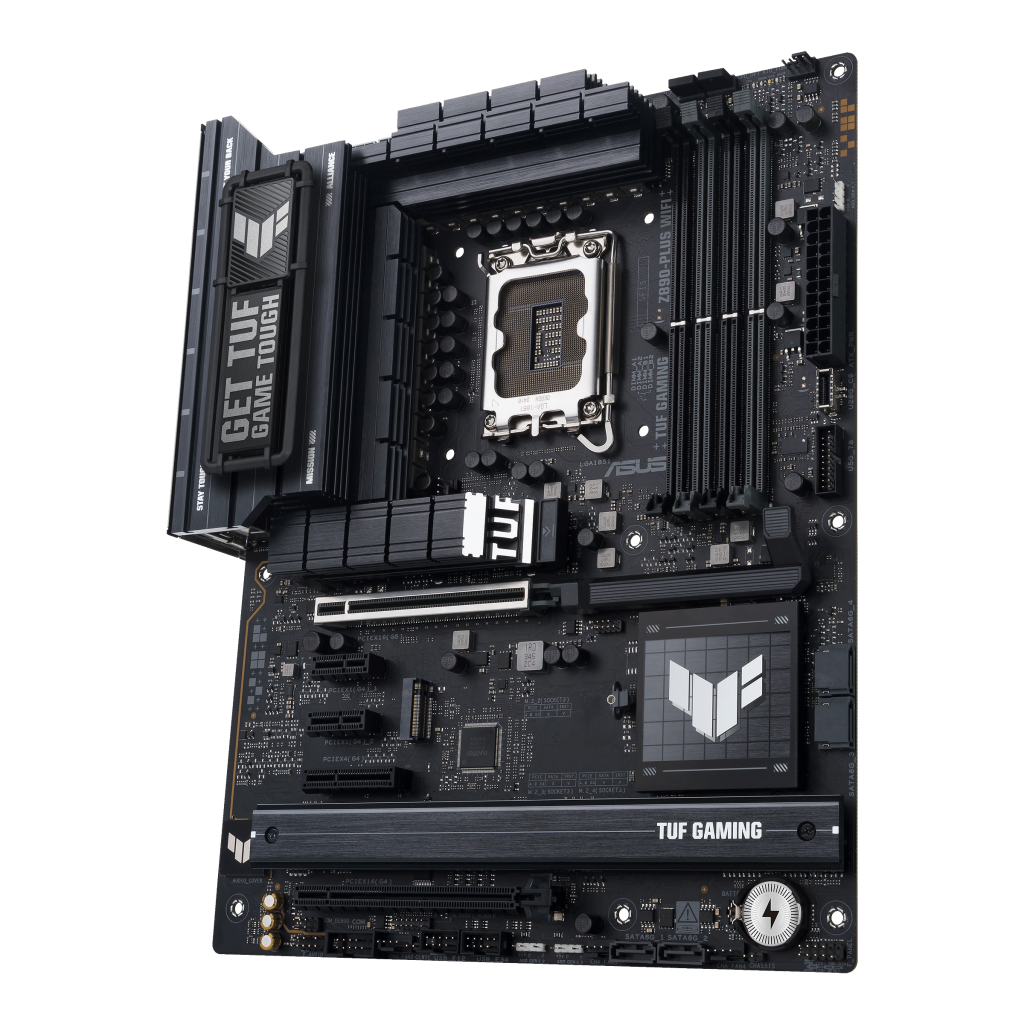

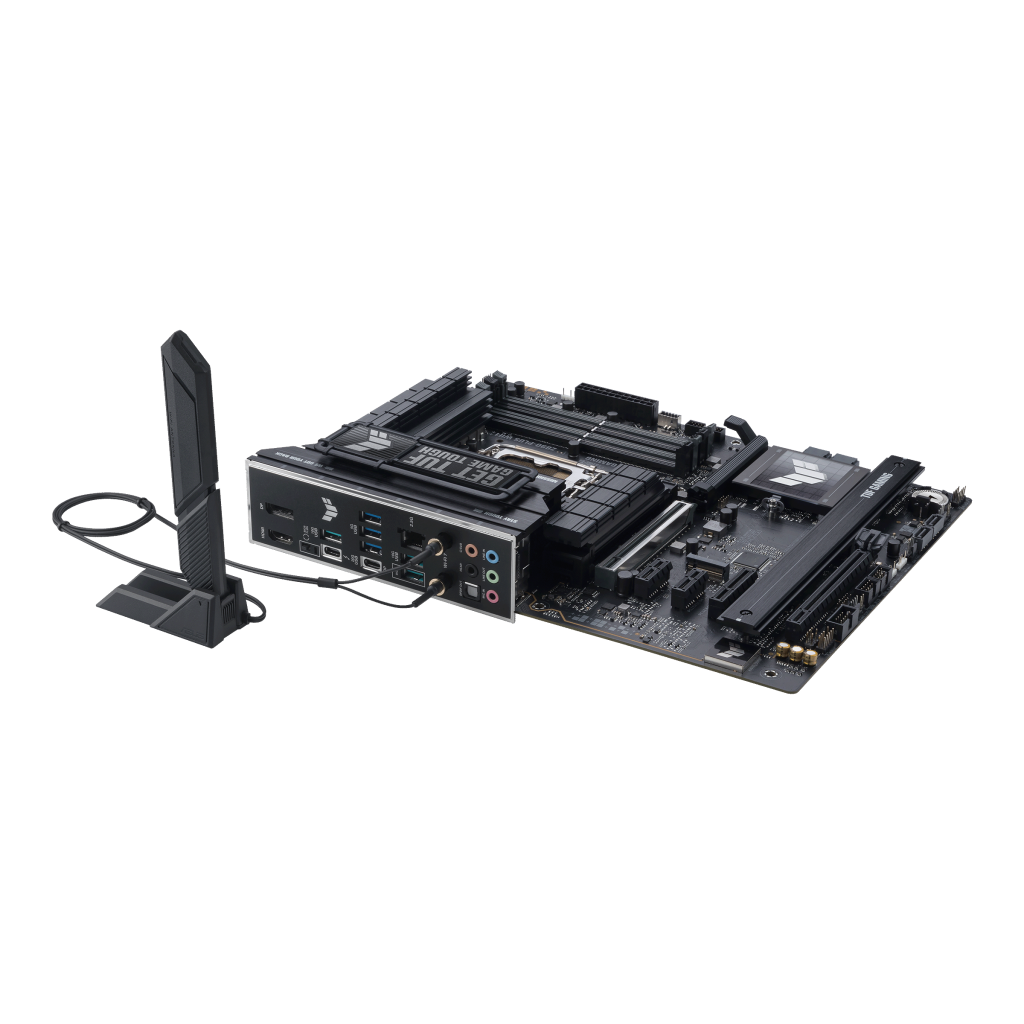

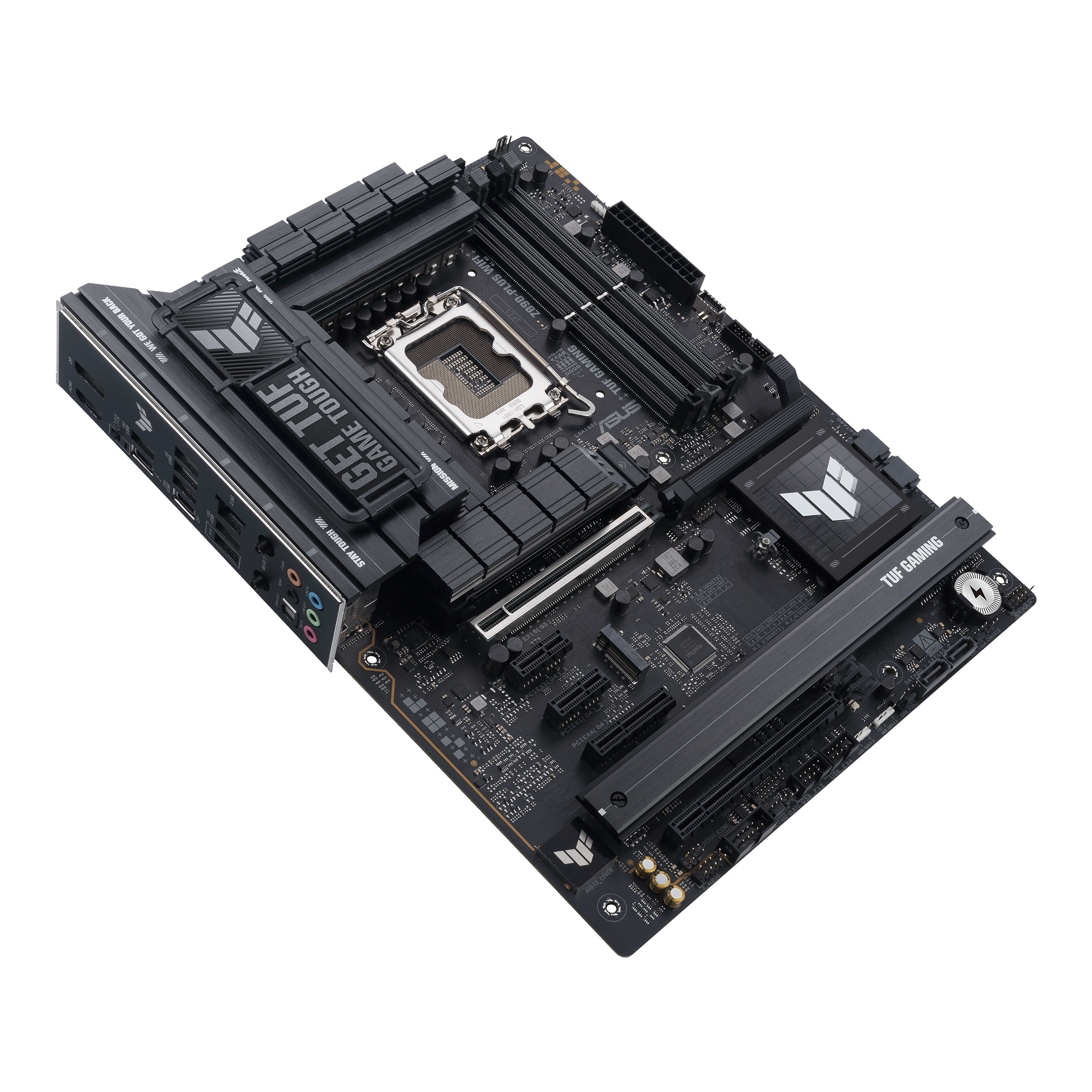

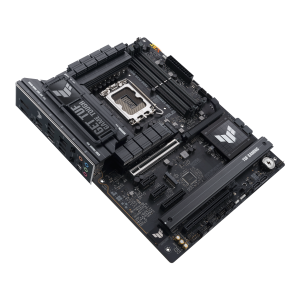

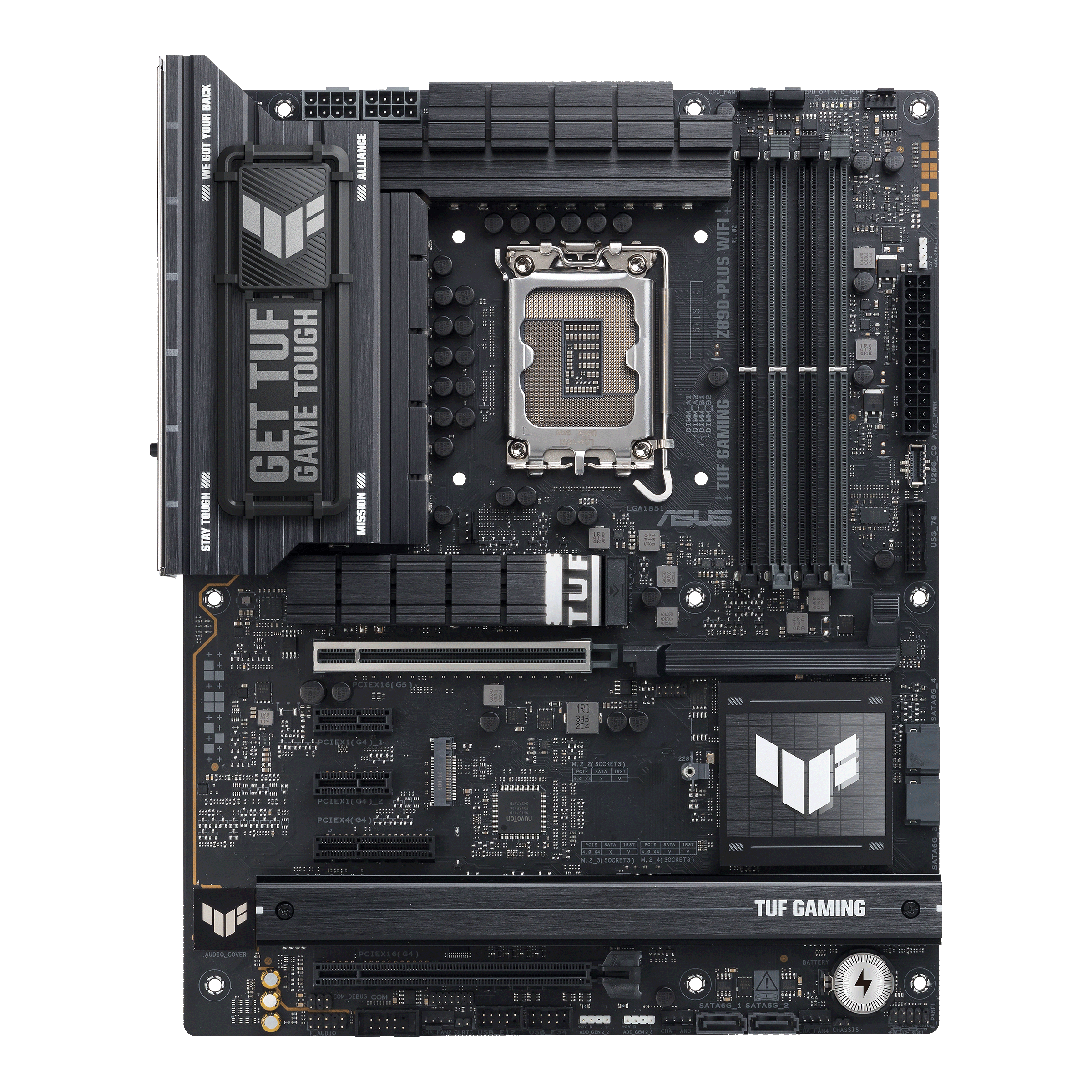

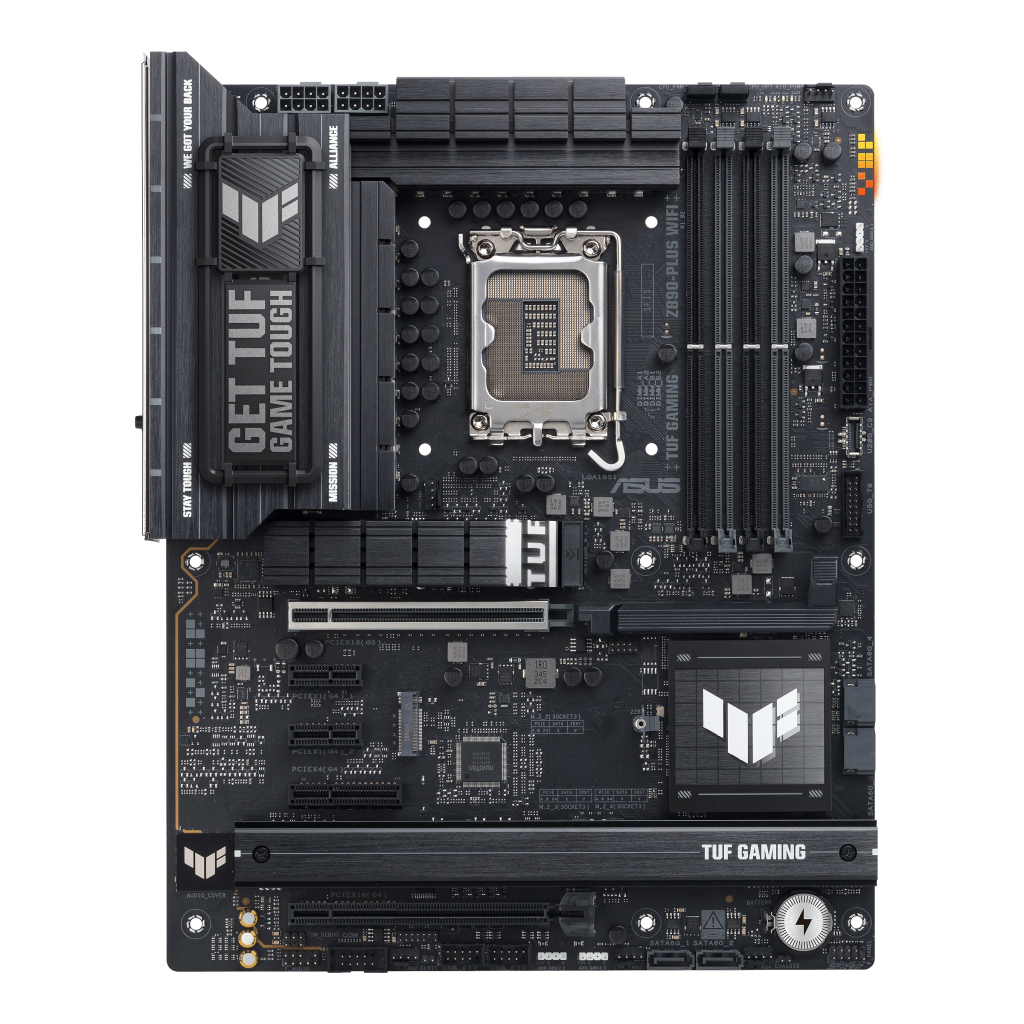

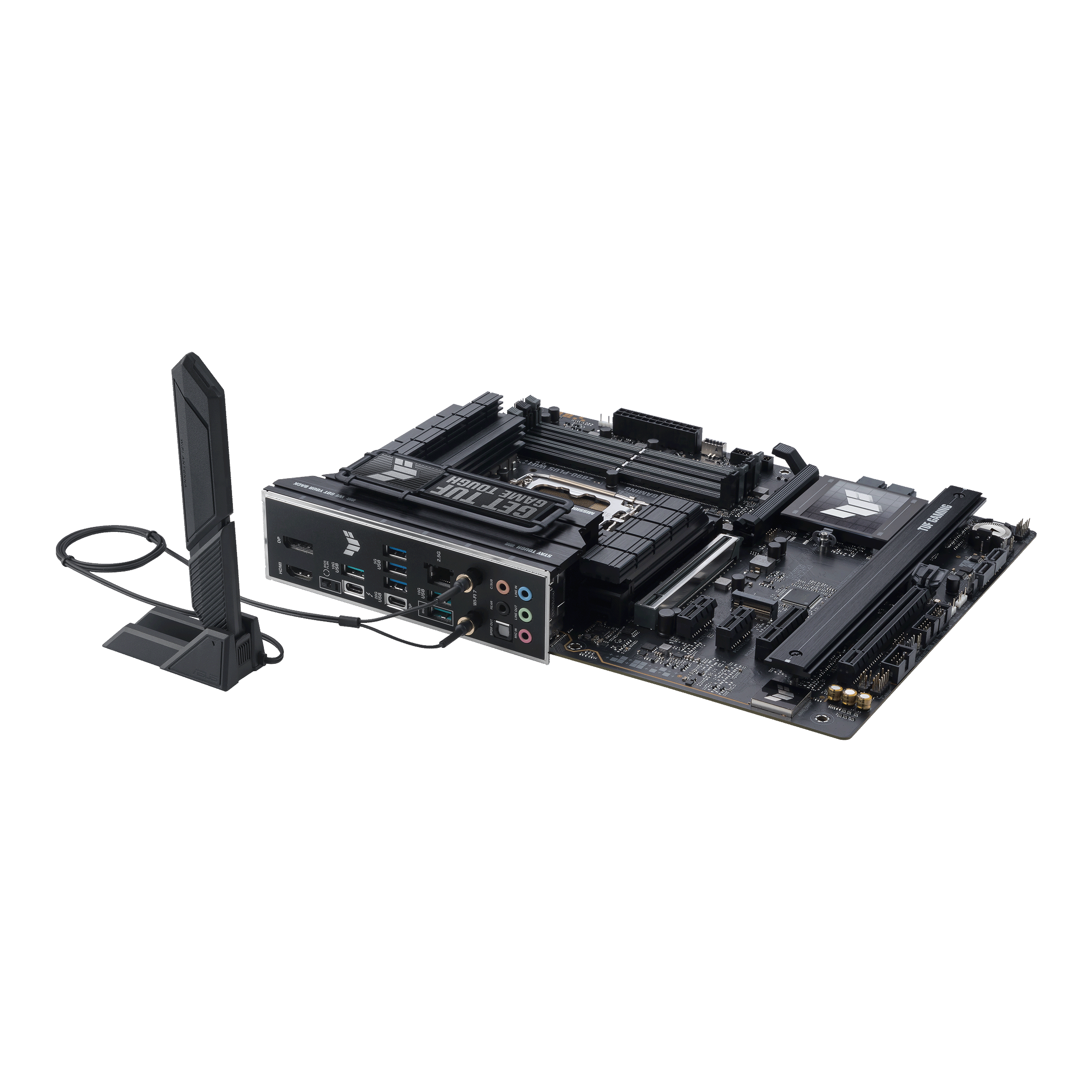

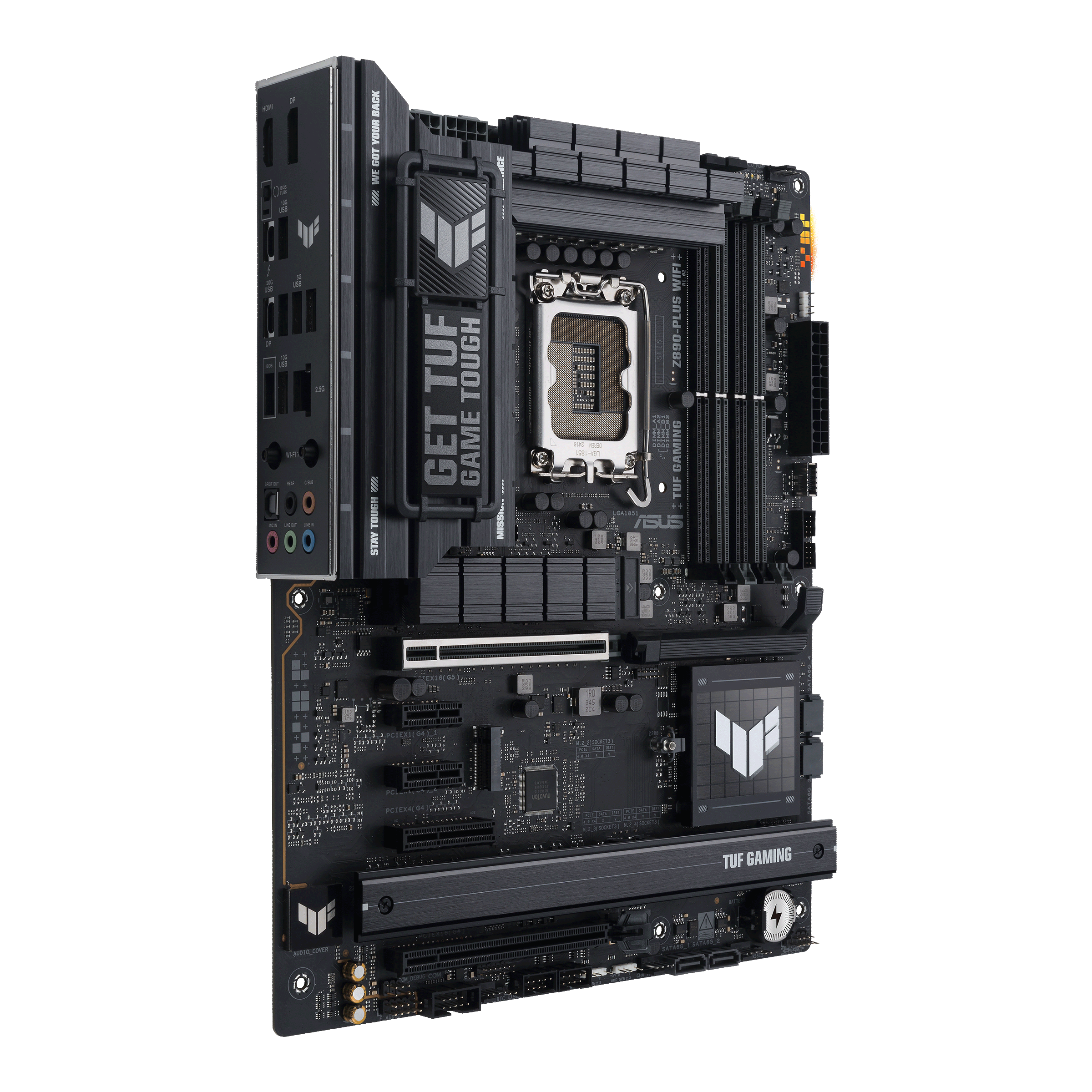

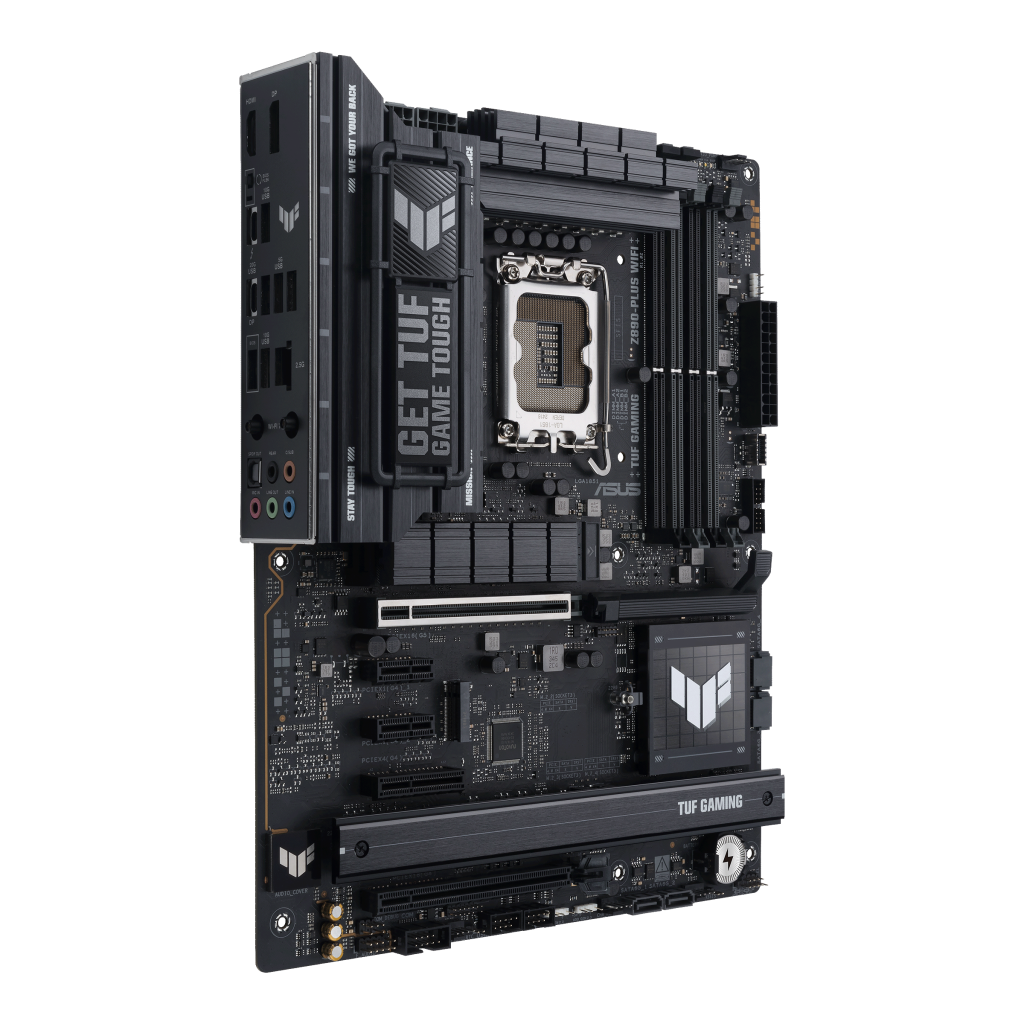

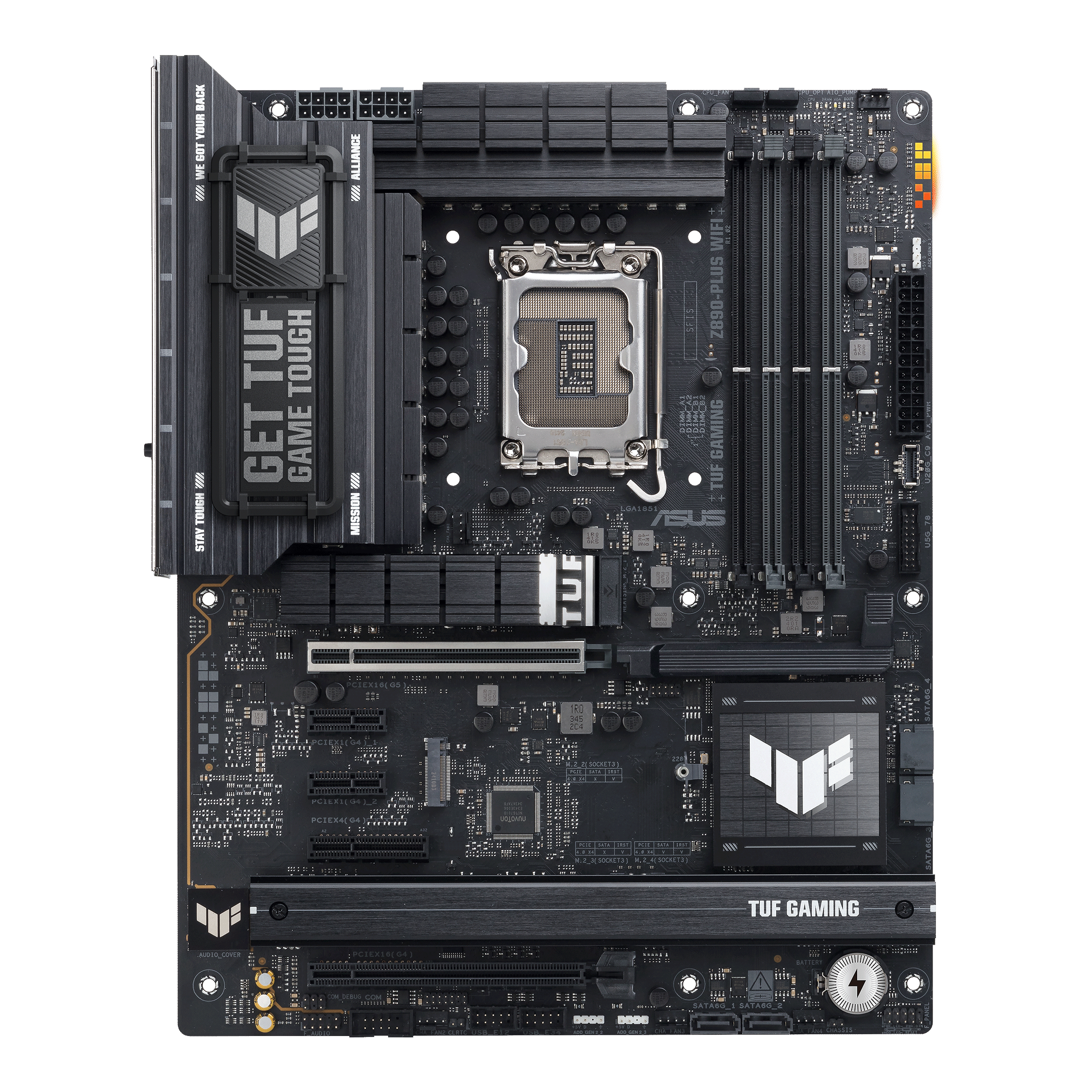

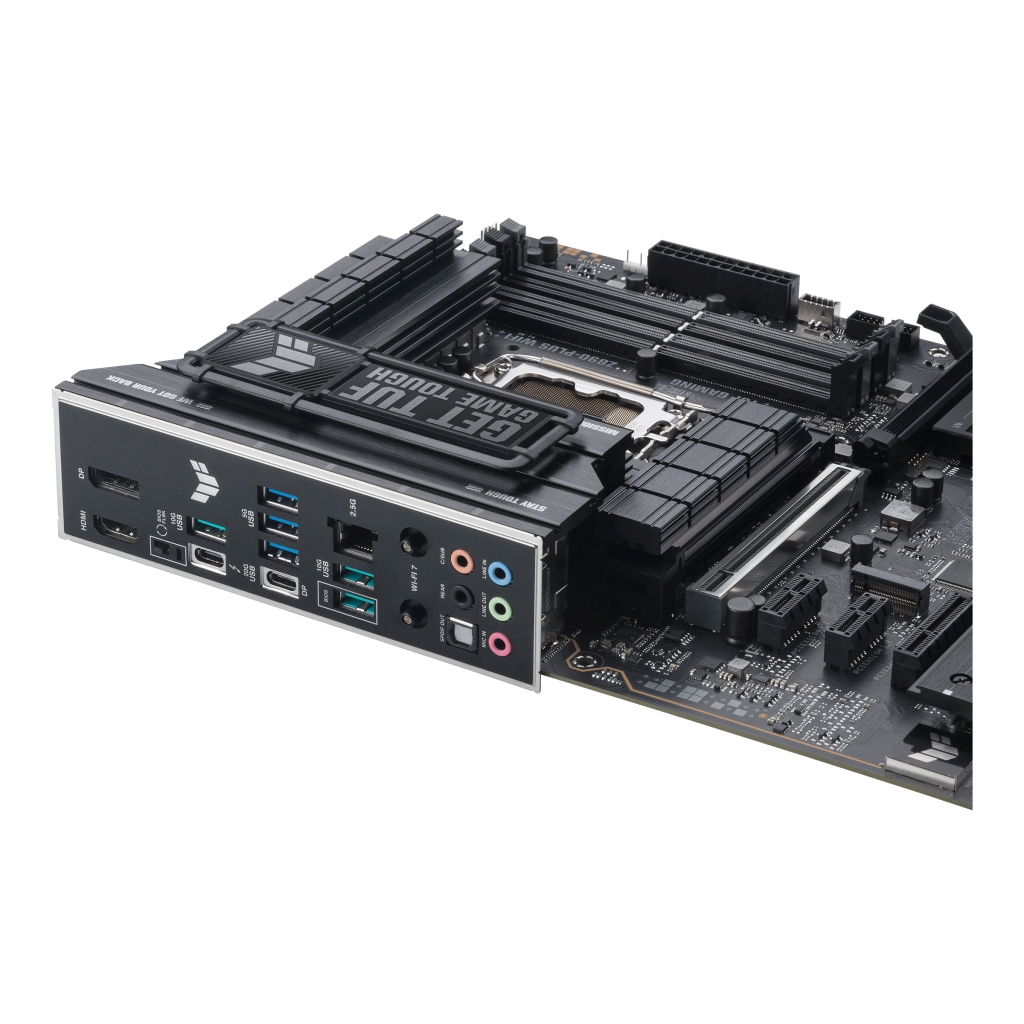

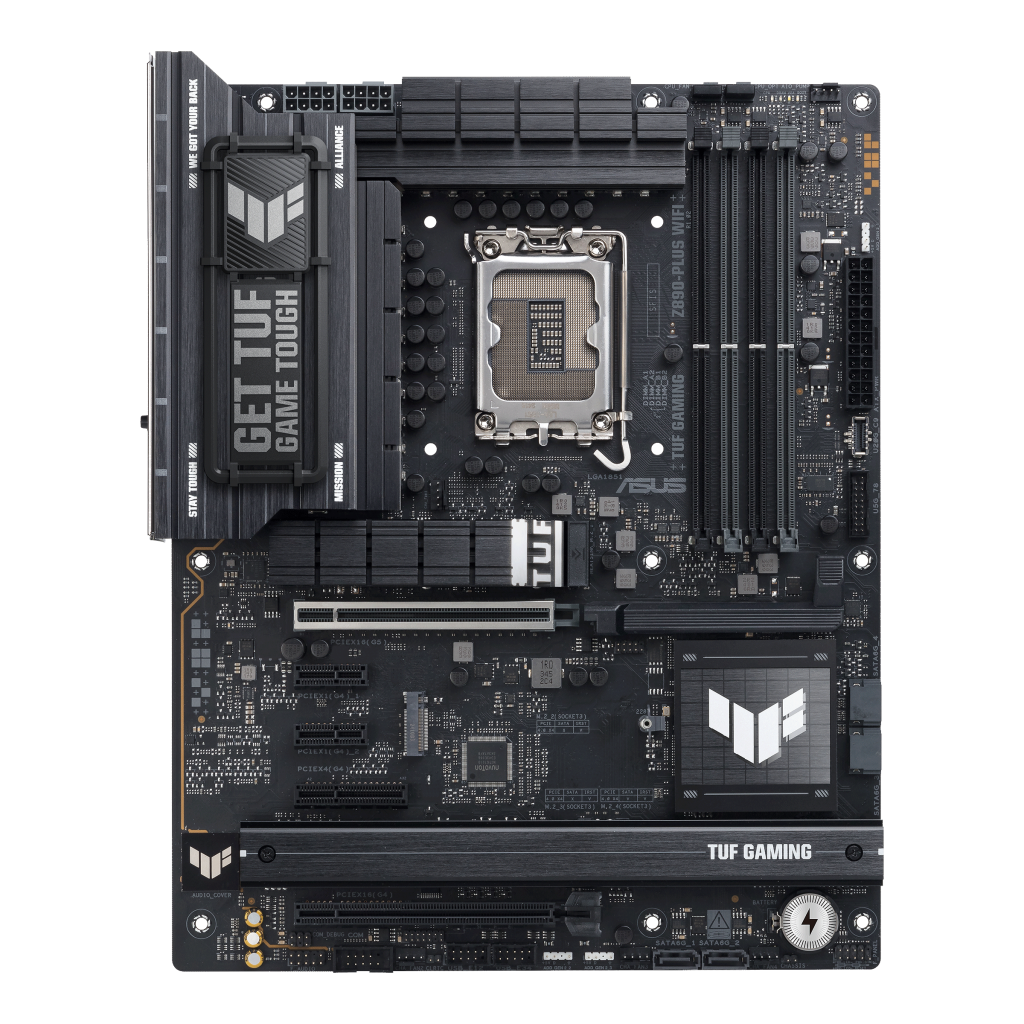

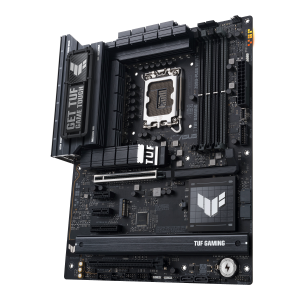

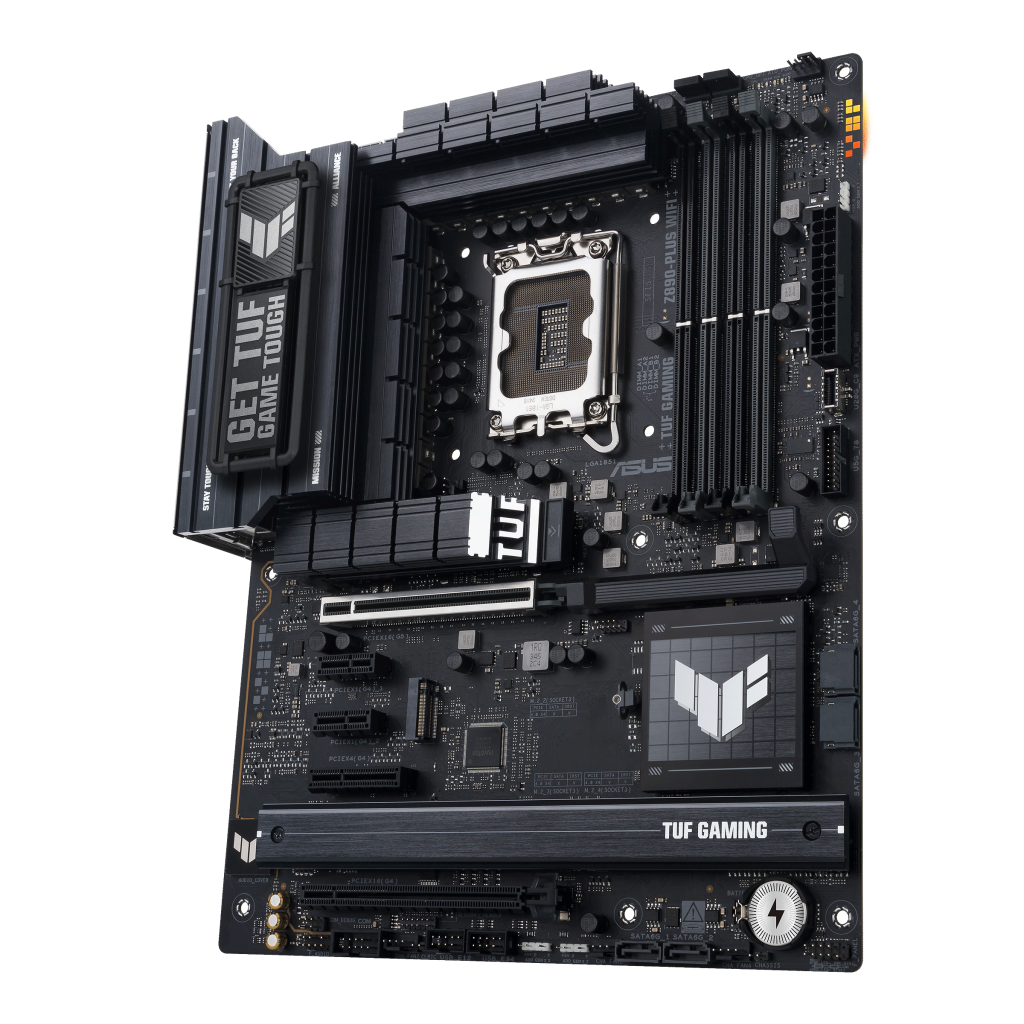

ASUS TUF Gaming Z890-Plus WiFi motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This motherboard is ideal for enthusiasts, content creators, and gamers.

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4, and 2x PCIe 4.0 x1
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8,600 MHz (XMP 3.0 support)
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 1x USB 4, 1x USB Type-C 3.2, 3x USB 3.1, 3x USB 3.0
– OC features: Digi+, BIOS FlashBack button
– A total of 7x 4-pin connectors for fans and pumps

ASUS TUF GAMING Z890-PLUS WIFI: ATX motherboard with Intel LGA 1851 socket and Z890 Chipset
The ASUS TUF GAMING Z890-PLUS WIFI is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS TUF GAMING Z890-PLUS WIFI features full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMMs (up to 8,600 MHz using XMP)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8)
– 1x PCIe 4.0 x16 (electrical x4)
– 1x PCIe 4.0 x4
– 1x PCIe 4.0 x1
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4 2280, CPU)
– 1x M.2 (PCIe 4.0 x4 2280 / 22110, chipset)
– 1x M.2 (PCIe 4.0 x4 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 1x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 1 x Clear CMOS header
– 1 x Chassis Intrusion header
– 1 x COM port header
– 1 x Front Panel Audio header (F_AUDIO)
– 1 x 10-1 pin front system panel header
– 1 x Thermal Sensor header
– 1 x Thunderbolt (USB4) header
– Fan header:
– 1 x 4-pin CPU Fan header
– 1 x 4-pin CPU OPT Fan header
– 1 x 4-pin AIO Pump header
– 4 x Case fans (4-pin)

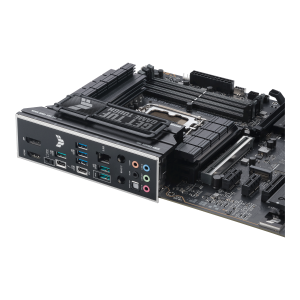

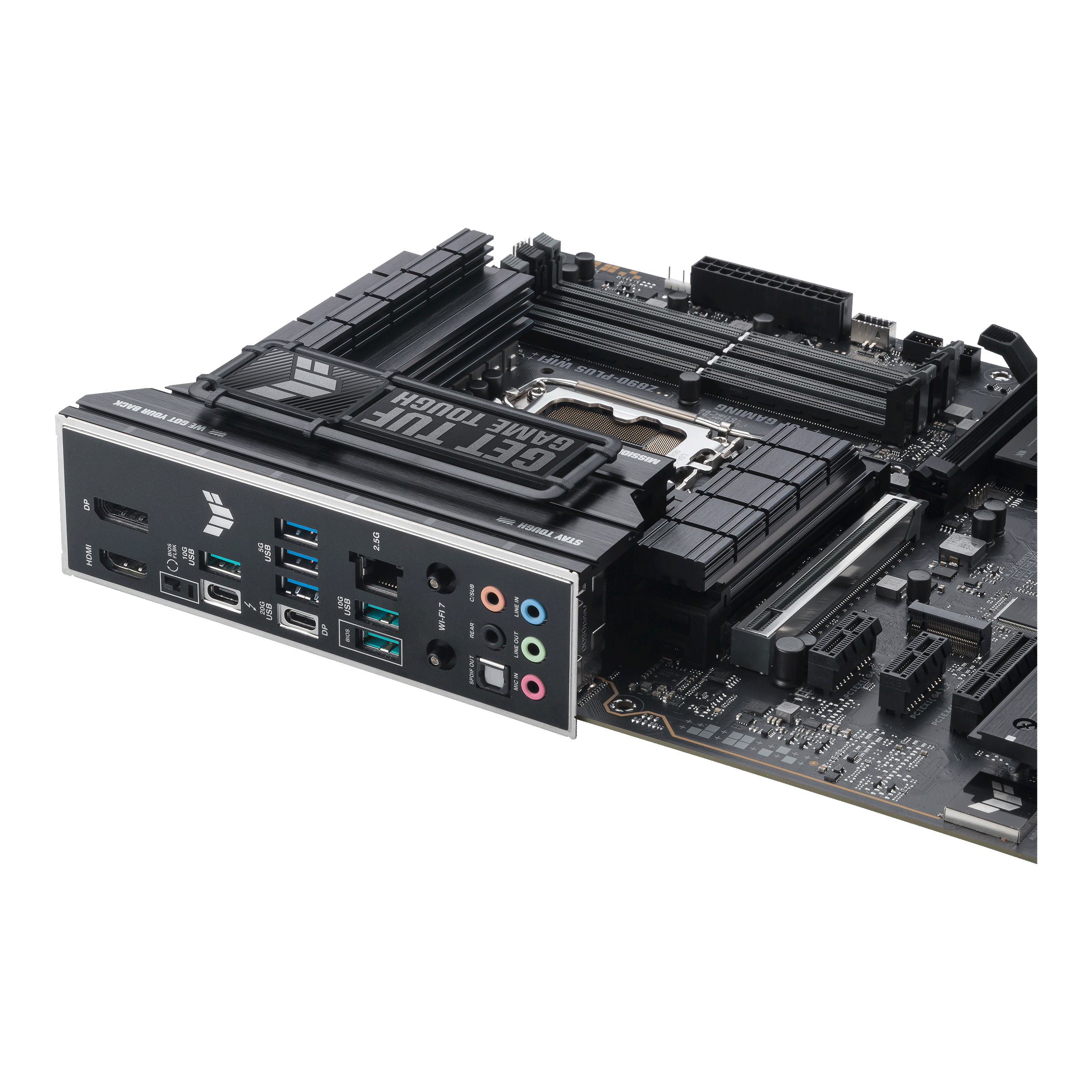

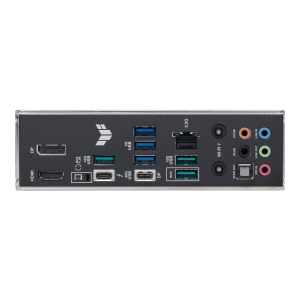

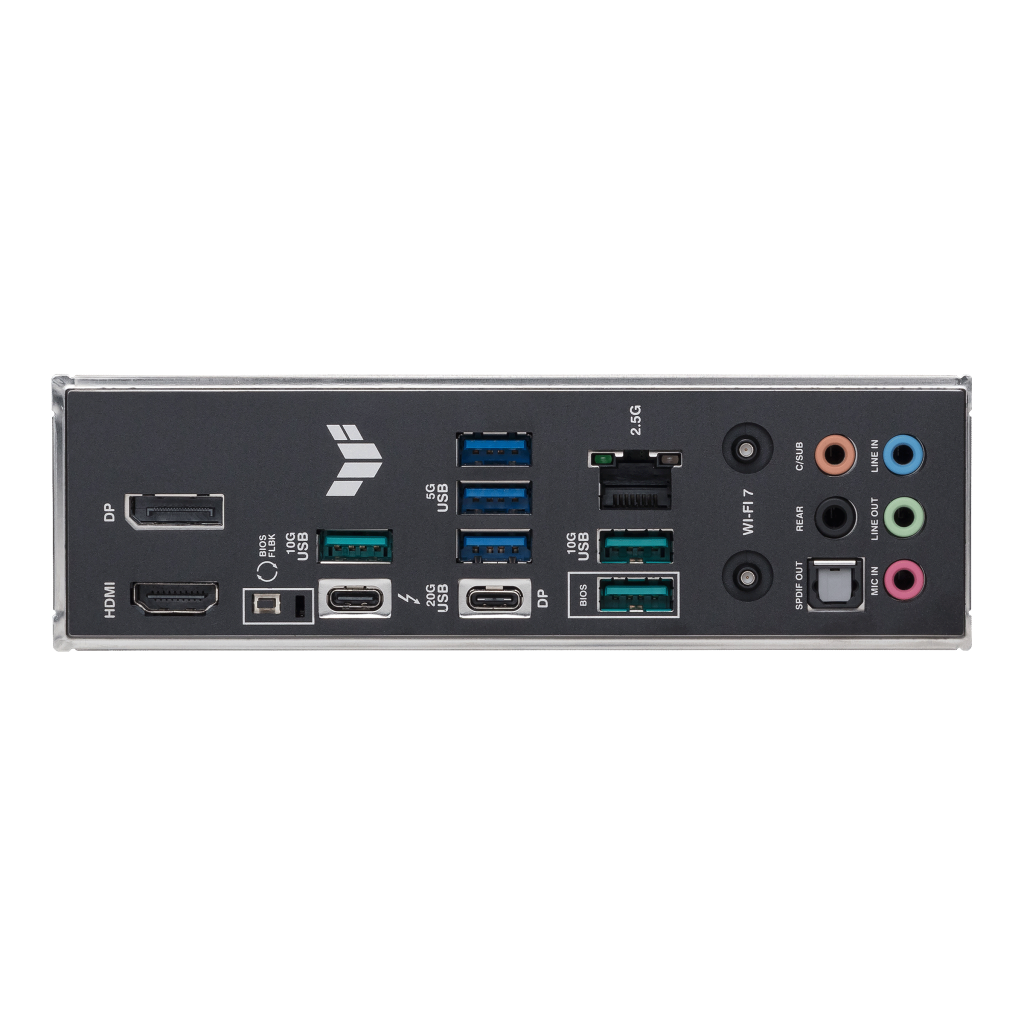

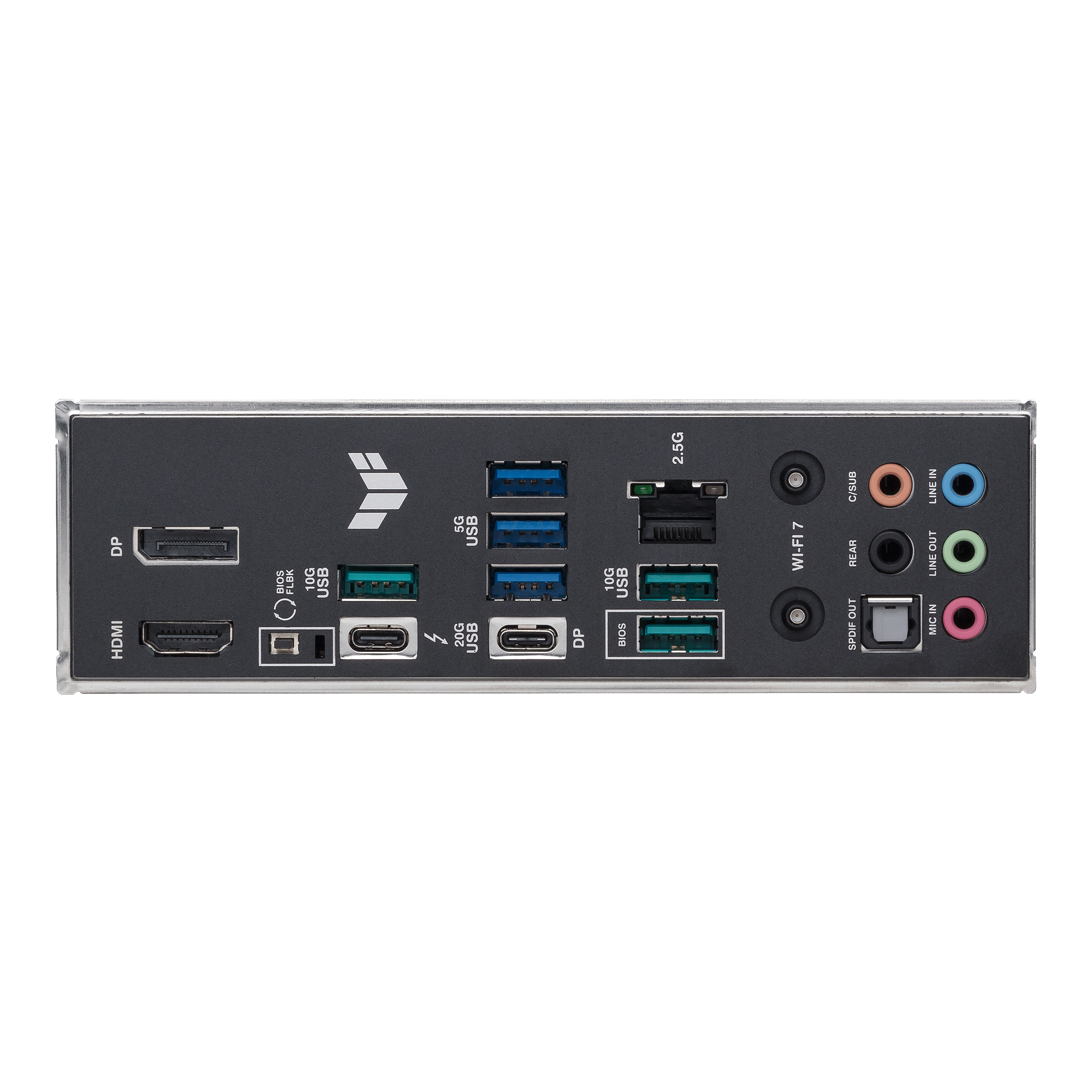

– External connectors:
– 1 x Thunderbolt 4 (USB-C)
– 1 x USB 3.2 (Type-C, USB 3.2 Gen 2×2, max. 20 Gbps)
– 3 x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 3 x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 1 x DisplayPort
– 1 x HDMI
– 1 x 2.5 Gigabit LAN
– 1 x Wi-Fi/Bluetooth module
– 5 x 3.5 mm jacks (Realtek ALC 4080)
– 1 x S/PDIF audio
– Power supply:
– 1 x 24-pin ATX
– 2x 8-pin ATX12V
– 1x 6-pin PCIe ATX
