As a basis for cheap notebooks and desktops, SoC-Mainboards are gladly seen. On the board in the Micro ATX format, an Intel Celeron J3455 processor and integrated graphics unit combine to create an economical package with very low TDP, which allows even a low-noise passive cooling. Thanks to the modern manufacturing process with 14 nm structure size, the J3455 has a good utilization of the clock space, which in turn sets a moderate performance increase compared to its predecessor. Above all, the energy efficiency was further increased compared to the predecessor.
As a basis for cheap notebooks and desktops, SoC-Mainboards are gladly seen. On the board in the Micro ATX format, an Intel Celeron J3455 processor and integrated graphics unit combine to create an economical package with very low TDP, which allows even a low-noise passive cooling. Thanks to the modern manufacturing process with 14 nm structure size, the J3455 has a good utilization of the clock s...
As a basis for cheap notebooks and desktops, SoC-Mainboards are gladly seen. On the board in the Micro ATX format, an Intel Celeron J3455 processor and integrated graphics unit combine to create an economical package with very low TDP, which allows even a low-noise passive cooling. Thanks to the modern manufacturing process with 14 nm structure size, the J3455 has a good utilization of the clock s...
No products found

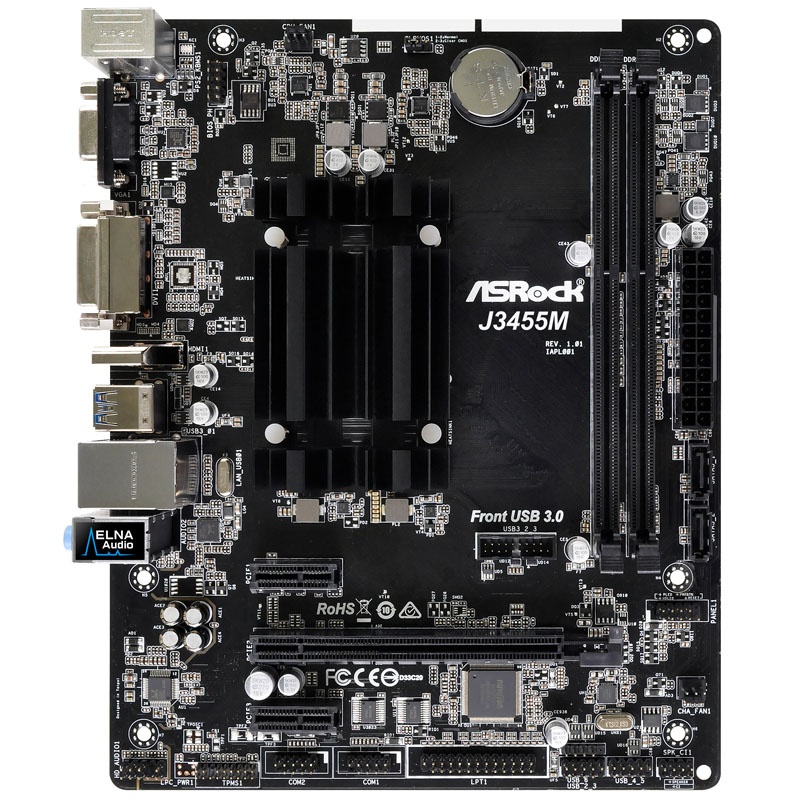

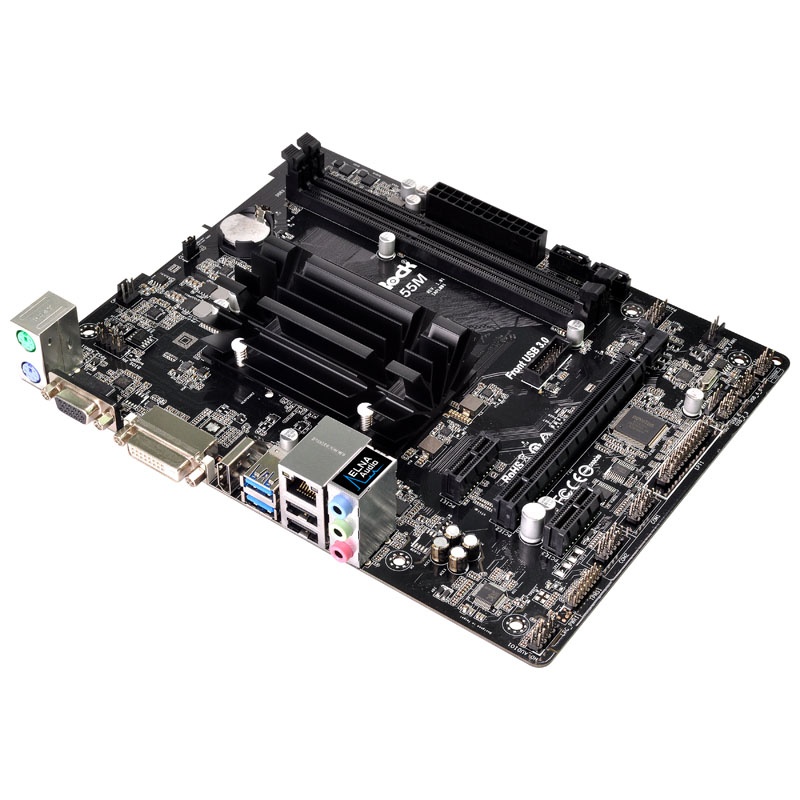

The SoC motherboard (system-on-a-chip) handles everyday applications with its quad-core processor with a clock rate of 1.5 GHz, which can be set to max. 2.3 GHz can be increased rapidly. The ASRock J3455-M motherboard is also available in a micro ATX format. Two memory slots (dual-channel) support DDR3 modules or energy-saving DDR3L RAM at a clock frequency of up to 1.833 MHz and can be used with a total capacity of up to 16 GB.
The HD-Graphics 500 supports DirectX 12 and, thanks to the advanced video unit, allows the playback of video in 4K / Ultra-HD resolutions and H.265 format. The clock rate of a maximum of 700 MHz does not allow you to play the latest gaming titles for 12 Execution Units, but for many Browsergames and older games this is more than sufficient. The DVI-D Dual Link (max. 1920 x 1200 @ 60 Hz) and D-Sub / VGA (max. 2048 x 1536) are available as video outputs with HDMI (maximum 3840 x 2160 @ 30 Hz or 2560 x 1600 @ @ 60 Hz) three connections are available.
The ASRock J3455-M also provides a PCIe 2.0 x16 and PCIe 2.0 x1 slot for each slot card. Two SATA-6G connectors are available for HDDs and SSDs. In addition to Realteks ALC887 audio chipset, ASRocks SoC motherboard features four USB 3.0 and seven -2.0 ports, one TPM, chassis intrusion, print port and two COM port headers, and many other features.
Technical details:
Format: Micro-ATX
Color: Black
Chipset: Intel SOC
Processor: Intel Celeron J3455 Quad-Core
SoC Graphics: Intel HD Graphics 500 (maximum 700 MHz clock rate, 8 GB VRAM)
RAM: 2 x DDR3 / DDR3L-DIMM (regular DDR3-1.833, max. 16GB)
Slots (physical):
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
Internal connections:
2 x SATA 6G
2 x USB 3.0 (one header)
5 x USB 2.0 (three headers)
1 x chassis intrusion header
1 x TPM
1 x print port header
2 x Serial Port (COM Header)
2 x fan (3-pin)
Power / Reset / LED / Front Audio
External connections:
2 x PS / 2 keyboard / mouse
4 x USB 3.0
2 x USB 2.0
1 x Gigabit LAN (Realtek RTL8111E)
1 x HDMI
1 x DVI-D (Dual Link)
1 x VGA
1 x S / PDIF
3 x Audio (Realtek ALC887)
Power supply:
1 x 24-pin EATX 12V
