The reservoir of aqualis series are equipped with a tube of borosilicate glass, which in contrast to the acrylic often used for tube reservoir has a very high hardness and scratch resistance, very low thermal expansion and excellent chemical and thermal resistance .
The reservoir of aqualis series are equipped with a tube of borosilicate glass, which in contrast to the acrylic often used for tube reservoir has a very high hardness and scratch resistance, very low thermal expansion and excellent chemical and thermal resistance .
The reservoir of aqualis series are equipped with a tube of borosilicate glass, which in contrast to the acrylic often used for tube reservoir has a very high hardness and scratch resistance, very low thermal expansion and excellent chemical and thermal resistance .

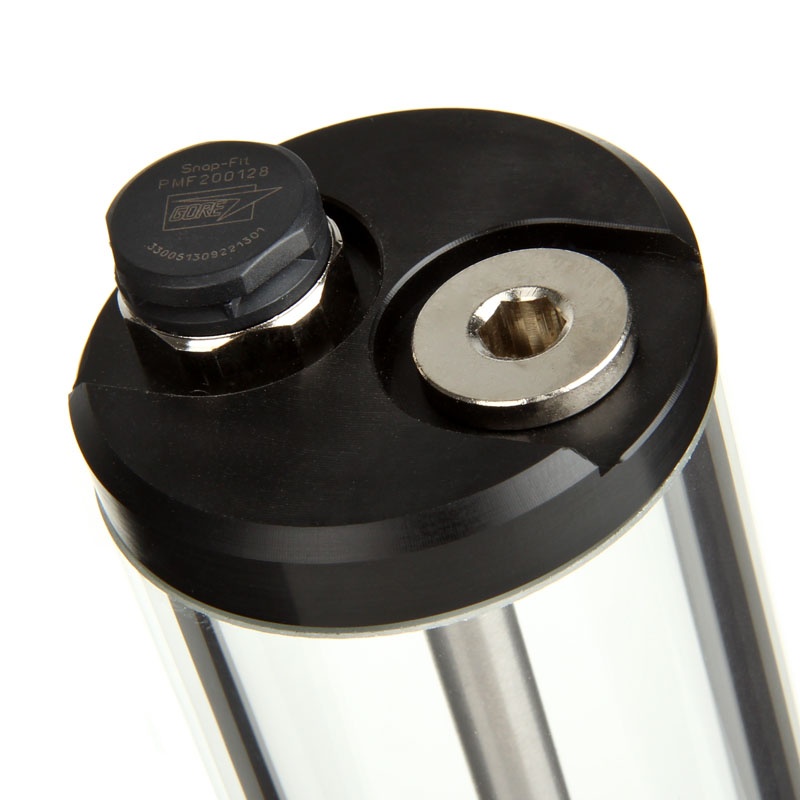

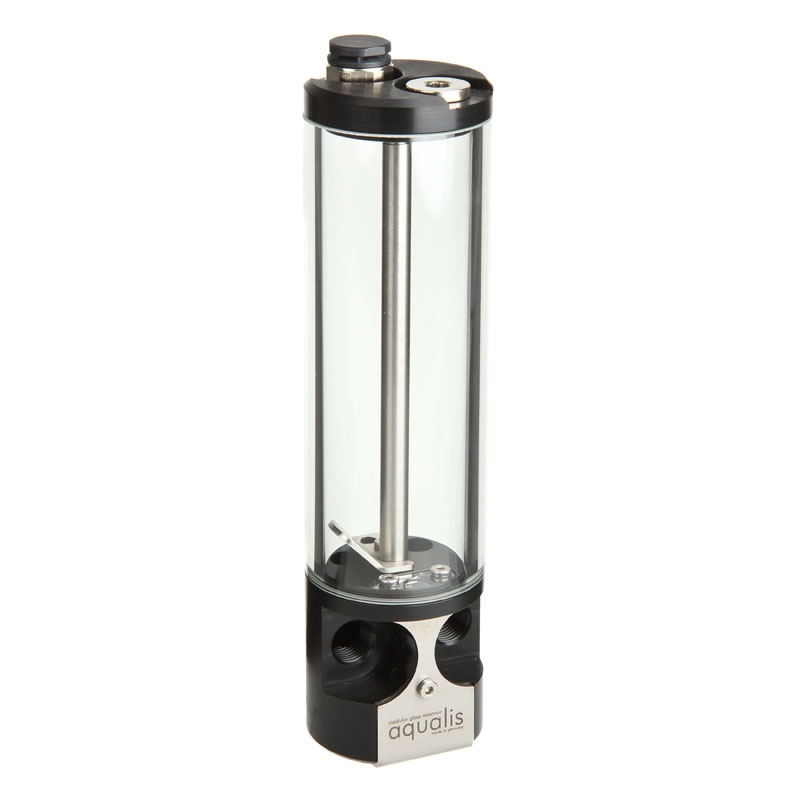

The glass tube of 150 ml variant has an outer diameter of 50 mm and a wall thickness of 5 mm. Base and lid of the aqualis series are made of Delrin , top and bottom are connected by a steel bar . A stainless steel baffle plate above the inflow in the reservoir provides good ventilation of the circuit.
The aqualis XT 150ml features a built- in base acrylic window and accommodates the installation of a LED ( type 5 mm, not supplied ) and is additionally equipped with an electronic level measurement with USB and aquabus interface , a configurable alarm output and an external temperature sensor input equipped . For monitoring and configuring the software can be downloaded aquasuite .
The four -pin aquabus interface allows direct connection to a Aquaero 5 Controller (not included) . The alarm output can be configured as a rpm signal for connection to a fan tachometer output signal evaluation (eg the mainboard ) or timer output , for example, to connect a LED in case of alarm .
To raise an alarm Fill level and external temperature sensor input. The external temperature sensor input is compatible with all offered by Aqua computer temperature sensors.
Technical details :
Material: Delrin , borosilicate glass
Dimensions without pump: 50 x 50 x 144 mm
Thread: 2x 1/ 4 inch
Filling volume: 150 ml
Scope of delivery:
Reservoirs
stainless steel bracket
Screw plug G1 / 4 ( pre-assembled)
Pressure equalization membrane ( pre-assembled)
internal USB connection cable
Fixings
£98.08£81.73 Inc VatEx Vat
