You want to upgrade your expansion tank of the aqualis and aquainlet 100 and 150 series with the aqua computer LEAKSHIELD?
- SKU: WAZU-1008
- MPN: 34147
- EAN: 4260473314196
B-Grade
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Aqua Computer LEAKSHIELD leakage protection system standalone - B-Grade
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Below is the original description for this product, any reference to warranty is to be ignored. Warranty for this item is 90 days as with all B-Grade items.
B-Grade items may have been used, have damaged packaging, missing accessories or a combination of these (Motherboards may be missing I/O shields, Watercooling items may have remains of distilled water in, from leak testing).
Earn 110 Points
We price match UK retailers. Try It Now!
- SKU: BG-DPTE-249
- MPN: 34138
- EAN: 4260473314066
- Warranty: 3 Months
Details
This item has been inspected and is fully functional. B-Grade items may show signs of previous handling.
Item opened but unused
– Negative pressure protects your hardware from water cooling leaks
– Useful functions such as system monitoring or automatic replenishment of coolants
– OLED display for control incl.

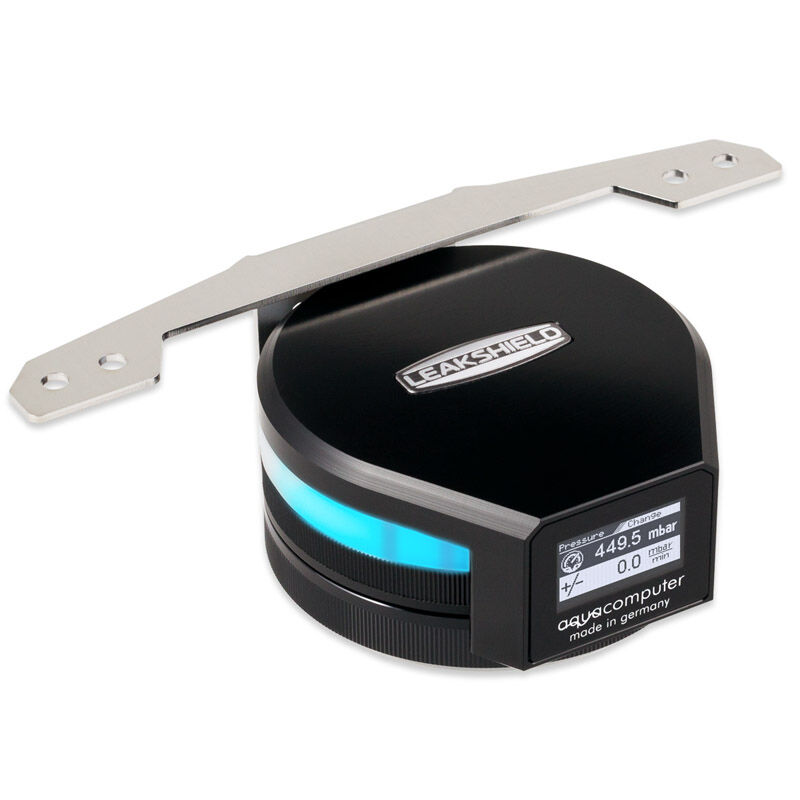

– Stainless steel bracket is included
The LEAKSHIELD leakage protection system for the ULTITUBE series with stainless steel bracket
Upgrade your WaKü system with aqua computers LEAKSHIELD function. You can use this to make your ULTITUBE leak-proof. LEAKSHIELD actively prevents leaks and continuously monitors the coolant circuit for errors. LEAKSHIELD replaces the cap and must be mounted at the top of the upright reservoir!
The function of the LEAKSHIELDS
What does LEAKSHIELD do? It creates a vacuum in the entire cooling system. This means that as soon as there is a leak, no coolant escapes. Instead, air is sucked into the system there. To ensure that there is a vacuum at every point in the circuit, you will need to adjust the vacuum depending on your coolant pump.
Any air that enters is pumped out of the system via the integrated vacuum pump of the LEAKSHIELD and the negative pressure is maintained. Only in the case of very large leaks, such as a completely torn hose, can coolant escape.
You have everything in view at all times
All status and sensor data are shown on the OLED display. The display can be rotated 360 degrees. The integrated, digital RGB LEDs serve various functions: you can set them so that the colors show you the status of the pump or you can customize them to your liking.
Via the USB interface of LEAKSHIELD and the aquasuite software you can check all data on the PC or control the leakage protection system instead of the display.
Attention: If you steer in the wrong direction or something goes wrong, a signal will alert you – it will also be shown on the display. In an emergency, LEAKSHIELD can force the PC to shut down!
Note: Check beforehand whether all your components are qualified for the vacuum process. Particularly soft, thin-walled hoses are not suitable!
Specifications
| Dimensions | |
| Without Bracket | Approx. 72 × 36 × 77 mm |
| With Bracket | Approx. 140 × 46 × 82 mm |
| Compatibility | |
| Supported Series | aqua computer ULTITUBE series |
| Performance | |
| Generated Negative Pressure | Up to −450 mbar |
| Electrical / System | |
| Operating Voltage | 5 V |
| Display | OLED, 128 × 64 pixels |
| Operating System | Windows 8.1 or newer |
| Connector | USB 2.0 Type A |
| Scope of Delivery | |
| Included Items | USB cable (approx. 100 cm) 2 × seals for expansion tank glass tube Stainless steel bracket Fastening material |
