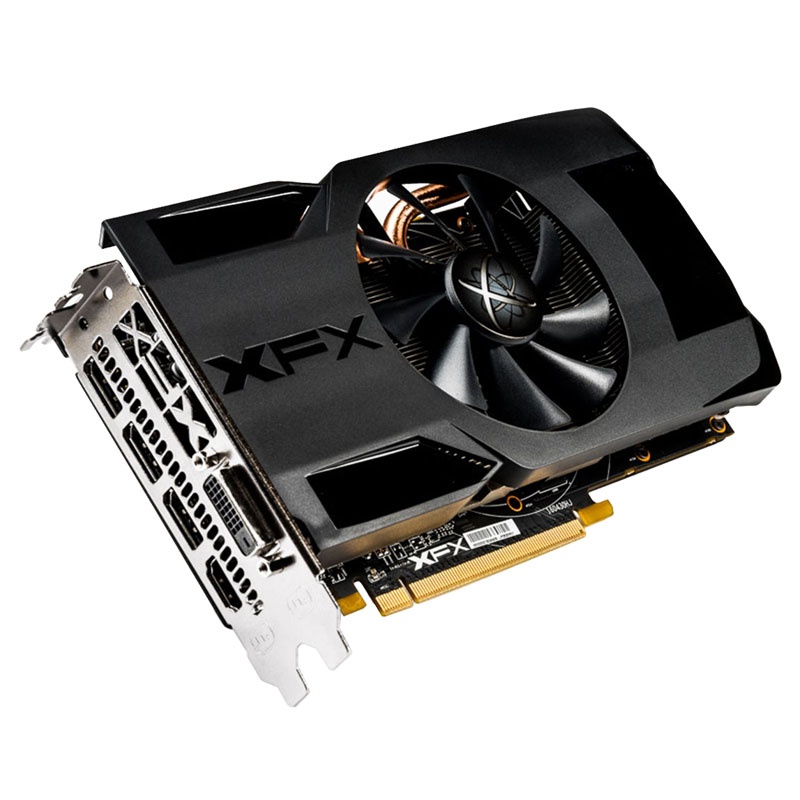

XFX Radeon RX 470 Single Fan, 4096 MB GDDR5

 Based on AMDs GCN architecture of the fourth generation and manufactured in 14-nm FinFET process, the Radeon RX 470 has a TDP of only 120 watts. According to AMD, the RX 470 in AAA titles build solid 60 frames per second (for example, GTA V, Rise of the Tomb Raider, Witcher 3).
The features of the XFX Radeon RX 470 Single Fan with 4096 MB GDDR5

Semi-passive single-fan cooler
4GB GDDR5 video RAM
1,226 MHz GPU clock
3,300 MHz (3,500 MHz) memory clock
1 x 6-pin power connector
Radeon RX 470 with factory OC and dual-fan cooler

The Polaris-10 Pro graphics chip Radeon RX 470 has 32 Compute Units with 2,048 shader units. The GPU of the XFX Radeon RX 470 Single Fan clocked at an average boost clock of 1,226 MHz. The 4 GB of video memory type GDDR5 clocked at 3,300 MHz (3,500 MHz) and are connected with a 256-bit memory interface to the GPU (graphics chip).

Thus, the full power of the graphics card can attack, it is important that the electronics of the card stays as cool as possible, therefore, commits XFX new high-performance heatsinks one which allow the direct transfer of heat from the primary heat sink on the heat pipes. In combination with the efficient single-fan design fresh air is thus blown through large aluminum heatsink and several nickel heatpipes. Thereby you card is very quiet and energy efficient. In addition, the graphics card is supplemented by a backplate in XFX design, which has given it extra stability and keeps heat map from the rest of the housing away.
14-nm FinFET and GCN 1.3: The AMD Radeon RX 470

The new 14-nm FinFET manufacturing process and large jumps in the control, low-power and clock speeds technologies make the Radeon RX 470 with a TDP of 120 watts very energy efficient, especially when compared with the previous models like the Radeon R9 390 (250 Watt TDP) compares. The 14-nm technology allows to accommodate more transistors on a smaller area, while at the same time decreases the energy requirement.

The Graphics Core Next architecture (GCN 1.3) fourth generation introduces features such as a command processor, a geometry processor, new multimedia cores, an optimized display engine and an improved memory controller. Other supported technologies include Async Compute, volcano, DirectX 12 and AMDs freesync technology.

Monitors can be connected via DisplayPort or HDMI to the graphics card. By Eyefinity technology up to four monitors can be connected in a multi-display setup. The HDMI connection in standard 2.0b transmits 4K / UHD resolution at 60 hertz and has HDCP 2.2 to send and receive encrypted signals.

In order to exploit the full potential of the card in the future, new drivers from AMD or XFX should be downloaded and installed at regular intervals.
Graphics Card Exchange without waiting for Caseking!

During the warranty period of 2 years from receipt of the goods are at Caseking of retail entitled complaining graphics cards – that is, those with a confirmed defect of us – all brands listed below directly exchanged against virgin (if in stock). A submission of the defective goods to the manufacturer and related longer waiting times thus completely eliminated! If the graphics card to be replaced is no longer in stock or available, so a credit issued by us. Then can thus be freely selected from our range an alternative graphics card. Here incurred extras are easily been settled and any resulting excess payment shall be refunded by us.

What do I do with failures of my graphics card? -> Graphics Card immediate replacement if defective (click here)

Brands: ASUS, Club 3D, EVGA, Gigabyte, Inno3D, Palit, PNY, PowerColor, Sapphire, VTX3D, XFX, ZOTAC & King Mod
Free Games for gaming AMD Radeon graphics cards:

Each Purchased at Caseking games graphics card will be the associated Coupon codes in the latest game bundles. Not eligible products are not accompanied by vouchers. All promotions are limited and only valid while stocks last or will be finished by the offer. The decision is final. Subsequently all currently active coupon actions are listed by AMD:
Currently there are currently no active games Bundles for AMD Radeon graphics cards.

Technical details:
Dimensions: 220 x 40 x 121 mm (W x H x D)
Height: 2-Slot
GPU: AMD Radeon RX 470 ( Polaris-10-Pro)
Production: 14 nm FinFET
Boost clock: 1.226 MHz
Shader units: 2,048
Memory Size: 4096 MB
Memory clock: 3,300 (6,600) MHz
Type: GDDR5
Memory interface: 256-bit
Slot: PCIe 3.0 x16
Connections:
3 x DisplayPort (V1.4 ready)
1 x HDMI 2.0b
1 x DVI-D Dual-Link
TDP: 120 Watt
Power supply: 1 x 6-pin PCIe
Recommended power supply capacity: min. 500 Watt
Features: GCN 4th gen, DirectX 12, volcano, OpenGL 4.5, OpenCL 2.1, Mantle, Eyefinity 2.0, CrossFireX, HD3D, True Audio, freesync, HDR-Ready
